You will see that the chip epm3512aqc208-10 is a strong CPLD for digital system design. This device has many macrocells and lots of I/O pins. These features give you more choices for your projects. Here is how it matches up with other devices:
| CPLD Model | Number of Macrocells | Number of I/Os |
|---|---|---|
| EPM3512AQC208-10 | 512 | 208 I/O |
| EPM3512AFC256-10N | 512 | 172 I/O |
| EPM3512AQC208-7 | 512 | 172 I/O |
You can program the chip epm3512aqc208-10 right on your board. This lets you update your device fast. This feature makes the device great for digital system design. You can change or fix your device after you use it. The chip epm3512aqc208-10 works in many areas, like communications, industrial, medical, and military fields. You get a device that is fast, flexible, and works well.
Key Takeaways
-
The EPM3512AQC208-10 chip has 512 macrocells and 208 I/O pins. This makes it good for hard digital designs.
-
In-system programmability lets you update the chip without taking it out. This saves time and work when you build your project.
-
This chip works with a fast delay time of 10 nanoseconds. It gives a quick response for tough jobs.
-
Its small size fits well in small spaces. This makes it useful in many areas like communications, industrial, and medical.
-
Be careful when you handle the chip to stop moisture damage. This helps your projects work well.
About chip epm3512aqc208-10
Overview
The epm3512aqc208-10 is a programmable logic device. It is part of the CPLD group. This chip has many macrocells and lots of I/O pins. You can use it for hard digital designs. The epm3512aqc208-10 has a delay time of 10 nanoseconds. This means circuits can work fast. You can update the chip on your board. You do not need to take it out. This makes it easy to change things.
Here is a table that lists some main features of the epm3512aqc208-10:
| Feature | Description |
|---|---|
| High Logic Capacity | The epm3512aqc208-10 has many macrocells for hard logic work. |
| In-System Programmability | You can update it on the board for more design choices. |
| Compact Design | Its small size helps in many uses. |
The epm3512aqc208-10 gives you speed and choices. You can change your design when you need to. You do not have to get new hardware each time you want to improve.
Product Family
The epm3512aqc208-10 is in the Max 3000A family. This family is known for good speed and saving power. You can use the epm3512aqc208-10 in many digital projects. The chip is good for small spaces. Its small size helps you make tiny devices. You can also update it on your board. This lets you fix or change your project without big hardware swaps.
-
The epm3512aqc208-10 is made for easy changes and saving power in digital projects.
-
It gives good speed and is easy to use, so you can change your project without big hardware swaps.
-
Its small size is great for places with little space.
-
You can update or fix your setup as needed with in-system programmability.
The Max 3000A family works in many fields. You can use these chips in communications, factories, hospitals, and the military. The epm3512aqc208-10 is a good pick for many projects.
Typical Uses
You can use the epm3512aqc208-10 in many ways. This chip is good when you need fast work and flexible logic. You might use it in control systems, signal work, or custom logic. You can change your design as your project grows.
Here is a table that shows the delay time of the epm3512aqc208-10 and other chips:
| CPLD Model | Delay Time (ns) |
|---|---|
| epm3512aqc208-10 | 10 |
| epm3512aqc208-7N | 7.5 |
| epm3512afi256-10 | 10 |
The epm3512aqc208-10 has a fast delay time. This makes it good for jobs that need quick action. You can also update the chip as your needs change. You do not have to stop your system or take out the chip. This saves you time and work.
Tip: If you pick the epm3512aqc208-10, you get a chip that can change with your needs. You can use it in many fields. You can also update it easily with in-system programmability.
Features and Specs
epm3512aqc208-10 features
The EPM3512AQC208-10 has many strong features. This programmable device helps you build hard digital systems. You can use it in projects that need speed and flexibility. Here are the main features you should know:
-
It has 512 macrocells for hard logic jobs.
-
You can update it on your board with in-system programmability.
-
It works fast with a delay time of 10 nanoseconds.
-
The chip has 32 logic array blocks and up to 10,000 gates.
-
There are 172 I/O pins for many connections.
-
It runs well with a supply range from 3V to 3.6V.
-
It works safely from 0°C to 70°C.
-
The 208-pin BFQFP package is small and easy to mount.
-
You must handle it with care because it is sensitive to moisture.
Note: In-system programmability lets you change your design without taking out the device. This saves you time and makes your project easier to change.
These features help you get good performance from your device. You can use the EPM3512AQC208-10 in many places, like factories, communication, and medical systems.
Technical Specs
You need to know the technical specs to use this device well. The EPM3512AQC208-10 gives you strong and steady work. Here is a table that shows the main specs:
| Product Attribute | Attribute Value |
|---|---|
| Manufacturer | Intel |
| Voltage Supply - Internal | 3V ~ 3.6V |
| Supplier Device Package | 208-PQFP (28x28) |
| Package / Case | 208-BFQFP |
| Package | Tray |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Number of Macrocells | 512 |
| Number of Logic Elements | 32 |
| Number of I/O | 172 |
| Number of Gates | 10,000 |
| Mounting Type | Surface Mount |
| Delay Time tpd(1) Max | 10 ns |
This device supports in-system programmability and works well in many places. The programmable features help you change your design when you need to. You can trust this device to work well in your digital systems.
Handling Notes
When you use the EPM3512AQC208-10, you must follow some rules. This device does not like moisture. Always keep it in a dry place. Use anti-static bags and keep it sealed until you need it.
-
Always wear an anti-static wrist strap when you touch the device.
-
Store it in a bag that keeps out moisture.
-
Do not touch the pins with your fingers.
-
Keep it at room temperature and away from sunlight.
Tip: If you follow these steps, your device will stay safe and work well.
You can trust the EPM3512AQC208-10 if you handle it with care. The features, specs, and tips help you get the best from this device. In-system programmability, high speed, and strong features make it a great choice for digital projects.
Applications
Industrial
The EPM3512AQC208-10 is used in many factories. It helps control machines and factory systems. You can use it for robots and motor control. It also works for process automation. The device works well when temperatures change. You can trust it to keep things running. Its high logic capacity helps with hard jobs. You can update it without stopping machines. This makes work easier and safer.
Tip: You can change your system’s logic as your factory grows. You can make updates fast and do not need new hardware.
The EPM3512AQC208-10 works well for a long time in factories. You can rely on it in many places.
Communications
This device is used in many communication systems. It helps build network switches and routers. You can also use it for signal converters. The device supports fast data transfer. It can process things in real time. You can update your logic to fix problems. You can also match new standards. This makes your systems more flexible. The device connects to many other parts. You can design custom solutions.
-
Use it in wireless base stations.
-
Add it to network hubs.
-
Build custom data links.
This device fits many types of communication equipment. It helps you keep up with new technology.
Medical and Military
The EPM3512AQC208-10 is used in medical and military fields. You can use it in patient monitors and imaging systems. It also works in portable medical devices. You can change your design to meet new needs. In the military, you can use it for secure communications. It also helps with control systems. The device is fast and reliable. It helps you meet strict standards.
Note: You can trust this device in important jobs. It is good for safety and accuracy.
The EPM3512AQC208-10 supports many important uses. Its flexibility and strong features make it a top choice.
Pros, Cons, Alternatives
Advantages
The EPM3512AQC208-10 gives you many good things. It has lots of logic power and works fast. You can connect it to many other parts. You do not need to take it off the board to update it. The small size helps it fit in tight spaces. Here is a table that shows the main advantages:
| Feature | Description |
|---|---|
| High Logic Capacity | 512 macrocells and 10,000 gates for complex designs |
| In-System Programmability | Update without replacing hardware |
| Fast Response Time | 10 ns delay for quick operations |
| I/O Connectivity | 172 I/O pins for flexible connections |
| Compact Package | 208-BFQFP package saves board space |
Tip: This device works in many areas. It can change fast and connects with lots of equipment.
Drawbacks
There are some things you should think about first. The price is more than other CPLDs like it. You must be careful because it does not like moisture. The number of I/O pins may not work for every project. You might need extra protection if the place is tough.
-
Costs more than similar CPLDs
-
Sensitive to moisture and static
-
Needs special care when you store or use it
Alternatives

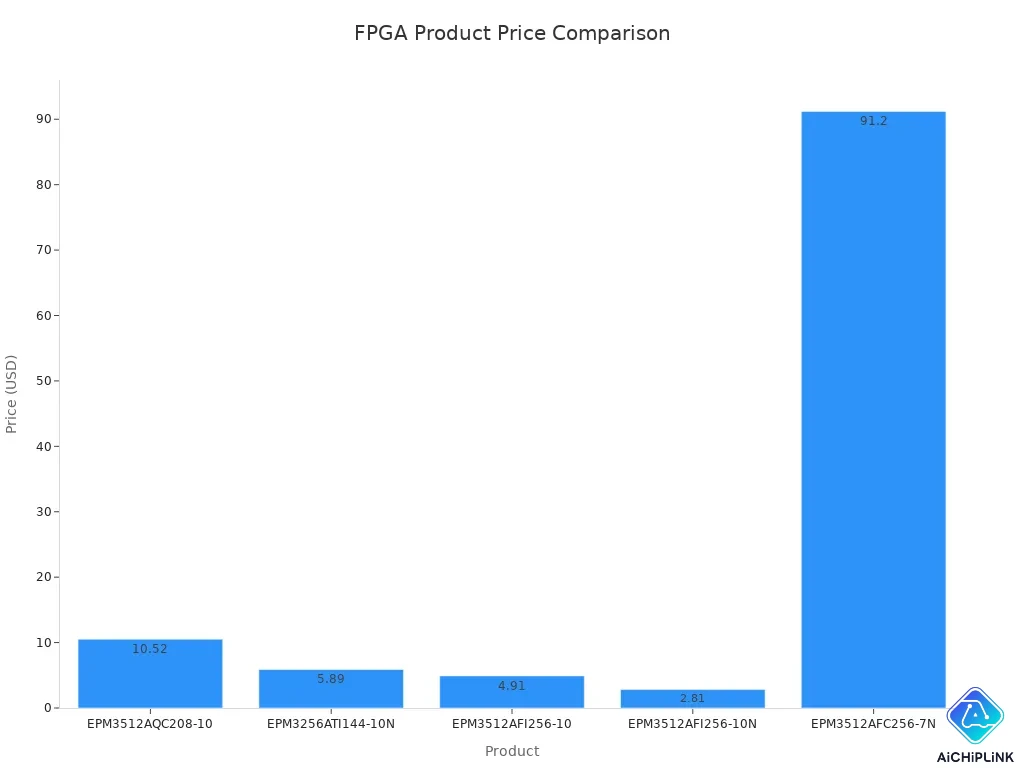

You can choose other devices if this one does not work for you. Some cost less and have close features. You can look at prices and specs to find what fits best. Here is a table with price comparisons:
| Product | Price |
|---|---|
| EPM3512AQC208-10 | $10.52 |
| EPM3256ATI144-10N | $5.89 |
| EPM3512AFI256-10 | $4.91 |
| EPM3512AFI256-10N | $2.81 |
| EPM3512AFC256-7N | $91.20 |
Pick a device that fits your budget and project. Always check the specs and handling tips before you choose.
You get a chip that is fast and easy to use. The EPM3512AQC208-10 works in many areas. It is used in telecommunications, cars, and factories. You can change your design right on the board. This helps if your project needs to grow or change.
| Distributor | Availability | Lead Time |
|---|---|---|
| Altera Corporation | In Stock | Immediate delivery |
Always follow the handling tips. This keeps your chip safe for your next project.
