SGM800-2.93YN5G: Technical Guide to SGMICRO's 2.93V Voltage Detector

Introduction

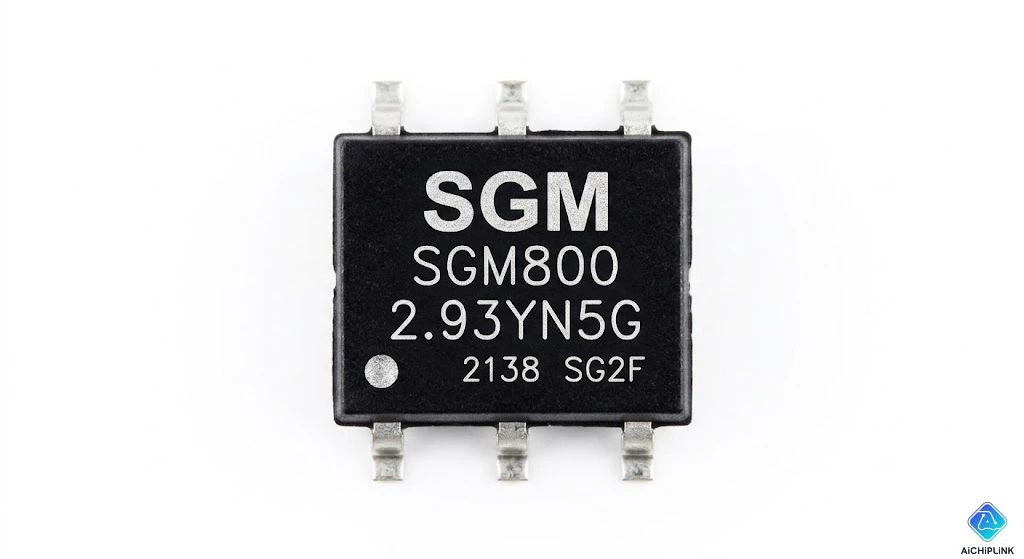

The SGM800-2.93YN5G is a precision voltage detector (voltage supervisor) manufactured by SGMICRO, featuring 2.93V detection threshold with high accuracy (±1.5%), ultra-low supply current (0.5 μA typical), and active-low reset output in compact SOT-23-5 package, designed for microcontroller reset generation, battery monitoring, and power supply supervision in portable and battery-powered applications.

This voltage detector monitors supply voltage and asserts reset signal when voltage drops below 2.93V threshold, ensuring reliable system operation during power-up, power-down, and brownout conditions. With wide operating range (0.7V to 6.0V) and minimal power consumption, it enables robust power management in IoT devices, wearables, and battery-operated systems.

---

Technical Overview

Core Specifications

Parameter	Specification
Detection Voltage	2.93V (Vth)
Accuracy	±1.5%
Supply Current	0.5 μA typical
Output Type	Active-low (open-drain)
Reset Delay	200ms typical
Operating Voltage	0.7V to 6.0V
Package	SOT-23-5
Operating Temp	-40°C to +85°C

Part Number Decoder

SGM800-2.93YN5G:

• SGM800 = Voltage detector family
• 2.93 = Detection threshold (2.93V)
• Y = Output configuration (active-low)
• N5 = SOT-23-5 package
• G = Green (halogen-free)

Key Features

Ultra-Low Power:

• 0.5 μA supply current
• 10-100× lower than competitors
• Extends battery life significantly

High Accuracy:

• ±1.5% detection threshold tolerance
• 2.93V ±44mV (2.886V to 2.974V)
• Reliable voltage monitoring

Built-in Delay:

• 200ms reset delay (typical)
• Prevents false resets during transients
• Ensures stable power before release

Wide Operating Range:

• 0.7V to 6.0V supply voltage
• Works below detection threshold
• Suitable for battery applications

---

Complete Specifications

Electrical Characteristics

Parameter	Min	Typ	Max	Unit
Detection Voltage (Vth)	2.886	2.93	2.974	V
Hysteresis	-	100	-	mV
Supply Current	-	0.5	1.0	μA
Output Voltage Low	-	-	0.3	V
Output Leakage	-	-	0.1	μA
Reset Timeout	140	200	280	ms

Operating Conditions

Parameter	Value
Supply Voltage (VDD)	0.7V to 6.0V
Operating Temperature	-40°C to +85°C
Storage Temperature	-65°C to +150°C

Pin Configuration (SOT-23-5)

Top View:

    VDD  1 ●─────● 5  RESET
         │       │
    GND  2 ●     │
         │       │
    NC   3 ●─────● 4  NC

Pin 1: VDD (Supply voltage)
Pin 2: GND (Ground)
Pin 3: NC (No connect)
Pin 4: NC (No connect)
Pin 5: RESET (Output, active-low)

---

Application Circuits

1. Basic Microcontroller Reset

Microcontroller Reset Circuit:

VDD (3.3V) ──┬─── MCU VDD
             │
             ├─── SGM800-2.93YN5G
             │    Pin 1 (VDD)
             │
            ═╪═ 0.1μF
             │
            GND ─── Pin 2 (GND)

Pin 5 (RESET) ───┬─── MCU RESET pin
                 │
                10kΩ
                 │
                VDD

Function: Holds MCU in reset until VDD > 2.93V + 200ms

Design Notes:

• Pull-up resistor (10kΩ typical) required for open-drain output
• Bypass capacitor (0.1μF) near VDD pin
• Reset released when VDD rises above 2.93V and stabilizes

2. Battery Low-Voltage Detection

Battery Monitor:

Battery ──┬─── SGM800-2.93YN5G (VDD)
          │
         ═╪═ 1μF
          │
         GND

RESET ───► Interrupt to MCU
           (Low battery warning)

Threshold: 2.93V
Hysteresis: 100mV
Action: MCU enters low-power mode

Application:

• Li-ion battery monitoring (single cell: 2.7-4.2V)
• Alert system before critical shutdown
• Graceful power-down sequence

3. Power Supply Supervision

3.3V Rail Monitoring:

3.3V Rail ──┬─── SGM800-2.93YN5G
            │
           ═╪═ 0.1μF
            │
           GND

RESET ──► System Enable/Disable

If 3.3V drops below 2.93V:
- RESET goes LOW
- Disable system operation
- Prevent data corruption

4. Multiple Voltage Supervision

Multi-Rail Monitoring:

VDD1 (3.3V) ──► SGM800-2.93YN5G ──► RESET1
VDD2 (3.3V) ──► SGM800-2.93YN5G ──► RESET2

Combined Reset:
RESET1 ──┬──┐
         │  OR gate ──► System RESET
RESET2 ──┘

Monitors multiple rails independently

---

Design Guidelines

Component Selection

Pull-up Resistor:

• Value: 10kΩ - 100kΩ
• Lower (10kΩ): Faster rise time, higher current
• Higher (100kΩ): Lower current, slower rise time
• Recommended: 47kΩ for balance

Bypass Capacitor:

• Value: 0.1μF ceramic
• Location: Within 5mm of VDD pin
• Type: X7R or X5R (stable)

PCB Layout

Placement:

• Place near power input
• Close to MCU reset pin
• Short traces minimize noise coupling

Routing:

• VDD trace: Wide, short, direct
• GND: Solid ground plane connection
• RESET: Keep away from noisy signals

Threshold Selection

SGM800 Family Voltages:

• Available: 1.5V to 5.0V (0.1V steps)
• SGM800-2.93YN5G: 2.93V threshold
• Select based on minimum operating voltage

For 3.3V Systems:

• Nominal: 3.3V
• Minimum: 2.97V (10% tolerance)
• 2.93V detector: Good margin (40mV below min)

---

Comparison and Selection

SGM800 Family

Part Number	Threshold	Output	Application
SGM800-1.8YN5G	1.8V	Active-low	1.8V systems
SGM800-2.5YN5G	2.5V	Active-low	2.5V systems
SGM800-2.93YN5G	2.93V	Active-low	3.3V systems
SGM800-3.08YN5G	3.08V	Active-low	3.3V (higher margin)
SGM800-4.63YN5G	4.63V	Active-low	5V systems

Competitive Alternatives

Manufacturer	Part Number	Threshold	Supply Current	Package
SGMICRO	SGM800-2.93YN5G	2.93V	0.5 μA	SOT-23-5
TI	TPS3809I25	2.93V	7 μA	SOT-23-3
Microchip	MCP130-300	2.93V	1 μA	SOT-23-3
Diodes Inc	APX809-29	2.93V	1 μA	SOT-23-3

SGM800-2.93YN5G Advantages:

• Ultra-low power (0.5 μA vs 1-7 μA)
• High accuracy (±1.5%)
• Cost-competitive
• Green packaging (halogen-free)

Conclusion

The SGM800-2.93YN5G delivers precision voltage supervision for 3.3V systems with industry-leading ultra-low power consumption (0.5 μA), high accuracy (±1.5%), and built-in 200ms reset delay in compact SOT-23-5 package. Ideal for battery-powered IoT devices, wearables, and portable instruments requiring reliable reset generation with minimal current drain.

Key Advantages:

✅ Ultra-Low Power: 0.5 μA extends battery life
✅ High Accuracy: ±1.5% threshold tolerance
✅ Built-in Delay: 200ms prevents false resets
✅ Wide Range: 0.7-6V operating voltage
✅ Compact: SOT-23-5 package
✅ Cost-Effective: Competitive alternative to TI/Microchip
