Current transducers: types, applications, and selection criteria

Current transducer types, applications, and selection criteria explained to help you choose the best device for accurate current measurement and control.

Components & Parts

Current transducers: types, applications, and selection criteria

A current transducer converts electrical current into a standardized signal for precise measurement and control. Accurate current measurement drives safety, efficiency, and reliability in industrial automation, renewable energy, and electric vehicle applications. The market for current transducers reached USD 2.3 billion in 2024, expanding as industries demand advanced monitoring. Both analog and digital types support diverse applications, from process control to real-time monitoring.

Current transducers remain essential for monitoring and managing electrical systems.

Key Takeaways

  • Current transducers convert electrical current into standard signals for accurate measurement and control in many industries.

  • Different types of transducers, like Hall effect, inductive, Rogowski coil, fluxgate, and split core, suit specific needs and environments.

  • Choosing the right transducer depends on current type, accuracy, environment, output signal, installation, and compliance requirements.

  • Current transducers play vital roles in industrial automation, power monitoring, renewable energy, electric vehicles, and building automation.

  • Proper selection and installation of current transducers improve safety, efficiency, and reliability in electrical systems.

What is a Current Transducer?

Definition

A current transducer is a device that converts alternating or direct current into a proportional electrical signal, such as 4–20 mA or 0–10 Vdc. According to the IEC 60688:2021 standard, a current transducer transforms AC or DC current into an analog or digital output signal that matches the input current. This process allows for accurate measurement and control in many applications. The device typically contains a sensor, a conversion component, a conversion circuit, and a power circuit.

Note: Transducers differ from other measurement instruments. Instruments display or report measured values, while transducers focus on converting one form of energy into another. For example, a current sensor detects the electromagnetic field from a current and the transducer converts this into a usable signal for monitoring systems.

The table below shows typical technical specifications for current transducers based on industry standards:

ParameterTypical Range / Value
Accuracy±0.3% to ±3.5% of reading
Phase Error±0.7° to ±5°
Bandwidth2 Hz to 10 kHz
Resolution0.001 A to 0.5 A
Overload Capability1.3 to 1.5 times nominal current
Conductor Position Sensitivity≤ 0.1% to ≤ 0.5% of reading
Influence of Crest Factor≤ 1% to ≤ 3%
Temperature Coefficient±0.015% to ±0.2% per °C
Influence of Frequency<10% deviation within 20 Hz to 10 kHz

Function

Current transducers play a key role in both measurement and control systems. They sense the electromagnetic field produced by the input current using a current sensor. The transducer then converts this field into a small output signal. This signal is processed into a standard electrical output, which can be read by monitoring equipment or control systems.

Current transducers appear in many real-world applications. For example, shunt resistors use Ohm’s law to measure current, while Rogowski coils and current transformers use electromagnetic principles. Hall effect sensors and magnetic flux gate sensors offer solutions for both AC and DC current measurement. These devices are found in inverters, motor controllers, battery management systems, and process control equipment.

In industrial environments, current transducers often use 4-20 mA current loops. This method works well for long cable runs and areas with high electromagnetic interference. The design ensures reliable measurement and control, even in harsh conditions.

Current transducers provide isolation, accuracy, and flexibility. They help engineers monitor and manage electrical systems safely and efficiently.

Types of Current Transducers

Current transducers come in several types, each designed for specific measurement needs and environments. Understanding these types helps users select the right sensor for their application, ensuring both reliability and energy efficiency.

Hall Effect

Hall effect transducers use the Hall effect principle, where a magnetic field created by current flow generates a voltage across a semiconductor. This voltage is proportional to the current passing through the conductor. The sensor detects this voltage and the transducer converts it into a standard output signal.

Key Features:

  • Working Principle: The sensor measures the magnetic field from the current and produces a voltage output.

  • Advantages:

    • Measures both AC and DC currents.

    • Offers electrical isolation between the measured circuit and the output.

    • Fast response times, with devices like the A3515 and A3516 showing speeds of 25–40 microseconds.

    • Low hysteresis errors (about 1%) when using linear Hall sensor ICs with gapped toroids.

  • Disadvantages:

    • Sensitive to temperature changes, which can affect accuracy.

    • Open-loop designs may struggle with small current variations due to temperature and hysteresis.

    • Quiescent output voltage (DC offset) can impact measurement accuracy if not calibrated.

  • Ideal Applications:

    • Motor drives, battery management, power supplies, and renewable energy systems.

Hall effect transducers provide a balance of speed and versatility. They work well in environments where both AC and DC current measurement is needed.

Inductive

Inductive current transducers, often called current transformers, use electromagnetic induction to sense AC current. The sensor consists of a primary winding (the conductor carrying current) and a secondary winding. When AC flows through the primary, it induces a proportional current in the secondary.

Comparison Table:

Sensor TypeBandwidthDC CapabilityAccuracy RangeThermal Drift (ppm/K)IsolationCurrent RangePower LossRelative CostTypical Size
Current TransformerkHz to MHzNo0.1% - 1%<100YesA to kAmWLowMedium

Key Features:

  • Working Principle: Uses electromagnetic induction to convert AC current into a measurable signal.

  • Advantages:

    • High accuracy for AC current measurement.

    • Low power loss and good electrical isolation.

    • Suitable for high current ranges.

  • Disadvantages:

    • Cannot measure DC current.

    • May suffer from core saturation and hysteresis.

    • Limited detection range for some applications.

  • Ideal Applications:

    • Power monitoring, industrial automation, and motor control.

Inductive current transducers remain popular in power systems and industrial settings. Their reliability and low cost make them a common choice for measuring large AC currents.

Rogowski Coil

Rogowski coil transducers use a flexible, air-core coil wrapped around the conductor. The sensor detects the changing magnetic field from AC current and produces a voltage proportional to the rate of change of current. An integrator circuit then reconstructs the actual current waveform.

Key Features:

  • Working Principle: The coil senses the magnetic field from the current and outputs a voltage signal, which the transducer integrates to measure current.

  • Advantages:

    • No magnetic core, so no saturation or hysteresis.

    • Flexible and easy to install around large or awkwardly shaped conductors.

    • Wide bandwidth, suitable for measuring fast transients and high-frequency currents.

    • Minimal influence from off-center conductor positioning and external magnetic fields.

  • Disadvantages:

    • Cannot measure DC current.

    • Lower sensitivity compared to other types.

    • Requires an electronic integrator for accurate measurement.

  • Ideal Applications:

    • Power quality analysis, lightning current measurement, and monitoring of large industrial equipment.

Rogowski coil transducers excel in environments with high-frequency or transient currents. Their design allows for easy installation and calibration by adjusting coil windings and integrator settings.

Fluxgate

Fluxgate current transducers use a magnetic core and excitation winding to detect current. The sensor operates by driving the core into magnetic saturation and measuring the resulting changes in magnetic flux. Closed-loop fluxgate designs offer high accuracy and stability.

Key Features:

  • Working Principle: The sensor detects changes in magnetic flux caused by current, and the transducer converts this into a precise output signal.

  • Advantages:

    • Extremely high accuracy, with linearity errors as low as 6 ppm and absolute accuracy of ±0.1%.

    • Measures both AC and DC currents up to 300 A.

    • Stable performance across a wide frequency range (up to 5 kHz).

    • Excellent sensitivity, even with complex harmonic currents.

  • Disadvantages:

    • Higher cost compared to simpler types.

    • More complex design and calibration.

  • Ideal Applications:

    • Laboratory measurements, precision power analysis, and regulatory compliance testing.

Fluxgate transducers are the preferred choice when accuracy and sensitivity are critical. They perform well in demanding industrial and research environments.

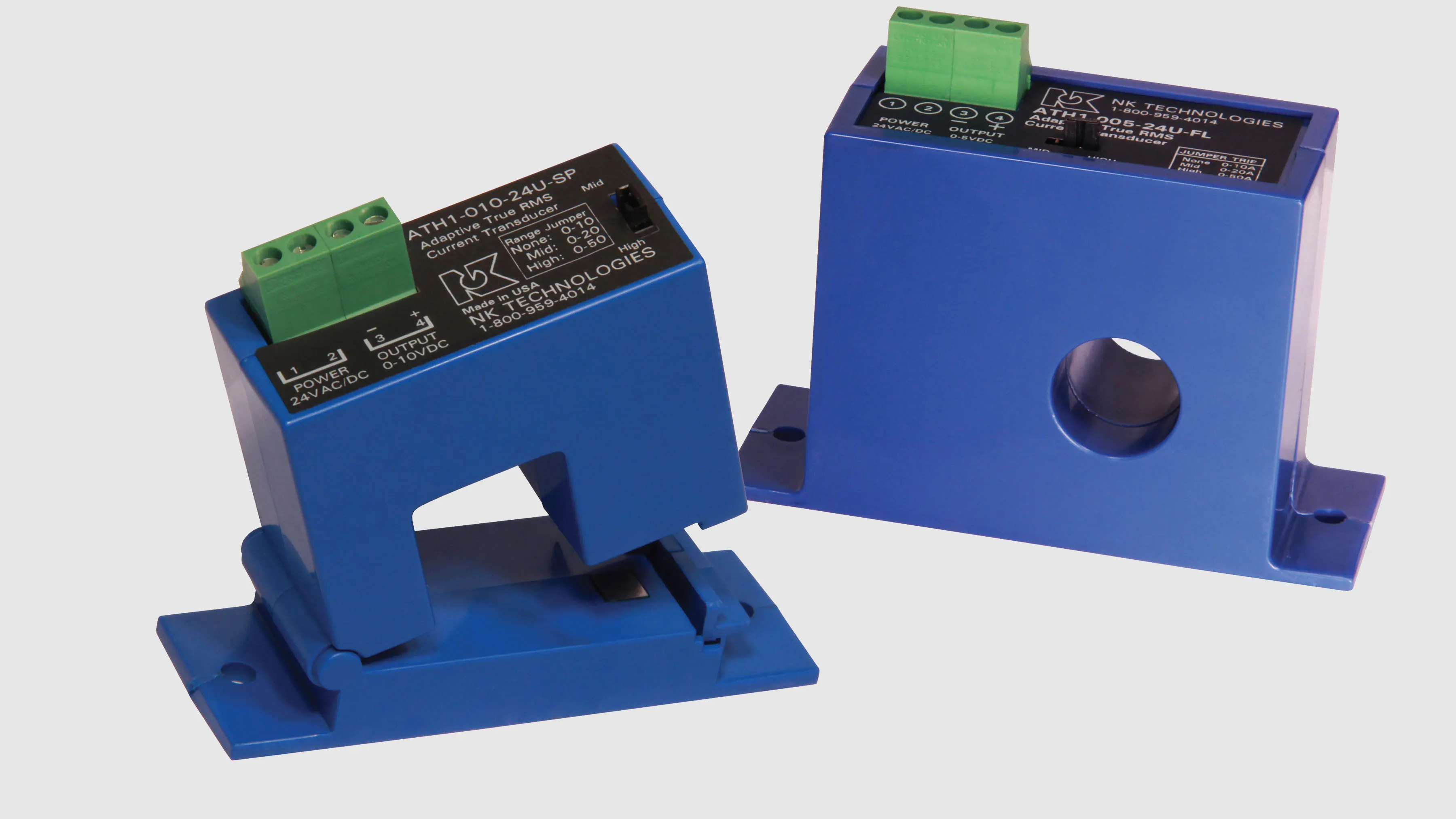

Split Core

Split core current transducers feature a sensor that opens and clamps around an existing conductor. This design allows for installation without disconnecting wires, making them ideal for retrofitting and maintenance.

Key Features:

  • Working Principle: The split core sensor detects the magnetic field from the current and the transducer converts it into a standard output.

  • Advantages:

    • Easy installation and retrofitting.

    • Minimizes downtime during setup.

    • Suitable for temporary or permanent monitoring.

  • Disadvantages:

    • Slightly lower accuracy and sensitivity compared to solid core types.

    • Not ideal for applications requiring the highest precision.

  • Ideal Applications:

    • Building automation, energy submetering, HVAC systems, and lighting control.

Split core current transducers support energy management and safety in commercial buildings. Their convenience makes them a popular choice for monitoring and maintenance.

Summary Table of Types:

TypeAC/DC CapabilityAccuracyInstallationTypical Applications
Hall EffectAC & DCModerateModerateMotor drives, battery management
InductiveAC onlyHighModeratePower monitoring, automation
Rogowski CoilAC onlyModerateEasyPower quality, transient analysis
FluxgateAC & DCVery HighComplexPrecision labs, compliance testing
Split CoreAC (mainly)ModerateVery EasyBuilding automation, submetering

Selecting the right type of current transducer depends on the application, required accuracy, installation constraints, and whether AC or DC current measurement is needed. Energy-efficient transducers and advanced sensor designs continue to improve reliability and performance across industries.

Current Transducer Applications

Industrial Automation

Industrial automation relies on current transducers for accurate monitoring and control. These devices track current flow in motors, conveyors, and robotic arms. Hall effect and inductive types often appear in industrial applications because they provide reliable data for process automation. Engineers use current transducers to detect overloads and prevent equipment damage. AIChipLink offers robust solutions that support seamless integration with programmable logic controllers, improving efficiency and safety in automation systems.

Power Monitoring

Power monitoring systems depend on current transducers to deliver precise measurements. Utilities use these devices to track load, identify faults, and balance phases.

  • Effective asset management in utilities starts with high-quality data from sensors and transducers.

  • Data quality shapes the accuracy of performance indicators for operational decisions.

  • Real-time monitoring with smart meters and power quality meters supports fault detection and load management.

  • Fluxgate sensors help maintain energy quality by monitoring harmonic composition.

  • Continuous data logging and high sampling rates enable quick detection of surges and interruptions, reducing downtime and improving efficiency.

AIChipLink provides advanced transducers that enhance power monitoring by supporting real-time monitoring and remote monitoring capabilities.

Renewable Energy

Renewable energy systems require accurate monitoring for optimal performance. Current transducers measure output from solar panels and wind turbines. Rogowski coils and Hall effect sensors track rapid changes in current, supporting energy management and grid integration. These applications benefit from AIChipLink’s transducers, which offer high accuracy and durability in harsh environments.

Electric Vehicles

Electric vehicles use current transducers for battery management and motor control. Hall effect and fluxgate types monitor charging and discharging cycles. Engineers rely on these devices for real-time monitoring of current, which ensures safe operation and extends battery life. AIChipLink’s solutions support efficient energy management in electric vehicle applications.

Building Automation

Building automation systems use current transducers for energy management and efficiency.

Case Study LocationSensor Types MonitoredSystem FeaturesEnergy Savings Achieved
Kindergarten SchoolTemperature, Humidity, Luminosity, Air Quality, MotionIoT platform with automatic control and visualization20% energy savings
University BuildingPower consumption sensorsIoT power monitoring system with high resolution25.4% during operation

Current transducers enable real-time monitoring and control, leading to significant energy savings. AIChipLink’s products offer reliable solutions for building automation, supporting both energy management and remote monitoring capabilities.

Selection Criteria for Current Transducers

Selecting the right current transducer ensures efficiency, reliability, and effective product selection for any application. Engineers and facility managers must consider several factors to match the device to their needs. The following criteria help guide this process.

Current Type

The first step in effective product selection is to identify the type of current to be measured. Some applications require AC measurement, others need DC, and some demand both.

  • Hall-effect sensors and fluxgate transducers can measure both AC and DC currents.

  • Inductive types, such as current transformers and Rogowski coils, only measure AC.

  • The choice depends on the system’s requirements and the nature of the load.

A table comparing AC and DC transducer technologies highlights their strengths:

FeatureAC Current TransducersDC Current Transducers
Technologies UsedHall-effect sensors, Rogowski coils, current transformersHall-effect sensors, Fluxgate technology
Accuracy & StabilityHigh accuracy, minimal phase shiftUltra-precise, extremely stable with low drift
Noise ImmunityGood, suitable for industrial environmentsSuperior noise immunity, advanced EMI resistance
Application EnvironmentsSmart grids, industrial automation, motor controlBattery management, renewable energy, EV charging
Signal OutputTypically RMS outputLinear or proportional DC output

Choosing the correct technology ensures the transducer matches the application’s monitoring and efficiency needs.

Range and Accuracy

Selecting a transducer with the right current range and accuracy is critical for effective product selection.

  • The device must handle the maximum expected current without saturation or overload.

  • High-precision applications, such as laboratory testing or battery management, require transducers with very low error rates and high linearity.

  • For example, the Hangzhi AIT Series offers 10ppm accuracy and 2ppm linearity, which is essential for sensitive measurements.

  • Open-loop transducers provide ±1–3% accuracy, suitable for general monitoring.

  • Closed-loop types achieve better than ±0.5% accuracy, making them ideal for safety-critical and high-precision environments.

Tip: Always match the transducer’s range to the application’s maximum and minimum current levels to ensure accurate data and avoid measurement errors.

Environment

Environmental conditions play a major role in transducer performance and reliability.

  • Temperature extremes can cause drift or component failure.

  • Humidity, dust, and moisture may lead to corrosion or electrical shorts.

  • Mechanical shock and vibration can damage sensors or loosen connections.

  • Corrosive chemicals degrade materials and shorten device lifespan.

  • Electromagnetic interference distorts signals and reduces accuracy.

Environmental ConditionImpact on Current TransducersMitigation / Design Considerations
Temperature ExtremesMeasurement drift, component failure, accuracy lossUse wide-range components, temperature compensation circuits
Humidity, Dust, MoisturePerformance loss, corrosion, shortsRugged enclosures, high IP ratings, potting materials
Mechanical Shock/VibrationPhysical damage, instabilityRobust mounting, vibration-resistant hardware
Corrosive ChemicalsMaterial degradation, sensor failureCorrosion-resistant materials, protective coatings
Electromagnetic InterferenceSignal distortion, measurement errorsShielding, filtering, advanced signal conditioning

Transducers designed for harsh environments use rugged housings and advanced electronics to maintain efficiency and monitoring accuracy.

Output Signal

The output signal must be compatible with the monitoring or control system.

  • Common outputs include 4–20 mA, 0–10 V, or digital signals.

  • The choice depends on the distance to the receiving equipment, susceptibility to interference, and system requirements.

  • Analog outputs like 4–20 mA are robust for long cable runs and noisy environments.

  • Digital outputs provide high-resolution data for advanced monitoring and management systems.

Note: Always verify that the transducer’s output matches the input requirements of the data acquisition or control system.

Installation

Installation constraints affect effective product selection and long-term efficiency.

  • Solid-core transducers require disconnecting the conductor, which suits new installations.

  • Split-core types clamp around existing wires, making them ideal for retrofits and minimizing downtime.

  • The physical size and mounting options must fit the available space.

  • Proper installation practices, such as secure mounting, correct cable routing, and grounding, ensure reliable operation.

A checklist for installation best practices:

  1. Select the correct core type for the application (solid or split).

  2. Match the current rating to the actual load.

  3. Follow manufacturer instructions and international standards.

  4. Perform regular maintenance and calibration.

  5. Address environmental challenges like vibration and EMI.

Compliance

Compliance with international standards and safety regulations guarantees reliability and legal operation.

  • Key standards include IEC 61508 (functional safety), ISO 14971 (risk management), UL 508 (industrial control equipment), and IEC 62368 (hazard-based risk assessment).

  • Certification marks such as UL and CE indicate that the transducer meets safety and performance requirements.

  • Essential tests cover electrical safety, electromagnetic compatibility, and environmental durability.

  • Ongoing compliance involves risk assessments, change management, and post-market surveillance.

Certification AspectDescription
Test ReportsElectrical safety, EMC, environmental durability tests
Risk AssessmentsHazard identification and mitigation strategies
Labeling and MarkingCertification marks, labeling location, traceability
Change ManagementRecords of design/process changes and recertification needs
Long-Term Record-KeepingCentralized compliance documents, audit preparation

For specialized applications, always consult with experts or trusted brands like AIChipLink. Their technical support and product selection tools help users navigate complex requirements and ensure the most effective product selection for efficiency, monitoring, and management.

Selecting the right current transducer ensures safe and efficient system operation. Each type offers unique features for specific needs. The table below highlights common types and their uses:

TypeKey FeaturesTypical Uses
Open-Loop (Hall)Fast, simple, moderate accuracyMotor control, IoT devices
Closed-LoopHigh accuracy, stable outputAutomation, EV inverters
Shunt-BasedCompact, cost-effectivePower supplies, battery management

Experts recommend considering accuracy, isolation, and environment. Brands like AIChipLink provide guidance and support. For deeper knowledge, explore technical FAQs or consult with specialists.

FAQ

What is the main difference between a current sensor and a current transducer?

A current sensor detects the presence or amount of current. A current transducer converts that current into a standardized output signal, such as 4–20 mA or 0–10 V, for monitoring or control systems.

Can one current transducer measure both AC and DC currents?

Some types, like Hall effect and fluxgate transducers, can measure both AC and DC currents. Inductive and Rogowski coil types only measure AC. Always check the product specifications before choosing.

How often should a current transducer be calibrated?

Experts recommend calibrating current transducers once a year for most industrial applications. Critical systems may require more frequent checks to maintain accuracy and safety.

What output signals do current transducers provide?

Output TypeDescription
4–20 mACommon for industrial use
0–10 VUsed in building controls
DigitalFor advanced monitoring

The choice depends on the system’s requirements and compatibility.












Written by Jack from AIChipLink.



AIChipLink, one of the fastest-growing global independent electronic   components distributors in the world, offers millions of products from thousands of manufacturers, and many of our in-stock parts is available to ship same day.



We mainly source and distribute integrated circuit (IC) products of brands such as BroadcomMicrochipTexas Instruments, InfineonNXPAnalog DevicesQualcommIntel, etc., which are widely used in communication & network, telecom, industrial control, new energy and automotive electronics.



Empowered by AI, Linked to the Future. Get started on AIChipLink.com and submit your RFQ online today!
