What is a supercapacitor and how does it work

You can also call a supercapacitor an ultracapacitor. It keeps energy with electric double-layer capacitors. Supercapacitors act as a link between regular capacitors and batteries. They charge and discharge very fast in high-density storage systems. Supercapacitors are used in regenerative braking systems. They also help smooth out energy for renewable projects. Many important uses depend on what a supercapacitor is and how it works.

• The global market size was USD 3.25 billion in 2025.

• Experts think it will grow to USD 14.42 billion by 2034.

Key Takeaways

• Supercapacitors can charge and release energy very fast. They do this much faster than batteries. This makes them great for things that need quick power. They last a long time and can be used many times. They can go through hundreds of thousands of cycles. They do not lose much performance over time. Supercapacitors are light and easy to take care of. This makes them useful for many different jobs. More electric cars and green energy systems use supercapacitors now. They help keep power steady and make things work better. In the future, supercapacitors will store more energy. People also want to use materials that are better for the planet.

What is a supercapacitor

Definition and basics

People sometimes call a supercapacitor an ultracapacitor. These two names mean the same thing. A supercapacitor stores energy in a special way. It uses something called the electric double-layer effect. This means it keeps energy by separating charges on the surface between the electrode and the electrolyte. You can think of a supercapacitor as a bridge between a regular capacitor and a battery. It does not use chemical reactions to store energy like batteries do. Instead, it holds energy on the surface of its electrodes. Because of this, you can charge and discharge a supercapacitor much faster than a battery.

A supercapacitor can have very high capacitance. Some types can reach up to 5,000 farads. This is much more than regular capacitors. Capacitance means how much electric charge something can store. Because of this, a supercapacitor can give quick bursts of energy. You will see that a supercapacitor can charge in just seconds. It can also release energy just as fast. This makes it helpful when you need power right away.

Tip: If you want something that charges fast and lasts a long time, a supercapacitor is a good pick.

Key features

Supercapacitors are different from other energy storage devices. The table below shows how they compare:

Feature	Supercapacitors	Other Energy Storage Devices
Energy Storage Mechanism	Electrostatic charge storage	Charge transfer reactions
Charge/Discharge Rate	Up to two orders of magnitude faster	Slower due to reaction kinetics
Cycle Life	Hundreds of thousands of cycles	Limited by intercalation stresses
Energy Density	Less than 10 Wh/kg	Average of 150 Wh/kg for lithium-ion
Maintenance	Minimal maintenance required	Varies, often higher
Weight	Lighter than many alternatives	Heavier in comparison
Temperature Range	-40 to 70 °C	Varies, often narrower

You can see that a supercapacitor charges and discharges much faster than a battery. It also lasts longer, with hundreds of thousands of cycles. You do not need to do much maintenance. It is lighter in weight and works in many temperatures.

Here are some important things about supercapacitors:

• They store energy on the surface of electrodes, not inside.

• You can charge and discharge them very quickly, so they have high power density.

• They last through millions of cycles and still work well.

• Their energy density is lower than batteries, so they store less energy for their size.

A supercapacitor has high power density because it stores energy on the surface. This lets it give energy very fast. For example, you can use a supercapacitor in a system that needs a quick burst of power, like in regenerative braking for cars. An ultracapacitor can also help keep power steady in renewable energy systems.

Supercapacitors do have some limits. Their energy density is lower than batteries, so they cannot store as much energy. But they charge fast, last a long time, and are reliable. This makes them useful for many things.

How supercapacitors work

Structure and components

To understand a supercapacitor, look at its main parts. Each part helps it store electric charge and give energy fast. The basic parts are two electrodes, a separator, and an electrolyte. The electrodes are on both sides of the separator. The separator stops the electrodes from touching. This keeps a short circuit from happening. The electrolyte fills the space between the electrodes. It lets ions move when charging and discharging.

Here is a table that lists common materials used in supercapacitors:

Component	Common Materials
Electrodes	Organic carbon materials (e.g., charred coconuts), synthetic carbon (e.g., Curved Graphene)
Separators	Polymer films, cellulose, non-woven materials, polyolefin, rubber, wood, paper, ceramic, glass

The electrodes have a very large surface area. This helps the supercapacitor store more electric charge. The separator is thin and strong. It lets ions go through but blocks electrons. The electrolyte can be a liquid or a solid. It helps ions move between the electrodes when charging.

Energy storage mechanism

A supercapacitor stores energy in a special way. It uses the electrochemical double-layer effect on the electrode surface. When you add voltage, ions in the electrolyte move to the electrodes. They line up and make two layers of charge. This is called the double-layer structure.

• The double layer forms at the electrode-electrolyte edge, which boosts capacitance.

• The big surface area of the electrodes lets the device hold more charge.

• The small space between layers makes charge separation work well.

There are no chemical reactions like in batteries. The supercapacitor stores energy using static electricity. This gives it high power and fast charging. You can see how supercapacitors and batteries store energy in this table:

Aspect	Supercapacitors	Batteries
Energy Storage Mechanism	Stores energy electrostatically on the surface of electrodes	Stores energy through chemical reactions
Charge/Discharge Speed	Rapid charge/discharge cycles (seconds)	Slower charge/discharge rates (hours)
Power Density	10 to 100 times higher than batteries	Lower power density
Lifespan	Nearly unlimited cycles	Limited lifespan
Operating Temperature	Wide range (−40°C to 70°C)	Limited temperature range
Energy Density	Lower energy density	Higher energy density

Double-layer supercapacitor energy storage happens when charges face each other at the electrode and solution edge. When you add an electric field, anions and cations move to the positive and negative electrodes. This makes a double layer.

This method lets the supercapacitor store and release charge very fast. The device does not wear out quickly because there are no chemical changes.

Charge and discharge process

Charging and discharging a supercapacitor is simple and quick. When you connect it to power, ions in the electrolyte move to the electrodes. They build up on the surface and make a double layer of charge. This is how energy is stored. When you need energy, the ions move back. The device then releases the stored charge.

Here is a table that shows how fast different devices can charge and discharge:

Energy Storage Type	Fast Charge Duration	Fast Discharge Duration
Lead-Acid Battery	1-5 hours	0.3-3 hours
Lithium-Ion Battery	0.5-3 hours	0.3-3 hours
Supercapacitor	0.3-30 seconds	0.3-30 seconds

You can charge and discharge a supercapacitor in just seconds. This speed makes it very efficient and helps it last longer. The way it stores energy means the parts do not wear out much. You can use it many times without losing power.

• Supercapacitors can charge and discharge fast and work well, even after thousands of cycles.

• Charging efficiency, discharge speed, and cycle life are important for making these devices last a long time.

Supercapacitors have many good points over other energy storage devices. They have huge capacitance, high power, and good energy density because their inside resistance is low. They can give energy very fast, so they are good for high-power jobs. Supercapacitors last a long time and can handle many charge and discharge cycles without breaking down.

You can see that the way supercapacitors store and give energy makes them a great choice for things that need quick power and high efficiency.

Supercapacitor vs. battery

Energy storage differences

Supercapacitors and batteries store energy in different ways. Supercapacitors keep energy on the surface of their electrodes. This is called electrostatic storage. Batteries use chemical reactions inside to hold energy. This difference changes how fast each device works. Supercapacitors can charge and discharge very quickly. Batteries take more time to charge and discharge.

Here is a table that shows the main differences:

Feature	Supercapacitors	Batteries
Energy Storage Method	Electrostatic storage	Chemical reactions
Charge/Discharge Speed	Rapid cycles	Moderate cycles
Power Density	High	Moderate
Energy Density	Limited	High
Lifespan	Long	Moderate
Efficiency	High	Moderate
Operating Temperature	Wide range	Limited
Sustainability	More sustainable	Less sustainable

Supercapacitors are great at giving power fast and last a long time. Batteries can store more energy for their size. The choice between them depends on what you need most.

Performance comparison

Supercapacitors and batteries each have things they do best. Supercapacitors give energy very fast and last through many uses. Batteries can store more energy for a longer time. You can see these differences in the table below:

Parameter	Lead-Acid Battery	Lithium-Ion Battery	Supercapacitor
Specific energy density (Wh/kg)	10-100	150-200	1-10
Specific power density (Wh/kg)	<1000	<2000	<10,000
Cycle life	1000	5000	>50,000
Charge and discharge efficiency	70-85%	99%	85-98%
Fast charge duration	1-5h	0.5-3h	0.3-30s

Supercapacitors can be charged and used many times without losing power. Batteries can hold more energy, so they last longer between charges. Supercapacitors are good for giving quick bursts of power. This is helpful for things that need fast energy.

Supercapacitors can recharge very fast and do not need special limits on current. This makes them very good for storing energy quickly.

Best use cases

Supercapacitors are best when you need energy fast and want something reliable. They are used in electric cars, power grids, and factories. Supercapacitors give short bursts of power for things like speeding up or stopping cars. They help keep power steady in renewable energy systems. They also give backup power right away if the main power goes out.

Here are some top uses for supercapacitors:

• Electric vehicles: Help cars speed up and stop better.

• Grid applications: React fast to changes in power.

• Uninterruptible power supplies: Give backup power right away.

• Public transportation: Make buses and trains use less energy and need less fixing.

• Industrial equipment: Store energy safely in tough places.

Supercapacitors are good for things that need fast charging and work well for a long time. They can handle hot and cold places, which is important for tough jobs. Supercapacitors help with electric cars and clean energy, so they are important for the future of energy storage.

Advantages of supercapacitors

Fast charging and discharging

Supercapacitors can charge and discharge energy very quickly. This is because they have high power density. If you need energy fast, supercapacitors give it right away. Here are some reasons this is important:

• Supercapacitors charge in seconds, not hours.

• They give quick bursts of power for things like power grids or electric cars.

• Supercapacitors are good for short, strong power needs that last seconds or minutes.

• You do not need special current limits when charging, if you follow the ratings.

This quick action makes supercapacitors great for things like regenerative braking in cars. When you press the brake, the supercapacitor grabs energy fast and gives it back just as quickly. This helps cars use less fuel.

Long lifespan and reliability

Supercapacitors last much longer than most batteries. You can charge and use them up to a million times with little loss in performance. Most batteries stop working well after a few thousand cycles. Because of this, you do not need to replace supercapacitors often.

Supercapacitors also work in very hot or cold places. They keep working in tough weather. You can find them in public transport and power grids. For example, trams in Hong Kong use supercapacitors to save and use energy when braking. In Japan, power grids use them to keep electricity steady when things change fast.

Application	How Supercapacitors Help
Public Transportation	Save and use energy during braking, so batteries last longer
Grid Stabilization	React fast to changes, keeping power steady

Safety aspects

Supercapacitors are safer than many batteries. They are less likely to catch fire, especially compared to lithium-ion batteries. Supercapacitors do not use chemical reactions, so they do not get too hot or explode easily. You can use them for high-power jobs without worrying about overheating.

• Supercapacitors do not burn and can handle very hot or cold temperatures.

• They can safely handle high currents for short times.

• Their design lowers the chance of dangerous problems.

When you look at these advantages, you see why supercapacitors are a smart pick for jobs that need fast, safe, and reliable power. They charge quickly, last a long time, and help keep people safe.

Applications and future trends

Current uses

Supercapacitors are used in many fields today. They help electric cars with braking and give extra power. You can find them in things like smartwatches. They give quick energy and backup power. Supercapacitors also help keep power steady in energy grids. They support solar and wind energy systems. In factories, they store energy for robots and machines. The aerospace and defense fields use them for satellites and military tools.

Here is a table that shows where supercapacitors are used and how the market is growing:

Industry	Applications	Market Insights
Automotive & Transportation	Regenerative braking, power assist in electric and hybrid cars	Dominated the market with 29.9% share in 2024; growth driven by electric vehicles and investment.
Consumer Electronics & Home Appliances	Instant power delivery, backup energy storage for devices like smartwatches	Projected to grow at a CAGR of 16.6% by 2034; demand driven by quick charging and performance.
Energy & Utilities	Grid stabilization, renewable energy integration	Anticipated to reach USD 3.8 billion by 2034; supports energy supply changes in solar and wind power.
Industrial	Energy storage for automation, heavy equipment, robotics, smart manufacturing	Projected to grow at a CAGR of 16.8% by 2034; valued for durability and power delivery.
Aerospace & Defense	Satellite power systems, military devices, aircraft energy storage	Projected to grow at a CAGR of 15.9% by 2034; demand for high-efficiency, lightweight solutions.

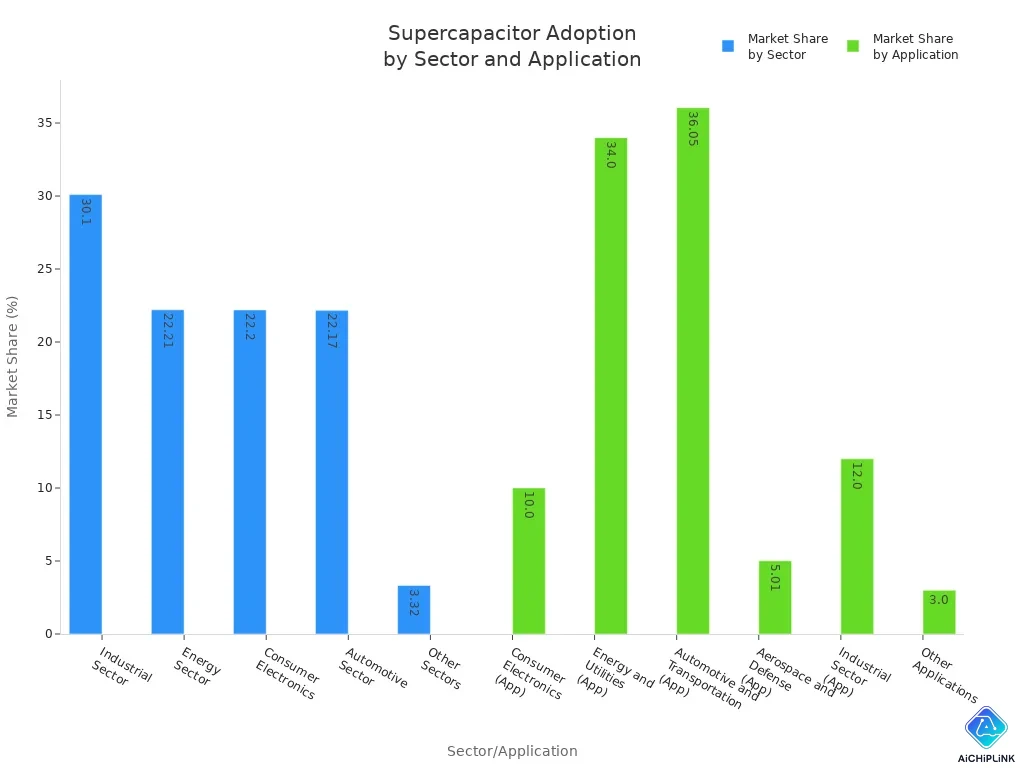

You can see supercapacitors are used in many areas. The chart below shows how much each sector uses them and for what:

Emerging developments

New ideas are changing supercapacitors for the future. Scientists are making better electrode materials and electrolytes. This helps supercapacitors work better. Some new devices mix different ways to store energy. These hybrid and pseudocapacitive devices can hold more energy. Many people are trying to use green materials to make supercapacitors safer for the planet.

Here are some key developments:

• Nanotechnology is making supercapacitors store energy better.

• Hybrid systems mix supercapacitors with batteries for more power and longer life.

• Supercapacitors help cut down on toxic gas, which is good for clean energy.

The market for supercapacitors is growing very fast. You can see the expected market size in the table below:

Year	Projected Market Size (USD)	CAGR (%)
2025	1.35 Billion	16.1
2030	2.84 Billion	N/A
2026	3.83 Billion	18.02
2034	14.42 Billion	N/A

Supercapacitors are important for renewable energy systems. They help balance how much energy is made and used. This helps the world use less carbon. Supercapacitors will be even more important as electric cars and clean energy become more popular.

Supercapacitors have special ways to store energy. You will see more uses for them as technology gets better and people care more about the planet.

You now know that supercapacitors can store energy very fast and work for a long time. They are used in cars, hybrid vehicles, and power networks. Supercapacitors help when there are short power cuts or sudden jumps in electricity.

• Supercapacitors give strong power, charge quickly, and can be used many times.

• Scientists are looking for new materials, bendable shapes, and greener ways to make them.

• As technology gets better, you will find more supercapacitors in everyday life.
