C1815 Transistor: Pinout, Equivalent, Voltage, Circuit and Uses

The C1815 transistor is a widely used NPN bipolar junction transistor (BJT) that serves various low-power amplification and switching applications. Due to its reliability, affordability, and versatility, it has gained popularity among electronic enthusiasts and professionals. In this article, we will explore the C1815 transistor pinout, datasheet, equivalent transistors, and uses, along with a comparison table and frequently asked questions (FAQ) section.

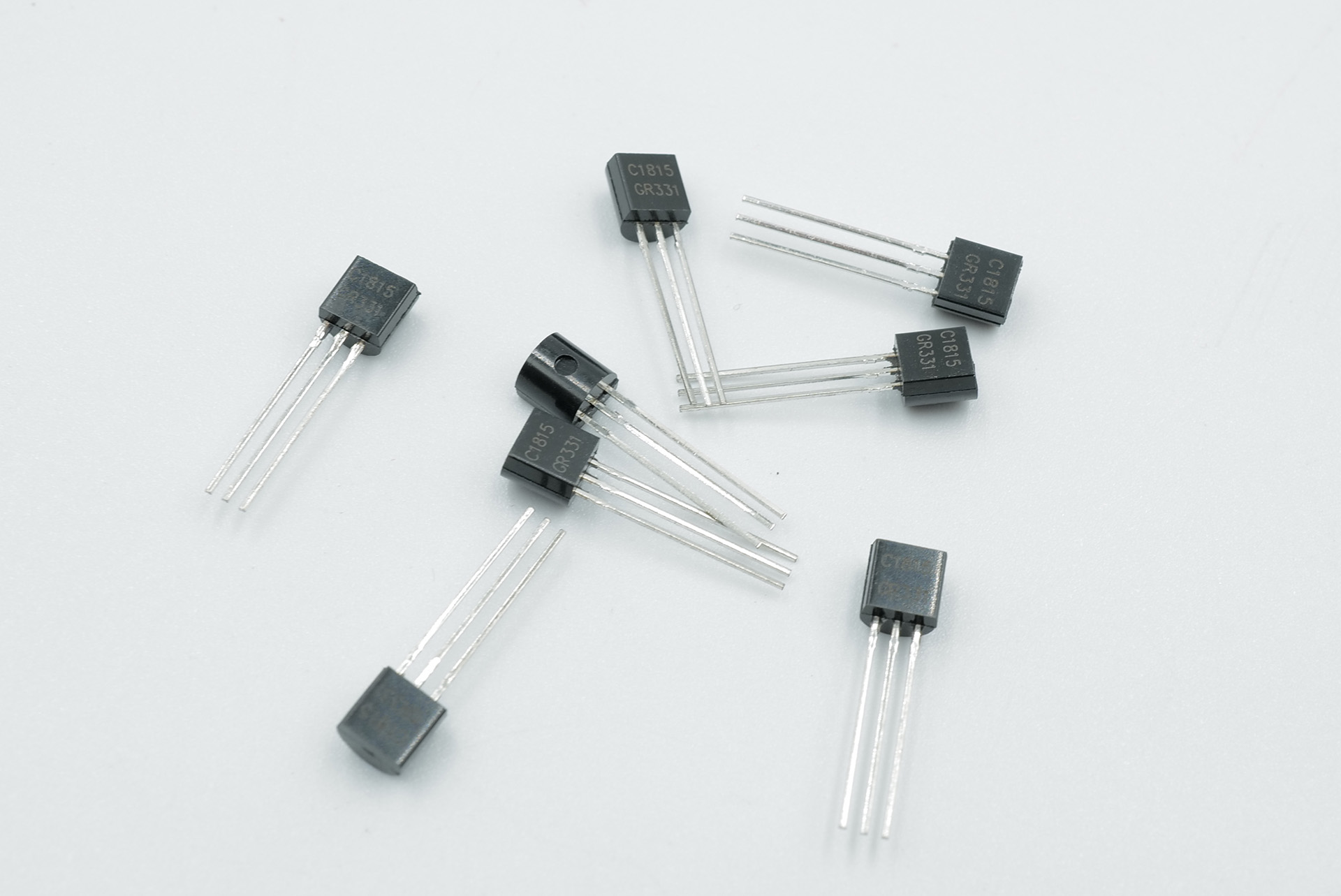

What is the C1815 Transistor?

The C1815 transistor is a general-purpose NPN transistor commonly used in audio amplification, signal processing, and switching circuits. It is known for its high gain, low noise, and moderate power handling capacity. This transistor operates at a maximum collector current of 150mA and a maximum voltage of 50V. In short, the C1815 transistor is a versatile electronic component used primarily in audio frequency amplification and high voltage applications, providing both low noise operation and excellent hFE linearity.

C1815 Transistor Voltage

The collector-base voltage (often denoted as V_CBO) of a C1815 transistor is a key parameter that indicates the maximum voltage the transistor can withstand between its collector and base terminals. In the case of the C1815, with a collector-base voltage rating of 50V, it means that you should not apply a voltage greater than 50 volts across the collector and base terminals in your circuit.

C1815 Transistor Pinout

Understanding the C1815 transistor pinout is essential for proper circuit integration. The C1815 transistor has three pins:

Collector (C) - The output terminal where the amplified current flows.
Base (B) - The control terminal that regulates the transistor's operation.
Emitter (E) - The input terminal from which current exits the transistor.

Here’s the pin configuration for the C1815 transistor:

   _______
  |       |
  |       |
  |_______|
   |  |  |
   C  B  E

C1815 Features

• Type: NPN transistor, mainly using electrons as charge carriers.

• High Voltage: Can handle high voltages, typically a maximum collector-emitter voltage (Vce) of 50V and a maximum collector-base voltage (Vcb) of 60V.

• Low noise: It is known for its low noise operation, which makes it ideal for audio amplification applications where noise can significantly degrade the quality of the output.

• Good hFE linearity: The C1815 exhibits good hFE (DC current gain) linearity, which means that the gain varies minimally with the input current. This feature makes it popular in applications where precise amplification is required.

• Collector current: Very high collector current of about 150mA.

• Transition frequency: High transition frequency (typically 80MHz), which means it can operate effectively at high frequencies.

C1815 Transistor Datasheet Overview

The C1815 transistor datasheet provides crucial electrical characteristics. Below are the key specifications:

Parameter	Value
Transistor Type	NPN
Maximum Collector-Emitter Voltage (Vce)	50V
Maximum Collector-Base Voltage (Vcb)	50V
Maximum Emitter-Base Voltage (Veb)	5V
Maximum Collector Current (Ic)	150mA
Maximum Power Dissipation (Ptot)	400mW
DC Current Gain (hFE)	70-700
Transition Frequency (fT)	80MHz

For complete details, refer to the C1815 transistor datasheet available from semiconductor manufacturers.

C1815 Transistor Uses

Here is a video that might help:

The C1815 is a highly versatile transistor known for its use in a variety of applications in electronics. Its low noise and excellent hFE linearity make it ideal for audio amplification circuits and is commonly used in audio equipment for preamplifier stages, audio power amplifiers and signal amplification.

In addition, its switching capability allows it to efficiently control the operation of other components or circuits. c1815 also has important uses in signal processing tasks, including signal amplification, filtering and modulation, as well as in radio frequency (RF) applications due to its high conversion frequency. In addition, its powerful high voltage and current handling characteristics make it a suitable component in power conditioning and DC-DC conversion circuits. Due to their wide availability and versatility, C1815 transistors are also very popular in DIY electronics projects, learning kits and prototyping.

The C1815 transistor is commonly used in the following applications:

• Audio Amplification: Enhancing weak audio signals in preamplifiers and audio circuits.

• Switching Applications: Controlling low-power devices such as LEDs, relays, and small motors.

• Signal Processing: Used in radio frequency circuits and signal amplification.

• Oscillator Circuits: Applied in frequency generation and timing circuits.

• Microcontroller Interfacing: Acts as an interface between microcontrollers and external components.

C1815 vs 2N2222

The C1815 and 2N2222 are both NPN bipolar junction transistors (BJTs), but they have some differences in their electrical characteristics.

• Polarity
Both transistors are NPN, meaning they have an N-type semiconductor material for the majority carrier and P-type for the minority carrier.

• Maximum Ratings
The maximum collector-base voltage (V_CBO) for the C1815 is typically around 50V, while the 2N2222 can handle higher voltages, typically up to 75V.

• Current Ratings
The collector current (I_C) for the C1815 is usually in the range of 150mA, whereas the 2N2222 can handle higher collector currents, often up to 800mA.

• Gain (hfe)
The current gain, represented by hfe, may vary between different batches or manufacturers, but in general, the 2N2222 tends to have a higher gain compared to the C1815.

• Application
Both transistors can be used in general-purpose amplification and switching applications. However, due to differences in their electrical characteristics, one might be more suitable than the other for specific applications.

• Pinout
While the pinout (the arrangement of the collector, base, and emitter terminals) is different between the C1815 and 2N2222, it's a mechanical difference and can be accommodated in circuit design.

C1815 Pros and Cons

The main advantage of the C1815 transistor is its ability to operate at low noise levels, a feature that makes it well suited for use in audio amplification circuits. Its excellent hFE linearity also ensures accurate amplification and faithful signal reproduction, which is essential for high-quality audio output. In addition, it can handle high voltages and sizable collector currents and apply them to power conditioning circuits. the C1815's high conversion frequency also allows it to operate efficiently at high frequencies, thus expanding its use in RF applications.

However, as with any electronic component, the C1815 transistor has some limitations. Despite its high voltage handling capability, it is not suitable for very high power applications due to its limited power dissipation capability. In addition, while it performs very well in audio frequency applications, it may not be optimal for circuits that require extremely high speed switching or very high frequency operation that exceeds its transition frequency limits. It is also worth noting that while the C1815 is widely available, sometimes component shortages or regional availability may necessitate the use of equivalent transistors. Therefore, it is important to consider the advantages and disadvantages of the C1815 when selecting it for a particular application.

C1815 Transistor Equivalent

If the C1815 transistor is unavailable, several alternatives can serve as a substitute. Below are some C1815 transistor equivalent options:

Equivalent Transistor	Type	Maximum Voltage	Maximum Current	Gain (hFE)
2N3904	NPN	40V	200mA	100-300
BC547	NPN	45V	100mA	110-800
BC548	NPN	30V	100mA	110-800
2SC945	NPN	50V	150mA	90-600
2N2222	NPN	40V	600mA	35-300

While choosing an equivalent transistor, ensure the electrical characteristics match the application requirements.

FAQ: Frequently Asked Questions

1. What is the maximum current of the C1815 transistor?

The maximum collector current (Ic) for the C1815 transistor is 150mA.

2. Can I use the C1815 transistor for high-power applications?

No, the C1815 is a low-power transistor. For high-power applications, consider using transistors like TIP41 or 2N3055.

3. What is the main difference between the C1815 and 2N3904?

Both are NPN transistors, but the C1815 transistor has a higher voltage rating (50V vs. 40V) and typically higher gain.

4. How do I test if my C1815 transistor is working?

You can use a multimeter in diode mode:

• Place the positive probe on the base and check the forward voltage drop with the collector and emitter.

• Reverse the probes; there should be no conduction.

• If results are inconsistent, the transistor may be faulty.

5. What is the operating temperature range of the C1815 transistor?

The typical operating temperature range is -55°C to 150°C.

Conclusion

The C1815 transistor is a versatile and widely used NPN transistor ideal for low-power switching and amplification applications. Understanding its pinout, datasheet, equivalent transistors, and uses allows electronics enthusiasts and professionals to integrate it efficiently into various circuits.

In summary, the unique characteristics of the C1815 transistor make it highly useful for audio frequency amplification and high voltage applications. This article reveals the wide range of potential this component brings through an in-depth discussion of its data sheet, pinout, equivalent components, and various uses. Hopefully, with this knowledge gained, you will be able to effectively harness the power of the C1815 transistor in your next electronics project, opening up new possibilities in your journey through the world of electronics. Whether you are looking for an alternative transistor or want to explore its applications, the C1815 remains a reliable choice in the world of electronics.
