Electronics engineers sometimes need a c2655 equivalent transistor if they cannot find the original c2655 transistor. The most common choices are:
-
2SC3328
-
STX715
-
KTC3209
-
MJE182 (TO-126 package)
-
2SA1162 (TO-126 package)
Choosing the right c2655 equivalent means matching voltage, current, power, and package type. Engineers also need to check for NPN type and correct pin setup. They must make sure the device works for their project. Many projects also use the c1815 transistor as another option. The c1815 has similar features, so it is a popular replacement. Some circuits need a c1815 equivalent, and the c1815 transistor is used in audio, switching, and signal boost designs. When picking parts, people compare the c1815 and the c2655 equivalent transistor to find the best one. The c1815 transistor is trusted by hobbyists and professionals. Knowing how the c1815, its equivalents, and the c2655 equivalent are alike or different helps people pick the right part. The c1815 transistor datasheet gives helpful details for matching parts.
Key Takeaways
-
Make sure voltage, current, and power ratings match. This keeps your circuit safe and working well.
-
Look at the transistor's package type and pinout before you swap parts. This helps you avoid damage and makes sure it fits your board.
-
Follow these steps: check the transistor type, look at the ratings, think about gain, match the pinout, and test it in your circuit.
-
Pick the right transistor for your project. Small TO-92 types are good for low power. TO-126 types are better for more power and heat.
-
Always read datasheets and test new transistors in your circuit. This helps you avoid mistakes and makes your project last longer.
C2655 Equivalent Transistor Comparison
Key Specifications Overview
To pick the right c2655 equivalent transistor, you need to know some important details. Engineers look at voltage, current, power, and gain. They do this to make sure the new part will work in their project. The table below shows the main features for the C2655 and its main equivalents:
| Transistor | Max Collector-Emitter Voltage (V) | Max Collector Current (mA) | Gain (hFE) Range | Power Dissipation (typical) | Package Type |
|---|---|---|---|---|---|
| C2655 | ~50 | 2000 | High (not detailed) | 900mW | TO-92 |
| 2SC3328 | 50 | 800 | 120 - 400 | 625mW | TO-92 |
| STX715 | 50 | 1500 | 40 - 250 | 900mW | TO-92 |
| KTC3209 | 50 | 1500 | 60 - 320 | 900mW | TO-92 |
| MJE182 | 80 | 3000 | 40 - 160 | 2000mW | TO-126 |
Tip: The C2655 and the TO-92 types like 2SC3328, STX715, and KTC3209 are good for small circuits and switching jobs. MJE182 is bigger and can handle more power, so it is better for tough jobs.
The chart below shows how voltage, current, and gain compare for other small transistors. This makes it easier to see where the C2655 and its equivalents fit with other NPN transistors:

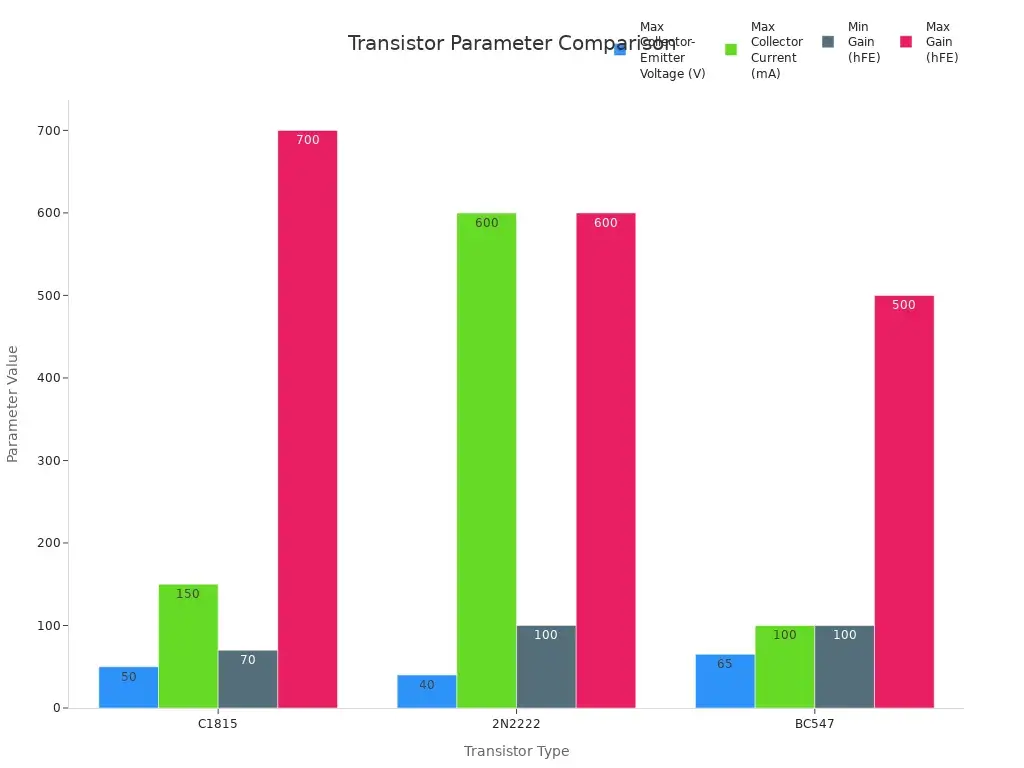

When picking a c2655 equivalent transistor, match the voltage and current to your project. MJE182 is best for high-power circuits because it can handle more heat and current. For small spaces, 2SC3328, STX715, and KTC3209 are a good mix of size and power.
Pinout and Package Differences
The c2655 pinout uses the normal TO-92 layout. This makes it easy to swap in most circuits. Most equivalents, like 2SC3328, STX715, and KTC3209, also use TO-92 and have similar pins. This means you can switch them in small designs without trouble.
| Transistor Equivalent | Package Type | Pinout Notes |
|---|---|---|
| C2655 | TO-92L / TO-92MOD | Standard TO-92 pinout |
| 2SC3328 | TO-92 | Standard TO-92 pinout |
| STX715 | TO-92 | Standard TO-92 pinout |
| KTC3209 | TO-92 | Standard TO-92 pinout |
| MJE182 | TO-126 | Different package, likely different pinout |
Note: MJE182 uses a TO-126 package. This package is bigger and has a different pin setup. It can cool better but might not fit in all boards made for TO-92 transistors.
Engineers should always check the datasheet to see the exact pin setup before changing parts. Using the wrong pinout can break the circuit or make it not work.
How to Select a C2655 Equivalent
Voltage, Current, and Power Ratings
To pick the right transistor, you need to know about voltage, current, and power. Every project needs a transistor that can handle the job without breaking. The C2655 and its equivalents have certain limits for these things. The table below shows the lowest and highest safe numbers:
| Parameter | Minimum Rating | Maximum Rating |
|---|---|---|
| Collector Current (IC) | N/A | 2 A |
| Collector-Emitter Voltage (VCE) | N/A | 50 V |
| Collector-Base Voltage (VCB) | N/A | 50 V |
| Emitter-Base Voltage (VEBO) | N/A | 5 V |
| Collector Dissipation (Power) | N/A | 900 mW |
| Operating Temperature Range | -55 °C | +150 °C |
⚠️ Tip: To keep your circuit safe, use less than the highest numbers. Try to stay at least 20% below the top ratings. For example, keep collector current at or under 1.6 A and collector-emitter voltage at or under 40 V.
Gain (hFE) is also important for a transistor. C2655 equivalents can have different gain values. Circuits should not depend on just one gain number. Designers use lower gain for switching and higher gain for making signals bigger. Good circuits use emitter resistors to help with gain changes.
Application Compatibility
You need to match the transistor to what you want it to do. The C2655 and its equivalents work in many ways. The table below shows some common uses:
| Application Area | Description |
|---|---|
| General-purpose switching | Can switch loads up to 2A, turn on LEDs, relays, ICs, and other parts. |
| Motor Controllers | Used to control motors in circuits. |
| Audio Amplifiers | Makes sound louder up to 900mW, good for small speakers and audio devices. |
| AM & FM Radio Transmitters/Receivers | Used for sending and getting AM and FM radio signals. |
The c2655 equivalent transistor works well for these jobs. For example, it is used in small audio amplifiers or in circuits that turn on relays and LEDs. The c2655 pinout makes it easy to swap in most designs. When picking a new part, always check if the package and pinout are the same as the old one.
Step-by-Step Selection Guide
There are a few steps to find the best replacement. Follow this guide to get the right part for your project:
-
Identify the Transistor Type
Make sure the original is an NPN transistor. All C2655 equivalents listed are NPN types. -
Check Voltage and Current Needs
Look at your circuit’s highest voltage and current. Pick a transistor with ratings at least 20% higher than what you need. -
Verify Power Dissipation
Figure out how much power the transistor will use. Choose one that can handle it, like 900 mW for TO-92 or 2 W for TO-126. -
Consider Gain (hFE) Range
Make sure the gain range fits your circuit. For switching, use the lowest gain. For making signals bigger, higher gain helps, but do not count on exact numbers. -
Match Pinout and Package
Check if the c2655 pinout matches the new part. Most TO-92 packages are the same, but TO-126 packages like MJE182 may be different. -
Review Application Compatibility
Make sure the new part works for your project. Use high-power types for motors and regular types for switching signals. -
Test in Circuit
After picking, try the new transistor in your circuit. Watch for heat, how it works, and if it is reliable.
✅ Note: Good design does not depend on just one transistor’s gain or only on simulations. Always plan for differences between parts.
By following these steps, you can pick a c2655 equivalent transistor that works for your project and will last.
Top C2655 Equivalent Transistors
2SC3328 Overview
The 2SC3328 transistor is a good replacement for the C2655 in many projects. It comes in a TO-92 package, so it fits in most small gadgets. This transistor can handle up to 50V and 800mA. Its gain is between 120 and 400. That means it can make signals bigger and turn things on and off. The 2SC3328 works in audio amps, LED drivers, and for switching jobs. Engineers pick this part for small circuits that do not need a lot of power.
STX715 Overview
The STX715 transistor is a lot like the C2655. It can handle 1.5A and 50V. It also uses a TO-92 package, so it is easy to swap in. Both the C2655 and STX715 work well for fast switching and high-frequency jobs. The table below shows how they compare:
| Parameter | 2SC2655 Specification | STX715 Relation |
|---|---|---|
| Transistor Type | NPN | Equivalent to 2SC2655 |
| Max Collector Current (IC) | 2A | Implied similar |
| Max Collector-Emitter Voltage (VCE) | 50V | Implied similar |
| Transition Frequency (fT) | 100 MHz | Implied similar |
| Application Suitability | RF circuits under 100 MHz, general switching, audio amplification | STX715 listed as equivalent, suggesting similar suitability |
The STX715 is known for working well in radio circuits under 100 MHz and in making sound louder. Engineers use it for switching and signal jobs.
KTC3209 Overview
The KTC3209 transistor is another direct swap for the C2655. It can handle up to 2A and 50V. It can get rid of up to 900mW of heat, just like the C2655. The KTC3209 has a low voltage drop and switches fast, in only 1.0 μs. Its transition frequency is 100 MHz, so it works for both sound and radio jobs.
People use the KTC3209 for:
-
Switching loads up to 2A
-
Motor controllers
-
Audio amplifier stages
-
AM/FM radio transmitters and receivers
These things make the KTC3209 a favorite in home electronics, especially when you need good switching and signal boost.
MJE182 Overview
The MJE182 transistor is different because it uses a TO-126 package, which is bigger. This lets it handle more heat, up to 2W, and more current, up to 3A. It can also take up to 80V. The MJE182 is best for circuits that need more power and better cooling. Engineers use it in power amps, motor drivers, and other jobs that need lots of current. Its strong build makes it good for tough places where smaller TO-92 transistors might not work.
C1815 Specifications and Equivalents
C1815 Specifications vs C2655
The c1815 transistor is used in many small projects. People often look at c1815 and C2655 to pick the best one. The c1815 can handle up to 50 V and 150 mA. Its gain can go as high as 700. The c1815 comes in a TO-92 package, which is small and easy to use. The C2655 is also NPN, but it can take more voltage and current. The c1815 has more gain, so it works well for audio and sensor circuits.
| Transistor | Max Collector-Emitter Voltage (V) | Max Collector Current (mA) | Gain (hFE) Max | Package Type |
|---|---|---|---|---|
| C1815 | 50 | 150 | 700 | TO-92 |
| C2655 | 50 | 2000 | High (not detailed) | TO-92 |
The c1815 is best for low-power audio and signal jobs. The C2655 is better for switching bigger currents.
C1815 Equivalents Overview
Many people need c1815 equivalents if they cannot find the real part. The c1815 has some good substitutes. Each c1815 equivalent has special features for different uses. The table below shows the most common c1815 equivalents and what they do best:
| Equivalent Transistor | Key Characteristics |
|---|---|
| 2N5088 | Low noise, high gain, ideal for audio and general amplification |
| BC549 | Low noise, used in audio amplifiers and signal processing |
| BC107 | General purpose, suitable for low-power audio applications |
| 2N2222 | Versatile, rugged, used for switching and amplification |
| BC547 | Popular for general-purpose switching and amplification |
-
2N5088: Has high gain and low noise, good for sound.
-
BC549: Makes little noise, fits in audio circuits.
-
BC107: Works in low-power audio jobs.
-
2N2222: Good for switching and making signals bigger.
-
BC547: Used in many simple circuits.
⚠️ Always read the c1815 datasheet and the datasheet for any c1815 equivalent before you swap them. Some, like C945, may have different pins or voltage limits.
C1815 Datasheet Highlights
The c1815 datasheet gives important facts for engineers. The c1815 uses a TO-92 package and has a normal c1815 pinout. The c1815 datasheet lists the highest ratings, gain range, and best uses. The c1815 works in audio amps, sensor circuits, and signal jobs. The c1815 can handle up to 150 mA and 50 V. Its high gain helps boost weak signals. The c1815 datasheet also helps match the c1815 with its equivalents. The c1815 is trusted by both hobbyists and pros.
Common Mistakes to Avoid
Overlooking Key Specs
Many engineers forget to check all the important specs when picking a C2655 equivalent transistor. Sometimes, they only look at voltage or current. But every project needs a full check of all the specs. These are:
-
Maximum collector-emitter voltage (VCE)
-
Maximum collector current (IC)
-
Power dissipation
-
Gain (hFE)
-
Transition frequency (fT)
⚠️ Tip: Always look at the datasheets for both the old and new transistor. If you miss even one important number, your circuit might not work or could get too hot.
A quick table helps engineers remember the specs:
| Spec | Why It Matters |
|---|---|
| Voltage | Stops the part from breaking |
| Current | Keeps it from overloading |
| Power Dissipation | Prevents getting too hot |
| Gain | Makes sure signals get bigger |
| Frequency | Helps with fast circuits |
Ignoring Pinout or Package Differences
Some engineers think all TO-92 transistors have the same pin order. This is not always right. The pin order can be different for each brand or model. The size of the package also changes how it cools and fits on the board.
-
Always check the pinout picture in the datasheet.
-
Make sure the package type fits your board.
🔍 Note: If you put in a transistor with the wrong pin order, it can break the part or the whole circuit. Always check before you solder.
Using Incompatible Equivalents
Not every replacement transistor works for every job. Some may have less gain or switch slower. Others might not handle as much power or work at the right speed.
-
Pick a replacement that fits the job. For example, use MJE182 for high-power circuits.
-
Try the new part in a test circuit before using it for real.
✅ Pro Tip: Good engineers always check if the part works in real life, not just by reading about it. This helps stop mistakes and keeps the circuit working well for a long time.
Picking the right C2655 equivalent transistor means checking details closely. You should look at voltage, current, and gain to see if the new part fits your project. The table and guide make it easier to avoid errors. JAK Electronics is the best place for C2655 datasheets. They give lots of specs and helpful tips. All Transistors and Alibaba show some equivalents, but they do not have all the info you need. Before you choose, look at the c1815 datasheet and try the c1815 transistor in your circuit. The c1815 is a trusted part for many uses. Using the c1815 or a c1815 transistor equivalent can make your project work better. The c1815 transistor datasheet has key facts for matching parts. Many people use the c1815 for sound, switching, and signal jobs. The c1815 transistor is good for small spaces. Always check the c1815 pinout and see if it matches the C2655 equivalent. The c1815 transistor can be used in many projects. Picking the right c1815 or a c1815 transistor equivalent helps your project last longer. The c1815 is still a favorite for hobbyists and pros.
Tip: Always read the c1815 datasheet and test the c1815 transistor in your project before you decide.
FAQ
What is the most important factor when choosing a C2655 equivalent transistor?
Engineers need to match voltage, current, and power. These numbers help keep the circuit safe. Always look at the datasheet for the right values.
Can a C1815 transistor replace a C2655 in all circuits?
No, the C1815 cannot always replace the C2655. The C1815 lets less current flow than the C2655. It works for small signal jobs but not for big switching. Always check the current ratings before swapping.
How can someone check if the pinout matches?
Always look at the datasheet diagrams for both parts. Most TO-92 packages have the same pin order, but some brands are different. Check before soldering so you do not make a mistake.
Why does package type matter for transistor replacements?
Package type changes how much heat the part can handle. It also changes how it fits on the board. For example, TO-126 cools better than TO-92. Pick a package that fits your board and cooling needs.
What should someone do if the circuit does not work after replacing the transistor?
-
Check the pinout and which way the part faces.
-
Make sure voltage and current ratings are right.
-
Look for soldering problems.
-
Try the transistor in a simple test circuit.
If it still does not work, try another part with closer specs.
