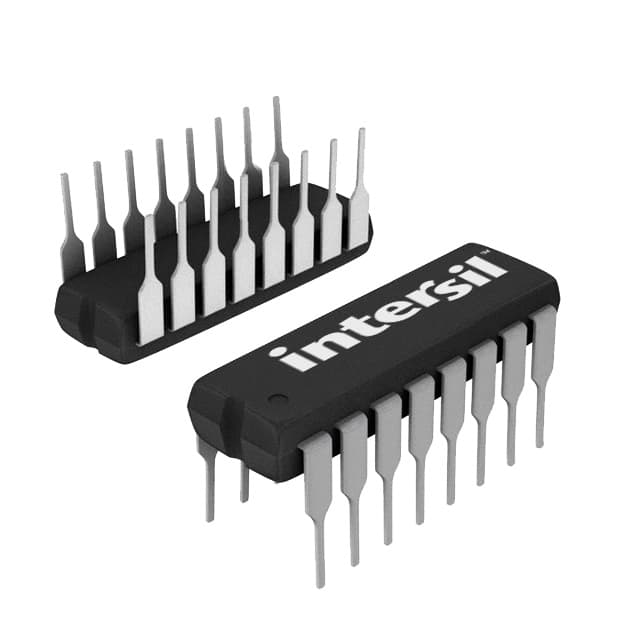

Renesas HI1-5047-5

Manufacturer No:

HI1-5047-5

Manufacturer:

Renesas

Package:

CDIP

Description:

Analog Switches BREAK-BEFORE-MAKE 16 Pins 15V CDIP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

HI1-5047-5 information

Renesas HI1-5047-5 technical specifications, attributes, parameters and parts with similar specifications to Renesas HI1-5047-5.

Type
Parameter

Mount
Through Hole

Package / Case
CDIP

Published
1999

JESD-609 Code
e0

Number of Terminations
16

Resistance
75Ohm

Terminal Finish
Tin/Lead (Sn/Pb)

Max Operating Temperature
75°C

Min Operating Temperature
0°C

Subcategory
Multiplexer or Switches

Technology
CMOS

Number of Functions
1

Supply Voltage
15V

Terminal Pitch
2.54mm

Output
SEPARATE OUTPUT

Pin Count
16

Qualification Status
Not Qualified

Temperature Grade
COMMERCIAL EXTENDED

Number of Channels
4

Analog IC - Other Type
4PST

Number of Bits
1

Supply Type
Dual

Neg Supply Voltage-Nom (Vsup)
-15V

Off-state Isolation-Nom
80 dB

Switching
BREAK-BEFORE-MAKE

Switch-on Time-Max
500ns

Switch-off Time-Max
500ns

Normal Position
NO

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Renesas HI1-5047-5.

Datasheets:

intersil-hi150475-datasheets-2766.pdf

intersil-hi150475-datasheets-6086.pdf

HI1-5047-5 Overview

Packed in CDIP, the electronic component is convenient for shipping overseas. There are 16 terminations totally. By its 4 channels, the electronic component provides high-quality output. With a 15V voltage supply, the electrical component should be turned on and run. An electrical component of this type can be found in the 16 series. This digital multiplexer has 75Ohm internal resistance. This switch device is a typical Multiplexer or Switches. A cost-effective Dual supply type analogue multiplexer. Integrated with 4PST analog IC. This analog switch ic utilizes SEPARATE OUTPUT output. The switches should not operate in an environment where the temperature is higher than 75°C. It is able to conduct in a 1-bit way.
