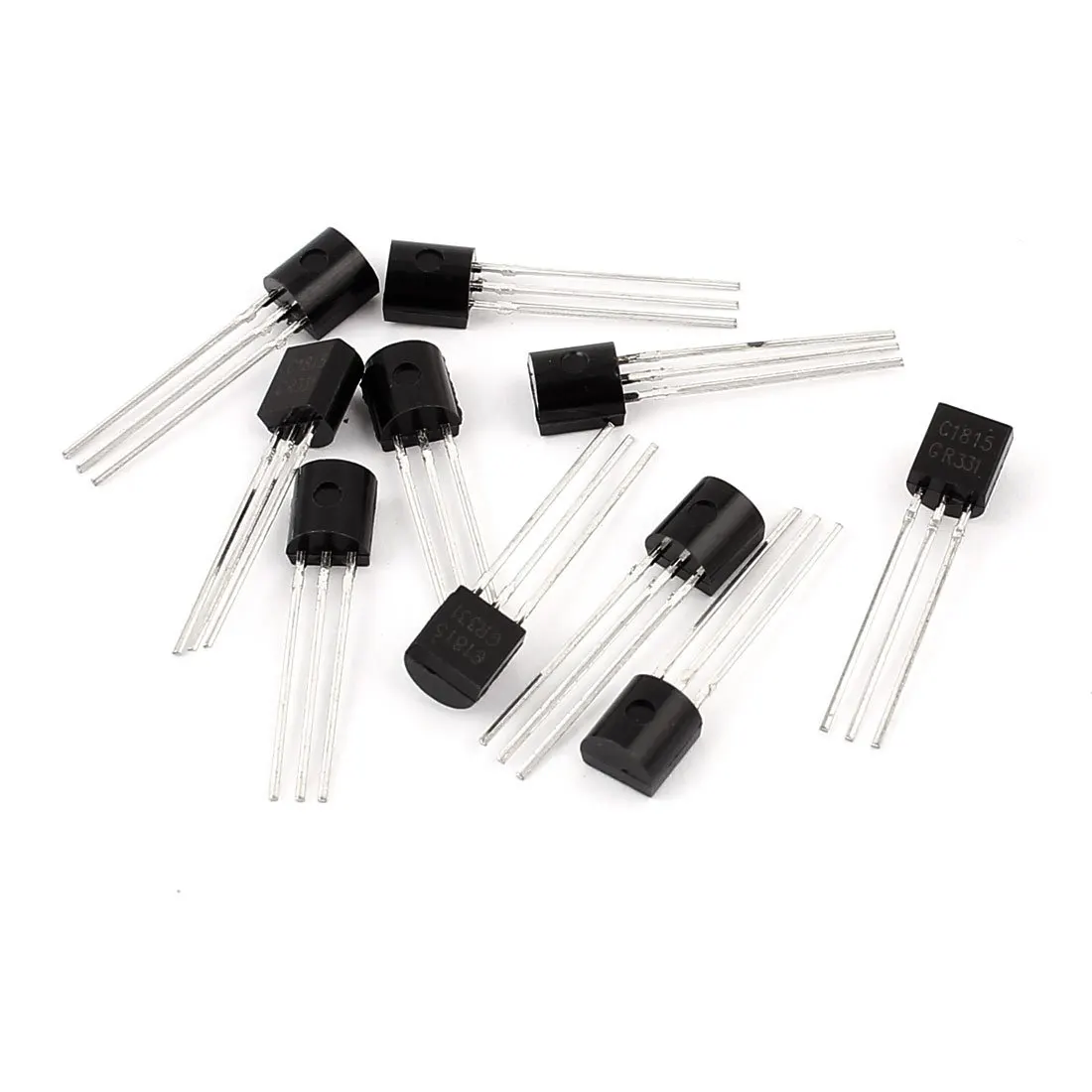

The C1815 transistor is a widely-used NPN bipolar junction transistor (BJT) designed for low-power applications. It plays a critical role in switching and amplification tasks in electronic circuits. Its compact design and high reliability make it a favorite among hobbyists and professionals alike.
Key C1815 features include a high gain (hFE), low collector-emitter saturation voltage, and a maximum collector current of 150 mA. These characteristics allow the transistor to perform efficiently in various circuit designs. Its outline dimensions also make it suitable for compact electronic devices.
Whether used in audio amplification or as a switch in low-power circuits, the C1815 offers versatility. Understanding how to use the C1815 transistor effectively can help users build reliable and efficient circuits. For those seeking alternatives, the persamaan transistor C1815, such as the 2N3904, can serve as substitutes depending on the requirements.
Key Takeaways
-
The C1815 transistor is a dependable NPN transistor for small-power uses. It is great for both beginners and experts.
-
Knowing the pinout setup (emitter, base, collector) is important to build circuits correctly.
-
Using a multimeter to test the C1815 helps check the pins and ensures it works properly.
-
Don’t make mistakes like swapping the emitter and collector or using too much voltage, as this can break the circuit.
-
The C1815 can do many things, like boosting sound, switching low power, and working in fun DIY electronics projects.
C1815 Pinout Configuration
Understanding the Emitter, Base, and Collector pins
The C1815 transistor has three essential pins: the emitter, base, and collector. Each pin plays a unique role in the transistor's operation.
-
Emitter: This pin allows current to flow out of the transistor. It typically connects to the ground or the negative terminal of the power supply in most circuits.
-
Base: The base acts as the control center. A small current applied to this pin regulates the larger current flowing between the collector and emitter. This makes the C1815 ideal for switching and amplification tasks.
-
Collector: The collector pin is where the majority of the current enters the transistor. It connects to components such as resistors or LEDs, handling the bulk of the current in the circuit.
The following table summarizes the functions of these pins:
| Pin | Function |
|---|---|
| Collector | The collector pin is where most current enters the transistor. It connects to parts like resistors or LEDs in your circuit. This pin handles most of the current, making it very important. |
| Base | The base pin works like a control switch. A small current here allows a bigger current to flow between the collector and emitter. This makes the C1815 transistor great for switching and amplifying. |
| Emitter | The emitter pin is where the current exits the transistor. It usually connects to the ground or the negative side of the power supply in circuits. |
Identifying the C1815 pinout with a multimeter
Testing the C1815 pinout with a multimeter is a straightforward process. It helps confirm the pin configuration and ensures the transistor is functioning correctly.
-
Set the multimeter: Switch the multimeter to the diode testing mode.
-
Identify the base pin: Place the positive probe on one pin and the negative probe on the other two pins. The base pin will show continuity with both the emitter and collector.
-
Determine the emitter and collector: Once the base is identified, reverse the probes. The emitter will show a lower voltage drop compared to the collector.
This method ensures accurate identification of the pinout, preventing errors during circuit assembly.
Avoiding common connection mistakes
Incorrect connections can lead to circuit failure or damage to the C1815 transistor. Here are some common mistakes to avoid:
-
Reversing the emitter and collector: This mistake disrupts the current flow and prevents the transistor from functioning.
-
Overloading the base pin: Applying excessive current to the base can damage the transistor. Always use a resistor to limit the base current.
-
Exceeding voltage ratings: The C1815 has specific voltage limits, such as a maximum collector-emitter voltage of 50V. Exceeding these limits can cause permanent damage.
By understanding the pinout diagram and following proper testing procedures, users can avoid these issues and ensure reliable circuit performance.
C1815 Datasheet and Technical Specifications
Voltage ratings (VCEO, VCBO, VEBO)
The C1815 transistor operates within specific voltage limits to ensure reliable performance. These voltage ratings define the maximum voltages the transistor can handle across its terminals without damage.
-
Collector-base voltage (VCBO): This rating specifies the maximum voltage between the collector and base terminals when the emitter is open. The C1815 can handle up to 60 volts in this configuration.
-
Collector-emitter voltage (VCEO): This is the maximum voltage between the collector and emitter terminals when the base is open. The C1815 supports up to 50 volts for this rating.
-
Emitter-base voltage (VEBO): This rating indicates the maximum voltage between the emitter and base terminals when the collector is open. The C1815 allows up to 5 volts for this parameter.
The table below summarizes these voltage ratings:
| Characteristic | Symbol | Rating | Unit |
|---|---|---|---|
| Collector-base voltage | VCBO | 60 | V |
| Collector-emitter voltage | VCEO | 50 | V |
| Emitter-base voltage | VEBO | 5 | V |
These ratings highlight the transistor's suitability for low-power applications. Designers should ensure circuit voltages remain within these limits to prevent damage.
Current ratings and power dissipation
The C1815 transistor is designed for low-current applications, making it ideal for compact and energy-efficient circuits.
-
Maximum collector current (IC): The transistor can handle up to 150 mA of current through the collector terminal. This limit ensures safe operation in low-power circuits.
-
Power dissipation (Ptot): The transistor can dissipate up to 400 mW of power. This rating reflects the maximum heat the device can safely handle during operation.
Proper heat management is essential when operating the C1815 near its maximum ratings. Using heat sinks or ensuring adequate ventilation can help maintain optimal performance.
Gain (hFE) and operating temperature range
The C1815 transistor offers excellent gain characteristics and operates reliably across a wide temperature range.
-
DC current gain (hFE): The transistor provides good linearity in its gain, which typically ranges from 70 to 700 depending on the operating conditions. This makes it suitable for signal amplification tasks.
-
Transition frequency (fT): The C1815 achieves a transition frequency of approximately 80 MHz, enabling efficient operation in high-frequency circuits.
-
Operating temperature range: The transistor performs well within a temperature range of -55°C to +150°C. This wide range ensures reliability in various environmental conditions.
The table below summarizes these specifications:
| Specification | Value |
|---|---|
| hFE (DC current gain) | Good linearity |
| Collector current | Up to 150mA |
| Transition frequency | Typically 80MHz |
These characteristics make the C1815 a versatile choice for applications requiring stable gain and high-frequency performance.
Persamaan Transistor C1815 (Equivalent Transistors)
Common equivalents like 2N3904 and BC547
The C1815 transistor shares many characteristics with other NPN bipolar junction transistors, making it easy to find suitable substitutes. Common equivalents include the 2N3904 and BC547, both widely used for general-purpose amplification and switching applications.
Other alternatives include:
-
2N5088
-
BC549
-
BC107
-
2N2222
-
Additional equivalents: 2SC2458, 2SC3198, C945, KSC1815
These transistors offer similar electrical properties, ensuring compatibility in most circuits. For example, the BC547 provides a higher maximum collector-base voltage (80V) compared to the C1815 (50V), making it suitable for circuits requiring higher voltage tolerance.
Factors to consider when selecting a substitute
Choosing the right substitute for the C1815 requires careful evaluation of several factors:
-
Voltage Ratings: Ensure the replacement transistor can handle the required collector-base, collector-emitter, and emitter-base voltages.
-
Current Capacity: Verify that the substitute supports the necessary collector current for the circuit.
-
Gain (hFE): Check the DC current gain to ensure the substitute provides adequate amplification.
-
Application Compatibility: Consider the intended use, such as switching or signal amplification, and match the substitute's characteristics accordingly.
For example, the 2N2222 offers a higher collector current rating (800mA) compared to the C1815 (150mA), making it a better choice for high-power applications. However, for low-power circuits, the C1815 or BC547 may suffice.
Comparing performance with equivalent transistors
The table below highlights key differences and similarities between the C1815 and its equivalents:
| Transistor | Key Characteristics |
|---|---|
| C1815 | Max V_CBO: 50V, I_C: 150mA, Gain: Varies |
| BC547 | Max V_CBO: 80V, I_C: Similar rating, Gain: Comparable |
| 2N2222 | Max V_CBO: 75V, I_C: 800mA, Higher Gain |
| 2N5088 | Low noise, high gain for audio applications |
| BC549 | Low-noise, low-signal applications |
| BC107 | Suitable for low-power audio |
The C1815 and BC547 share similar gain ranges and applications, making them interchangeable in many circuits. However, the 2N2222 provides higher voltage and current ratings, making it ideal for demanding tasks.
The C1815 transistor remains a reliable choice for low-power applications, but understanding its equivalents and alternatives ensures flexibility in circuit design.
Circuit Designs Using the C1815
Using the C1815 as a switch
The C1815 transistor excels in switching applications due to its ability to control current flow efficiently. It operates as an electronic switch by using a small base current to regulate a larger current between the collector and emitter. This makes it ideal for circuits requiring precise control, such as turning LEDs or relays on and off.
To use the C1815 as a switch:
-
Connect the emitter to the ground.
-
Attach the load (e.g., an LED) to the collector.
-
Apply a small current to the base through a resistor.
The following circuit demonstrates this configuration:
+5V -----> Resistor -----> Base (C1815)
Collector -----> LED -----> Ground
Emitter -----> Ground
This setup ensures the transistor switches the LED on when the base receives current. The resistor limits the base current, preventing damage to the transistor.
Signal amplification with the C1815
The C1815 transistor is widely used in signal amplification due to its excellent hFE linearity and low noise operation. These characteristics ensure stable gain and accurate signal reproduction, making it suitable for audio equipment and preamplifiers.
Key amplification metrics include:
-
Low noise operation for audio applications.
-
High-frequency capabilities for RF circuits.
-
Efficient load driving under 150mA.
The table below highlights its performance metrics:
| Metric | Description |
|---|---|
| Low Noise Operation | Suitable for audio amplification due to minimal noise levels. |
| Excellent hFE Linearity | Ensures accurate amplification and faithful signal reproduction. |
| High Voltage Handling | Can manage high voltages and collector currents for power conditioning. |
| High Conversion Frequency | Efficient operation at high frequencies, beneficial for RF applications. |
These features make the C1815 amplifier circuits ideal for applications requiring precise amplification and minimal distortion.
Simple LED driver circuit example
The C1815 transistor can drive LEDs efficiently in low-power circuits. This example demonstrates a simple LED driver circuit using the C1815:
Components:
-
C1815 transistor
-
Resistor (1kΩ)
-
LED
-
Power supply (5V)
Circuit Diagram:
+5V -----> Resistor -----> Base (C1815)
Collector -----> LED -----> Ground
Emitter -----> Ground
Working Principle:
-
The resistor limits the base current to protect the transistor.
-
When the base receives current, the transistor switches on, allowing current to flow from the collector to the emitter.
-
The LED lights up as current flows through it.
This circuit showcases the versatility of the C1815 in driving low-power loads efficiently.
C1815 Uses and Applications
Audio amplification circuits
The C1815 transistor is a popular choice for audio amplification circuits due to its excellent gain characteristics and low noise operation. These attributes make it suitable for preamplifiers, small signal amplifiers, and audio processing devices. Its ability to amplify weak audio signals without introducing significant distortion ensures high-quality sound reproduction.
In audio circuits, the C1815 operates efficiently as a common-emitter amplifier. This configuration provides a good balance between voltage gain and input impedance. For example, it can amplify signals from microphones or other low-output devices to drive speakers or further processing stages. The transistor's high transition frequency (fT) also supports its use in high-frequency audio applications, ensuring clear and accurate sound output.
Low-power switching applications
The C1815 excels in low-power switching applications, thanks to its ability to handle small currents and voltages effectively. As an NPN transistor, it functions as an electronic switch, controlling the flow of current between the collector and emitter with a small base current. This makes it ideal for circuits requiring precise control, such as turning LEDs, relays, or small motors on and off.
One of the key benefits of using the C1815 in switching circuits is its low collector-emitter saturation voltage. This ensures minimal power loss during operation, making it energy-efficient. Additionally, its compact size allows it to fit into space-constrained designs, such as portable devices or embedded systems.
DIY and hobbyist electronics projects
The C1815 transistor is a favorite among DIY enthusiasts and hobbyists due to its versatility and reliability. Its attributes, such as high gain and low noise, make it suitable for a wide range of projects, from simple LED drivers to more complex audio amplifiers.
Hobbyists often use the C1815 in small signal audio amplifier projects. Despite not being the optimal choice for high-power switching, it proves effective in practical applications. Its availability and compatibility with common components further enhance its appeal for DIY projects.
For beginners, the C1815 offers an excellent introduction to working with transistors. Its straightforward pinout and predictable behavior simplify circuit design and troubleshooting. Whether building a basic amplifier or experimenting with switching circuits, the C1815 provides a reliable foundation for learning and innovation.
Industrial applications of the C1815
The C1815 transistor plays a vital role in industrial electronics due to its reliability and versatility. Its compact design and ability to handle low-power applications make it suitable for various industrial systems. Engineers often use the C1815 in circuits requiring precise control and signal amplification.
Applications in Automation Systems
Automation systems rely on components that can switch and amplify signals efficiently. The C1815 transistor serves as a key element in these systems. It controls relays, sensors, and actuators, ensuring smooth operation. For example, it can amplify weak signals from sensors to trigger larger devices like motors or alarms. Its high gain and low noise characteristics make it ideal for maintaining signal integrity in automated processes.
Role in Industrial Communication Devices
Industrial communication devices, such as modems and transceivers, require stable signal amplification. The C1815 transistor supports these devices by amplifying low-power signals without introducing distortion. Its high transition frequency enables it to operate effectively in circuits handling high-frequency data transmission. This ensures reliable communication between machines and systems in industrial environments.
Use in Power Management Circuits
Power management circuits often incorporate the C1815 transistor to regulate voltage and current. It operates as a switch to control power flow in energy-efficient systems. For instance, it can manage the operation of LEDs or small motors in industrial equipment. Its low collector-emitter saturation voltage minimizes energy loss, making it a preferred choice for power-sensitive applications.
The C1815 transistor's adaptability and performance make it a valuable component in industrial electronics. Its ability to handle diverse tasks ensures its continued use in automation, communication, and power management systems.
The C1815 transistor stands out as a versatile and dependable component in electronics. Its compact size, high gain, and low noise operation make it suitable for applications ranging from audio amplification to LED drivers. Designers value its ability to handle high voltages, up to 50V collector-emitter and 60V collector-base, ensuring reliability in demanding circuits.
Key performance metrics reaffirm its reliability: superior DC gain linearity ensures accurate signal reproduction, while low noise improves clarity in sensitive applications. The transistor’s adaptability extends to high-frequency circuits, with a transition frequency of 80MHz supporting RF designs. Its affordability and durability further enhance its appeal among hobbyists and professionals.
The C1815’s broad application range, including audio amplifiers, motor control systems, and power management circuits, highlights its market acceptance. Whether used in DIY projects or industrial systems, it consistently delivers reliable performance. This combination of features and benefits solidifies the C1815 as a trusted choice for diverse electronic designs.
FAQ
What is the maximum current the C1815 transistor can handle?
The C1815 transistor can handle a maximum collector current of 150 mA. This makes it suitable for low-power applications like small signal amplification and switching tasks.
Can the C1815 transistor be used for audio amplification?
Yes, the C1815 transistor works well for audio amplification. Its high gain and low noise characteristics ensure clear and accurate sound reproduction, making it ideal for preamplifiers and small signal amplifiers.
How do you test a C1815 transistor with a multimeter?
Set the multimeter to diode mode. Identify the base pin by checking continuity with the other two pins. Reverse the probes to differentiate the emitter (lower voltage drop) from the collector.
What are some equivalent transistors for the C1815?
Common equivalents include the 2N3904, BC547, and 2N2222. These transistors share similar characteristics, but users should verify voltage, current, and gain requirements before substitution.
Why is the C1815 transistor popular among hobbyists?
The C1815 transistor is affordable, versatile, and easy to use. Its compact size, high gain, and low noise make it ideal for DIY projects like LED drivers and small amplifiers.
