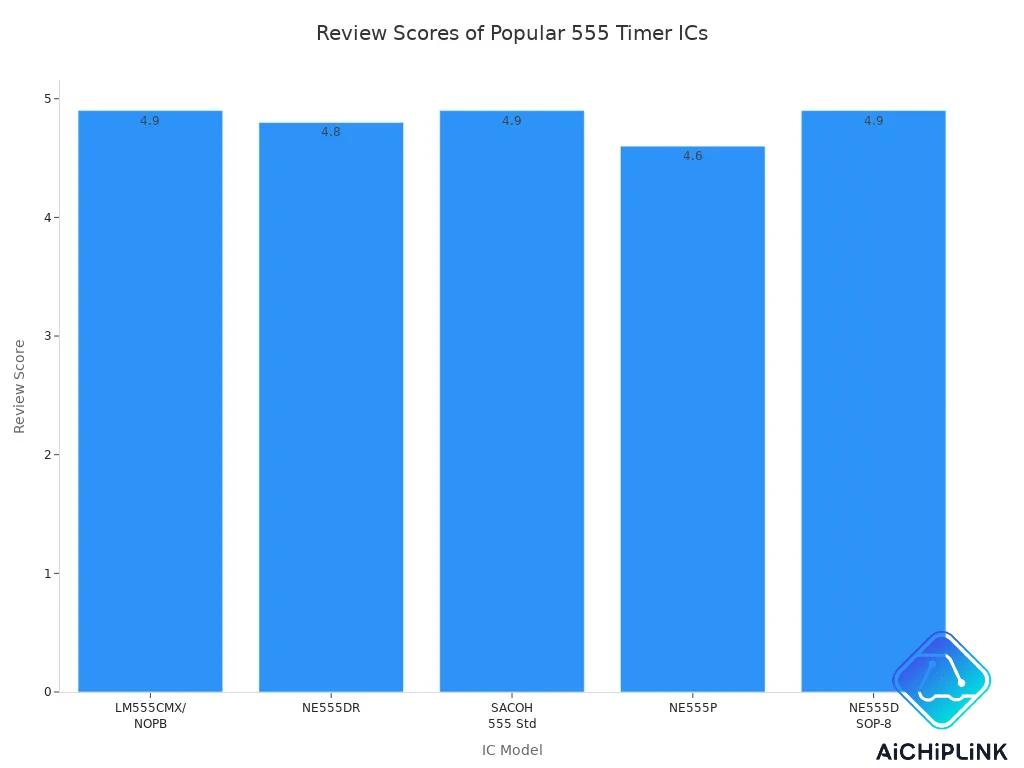

You use a 555 timer IC to make accurate timing, delay, and pulse signals in electronic circuits. The 555 timer can work as a timer, oscillator, and pulse generator. Many engineers and hobbyists pick the 555 timer for projects in toys, home devices, and LED displays. Its popularity shows in the many models you can buy and the high review scores.
The table below lists the most common uses for the 555 timer:
| Application Type | Description |
|---|---|
| Oscillator | Used in circuits like strobe lights, pulse generators, and tone generators. |
| Timer | Works in things like timers and pulse width modulation (PWM). |
| Temperature Sensor | Can be set up with a thermistor to measure temperature. |
| LED Driver | Sends fixed-cycle pulses to run LED displays. |
You see the 555 timer in many electronics because it is flexible and works well.
Key Takeaways
-
The 555 timer is a useful chip. It helps with timing, making pulses, and creating waves in many electronic projects.
-
It works in three main ways. Astable mode makes signals that keep going. Monostable mode makes one pulse at a time. Bistable mode keeps things steady in two states.
-
You can set up a 555 timer circuit with simple parts. This makes it great for people new to electronics.
-
The 555 timer does not cost much and works well. You can use it for things like flashing LEDs, timers, and making sounds.
-
You can try different resistor and capacitor values. This helps you see how the 555 timer changes timing and pulse making.
555 Timer Basics
The 555 timer is a chip that helps make timing and pulse signals. You can use it to turn things on or off for a set time. It can also make signals that repeat or send out just one pulse. This chip works in many devices because you can set it up in different ways. You will find the 555 timer in alarms, clocks, toys, and radios.
Operation Modes
The 555 timer can work in three main modes. Each mode lets you do different things with the chip. The table below shows what each mode does and where you might use it:
| Mode | Description | Applications |
|---|---|---|
| Astable | Continuously switches between high and low states, generating a square wave. | Used for flashing lamps, LEDs, and providing clock pulses for digital circuits. |
| Monostable | Produces a single pulse of a set length in response to a trigger input. | Ideal for 'push to operate' systems, such as starting a model's mechanism for a set time. |
| Bistable | Has two stable states; output can be set high or low based on inputs. | Useful in automated systems like model railways, controlling direction based on trigger inputs. |
Astable mode makes the 555 timer switch on and off again and again. This setup is good for blinking lights or sending clock signals. People call this setup an astable multivibrator. You can find astable multivibrators in radios, Morse code makers, timers, analog circuits, and TVs. The 555 timer makes building these circuits simple.
Monostable mode gives you just one pulse when you press a button. The chip sends out a pulse for a certain time. You use monostable mode in timers, storage circuits, and pulse generators. This mode can also fix broken pulses by making them even.
Bistable mode lets the 555 timer stay in one state until you tell it to change. This setup is good for things that need two steady outputs, like changing the direction of a model train.
Tip: Try making a simple astable multivibrator circuit with the 555 timer. You only need a few resistors and a capacitor. You will see how easy it is to make an LED blink.
Internal Components
Inside the 555 timer, there are several important parts. Each part helps the chip make accurate timing and pulses. The table below explains what each part does:
| Component | Function |
|---|---|
| Voltage Divider | Divides the supply voltage into three equal parts, creating reference voltages for comparators. |
| Comparators | Compare input voltages with reference voltages to control the flip-flop state. |
| Flip-Flop | Controls the output state based on the comparators' outputs. |
| Discharge Transistor | Discharges the external timing capacitor in astable or monostable mode. |
| Output Stage | Drives high and low states on the output pin, interfacing with various loads. |
| Control Voltage Pin | Modifies the 2/3Vcc threshold to change timing characteristics. |
| Reset Pin | Resets the flip-flop, forcing the output low regardless of other inputs. |
The voltage divider splits the supply voltage into three parts. This helps the comparators know when to change the output. The comparators check the voltage and send signals to the flip-flop. The flip-flop is the main part of the 555 timer. It switches the output between high and low. You can see how the flip-flop works in the table below:
| Pin | Function |
|---|---|
| S | Set high state of Q output |
| R | Reset high state of Q output |
| !R1 | Master reset, turns off Q output |
| Q | Flip-flop output |
| !Q | Negated output of the flip-flop |
The discharge transistor helps with timing by emptying the capacitor at the right time. The output stage lets you connect the 555 timer to things like LEDs or buzzers. The control voltage pin lets you change the timing if you want. The reset pin lets you stop the timer and make the output low.
These parts inside the 555 timer let you use it in many ways. The chip gives you good timing and pulse signals for your projects. You will find the 555 timer is easy to use and very flexible.
555 Timer Pinout
Pin Functions
You will find eight pins on a standard 555 timer IC. Each pin has a special job in making the chip work. Here is what each pin does:
-
Ground (Pin 1): Connect this pin to the negative side of your power supply. It sets the zero voltage reference for the chip.
-
Trigger (Pin 2): Use this pin to start the timing cycle. When the voltage drops below one-third of the supply, the output switches on.
-
Output (Pin 3): This pin sends out the timer signal. You can connect it to LEDs, buzzers, or other devices.
-
Reset (Pin 4): If you want to stop the timer early, send a low signal to this pin. It resets the timer and turns off the output.
-
Control Voltage (Pin 5): You can change the timing by adding a voltage here. Most circuits connect this pin to ground through a small capacitor.
-
Threshold (Pin 6): This pin watches the voltage on the timing capacitor. When it reaches two-thirds of the supply, the timer stops.
-
Discharge (Pin 7): The chip uses this pin to empty the timing capacitor. It helps control the timing cycle.
-
VCC (Pin 8): Connect this pin to the positive side of your power supply. The chip works with voltages from 5V to 15V.
Tip: Always check your power supply voltage. The 555 timer works best between 5V and 15V. If you use less than 5V, the chip may not work. If you use more than 15V, you could damage the chip.
Circuit Connections
You need to connect each pin correctly to make your circuit work. The table below shows how you use each pin in a typical setup:
| PIN | NAME | FUNCTION |
|---|---|---|
| 1 | GROUND | Connect to the negative side of your power supply (0V). |
| 2 | TRIGGER | Connect to a button or sensor to start the timing cycle. |
| 3 | OUTPUT | Connect to your load, such as an LED, speaker, or relay. |
| 4 | RESET | Tie to the positive supply if you do not need to reset the timer. |
| 5 | CONTROL | Connect to ground through a 10nF capacitor for stable operation. |
| 6 | THRESHOLD | Connect to the timing capacitor and resistor network. |
| 7 | DISCHARGE | Connect to the timing capacitor to control charging and discharging. |
| 8 | VCC | Connect to the positive side of your power supply (5V to 15V). |
You can use the 555 timer pinout to build many types of circuits. The chip works well in different temperatures and keeps timing steady. You will see the 555 timer in projects that need blinking lights, sound makers, or simple timers. When you connect the pins as shown, your circuit will run smoothly.
555 Timer Applications
The 555 timer lets you control time and signals in projects. You can use this chip to make circuits that measure time or create pulses. It also helps you make signals that repeat. The 555 timer block diagram shows how each part works together. This helps you see how the chip does these jobs. Let’s see how you can use the 555 timer in different ways.
Timing Circuits
The 555 timer helps you build circuits that turn things on or off for a set time. These circuits let you set delays, measure time, and make things happen by themselves. The block diagram shows how the inside parts work together for good timing.
Some common uses for timing circuits are:
-
PWM (Pulse Width Modulation) and PPM (Pulse Position Modulation)
-
Duty cycle oscillator
-
Lamp dimmer
-
Accurate time delays
-
Flip-flop element
-
Digital logic probes
-
Analog frequency meters
-
Quad timer applications
-
Pulse, waveform, and square wave generation
-
Stepped tone and tone burst generator
-
Tachometers and temperature measurement
-
Monostable and astable multivibrator
-
DC to DC converters
-
DC voltage regulators
-
Voltage to frequency converter
-
Frequency divider
-
Schmitt trigger
-
Cable tester
-
Pulse detector
-
Wiper speed control
-
Timer switch
-
Time delay generation, precision timing, and sequential timing
-
Traffic light circuit, LED flashing circuits, police siren, and more
You can make a timer switch that turns something on for a set time. You might use a 555 timer to make a lamp dimmer or a traffic light. The 555 timer gives you many choices for timing.
Timing circuits need to be accurate and steady for good results. You can compare the 555 timer to other ways using this table:
| Timing Solution | Accuracy | Stability | Cost Comparison |
|---|---|---|---|
| 555 Timer | 15% error (approx) | Lower due to analog components | Similar to microcontroller |
| Microcontroller | 2% or better | Higher due to digital components | Similar to 555 Timer |
The 555 timer works well, but microcontrollers are more accurate and steady. Pick the 555 timer for easy and low-cost projects.
Note: Use good resistors and capacitors to make timing better. Keep your circuit cool to stop timing from changing.
Pulse Generation
The 555 timer can make pulses for many tasks. The chip works in three modes: astable, monostable, and bistable. Each mode lets you make different kinds of pulses.
Here is how the 555 timer makes pulses:
| Operational Mode | Description | Applications |
|---|---|---|
| Astable | Generates a continuous square wave output | Pulse generation, oscillator circuits |
| Monostable | Produces a single output pulse in response to a trigger | Time delay circuits |
| Bistable | Functions as a flip-flop, maintaining its state until triggered | Memory storage, toggle switches |
Astable mode makes a steady stream of pulses. You can use it to blink an LED or send clock signals. Monostable mode gives one pulse when you press a button. This is good for time delays or pulse detectors. Bistable mode lets you keep a state, which is good for switches or memory.
You can change the pulse speed by picking different resistors and capacitors. The formula for the output frequency in astable mode is:
F = 1 ÷ {(R1 + 2R2) × C1}
If R1 is 1K, R2 is 10K, and C1 is 0.1μF, you get about 900Hz. You can change these parts to fit your project.
Tip: Try using different resistor or capacitor values. You will see the pulse speed change. This helps you learn how the 555 timer works.
Oscillator Uses
The 555 timer oscillator makes signals that repeat at a set speed. You can use it to make waveforms, sound effects, and blinking lights. It is great for fun and useful projects.
Some common uses for the 555 timer oscillator are:
-
Generating waveforms
-
Metronomes
-
Sound effects
-
LED or lamp flashers
-
Dimmers
-
Noise making circuits
You can make a metronome to help with music. You might use a 555 timer oscillator to make a siren or flashing lights. The 555 timer oscillator is an easy way to make repeating signals.
The 555 timer oscillator’s stability depends on the resistors and capacitors you use. The frequency can change if it gets hot or the parts get old. Crystal oscillators are much steadier because they use quartz crystals. Use crystal oscillators if you need very steady timing.
-
The 555 timer oscillator is less steady because it uses analog parts.
-
Crystal oscillators keep a steady frequency and do not change with heat.
-
Crystal oscillators are best for projects that need high accuracy.
The 555 timer oscillator is good for most hobby projects. It is easy to use and works well for simple jobs.
Callout: The 555 timer oscillator is great for learning electronics. You can build many circuits and see how timing and pulses work.
Importance
Advantages
You get many benefits when you use a 555 timer in your projects. This chip works in astable, monostable, and bistable 555 timer modes. You can build circuits that blink, beep, or switch states. The 555 timer gives you stable and reliable performance. You do not need to worry about the chip failing in most conditions.
Here are some key advantages of the 555 timer:
-
You can use the 555 timer in different modes, including astable, monostable, and bistable 555 timer.
-
The chip stays stable and robust, even if your circuit faces small changes in temperature or voltage.
-
You can adjust the duty cycle to create square waves for timing and control.
-
The 555 timer works better than many discrete components. You do not need to build complex circuits from scratch.
-
You save time and money because the 555 timer is affordable and easy to find.
Tip: Try using the 555 timer instead of building a timer from separate parts. You will see how much easier your project becomes.
Versatility
You can use the 555 timer in many types of electronic projects. The chip fits into simple and complex designs. You can make a blinking LED, control a motor, or create sound effects. The bistable 555 timer mode lets you build circuits that switch between two states. This is useful for touch sensors and toggle switches.
Here are some ways you can use the 555 timer:
-
Make an LED flasher with the 555 timer in astable mode. You can change how fast the light blinks.
-
Control a motor’s speed using PWM signals from the 555 timer.
-
Build a tone generator for sound projects. You can set different pitches.
-
Use the 555 timer as a button debouncer. You get clean signals from button presses.
-
Create a touch sensor with the bistable 555 timer. The circuit latches on or off when you touch it.
The 555 timer helps you learn electronics. You can experiment with different modes, including the bistable 555 timer. You see how timing and pulses work in real circuits. The chip’s flexibility makes it a favorite for students and hobbyists.
Callout: The 555 timer gives you the power to design many projects. You can start with simple circuits and move to advanced designs as you learn more.
Using a 555 Timer
Simple Setup
You can set up a 555 timer in a basic timing circuit with just a few steps. This process helps you create a simple one-shot circuit or a repeating timer. Follow these steps to get started:
-
Connect pin 8 of the 555 timer to the positive terminal of a 9V battery. Attach pin 1 to the ground.
-
Place a 0.01uF capacitor between pins 5 and 1.
-
Connect a 1uF capacitor between pins 1 and 6. Make sure the negative lead goes to pin 1.
-
Use a jumper wire to link pins 6 and 7.
-
Insert a 5.1K resistor between pins 7 and 8.
-
Leave the reset pin (pin 4) floating if you do not need to reset the timer.
Tip: Always double-check your connections before powering the circuit. A small mistake can stop the 555 timer from working.
This setup lets you build a basic timer or pulse generator. You can use it to flash an LED or create a sound with a buzzer. Try changing the capacitor or resistor values to see how the timing changes.
Tips for Beginners
When you work with a 555 timer, you may face some common problems. Avoiding these mistakes will help your circuit run smoothly.
-
Do not connect pin 7 to the ground rail. This can damage your potentiometer.
-
Use capacitors with values under 10uF for most projects. Large capacitors can overheat the chip.
-
Tie the reset pin (pin 4) to the positive supply. Leaving it floating can cause random resets.
-
Follow standard circuit diagrams. Clear layouts make troubleshooting easier.
-
Avoid using high-value resistors and capacitors for long delays. Leakage can make timing unreliable.
-
Do not connect a PNP transistor directly to the output pin. The 555 timer may not turn it off fully.
Note: Use high-quality resistors and capacitors for better accuracy. Tight connections prevent erratic behavior.
If your 555 timer circuit does not work, check the power supply first. Measure the voltage across the power pins. Make sure the reset pin has the correct voltage. Use a multimeter to check the output pin. These steps help you find and fix problems quickly.
You can use a 555 timer in many projects. Start with simple circuits and build your skills. The 555 timer gives you a fun way to learn about timing and electronics.
You now know why the 555 timer is special in electronics. You can use it for many projects, like making a flashing LED or a call indicator. The monostable 555 timer helps you learn about timing and comparators. It also teaches you about analog circuits. You see how the monostable 555 timer mixes digital and analog ideas. Many teachers say to start with the monostable 555 timer. It gives you a chance to work with real circuits. You can build a monostable 555 timer circuit to learn about timing. The monostable 555 timer helps you understand electronic systems. You find it in alarms, switches, and brightness controllers. Try making your own monostable 555 timer project. You will see how much you can learn and make.
-
The 555 timer is popular because:
-
You get to work with real circuits.
-
You learn important electronics ideas.
-
You try both analog and digital circuits.
-
The monostable 555 timer is a great way to begin learning electronics. You can test ideas, learn new things, and enjoy every project.
