Ohmic Resistors Explained: Definition, Characteristics, and Applications

You find ohmic resistors in almost every electronic device. These parts keep resistance the same, even when voltage or current changes. Their effect helps circuits work well and stay reliable. The table below shows a Ti/Al/W2B/Ti/Au metallization scheme. It gives very good stability when the temperature is high:

Metallization Scheme	Minimum Contact Resistance	Stability at High Temperature
Ti/Al/W2B/Ti/Au	7×10^-6 Ω.cm²	Excellent stability at 200°C

Ohmic Resistors Explained helps you see why these parts are important. You learn how they make electronic devices safe and work as expected.

Key Takeaways

• Ohmic resistors keep the same resistance. This helps current flow in a way you can predict in circuits.

• Use Ohm's Law (V = I × R) to see how voltage, current, and resistance are connected.

• Pick the right ohmic resistor for your project. Look at the material and resistance range.

• Ohmic resistors do not cost much. They help keep circuits safe by stopping too much heat and voltage drops.

• Check resistors with a multimeter first. Make sure they act like ohmic resistors before you use them in your circuits.

Ohmic Resistors Explained

What Are Ohmic Resistors

Ohmic resistors are parts that keep their resistance the same. This happens even if you change the voltage or current in a circuit. The resistance does not go up or down. This helps you control how much current moves in your circuit. You can always know how the resistor will act.

There are many types of ohmic resistors. Each type uses different materials. They also have many resistance values. The table below lists the main types, what they are made of, and their usual resistance ranges:

Resistor Type	Materials Used	Typical Resistance Range
Carbon-type	Carbon film, carbon composition	1 ohm to 22 megohms
Metal film	Nichrome, tin oxide, tantalum nitride	10.0 ohms to 301 kohms
Wirewound	Nichrome	0.1 ohms to 1.2 Mohms

Tip: Pick the best ohmic resistor for your project by checking the material and resistance range.

You find ohmic resistors in almost all electronic devices. They help set the right current and voltage for each part. If you want a circuit to work the same every time, use an ohmic resistor.

Ohm’s Law

Ohm’s law is a simple rule for ohmic resistors. It says the voltage across a resistor equals the current times the resistance. You can write it like this:

V = I × R

Here, V means voltage, I means current, and R means resistance. For an ohmic resistor, R stays the same. If you make the voltage higher, the current goes up in a straight line. If you lower the voltage, the current goes down the same way. This direct link makes ohmic resistors easy to use.

Ohmic resistors always follow ohm’s law if the temperature does not change. This makes them great for circuits where you need a steady current-voltage link.

• Resistance shows how much a material blocks current.

• Ohm’s law works best for perfect resistors with no changes.

• Fixed resistors keep the same resistance, so you know what will happen.

Linear V-I Relationship

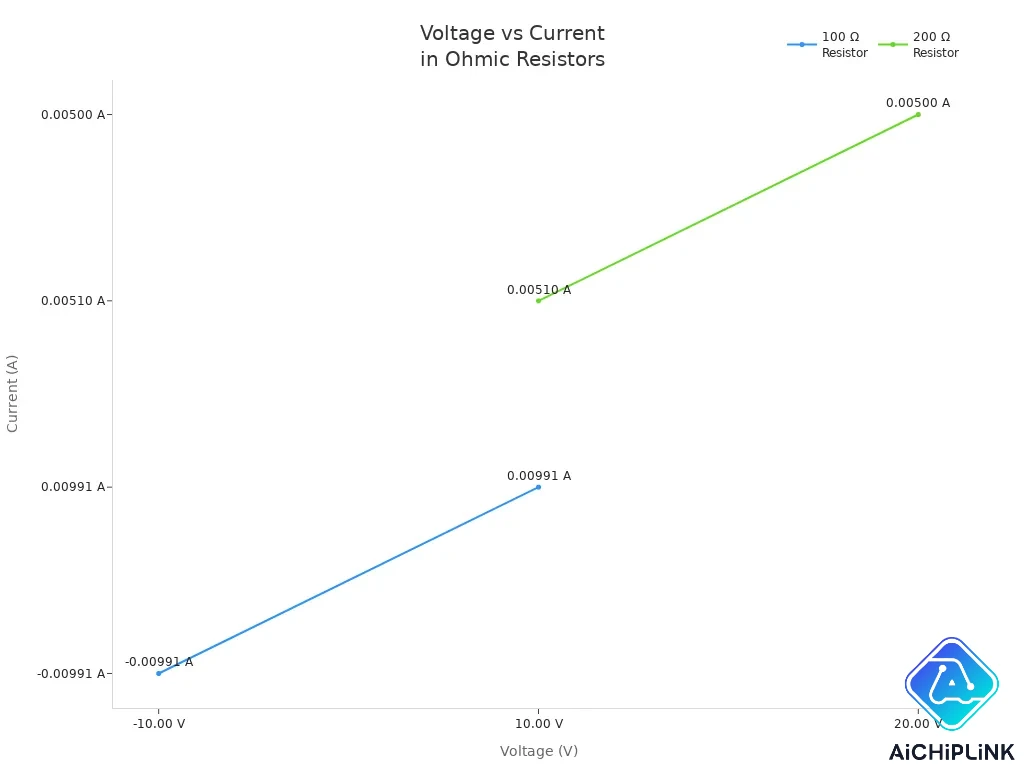

In science class, you may see a graph for ohmic resistors. This graph shows how voltage and current are linked. For an ohmic resistor, the graph is a straight line. The slope of the line depends on the resistance. If you double the voltage, the current also doubles. This is called a linear current-voltage link.

Here is some data that shows this linear pattern:

Voltage (V)	Current (A)	Resistance (Ω)
-10.00	-0.00991	100
10.00	0.00991	100
10.00	0.00510	200
20.00	0.00500	200

You can see that with a 100-ohm resistor, the current changes in step with the voltage. The same thing happens with a 200-ohm resistor, but the current is less for the same voltage.

• The current vs. voltage graph for a 100-ohm resistor has a slope of 0.00991 A/V. This means the current goes up as voltage goes up.

• For a 200-ohm resistor, the slope is 0.00510 A/V. The current still rises with voltage, but not as fast.

Note: Ohmic resistors have a straight-line current-voltage link, but their resistance can go up if the temperature rises. Most conductors, including ohmic resistors, act this way. Non-ohmic resistors do not follow this simple rule.

When you use ohmic resistors, you get a clear, straight-line link between voltage and current. This makes your circuit design easier and more dependable.

Ohmic vs. Non-Ohmic Resistors

Key Differences

Ohmic resistors and non-ohmic resistors act very differently. Ohmic resistors keep their resistance the same. If you change the voltage, the current changes in a straight line. This means they follow Ohm’s law. You can always guess the current if you know the voltage and resistance.

Non-ohmic resistors do not work this way. Their resistance changes when voltage or current changes. The link between voltage and current is not a straight line. If you double the voltage, the current might not double. This is because the material inside reacts in a special way at different voltages.

Here is a table that shows the main differences:

Category	Ohmic Conductors	Non Ohmic Conductors
Current-Voltage Relationship	Follow Ohm's Law: Linear relationship between current and voltage	Do not follow Ohm's Law: Non-linear relationship between current and voltage
Resistance Behavior	Resistance remains constant regardless of voltage or current	Resistance changes with variations in voltage or current
IV Curve	Linear IV curve	Non-linear IV curve
Temperature Dependency	Typically have low temperature dependency	Often exhibit significant temperature dependency
Examples	Most metals such as copper, aluminum, etc.	Semiconductor materials, thermistors, certain electrolytes, etc.
Application	Used in everyday electrical circuits, power transmission, etc.	Used in specialized applications, sensors, surge protectors, etc.

Note: Ohmic resistors give a simple link between voltage and current. Non-ohmic resistors do not, so you must check how they act before using them.

Examples

You use ohmic resistors in many simple circuits. For example, a carbon resistor or a metal film resistor in a flashlight or radio is an ohmic resistor. If you add more voltage, the current goes up in a straight line. The resistance does not change, so the circuit works as you expect.

Non-ohmic resistors act differently. A light bulb with a tungsten filament is a non-ohmic resistor. When you raise the voltage, the filament gets hot and the resistance changes. The current does not go up in a straight line. Thermistors are another example. Their resistance can drop or rise quickly with temperature, so the current and voltage do not follow a simple rule.

You can see that ohmic resistors make circuits easy to design. You know how much current will flow for any voltage. Non-ohmic resistors need more testing. You must check how the current changes with voltage before using them in your project.

Applications of Ohmic Resistors

Common Uses

Ohmic resistors are found in almost all electronics. They help control current and voltage in many devices. Power supplies use ohmic resistors to keep voltage steady. They also set the right load resistance. Motor control circuits use ohmic resistors to manage braking and speed. They also help control torque by changing current flow. Heating elements in ovens and heaters use ohmic resistors to make heat from electricity. LED lights use ohmic resistors to limit current. This protects LEDs from too much voltage. Audio amplifiers need ohmic resistors to match impedance. They also control output power. When testing electronic loads, ohmic resistors help copy real current and voltage conditions.

Here is a table that shows where ohmic resistors are used most:

Application Area	Description
Power Supplies	Used for voltage control and load resistance in power supplies.
Motor Control	Used for braking, speed, and torque control in motors.
Heating Elements	Make heat in appliances like ovens and heaters.
LED Lighting	Limit current and protect LEDs for even brightness and long life.
Audio Amplifiers	Help match impedance and control output power in amplifiers.
Electronic Load Testing	Copy real loads for testing power supplies in different conditions.

You pick ohmic resistors for these jobs because their resistance stays the same. This helps you know how much current will flow for any voltage.

Advantages

Ohmic resistors give many good things in circuit design. Their resistance does not change, so current and voltage stay easy to predict. This helps stop overheating and sudden voltage drops. Your circuit stays safe. The straight link between voltage and current makes your design simple and stable.

You also save money with ohmic resistors. Carbon film and metal film resistors cost less when you buy many. Surface mount resistors are even cheaper in big orders. The price drops a lot when you buy more, which helps in mass production.

Here are some main advantages of ohmic resistors:

• You get simple and steady performance in every circuit.

• The easy current and voltage link makes fixing problems simple.

• Ohmic resistors cost less than non-ohmic ones, especially in big amounts.

• You use less energy because ohmic heating wastes less. This can lower energy use by up to 40% compared to other ways.

• Your circuits are safer and more stable because resistance does not change with voltage or current.

Tip: If you want your circuit to work the same every time, use an ohmic resistor. You will get steady current, safe voltage, and save money.

Identifying Ohmic Resistors

How to Identify

You can spot ohmic resistors by how they work in a circuit. When you change the voltage, the current changes in a straight line. This shows the resistor follows Ohm’s law every time. To check if a resistor is ohmic, you can use different lab tests. These tests show if the link between current and voltage stays straight.

Method	Description
Current Interrupt (iR)	Checks resistance by stopping current and watching the voltage drop.
AC Resistance	Uses changing current to find resistance from impedance.
Electrochemical Impedance Spectroscopy (EIS)	Looks at how a system reacts to a small AC signal to check resistance.
High Frequency Resistance (HFR)	Measures resistance at high speeds to avoid effects from capacitance and inductance.

You can also use a multimeter to check resistance. If the number does not change when you change voltage or current, it is an ohmic resistor. Rules from around the world say to use ohmic resistance tests to find shorts or open circuits. Insulation resistance tests help see if the resistor stops leaks when high voltage is used.

Tip: Always read the resistor’s label and test it to make sure it acts like an ohmic resistor before using it in your circuit.

Performance Factors

How well ohmic resistors work depends on a few big things. The material inside the resistor helps it keep steady resistance. For example, carbon and binder resistors can change by ±15% or more if temperature or humidity changes. This makes them less good for circuits that need exact current and voltage.

You should know about these main things that affect ohmic resistors:

• Contact resistivity: This changes how easily current moves through the resistor.

• Electromigration: High current can make the resistor break or change resistance.

• Thermal stability: High heat can change how the resistor handles voltage and current.

• Material selection: The best material helps the resistor keep steady resistance in all situations.

If you need a resistor for very exact work, follow these tips:

1. Pick a resistor with a tolerance of ±0.1% or better.

2. Choose a temperature coefficient of ±5 ppm/°C or less.

3. Make sure the resistor can handle the power and not get too hot.

4. Use resistors that stay stable for a long time.

5. Pick the right package for your circuit.

Note: Always test ohmic resistors in your real circuit to see how they handle changes in voltage and current. This helps you stop problems and keeps your circuit safe.

You have learned that ohmic resistors keep resistance the same. This helps you manage current and voltage in any circuit.

• Ohm’s Law says current goes up when voltage goes up. The resistor controls how much current flows.

• This link helps you keep parts safe and build good circuits.

• Some students think a resistor’s value always stays the same. But temperature can make resistance change.

  Knowing about ohmic resistors helps you make safe and steady electronics. Use what you know to pick the right resistor and stop easy mistakes.
