Remember the satisfying feeling of turning a weighted knob on an old analog radio, slowly sweeping through static to lock onto a clear station? The component at the heart of that experience, the one making the tuning possible, is the variable capacitor. While modern digital circuits often use different methods, the classic mechanical variable capacitor remains a fundamental component in electronics, especially in the world of radio frequency (RF). Many circuits require capacitance that can be adjusted for calibration or tuning, and understanding how these remarkable components work is key for any electronics enthusiast. As the RF components market continues to thrive, these adjustable capacitors are more relevant than ever. This guide will explore the inner workings, different types, and essential applications of the variable capacitor.
1.0 What is a Variable Capacitor and How Does It Work?
A variable capacitor is an electronic component whose capacitance can be intentionally and repeatedly changed, either by mechanical means or electronically. Unlike a standard fixed capacitor that has a single capacitance value, a variable capacitor offers a range of values, which allows for the "tuning" of a circuit.
1.1 The Core Principle of Adjustable Capacitance

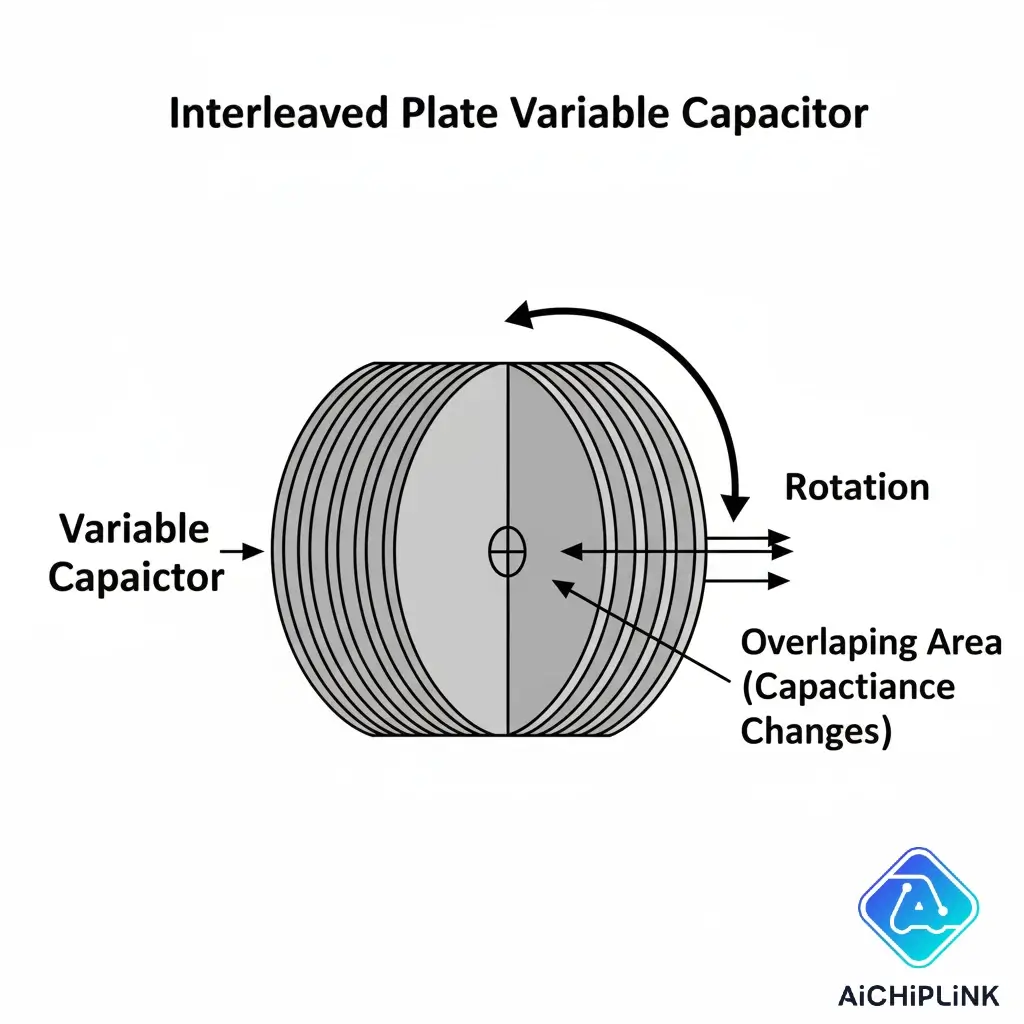

The capacitance of a simple parallel-plate capacitor is determined by three main factors: the surface area of the plates that overlap, the distance between the plates, and the type of dielectric material separating them. A mechanical variable capacitor works by changing one of these factors—most commonly, the overlapping surface area.
Think of it like an adjustable storage tank. The more the plates overlap, the larger the tank, and the more charge it can store for a given voltage. By turning a shaft, you are changing the "size" of the capacitor.
1.2 Understanding the Construction of a Variable Capacitor
The most recognizable type is the air-variable capacitor, which consists of:
- Stator: A set of fixed metal plates that are connected to the capacitor's frame.
- Rotor: A set of movable metal plates attached to a central shaft. As the shaft turns, the rotor plates move in and out of the stator plates.
- Dielectric: In this type, the dielectric is simply air, which provides very low loss but requires the plates to be relatively far apart, resulting in a larger component size.
Other types may use plastic film, ceramic, or mica as a dielectric for a more compact design.

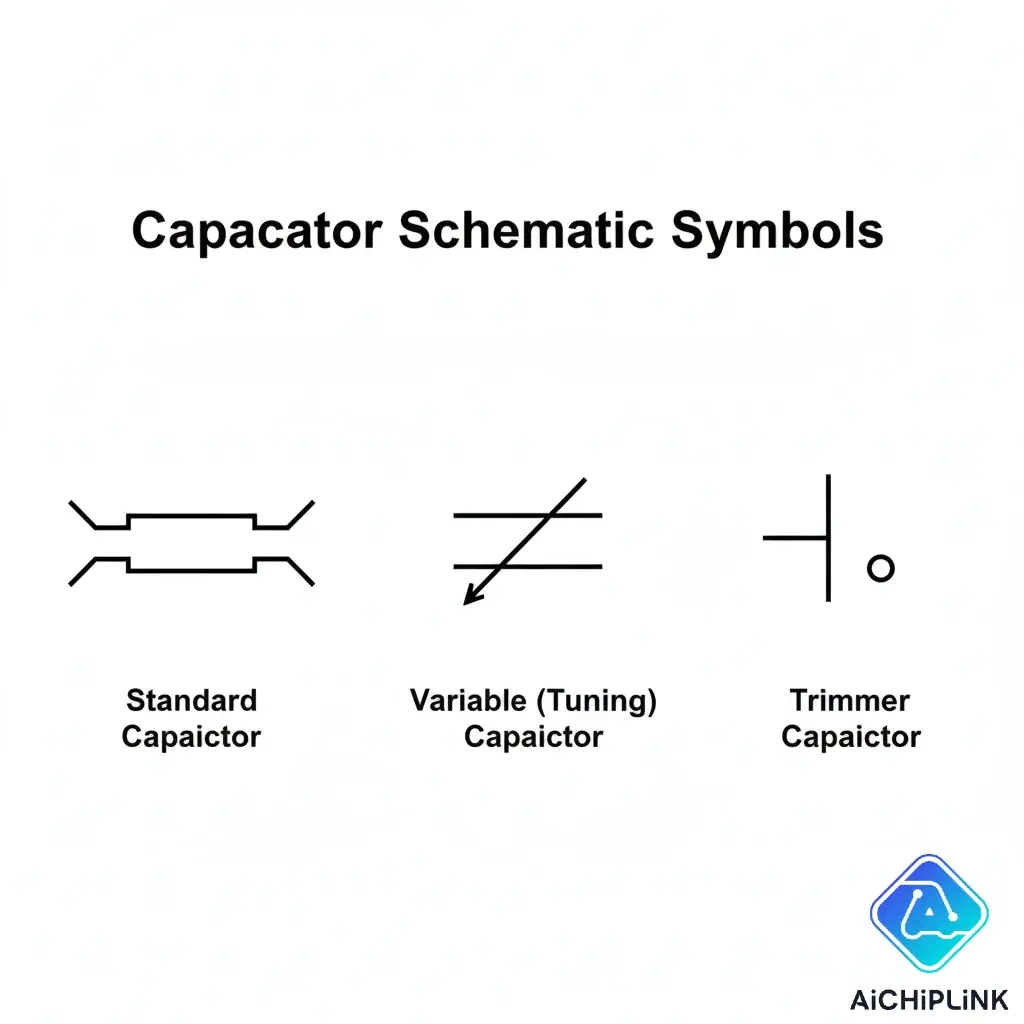

1.3 The Official Variable Capacitor Symbol
In circuit diagrams (schematics), a variable capacitor is represented by the standard capacitor symbol with an arrow drawn through it. This arrow universally signifies that the component's value is adjustable. A trimmer capacitor has a similar symbol, but the arrow is often depicted as a T-shape, representing adjustment by a tool.
2.0 Exploring the Main Types of Variable Capacitors
Variable capacitors are generally divided into two main categories based on their intended use: those meant for frequent user adjustment, and those meant for occasional factory or technician adjustment.
2.1 Tuning Capacitors: For Frequent User Adjustment
These are the larger, more robust types designed to be adjusted regularly by the end-user. They are typically connected to a knob or dial on the front panel of a device.
- Construction: Often use an air-gap dielectric for stability and durability.
- Use Case: The main tuning control for a radio receiver or the primary adjustment on an antenna tuner.
2.2 Trimmer Capacitors: For Fine-Tuning and Calibration
Trimmers (or "trimpots") are miniature variable capacitors designed to be mounted directly on a circuit board. They are not intended for the user but are adjusted once by a technician during manufacturing or calibration to fine-tune a circuit to a precise value.
- Construction: Very small, often using ceramic or plastic dielectrics, and adjusted with a small screwdriver.
- Use Case: Calibrating the frequency of an oscillator, setting the timing of a circuit, or making fine adjustments to a filter's response.
2.3 A Head-to-Head Comparison: Tuning vs. Trimmer Capacitors
| Feature | Tuning Capacitor | Trimmer Capacitor |
|---|---|---|
| Intended Use | Frequent user adjustment | Infrequent technician calibration |
| Size | Large, panel-mount | Very small, PCB-mount |
| Adjustment Method | Knob or shaft | Small screwdriver slot |
| Capacitance Range | Wide (e.g., 10-365 pF) | Narrow (e.g., 2-10 pF) |
| Durability | High, built for repeated use | Low, built for few adjustments |
3.0 Key Applications: Where Are Variable Capacitors Used?
The ability to adjust capacitance is fundamental to the operation of any circuit that deals with frequency.
3.1 The Classic Use: Radio Tuning Circuits
The most famous application is in the resonant "tank" circuit (an inductor-capacitor or LC circuit) of a radio receiver. The resonant frequency of this circuit determines which station the radio picks up. The inductor is fixed, so by turning the knob connected to a variable capacitor, you change the capacitance, which in turn changes the resonant frequency, allowing you to tune from one station to another. This is a foundational concept in radio technology, well-documented by organizations like the ARRL (American Radio Relay League).
3.2 RF Filters and Oscillators
Variable capacitors are crucial for building and calibrating:
- Tunable Filters: Circuits that are designed to pass a specific band of frequencies while blocking others. An adjustable capacitor allows this band to be moved.
- Variable Frequency Oscillators (VFOs): The heart of any variable radio transmitter or signal generator. The variable capacitor sets the operating frequency.
3.3 Antenna Tuners and Impedance Matching
For a radio transmitter to deliver maximum power to an antenna, their impedances must be matched. An antenna tuner (or matching network) is a circuit that uses variable capacitors and inductors to match the transmitter's output to the antenna system. The variable capacitors in these units must often handle very high voltages.
4.0 Practical Considerations for Variable Capacitors
While mechanical variable capacitors are classic components, modern electronics often use a solid-state alternative.
4.1 Mechanical vs. Electronic: Variable Capacitor vs. Varactor Diode
A varactor diode (or varicap) is a special type of diode whose capacitance changes in response to the DC voltage applied to it. This allows for capacitance to be controlled electronically by a microcontroller, without any moving parts.
| Feature | Mechanical Variable Capacitor | Varactor Diode |
|---|---|---|
| Control Method | Mechanical (shaft) | Electronic (voltage) |
| Size | Large | Tiny (semiconductor package) |
| Cost | Can be expensive | Very cheap |
| Voltage/Power | Can handle very high power | Low power only |
| Use Case | Manual tuning, high-power RF | Digitally controlled tuning (PLL), small-signal circuits |
4.2 How to Measure the Range of a Variable Capacitor
You can easily find the minimum and maximum capacitance of an unknown variable capacitor using a multimeter that has a capacitance measurement function.
- Connect Probes: Connect the multimeter's probes to the two terminals of the capacitor (for a simple type, this will be the frame/stator and the shaft/rotor connections).
- Measure Minimum: Turn the shaft so the rotor plates are fully out of the stator (minimum overlap). Record the capacitance reading. This is your C-min.
- Measure Maximum: Turn the shaft so the rotor plates are fully meshed with the stator (maximum overlap). Record the reading. This is your C-max.
From the majestic, multi-ganged tuning capacitors of vintage radios to the tiny trimmers hidden on a modern circuit board, the variable capacitor is a testament to elegant mechanical and electrical design. It provides a simple, reliable way to tune, tweak, and calibrate the very frequencies that connect our world. While solid-state varactors now dominate the low-power landscape, the precision, stability, and power-handling capability of the classic variable capacitor ensure it will have a place in electronics for years to come.
Looking for the right component to tune your next RF project? Discover our selection of high-quality tuning and trimmer capacitors at aichiplink.com today!
Written by Jack Elliott from AIChipLink.
AIChipLink, one of the fastest-growing global independent electronic components distributors in the world, offers millions of products from thousands of manufacturers, and many of our in-stock parts is available to ship same day.
We mainly source and distribute integrated circuit (IC) products of brands such as Broadcom, Microchip, Texas Instruments, Infineon, NXP, Analog Devices, Qualcomm, Intel, etc., which are widely used in communication & network, telecom, industrial control, new energy and automotive electronics.
Empowered by AI, Linked to the Future. Get started on AIChipLink.com and submit your RFQ online today!
Frequently Asked Questions
What is the main use of a variable capacitor?
The main use of a variable capacitor is to adjust the resonant frequency of a circuit. This is most famously used in radio receivers for tuning to different stations, but it's also critical for tuning oscillators, filters, and antenna matching circuits.
What is the difference between a variable capacitor and a trimmer capacitor?
A standard variable capacitor (or tuning capacitor) is designed for frequent adjustment by the user via a knob. A trimmer capacitor is a much smaller type designed for infrequent, fine-tuning adjustments made once during circuit calibration with a screwdriver.
How does a variable capacitor change its capacitance?
A mechanical variable capacitor changes its capacitance primarily by altering the overlapping area between its conductive plates. As a shaft is turned, one set of plates (the rotor) moves relative to a fixed set of plates (the stator). More overlap equals higher capacitance.
Are variable capacitors still used?
Yes. While varactor diodes have replaced them in many low-power, digitally-tuned applications like car radios, mechanical variable capacitors are still essential in high-power RF applications like antenna tuners and high-power transmitters where varactors cannot handle the voltage or power.
Why are air variable capacitors so large?
They use air as the dielectric between the plates. Air has a low dielectric constant and low voltage breakdown strength, meaning the plates must be relatively large and spaced far apart to achieve a useful capacitance range and voltage rating. This physical size is a trade-off for high stability and low electrical loss.
