How to Safely Discharge a Capacitor in AC Circuits

You should always use a resistor to safely discharge a capacitor in AC circuits after you turn off the power. This way helps keep you safe from electric shock and stops damage to equipment. Many accidents happen when people skip steps or do not follow safety rules. For example, one worker got shocked because a charged capacitor jumped to his hand. Capacitor problems can also cause fires or leaks. Always get the right tools, like a resistor, a multimeter, and clips with insulation. Use a multimeter to check if the capacitor is safe before you touch it. Here are some common types you might see:

Capacitor Type	Description
Film Capacitors	Non-polarized capacitors good for AC.
Metallized Paper Capacitors	Often used in AC circuits.
Ceramic Capacitors	Non-polarized and used a lot in AC circuits.
Bipolar Electrolytic Capacitors	Can be used in AC circuits.

If you want to know how long it takes to safely discharge capacitors, you can use a capacitor discharge calculator. Always think about safety and make sure to discharge the capacitor in a safe way.

Key Takeaways

• Always use a resistor to discharge a capacitor. This keeps you safe from electric shock. It also protects your equipment from damage.

• Turn off the power before you start discharging. Use a multimeter to check if there is voltage. This makes sure it is safe to touch the capacitor.

• Wear safety glasses and insulated gloves. These protect you from getting shocked.

• Take the capacitor out of the circuit before you discharge it. This keeps other parts of the system safe.

• After you discharge the capacitor, use a multimeter to check it again. Always make sure there is no voltage before you touch it.

Safety Precautions

You need to follow safety steps when discharging an ac capacitor. These steps help keep you safe from electric shock. They also protect your equipment from harm. Always put safety first before you start.

Disconnect Power

First, turn off the power before you discharge an ac capacitor. Never try to discharge if the power is still on. Check the circuit to make sure it has no power. Many experts say to use a checklist to be sure. Here is a table that shows the right way to disconnect power:

Step	Description
1	De-energize the Circuit: Always check that power is off before you start.
2	Disconnect Power: Make sure the circuit has no power at all.

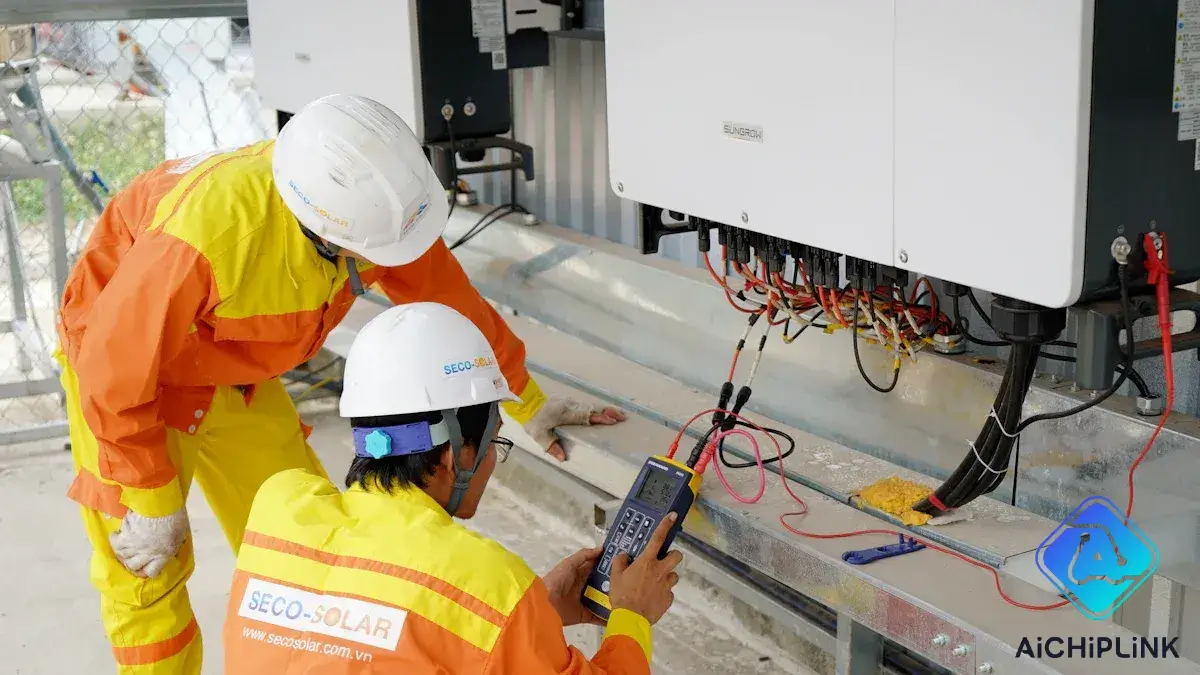

Use a multimeter to test the wires for voltage. This is a very important safety step before you discharge an ac capacitor.

Use Protective Equipment

Wear the right safety gear when you discharge an ac capacitor. Safety glasses and insulated gloves help protect you from shock. Wear shoes with rubber soles to stay safe. These items help if something goes wrong. Check your tools and gear before you begin. If you find damage, get a new item before you start.

Tip: Wearing personal protective equipment (PPE) is not just a rule. It is a smart way to keep yourself safe every time you discharge an ac capacitor.

Isolate Capacitor

Take the capacitor out of the ac circuit before you discharge it. This means you disconnect wires or remove the capacitor from the board. Isolation stops current from going to other parts. Use insulated tools so you do not touch metal parts. After you isolate the capacitor, you can safely discharge it.

If you follow these safety steps, you lower the chance of getting hurt or breaking things. Always turn off the power, wear safety gear, and isolate the capacitor before you discharge it. Safety is always the most important thing.

How to Safely Discharge Capacitor

If you want to safely discharge a capacitor in an ac circuit, you must follow steps. This keeps you safe and stops damage to your equipment. You will need a multimeter, a resistor, and clips with insulation. Safety is always the most important thing.

Measure Voltage with Multimeter

Check the voltage before you touch the capacitor. This helps you know if it is safe. Set your multimeter to the right voltage range. Put the probes on the capacitor ends. Read the number on the screen.

Voltage Range	Action Required	Safety Notes
Below 10V	No discharge needed	Low risk of electrical shock.
10V to 99V	Discharge necessary	Use simple tools like a screwdriver or bulb.
Above 100V	Use specific discharge tools	High risk of shock; treat with utmost care.

If the voltage is more than 10V, you must discharge the capacitor before you touch it. If the voltage is high, be extra careful. Always check the voltage before you do anything else.

Connect Discharge Resistor

To discharge a capacitor safely, use a resistor. This controls the current and stops sparks. Never use a metal tool to touch both ends, especially for big ac capacitors. Pick a resistor with the right size and power.

• A 1M ohm resistor can discharge a capacitor in about 10 seconds.

• Two 100k ohm resistors in a row work for voltages up to 500V.

• A power rating of 1-2W is good for most jobs, but more is safer.

• Wire wound resistors are best because they can handle more power.

Use clips with insulation to connect the resistor to the capacitor ends. Hold the clips with insulated handles. Wait a few seconds for the charge to move through the resistor. This way lets you discharge a capacitor without danger.

Tip: Do not touch the resistor or capacitor leads while discharging. Always use tools with insulation and keep your hands away.

Verify Discharge

After you finish, check with your multimeter to make sure the capacitor is safe. Follow these easy steps:

1. Find out what kind of capacitor you have. Some, like electrolytic capacitors, hold more energy and need extra care.

2. Turn off the power and take the capacitor out of the ac circuit if you can.

3. Use a resistor to discharge. Connect it with clips that have insulation.

4. Watch the voltage. Use your multimeter to check the voltage. Wait until the number is close to zero.

5. For small capacitors, you can use a screwdriver with insulation if the voltage is less than 50V.

6. Make sure the discharge worked. Check the voltage again to see if it is gone.

If you still see voltage, do the discharge steps again. Only touch the capacitor when the voltage is under 10V. These steps show you how to discharge a capacitor and check that it is safe every time.

Note: Always check that the capacitor is discharged before you touch or move it. This keeps you safe and stops accidents.

Alternative Ways to Discharge an AC Capacitor

There are different ways to discharge an ac capacitor. Some people do it by hand. Others use special machines. Each way has its own safety level and tools. You should always pick the safest way.

Light Bulb Method

Some people use a light bulb to discharge an ac capacitor. They connect the bulb to the capacitor ends. The bulb lights up when the charge moves through it. As the voltage drops, the bulb gets dimmer. Many think this is an easy way to discharge an ac capacitor.

Using a light bulb can be very risky. High voltages, up to 622V, can hurt you. A cold filament in the bulb has low resistance. This can cause a big surge of current. It is better to use a resistor instead. Discharging big capacitors can be dangerous.

Using a screwdriver or bulb can be unsafe. High voltages and big currents can hurt you or break things. Never touch the terminals with your hands. Always check the voltage before you try to discharge. If you want to be safe, use a resistor or a safer method.

Commercial Discharge Tools

You can use special tools made for discharging capacitors. These tools help you discharge an ac capacitor fast and safely. Most tools have resistors and safety parts inside. You just connect the tool to the capacitor. The tool will discharge it for you. Some tools show the voltage so you know when it is safe.

You can buy these tools at many electrical stores. They work better than using a screwdriver. You do not have to guess if the capacitor is safe. The tool tells you. Always read the instructions before you use these tools. This helps you stay safe and not make mistakes.

If you need to discharge an ac capacitor, you can do it by hand or use a machine. Always choose the safest way for your job. Remember, safety is the most important thing when you discharge an ac capacitor.

Safety Warnings for Discharge a Capacitor

Avoid Direct Shorting

Never discharge a capacitor by touching both ends with metal. This can be very dangerous. If you use a metal tool, a lot of electricity can move fast. This can hurt you and break your tools.

• Electric Shock Risk: Touching the terminals can shock you. The shock might hurt a little or cause a bad injury.

• Potential for Fire: A short circuit can happen this way. Sparks can fly and start a fire.

• Damage to Equipment: High current can break the capacitor or ruin your tools.

Always use a resistor to discharge a capacitor. This slows down the electricity and keeps you safe. You protect yourself and your tools when you do not short the ends.

Prevent Equipment Damage

You want to keep your tools and devices safe. Using the wrong way can break your equipment. If you use a metal screwdriver or wire, the tips can burn or the insulation can melt. Fast discharge heat can also hurt the capacitor.

Here are some ways to keep your equipment safe:

1. Use a resistor with the right rating. This keeps the current low and protects your tools.

2. Check your discharge tools before you start. Look for cracks or worn insulation.

3. Hold handles with insulation when you discharge a capacitor. This stops electricity from reaching your hands.

4. Wait for the voltage to drop before you touch the capacitor. Use a multimeter to check the voltage after you discharge.

Method	Risk Level	Safety Tip
Direct Shorting	High	Never use this method
Resistor Discharge	Low	Use correct resistor and clips
Commercial Tool	Very Low	Follow instructions carefully

Tip: You keep your workspace safe when you use the right way. Always check your tools and make sure the capacitor is discharged before you touch it.

You lower the chance of accidents and protect your equipment when you follow these safety warnings. Always think about safety first when you discharge a capacitor.

You need to make sure the capacitor is not holding any charge before you touch it. Use a multimeter to check if it is safe. Always follow these safety steps:

• Use a resistor to discharge the capacitor every time.

• Put on safety gear and use tools with insulation.

• Check again with a multimeter after you finish discharging.

Key Safety Aspect	Description
Overpressure Disconnectors	Stops the capacitor from breaking by cutting it off during problems.
Discharge Devices	Makes sure the capacitor loses its charge after you turn off the power.

If you do not follow these steps, you could get shocked or break your equipment. Always think about safety when you work with a capacitor.
