15 Key Elements of Diode Selection

How do you pick a diode from thousands of parts? First, check that the diode's electrical and thermal limits are higher than the stresses in your application. Then confirm its reliability, safety, packaging, and cost. This article presents 15 key elements of diode selection. These elements range from basic electrical ratings to advanced reliability concerns. Each element includes a definition, why it matters, typical values or datasheet references, and a practical tip. Example part numbers such as 1N4001, 1N4148, and 1N5400 appear throughout. Choosing diodes well starts with these checks. Choosing the right diode also depends on your application needs. Use this guide to pick a diode that meets your needs.

Key Takeaways

• Forward voltage and forward current come first. These values control conduction loss and junction temperature.

• Keep the diode current close to 60% of its rated forward current. This extra room handles sudden spikes and heat that builds up on its own.

• Check surge current and reverse voltage against real spikes. Add a 20–30% margin to peak inverse voltage.

• Switching power supplies need checks on reverse recovery time and junction capacitance. Slow diodes waste power when frequencies are high.

• Use thermal derating and safety certifications. A cooler junction lasts longer and works reliably.

Forward Conduction: Key Elements for Selecting Diodes

Forward conduction is how much power the diode wastes while it carries current. Two ratings — forward conduction voltage VF and forward current IF — are the first checks in the key elements for selecting diodes. You should check both before you look at speed or thermal limits.

Forward Voltage Drop VF

Forward voltage drop VF is the voltage across the diode when current flows forward. This value directly sets conduction loss. Power loss equals forward voltage drop multiplied by forward current. A higher VF means more heat inside the diode. That heat raises junction temperature and shortens the life of the part.

Silicon PN diodes such as 1N4001 and 1N5400 have similar VF values. The table below shows typical ranges:

Diode series	Forward current	Forward voltage drop
1N400x (e.g., 1N4001)	1 A	~0.7 V – 1.1 V
1N540x (e.g., 1N5400)	3 A	~0.8 V – 1.2 V

Schottky diodes give a lower forward voltage drop, usually 0.15 V to 0.45 V. That is appealing for low-voltage, high-current supplies. However, forward voltage drop in diodes changes with temperature. Silicon diodes have a negative coefficient near −2 mV/°C. Hotter junctions lower VF. The barrier drops as temperature rises.

With more continuous operation the diode will get hot and this will reduce the voltage drop. At the nominal current and some 100 K temperature rise this can make a difference of some 200 mV.

A diode reading 0.8 V at 25°C may fall to 0.6 V at high load. Use the hot value for loss math, not the cold value.

Forward Current IF and Average Current Io

The forward current of the diode, written as IF, is the continuous current it can carry without going over its rated junction temperature. Datasheets list IF as a DC rating. The 1N4001 carries 1 A. The 1N5400 carries 3 A.

The maximum average rectified current Io is separate. It applies to rectifier circuits with a defined waveform. Many engineers mix up IF and Io. The maximum allowable continuous forward average current shows up on the datasheet as a waveform-specific value. Check it against the actual rectified waveform in your circuit.

In a half-wave rectifier, average current runs far below peak current. Current flows for less than half the period. The diode conducts for only part of each cycle. Sizing by peak current alone risks overheating. The average current sets the steady-state temperature.

Practical derating: run the diode at about 60% of rated IF. This leaves room for surges and self-heating. For high-temperature or high-reliability power supply designs, industry guidance keeps the average forward current below about 70% to 90% of rated value. Higher ambient temperatures demand more margin.

The forward conduction voltage of the diode, together with forward current, sets the total junction temperature rise. Always check the maximum average rectified current against your waveform, not the DC rating. A pulsed load with low duty cycle may still pass a large average current over time. Ignoring average current in half-wave designs remains a common cause of field failures.

Manufacturers publish forward voltage drop in diodes at a stated current and temperature. Use those conditions as your baseline.

These two checks finish the first part of selecting diodes. They protect the part from too much heat during normal operation.

Surge and Reverse Blocking Ratings

Normal conduction is only part of the picture. A diode also needs to handle short bursts of very high current. It must also block high voltage when current flows the other way. These two ratings decide if your part survives startup, load switching, and line spikes.

Maximum Surge Current IFSM

Maximum surge current IFSM is the highest current a diode can take for one short event. Inrush current is the usual cause. When you charge a big capacitor or start a motor, the first few milliseconds pull much more current than normal. The 1N4001 datasheet gives a clear number:

Parameter	Value	Test Condition
Peak forward surge current, IFSM	30 A	8.3 ms single half sine-wave, superimposed on rated load

The 30 A IFSM value is tied to an 8.3 ms single half sine-wave superimposed on rated load. It is a non-repetitive surge test, not a continuous rating, and does not authorize repetitive 30 A pulses.

That rating is not the same in all conditions. IFSM drops as pulse width grows, because a longer pulse puts more energy into the junction. This leaves less time for the package to release heat. Repeated surges also lower the safe level when they come faster than the package can cool. A diode that survives one event may fail on a series of surges at the same level. Check the IFSM versus pulse width curve on the datasheet before you approve a design with frequent inrush.

Reverse Voltage VRM and VR

The maximum repetitive peak reverse voltage, called VRM or VRRM, is the highest reverse voltage the diode can block over and over. The maximum reverse voltage of the diode in a single event is VR. If you go past either limit, the junction breaks down. Reverse spikes destroy diodes in two common ways. Inductive loads store energy in a magnetic field and resist sudden current changes. When you cut the current, the collapsing field makes a reverse-polarity spike. Its size follows voltage = inductance × rate of current change, so a fast interruption can make spikes of hundreds or even thousands of volts.

Inductive switching transients occur when an inductive or reactive load—such as a motor, solenoid coil, or relay coil—is suddenly switched off. The rapidly collapsing magnetic field induces a transient voltage superimposed onto the steady-state supply, and these inductive switching voltage transients can reach the thousands of volts.

Watch for these behaviors in your circuit:

• When a supply turns off, the inductive load's field collapses and drives current the other way, acting like a battery of reversed polarity.

• Fly-back voltage can be much higher than the original supply voltage; even 12 V or 24 V loads can make several hundred to several thousand volts.

• Faster current changes make higher fly-back voltage.

• Add an anti-parallel diode across the output, rated above the supply voltage and current, with cathode to positive.

• Add a series blocking diode where motor back EMF or stored energy is present.

• Rate reverse voltage at least two times the supply's maximum output voltage, and forward current at least 1.5 times the maximum output current.

For the 1N4001 and 1N5400, VRM is 50 V. That is not very high. Size peak inverse voltage above the peak-to-peak voltage of your application, then add margin for spikes.

Condition	Recommended PIV Margin
General derating rule	20–30% above calculated peak reverse voltage (e.g., 400 V peak → ≥500 V diode)
Poorly characterized transients	1.5× the calculated peak reverse voltage

For mains-connected supplies, it is standard practice to use a margin of three or four times the calculated maximum reverse voltage.

Never go past surge ratings during inrush or inductive load switching. A forward voltage drop check will not save a part that sees a spike above its blocking limit.

Switching Speed, Frequency, and Thermal Limits

Operating Frequency fM, Reverse Recovery Time Trr, and Junction Capacitance

Switching speed sets the highest frequency fM the diode can handle. A slow diode keeps leftover charge in its junction and turns off late. Reverse recovery time trr measures that delay. The 1N4148 has a trr near 4 ns, so it works well in fast logic. The 1N4001 recovers slowly and gets hot at high frequencies. In a switched-mode supply, this delay wastes extra power every cycle.

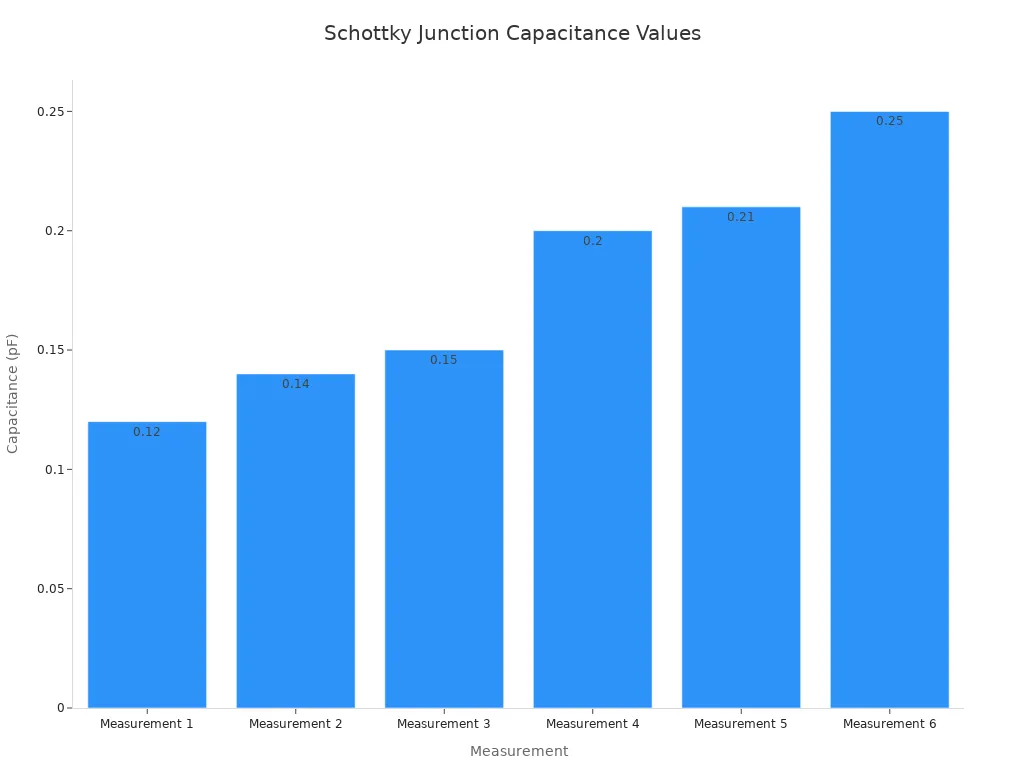

Junction capacitance also limits high-frequency use. A reverse-biased diode works like a tiny capacitor. Each cycle, this capacitor charges and discharges, which adds loss and noise. A typical silicon switching diode gives 1 to 10 pF. Low-capacitance parts drop below 1 pF. Small-signal Schottky diodes are even lower, as the chart shows.

Check both trr and junction capacitance before you pick a diode for a switching supply.

Power Dissipation P and Leakage Current IR

Every diode uses power in forward conduction. This loss depends on forward voltage drop multiplied by current. Switching losses add on top. The maximum allowable power dissipation is the total power the package can remove without going over the temperature limit. Check your expected power against the thermal resistance of the package.

Leakage current creates another thermal problem. The reverse saturation leakage current flows when the diode blocks voltage. It stays tiny at room temperature but grows as temperature rises. The leakage current of a diode can double with a big rise in junction temperature. A small Schottky like the BAT54JFILM has about 1 µA at 30 V reverse bias. Silicon rectifiers sit in the nanoampere to microampere range under rated reverse voltage.

Diode	Reverse voltage	IR
BAT54JFILM (Schottky)	30 V	1 µA

For switching supplies, start with trr and junction capacitance. For continuous operation, check power dissipation and leakage at the hottest expected temperature.

Thermal Derating and Reliability Design

Junction Temperature Derating

Junction temperature derating means you run the diode below its highest rated junction temperature. This practice helps the diode last longer. Heat makes the parts inside wear out faster. A cooler junction slows that wear down. Datasheets have derating curves that show how much power the package can handle at each surrounding temperature. These curves matter because your system's working temperature range may be much higher than room temperature.

A common rule keeps the junction at or below 80% of its highest rated temperature. You should lower power and current at high surrounding temperatures. The diode's temperature behavior changes as the surrounding temperature goes up. A part rated for 1 A at 25°C may only handle a small part of that at 100°C. Check the derating curve before you finalize your design.

Never run a diode at its absolute maximum ratings without thermal margin. A part running at the limit has no room for surrounding temperature spikes, load changes, or tolerance stack-up.

Reliability Design and Tolerance Design

Reliability design means you predict how long the diode will last under real stress. Tolerance design means you account for part-to-part differences in worst-case analysis. Together they help you pick the right component for long-life systems. Military and aerospace programs often use the FIDES reliability prediction standard. FIDES started as a French standard in 2005 and now includes versions such as FIDES2009 and FIDES2022. It covers discrete semiconductors as one of its component groups.

FIDES calculates failure rate with a model that multiplies a physical contribution by manufacturing and process factors:

λ = λ_physical · ∏_PM · ∏_Process

Here λ_physical is the component contribution, ∏_PM reflects manufacturing quality and technical control, and ∏_Process reflects quality and technical control over development, manufacturing, and usage.

The λ_physical term itself breaks into a base failure rate, physical stress factors, and an induced factor for application-field overstresses. You should match these factors to your application needs. Account for the temperature behavior of each candidate part in your worst-case analysis. This step turns a datasheet rating into a realistic life estimate.

Safety, Packaging, and Diode Specifications, Ratings and Key Parameters

Safety Regulations and Certifications

Safety rules and certifications show that a diode follows the requirements for the market it is sold in. UL and IEC standards cover basic electrical safety. Car programs expect AEC-Q101, which is a stress-test qualification for discrete semiconductors. This standard covers diodes, rectifiers, MOSFETs, IGBTs, and protection devices. AEC-Q101 Rev-E mixes several stress tests into one flow. The table below shows the main groups.

Test Category	Purpose	Typical Evaluation
Temperature Cycling (TCT)	Find package stress failures	Thermal expansion (−55°C to +150°C)
Thermal Shock (TST)	Package integrity	−65°C to +150°C fast changes
HAST	Moisture-related failures	130°C, 85% RH, pressurized
HTRB	Electrical reliability	150°C+, leakage current growth
Power Cycling	Thermal fatigue resistance	Die attach and bond wire reliability

AEC-Q101 is not required by law, but car makers and Tier-1 suppliers treat it as an industry benchmark.

Check certifications before you finish the design. Look at the manufacturer qualification report for automotive grade parts.

Packaging and Prohibited Package Types

Packaging affects compliance and manufacturability. The package must fit your PCB footprint and thermal plan. Some packages are banned in high-reliability designs because they cannot meet creepage, clearance, or thermal cycling requirements. A package that passes bench tests may still fail temperature cycling if its materials expand at different rates. Review these diode specifications, ratings and key parameters against your assembly process. Make sure the package handles your reflow profile and vibration environment. When you compare key diode parameters across candidates, treat the package as a main constraint, not something you think about later. A poor package choice can ruin every electrical margin you built into the diode specifications. Check diode specifications for terminal strength and moisture sensitivity too. These diode specifications decide whether the part survives real production. Always match the package to your thermal and safety plan before release.

To pick the right diode, every rating you choose must match the needs of your application. The 15 key elements cover forward voltage, current, surge, reverse voltage, switching speed, thermal limits, reliability, safety, and packaging.

Work through your checklist and verify VF and IF first. Keep current at 60% of the rated value. Ensure peak inverse voltage exceeds peak-to-peak voltage. For high-frequency switching, check Trr and junction capacitance. Do not exceed surge ratings or ignore reverse recovery time.

To choose a diode, check every specification against real stresses. Also verify safety standards and packaging suitability. Confirm the peak inverse voltage margin before finalizing the design. Every diode selection ends with the environment of your system.
