Many designers often wonder how to choose between different diode types for their projects. A diode acts as a one-way switch, allowing current to flow in only one direction, which protects sensitive components and manages signals. The global diode market continues to grow, valued at around USD 1.28 billion in 2024, as industries demand efficient solutions for electronics and power systems. Selecting the right diode directly impacts circuit efficiency and reliability, with measurable differences in performance and loss reduction.
Key Takeaways
-
Diodes allow current to flow in one direction, protecting circuits and controlling signals.
-
Different diode types serve unique roles, such as rectification, voltage regulation, switching, light emission, and sensing.
-
Choosing the right diode depends on key factors like voltage rating, current rating, switching speed, power dissipation, and package type.
-
Special diode features, like fast switching in Schottky diodes or stable voltage in Zener diodes, improve circuit performance but may have trade-offs.
-
Matching diode types to applications ensures better efficiency, reliability, and longer device life in electronics.
Diode Basics
What Is a Diode
A diode is a semiconductor device that allows current to flow in only one direction. This property makes it essential for controlling electrical signals and protecting sensitive components. The most common type, the p-n junction diode, forms when p-type and n-type semiconductor materials join together. The p-type region contains holes as majority carriers, while the n-type region contains electrons. At the interface, a depletion region forms, creating a barrier that only allows current to pass when the diode is forward biased.
The concept of the diode has evolved over time. Early devices included vacuum tube diodes and point-contact diodes. The introduction of the p-n junction marked a significant advancement, leading to modern semiconductor diodes. Today, diodes appear in many forms, such as rectifier diodes, Zener diodes, and LEDs. Each type uses the pn junction in a unique way to achieve specific functions.
Note: The diode's forward voltage drop is about 0.7 volts for silicon and 0.3 volts for germanium. This value remains nearly constant over a wide range of currents, making circuit analysis straightforward.
| Parameter | Description | Typical Value / Notes |
|---|---|---|
| Forward Voltage Drop (Vf) | Voltage drop across a forward-biased diode | ~0.7 V (silicon), ~0.3 V (germanium) |
| Peak Inverse Voltage (PIV) | Max reverse voltage before breakdown | ≥ 50 V (rectifier diodes) |
| Reverse Leakage Current (IR) | Small current in reverse bias | Very small |
Core Function
The core function of a diode is to act as a one-way switch for electric current. When forward biased, the pn junction allows electrons to move from the n-type to the p-type region, enabling current flow. When reverse biased, the depletion region widens, blocking current almost completely. This behavior makes the diode a reliable component for rectification, signal switching, and voltage regulation.
Research highlights the effectiveness of diodes, especially PIN diodes, as fast and efficient switches in high-frequency circuits. Proper biasing ensures that the diode operates safely and maintains its switching ability. Signal diodes, also called switching diodes, turn on quickly when forward biased and off when reverse biased, making them ideal for digital circuits.
The pn junction's unique properties give the diode its rectifying behavior. The forward voltage drop and the small reverse leakage current confirm its role as a one-way valve for current. Datasheets provide detailed parameters, such as forward current, peak inverse voltage, and junction capacitance, which help engineers select the right diode for each application.
Tip: Always check the diode's datasheet for ratings like forward voltage, peak inverse voltage, and maximum current to ensure safe and reliable operation.
Types of Diodes
Understanding the main types of diodes helps engineers and students select the right component for each circuit. The types of diodes differ in construction, function, and performance. Each diode type serves specific roles in electronics, from rectification to signal processing.
Standard Diode Types
Standard diodes, also called general-purpose diodes, use a simple p-n junction. These diodes allow current to flow in one direction and block it in the other. Rectifier diodes belong to this group and handle high currents in power supplies. Signal diodes, which are smaller, switch quickly and work in low-current circuits.
Typical applications:
-
Power rectification in AC-DC converters
-
Signal demodulation in radios
-
Voltage clamping and protection
Note: Standard diode types form the backbone of many electronic devices, providing basic rectification and signal control.
Zener Diode
Zener diodes operate in reverse bias and maintain a stable voltage across their terminals. Engineers use zener diodes for voltage regulation and reference circuits. The zener breakdown voltage defines the point where the diode conducts in reverse, keeping the voltage constant.
Primary function: Voltage regulation
Applications:
-
Power supply voltage stabilization
-
Surge protection
-
Reference voltage sources
Zener diodes protect sensitive circuits from voltage spikes. Designers often use zener diodes in parallel with loads to clamp voltage at a safe level. The popularity of zener diodes comes from their reliability and precision.
Schottky Diode
Schottky diodes use a metal-semiconductor junction instead of a p-n junction. This design gives them a lower forward voltage drop and faster switching speed. Schottky diodes excel in high-frequency and fast-switching circuits.
Primary function: Fast switching and low voltage drop
Applications:
-
Power rectifiers in switching power supplies
-
RF and microwave circuits
-
Clamping and protection in digital systems
The global SMD universal diode market, which includes schottky diodes, is growing rapidly due to demand for higher voltage and current ratings, faster switching, and better thermal performance. Schottky diodes play a key role in consumer electronics, automotive systems, and renewable energy.
A benchmark study simulated schottky diode performance, showing that current density and barrier height strongly influence operation. The results matched experimental data, confirming the accuracy of these models for schottky diodes.

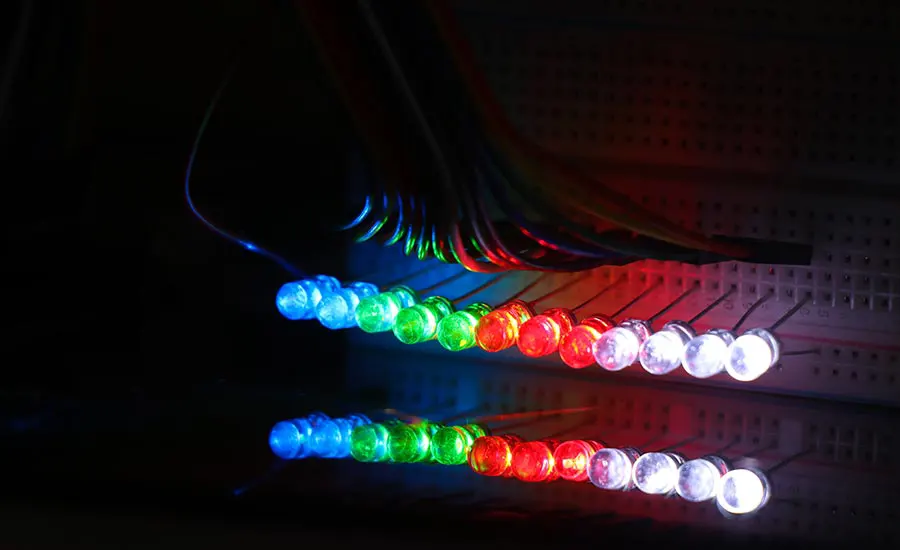

LED (Light Emitting Diode)
A light emitting diode (LED) emits light when forward biased. The energy released as electrons recombine with holes produces visible or infrared light. LEDs appear in many colors and sizes.
Primary function: Light emission
Applications:
-
Display indicators
-
Lighting systems
-
Optical communication
Laboratory tests show that design variations in LEDs, such as improved surface structures, can boost efficiency. Some studies report increases in light extraction efficiency from 6% to 59%, and even up to 74% with further optimization. These improvements come from addressing surface defects and recombination mechanisms.
Performance differences among light emitting diodes are significant. High temperature and current stress tests reveal that LEDs degrade over time, following exponential decay laws. Illuminance degradation after thousands of hours of operation can range from 19% to 33% across different brands. Factors like package materials and diffuser transmittance affect diode longevity and reliability.
-
High temperature storage and current stress tests show that LEDs degrade in light output and electrical properties.
-
Illuminance degradation varies between 19% and 33% after 4,291 hours of continuous use.
-
Experimental studies measure voltage and current variations among different LED configurations.
-
Accelerated life testing estimates LED lifetime based on junction temperature, with failure defined as 70% light output maintenance.
Photodiode
Photodiodes generate current when exposed to light. They convert light energy into electrical signals, making them essential in sensing and detection.
Primary function: Light detection
Applications:
-
Optical sensors
-
Solar cells
-
Light meters
Photodiodes respond quickly to changes in light intensity. They appear in cameras, safety systems, and scientific instruments. The performance of photodiodes depends on material choice and construction.
Varactor Diode
Varactor diodes, also called varicap diodes, act as variable capacitors. The capacitance changes with the applied reverse voltage. Engineers use varactor diodes in frequency tuning circuits.
Primary function: Voltage-controlled capacitance
Applications:
-
RF tuning in radios and TVs
-
Frequency modulators
-
Voltage-controlled oscillators
Varactor diodes enable electronic tuning without moving parts. They improve the performance and reliability of communication equipment.
Tunnel Diode
Tunnel diodes use quantum tunneling to conduct at very low voltages. They have a heavily doped p-n junction, which creates a region of negative resistance.
Primary function: High-speed switching and amplification
Applications:
-
Oscillators
-
Microwave amplifiers
-
Fast switching circuits
Tunnel diodes switch faster than most other types of diodes. Their unique properties make them valuable in specialized high-frequency circuits.
Avalanche Diode
Avalanche diodes operate in the avalanche breakdown region. They conduct large currents when the reverse voltage exceeds a certain threshold.
Primary function: High-voltage protection and pulse generation
Applications:
-
Surge protection
-
Voltage clamping
-
Microwave signal generation
Avalanche diodes protect circuits from voltage spikes. They also generate pulses in radar and communication systems.
PIN Diode
A pin diode has an intrinsic (undoped) layer between the p-type and n-type regions. This structure gives it unique properties for RF switching and attenuation.
Primary function: RF switching and variable attenuation
Applications:
-
RF and microwave switches
-
Attenuators
-
Photodetectors
Pin diodes handle high-frequency signals with low distortion. They appear in communication and radar systems.
Switching Diode
Switching diodes, also known as signal diodes, turn on and off rapidly. They handle small currents and switch in nanoseconds.
Primary function: Fast signal switching
Applications:
-
Digital logic circuits
-
Pulse shaping
-
High-speed data transmission
Switching diodes ensure reliable operation in digital and timing circuits. Their speed and small size make them ideal for modern electronics.
Comparative Performance Table
The following table compares the static performance of advanced diode types, including current level, current density, asymmetry, nonlinearity, and responsivity.
| Diode Type | Current Level (I at 1 V) | Current Density (J, A/cm²) | Asymmetry (f_ASYM) | Nonlinearity (f_NL) | Responsivity (f_RES, V⁻¹) |
|---|---|---|---|---|---|
| Nb/Nb2O5(5 nm)/Pt | 128 µA | 2 | 9.8 | 8.2 | 16.9 |
| Nb/Nb2O5(15 nm)/Pt | 175 nA (at 0.5 V) | N/A | 1500 | 4 | 20 |
| Ti/TiO2/bilayer graphene | 10 nA | 0.1 | 9000 | 8 | 10 |
| Ti/TiO2/graphene (max) | 10.5 µA | 7.5 | 520 | 15 | 26 |
| 1D-MIG (max) | 1.6 mA | 7.5 × 10⁶ | 65.7 | 4.5 | 18.5 |
Laboratory experiments confirm that design variations, such as improved blocking layers and optimized quantum wells, lead to measurable improvements in diode efficiency. For example, deep ultraviolet laser diodes with graded undoped electron blocking layers achieve higher slope efficiency and lower threshold current. These results validate the impact of design on diode performance.
Tip: Selecting the right diode type for each application ensures optimal performance, reliability, and longevity in electronic systems.
Diode Types and Functions
Rectification
Rectification stands as one of the most important functions of diodes. In this process, a rectifier converts alternating current (ac) to direct current (dc). Standard diode types, such as silicon rectifiers, allow current to flow in only one direction. This property makes them essential in rectification and power supply circuits. The efficiency of rectification depends on several factors, including maximum average rectifier current, reverse working voltage, and reverse recovery time. For example, technical documents show that diode rectification achieves about 77.3% efficiency at a 10 A load, while synchronous rectification can reach over 81%. The main reason for this difference is the conduction loss in the diode, which can reach 10 W at high currents. These metrics help engineers select the right diode for ac to dc conversion.
Note: Rectification plays a key role in power supplies, battery chargers, and adapters.
| Diode Function | Key Metrics |
|---|---|
| Rectification | Max average current, reverse voltage, reverse current, breakdown voltage, recovery time |
Voltage Regulation
Voltage regulation ensures a stable voltage across electronic circuits. Zener diodes perform this function by maintaining a constant voltage when reverse biased. The breakdown voltage and reverse current behavior define their performance. Designers use these diodes in power supplies to provide a stable voltage for sensitive components. The forward voltage of a diode also changes with temperature, which engineers use in temperature sensors and voltage references. Regulation remains critical for protecting devices from voltage fluctuations and for providing a reliable power source.
Tip: Always check the breakdown voltage and reverse current when choosing a diode for voltage regulation.
Switching
Switching diodes operate at high speeds, turning on and off in nanoseconds. These diode types appear in digital circuits, pulse shaping, and high-speed data transmission. The main performance metrics include charge storage, turn-off time, and maximum operating frequency. For instance, step recovery diodes have very low charge storage, which allows them to switch almost instantly. Gold-doped diodes offer faster switching but with higher power loss. Switching remains vital for logic circuits and communication systems.
Light Emission
Light emission is a unique function of certain diode types, such as LEDs. When forward biased, these diodes emit visible or infrared light. Applications include display indicators, lighting, and optical communication. The efficiency of light emission depends on the diode’s design and materials. Laboratory tests show that improvements in surface structure can increase light extraction efficiency from 6% to over 70%. LEDs also experience illuminance degradation over time, which affects their lifetime and reliability.
Light Detection
Photodiodes convert light into electrical signals. These diodes respond quickly to changes in light intensity, making them ideal for sensors, solar cells, and light meters. The main applications include cameras, safety systems, and scientific instruments. While detailed electrical metrics are less explicit, the speed and sensitivity of photodiodes remain important for accurate light detection.
Frequency Control
Frequency control uses varactor diodes, which act as voltage-controlled capacitors. The capacitance changes with the applied voltage, allowing precise tuning in radios and oscillators. Key metrics include capacitance variation, series resistance, and quality factor (Q). Experimental data shows that varactor diodes enable electronic tuning without moving parts, improving reliability and performance in communication equipment.
The functions of diodes extend beyond simple current control. Each diode type supports specific applications, from rectification and power supply to stable voltage regulation and frequency control. Understanding diode types and functions helps engineers design efficient and reliable circuits.
Diode Selection
Selecting the right diode for a circuit requires careful consideration of several technical parameters. Each parameter affects performance, reliability, and suitability for specific applications. The following criteria help engineers and students make informed choices and avoid common mistakes.
Voltage Rating
Voltage rating defines the maximum reverse voltage a diode can withstand without breaking down. Exceeding this value can cause permanent damage. Manufacturers specify this as Peak Inverse Voltage (PIV) or Reverse Voltage (VR). For example, technical datasheets list reverse voltage values such as 75 V and repetitive peak reverse voltage up to 100 V. Applications in power supplies, automotive, and industrial systems often require diodes with high voltage ratings to ensure safety and durability.
Industry reports highlight the importance of voltage ratings in sectors like electric vehicles and powertrain systems. Diodes with higher voltage ratings, such as those made from silicon carbide or gallium nitride, operate efficiently at elevated voltages and temperatures. These advancements support the growing demand for robust power management in modern electronics.
Tip: Always select a diode with a voltage rating at least 20% higher than the maximum voltage expected in the circuit.
Current Rating
Current rating indicates the maximum continuous current a diode can safely conduct. Exceeding this limit leads to overheating and potential failure. Datasheets provide forward current values, such as 50 mA for small signal diodes. Power diodes used in rectifiers or battery chargers often have much higher current ratings.
Engineers must match the current rating to the application's load requirements. For circuits with fluctuating loads, choosing a diode with a higher current margin improves reliability. The advantages of a diode with a suitable current rating include longer lifespan and reduced risk of thermal damage. However, selecting a diode with an excessively high current rating may increase cost and size, which are disadvantages in compact designs.
Switching Speed
Switching speed measures how quickly a diode transitions between conducting and non-conducting states. Fast switching is essential in digital circuits, power inverters, and high-frequency applications. Technical reports describe fast recovery diodes that minimize power loss and enhance efficiency in motor drives and telecommunications.
Switching diodes are categorized by voltage rating: low (up to 30V), medium (30V to 100V), and high (above 100V). Materials like silicon carbide and gallium nitride enable higher switching speeds and temperature tolerance. Faster switching reduces power loss, which is a major advantage in automotive and industrial systems. However, some fast diodes may exhibit higher reverse leakage current, which is one of the disadvantages of a diode in sensitive circuits.
Note: For high-speed circuits, always check the reverse recovery time in the datasheet. Values below 4 ns indicate very fast switching.
Power Dissipation
Power dissipation refers to the amount of heat a diode generates during operation. This value depends on the forward voltage drop and the current passing through the device. Datasheets specify maximum power dissipation, such as 0.5 W for small surface-mount diodes. Exceeding this limit can cause thermal runaway and device failure.
Proper heat management, such as using heat sinks or selecting diodes with higher power ratings, prevents overheating. The advantages of a diode with low power dissipation include improved efficiency and longer operational life. On the other hand, the disadvantages of a diode with poor heat handling include increased risk of failure and reduced reliability.
Package Type
Package type determines the physical form and mounting method of a diode. Common types include DO-213AC, MINI-MELF, and SOD-80. Surface-mount packages, such as SOD-80C, offer compact size and easy integration into modern printed circuit boards. The table below summarizes key package and temperature parameters from manufacturer datasheets:
| Parameter | Value / Description |
|---|---|
| Package Types | DO-213AC, MINI-MELF, SOD-80 |
| Maximum Power Dissipation | 0.5 W |
| Peak Reflow Temperature | 260°C |
| Time at Peak Reflow Temperature | 30 seconds |
| Maximum Junction Operating Temp | 200°C |
| Mounting Type | Surface Mount |
| Number of Pins | 2 |
| Diode Element Material | Silicon |
| Package Description | Small hermetically sealed glass SMD package (SOD80C) |
Choosing the right package type offers advantages such as better thermal performance and easier assembly. However, some packages may limit power handling or complicate repairs, which are disadvantages in certain applications.
Temperature Range
Temperature range specifies the minimum and maximum operating temperatures for a diode. High-performance diodes can operate up to 200°C, as shown in technical datasheets. Peak reflow temperatures during assembly may reach 260°C for short periods. Selecting a diode with an appropriate temperature range ensures reliable operation in harsh environments, such as automotive or industrial systems.
Advancements in materials like silicon carbide and gallium nitride allow diodes to function at higher temperatures, supporting demanding applications. The advantages of a diode with a wide temperature range include increased reliability and suitability for extreme conditions.
Special Features
Some diodes offer special features that enhance performance in specific applications. For example, zener diodes provide precise voltage regulation by maintaining a constant voltage in reverse bias. Engineers use zener diodes in power supplies, voltage references, and surge protection circuits. The advantages of zener diodes include stable voltage output and protection against voltage spikes.
Advanced diodes, such as Schottky and tunnel diodes, introduce unique benefits. Schottky diodes eliminate reverse recovery time, enabling superior high-frequency switching. They also have a lower forward voltage drop, which improves efficiency. Tunnel diodes operate at extremely high frequencies due to quantum tunneling and show strong durability and radiation resistance, making them suitable for space and harsh environments. Research articles confirm these advantages and validate the effectiveness of these special features.
However, every special feature may introduce disadvantages. For instance, Schottky diodes can have higher reverse leakage current and lower breakdown voltage. Engineers must weigh these disadvantages against the advantages when selecting a diode for a specific task.
Tip: Always review the datasheet for special features, such as fast recovery, low leakage, or radiation resistance, to match the diode to the application's needs.
Practical Tips for Diode Selection
-
Match the voltage and current ratings to the application's maximum requirements, adding a safety margin.
-
Consider switching speed for high-frequency or digital circuits.
-
Evaluate power dissipation and ensure adequate heat management.
-
Choose a package type that fits the assembly process and thermal needs.
-
Verify the temperature range for the intended environment.
-
Assess special features, such as those found in zener diodes, for voltage regulation or protection.
-
Consult technical handbooks and manufacturer guidelines, such as the Keysight Ultimate Diode Testing Guide, for advanced testing methods. These resources recommend combining dynamic resistance measurement, thermal impedance testing, and expert consultation to ensure reliable diode selection.
Selecting the right diode improves circuit efficiency, reliability, and longevity. Understanding both the advantages and disadvantages of each diode type helps engineers avoid common mistakes and optimize their designs.
Applications of Different Types of Diodes
Power Supplies
Power supplies rely on different types of diodes for reliable operation. Standard silicon diodes often serve as rectifiers in ac-dc converters, transforming alternating current into direct current. A documented case study describes a DC power supply using a full-wave bridge rectifier with four silicon diodes, a smoothing capacitor, and an LM317 voltage regulator. The diodes handle rectification and protect the circuit from reverse currents. The LM317, combined with the diodes, allows voltage regulation from 1.25 V to 37 V and supplies over 1.5 A. This setup demonstrates how the types of diodes work together to ensure stable output and efficient rectification and power supply performance.
Signal Processing
Signal processing circuits use different types of diodes for switching, detection, and shaping signals. Schottky diodes, with their fast switching speed, appear in digital logic and radio frequency circuits. PIN diodes control signal amplitude in attenuators and RF switches. Engineers select these types of diodes for their low capacitance and quick response, which are essential in high-speed communication systems. Signal diodes also find use in demodulation and waveform shaping, making them vital for common applications of diodes in electronics.
Voltage Regulation
Voltage regulation remains a core function in many electronic devices. Zener diodes maintain a constant voltage across loads, even when input or load conditions change. Technical articles highlight how Zener diodes stabilize voltage in power adapters, chargers, and measurement instruments. Testing methods confirm their ability to provide precise voltage reference and overvoltage protection. These types of diodes offer compact size and cost-effectiveness, making them suitable for a wide range of applications that require stable voltage regulation.
Protection Circuits
Protection circuits use different types of diodes to guard sensitive components. Zener diodes clamp voltage spikes, preventing damage from overvoltage. Avalanche diodes absorb high-energy transients in industrial equipment. Schottky diodes protect digital circuits from reverse polarity. Engineers often test diodes in reverse bias to ensure integrity before installation. These applications highlight the importance of selecting the right diode type for circuit protection, which is a common application of diodes in modern electronics.
Lighting and Sensing
Lighting and sensing applications benefit from the unique properties of LEDs and photodiodes. LEDs serve as efficient light sources in displays, indicators, and general lighting. Usage statistics show that orange, yellow, and green LEDs are popular in sensing devices for measuring gases, ions, and environmental nutrients. Photodiodes detect light and enable chemical sensor miniaturization. Miniaturized LED-based devices reduce cost, speed up response time, and lower contamination risk. The broad spectral range of LEDs, from 210 to 1550 nm, supports fluorescence detection and environmental monitoring. The advancement of these types of diodes has expanded their role in both lighting and sensing domains.
Note: The wide range of applications for different types of diodes demonstrates their versatility and importance in modern electronics.
Diode Comparison Table
Quick Reference
Selecting the right diode type often requires a quick side-by-side comparison. The following table summarizes the main characteristics, advantages, and disadvantages of common diode types. This overview helps students and engineers match each diode to its best application.
| Diode Type | Key Function | Advantages | Disadvantages | Typical Use Cases |
|---|---|---|---|---|
| PN Junction | Rectification | Simple design; reliable; low cost | Voltage drop (~0.7V); heat sensitivity | Power supplies, adapters |
| Zener | Voltage regulation | Stable voltage; overvoltage protection | Limited current handling; noise at high frequencies | Voltage references, regulators |
| Schottky | Fast switching | Low forward voltage; high speed | Low reverse voltage tolerance; higher leakage current | Power rectifiers, RF circuits |
| LED | Light emission | Efficient light source; long life | Degrades over time; sensitive to heat | Indicators, displays, lighting |
| Photodiode | Light detection | Fast response; high sensitivity | Sensitive to noise; limited current output | Sensors, solar cells |
| Varactor | Variable capacitance | Electronic tuning; no moving parts | Nonlinear response; limited capacitance range | RF tuning, oscillators |
| Tunnel | High-speed switching | Operates at very high frequencies; negative resistance | Complex design; expensive | Microwave, oscillators |
| Avalanche | Surge protection | Handles high voltage spikes; robust | High noise; requires precise control | Surge protectors, pulse circuits |
| PIN | RF switching/attenuation | Low distortion; high-frequency operation | Larger size; slower at low frequencies | RF switches, attenuators |
| Switching Diode | Signal switching | Very fast switching; compact | Low current rating; limited voltage | Digital circuits, logic gates |
Diode types such as PN junction diodes, photodiodes, rectifiers, PIN diodes, and LEDs each offer unique benefits. These include protection from overcurrents, AC to DC conversion, and EMI reduction. However, trade-offs exist. Many diodes have a voltage drop that reduces efficiency, can suffer heat damage, or have limited reverse voltage tolerance.
Engineers often choose hardware-based diodes for dependable one-way current flow, especially in secure or high-reliability environments. These hardware solutions provide robust protection but may limit data transfer rates or scalability. Software-based solutions offer flexibility but may lack the reliability of hardware diodes.
When selecting a diode, users should weigh the advantages and disadvantages for each type. For example, Schottky diodes excel in speed but have higher leakage current. Zener diodes regulate voltage well but may introduce noise. Understanding these trade-offs ensures the best match for each circuit.
Tip: Use this table as a quick reference when designing or troubleshooting electronic circuits. Matching the diode type to the application improves both performance and reliability.
Understanding diode types, their functions, and selection criteria remains essential for reliable circuit design. Choosing the correct diode improves both performance and protection in electronics. Technical reports highlight that proper diode selection—considering parameters like peak current, reverse voltage, and power dissipation—prevents damage from voltage spikes and ensures long-term operation. Practical applications, such as voltage regulation, signal processing, and lighting, benefit from optimal diode use. Readers should apply these selection tips and refer to the comparison table for future projects. For deeper learning, technical datasheets and industry research offer valuable guidance.
FAQ
What is the main difference between a Schottky diode and a standard diode?
A Schottky diode uses a metal-semiconductor junction. It has a lower forward voltage drop and faster switching speed than a standard p-n junction diode. Schottky diodes work well in high-frequency and power applications.
How does a Zener diode regulate voltage?
A Zener diode maintains a constant voltage across its terminals when reverse biased. It enters breakdown at a specific voltage, allowing current to flow and stabilizing the voltage. Engineers use Zener diodes for voltage regulation and protection.
Can one diode type replace another in a circuit?
Not always. Each diode type has unique properties. For example, a standard diode cannot replace a Zener diode in voltage regulation. Always check the required voltage, current, and function before substituting diodes.
What are common signs of diode failure?
Common signs include no current flow, excessive heat, or visible damage. A failed diode may also cause erratic circuit behavior or voltage drops outside normal ranges. Testing with a multimeter helps confirm diode condition.
How should someone choose the right diode for an application?
Tip:
Select a diode by matching voltage and current ratings to the circuit. Consider switching speed, power dissipation, and special features. Always review the datasheet for detailed specifications and application notes.
