You can make LED output steady by changing the current, using sensors, and controlling heat. These methods help keep the light even and the output stable from LEDs. In LED lighting, temperature compensate techniques stop changes in brightness and color. Temperature changes can reduce the output and shorten your LED’s lifespan. Many LED lighting systems use special circuits and construction methods to keep the light steady and extend the device’s life. Temperature compensate methods help you get the best performance and reliability from your LEDs.
-
Temperature compensate in LEDs fixes problems caused by heat changes and aging.
-
Special biasing and innovative construction methods help keep light steady and make LEDs last longer.
Key Takeaways
- Heat can make LEDs dimmer and not last as long, so keeping them cool is important. - Sensors like NTC thermistors and feedback circuits help watch and change the LED current to keep the light steady. - Using heat sinks, thermal materials, and good airflow helps LEDs stay cool and shine bright. - Pick good LED parts and drivers that have temperature compensation built in for lights that work well and last long. - Check and adjust your LED system often to keep the brightness and color the same over time.
Temperature Effects on LEDs
Brightness and Color Changes
Heat affects led output in many ways. When you use leds in led lighting, you may notice that the brightness drops as temperature rises. Outdoor tests show that cooling the led chip by just 3.2 to 4.4°C below the surrounding air can improve led performance. If the ambient temperature is high, the led chip gets hotter, which leads to more brightness loss. As the junction temperature of the led increases from 25°C to 85°C, the brightness and efficiency can drop by about 10%. This effect is called thermal droop. You will see this more in red leds than in blue ones.
You might wonder if heat affects led color. In most cases, temperature does not directly change the color of the light. Instead, it reduces the total output and can speed up aging. In white leds, temperature can change how the phosphor works, but the main effect is still a drop in brightness, not a big shift in color. If you want your led lighting to stay bright and last longer, you need to control the temperature.
Tip: Always check the temperature around your leds. Keeping them cool helps maintain steady output and color.
Voltage and Lifespan Impact
Temperature also changes the voltage needed for leds to work. As the temperature goes up, the forward voltage drops. For every degree Celsius increase, the voltage can fall by about 0.9 to 1.7 millivolts. This means that if your led lighting gets hot, the leds will need less voltage to run, but their output will still go down.
Heat affects led lifespan, too. High temperatures can cause leds to fail early or lose output over time. Before leds stop working, they often lose brightness, which shortens their useful life. The lifetime of leds can range from 2,000 to over 200,000 hours, depending on how well you manage the temperature and the quality of the led. If you let leds run too hot, you may see a drop in output by 5% to 70% at 75°C compared to what the datasheet says. Sometimes, high temperatures can even cause permanent color changes, especially in lower-quality leds.
-
High temperature can:
-
Cause mechanical or complete failure.
-
Lead to permanent brightness loss.
-
Shorten the lifespan of both the led and the driver.
-
Make thermal management a key part of led lighting design.
-
You can protect led performance by keeping the temperature within safe limits. Good thermal management helps you get the most out of your leds.
Temperature Compensation Methods
Sensors and Feedback Circuits
Sensors and feedback circuits help control LED temperature. These tools watch the heat around LEDs. They keep the light steady and stop damage.
-
NTC thermistors are popular temperature sensors. Their resistance drops when it gets hotter. You put these thermistors near the LED or in the driver circuit. When it gets warm, the thermistor’s resistance goes down. This tells the circuit to lower the current. Lowering the current keeps the LED from getting too hot.
-
Using thermistors lets you check the temperature all the time. If it gets too hot, the circuit can cut power or sound an alarm. This stops heat damage and helps LEDs last longer.
-
Feedback circuits use sensor data to change the LED driver. These circuits can set a safe top temperature. For example, feedback can cool the LED from 65.1°C to 58.7°C. This keeps the light bright and stops heat problems.
-
Advanced feedback systems work for multi-color LEDs. They use special math to change how long each LED is on. This keeps the color and brightness steady, even if it gets hotter or colder.
Tip: Put your temperature sensors close to the LED junction. This gives you the best readings and better temperature control.
Good thermal design is important too. Use strong sensors, good LED drivers, and solid heat sinks. These choices help your LEDs work well and keep the light steady.
Adjusting LED Current
Changing the current is another way to control LED temperature. Some LED driver ICs can sense heat and change the current to keep the light steady.
LED driver ICs keep the current the same, even if it gets hotter. When the temperature rises, the driver IC slowly lowers the current. This stops flickering and keeps the light smooth. The driver uses sensor feedback or checks voltage across a resistor to pick the right current. This stops sudden drops in light and keeps the LED safe.
Constant current sources help with temperature changes. A diode or another LED can help balance the current. This keeps the current steady, so the light does not change much if it gets hotter or colder. Some LED drivers have built-in temperature sensors. These sensors send digital signals to change the current. This can cut current errors from 14% to less than 1% over many temperatures.
You should also use temperature derating to protect LEDs. Derating means running the LED below its top current, especially when it is hot. For many LEDs, lower the current by 20-30% or more. This stops overheating, makes LEDs last longer, and keeps the light steady. Pushing LEDs too hard, even with cooling, can make them fail early and lose efficiency.
-
Key points for adjusting LED current:
-
Use constant current LED drivers with temperature compensation.
-
Add temperature sensors to watch and control current.
-
Use temperature derating to stop overdriving.
-
Pick strong parts for steady performance.
-
Note: The best temperature compensation uses both electronic control and smart thermal design. This gives you the best LED performance and long-lasting, steady light.
Thermal Management for LEDs
Heat Sinks and Materials
You need strong thermal management to keep your leds cool and working well. Heat sinks play a big role in moving heat away from the led chip. When you use a heat sink, it pulls heat from the led and spreads it into the air. This keeps the led’s temperature low and stops brightness loss or color changes. Most heat sinks use aluminum because it is light, cheap, and spreads heat well. Copper works even better but costs more. Anodized aluminum heat sinks can release heat faster by radiating it away.
Thermal interface materials (TIMs) help too. These materials fill tiny air gaps between the led and the heat sink. Air does not move heat well, but TIMs like thermal paste or pads do. This helps lower the led’s temperature by up to 10°C. You can also use graphite sheets or phase change materials for better heat spreading. Metal core PCBs and thermal vias under the led pad move heat away fast and keep the temperature steady.

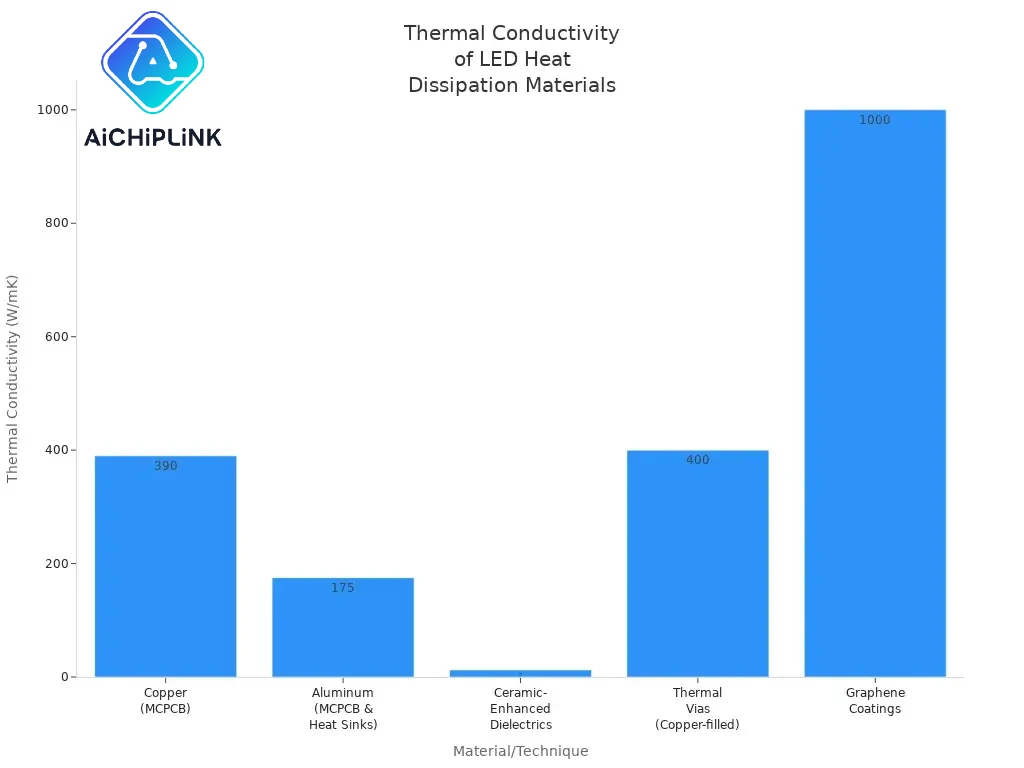

Here is a table showing common thermal management techniques for leds:
| Thermal Management Technique | Description & Key Points |
|---|---|
| Heat Sinks | Use aluminum or copper to pull heat from leds and spread it into the air. |
| Thermal Interface Materials (TIM) | Fill gaps between led and heat sink to improve heat transfer. |
| Metal Core PCBs | Use metal layers to spread heat across the board. |
| Graphite Heat Sheets | Spread heat sideways and away from hot spots. |
| Phase Change Materials | Absorb and move heat during temperature spikes. |
| Active Cooling | Use fans or coolers for extra heat removal in high-power leds. |
Tip: Always use the right heat sink size and TIM for your led’s power and environment. This keeps the temperature safe and leds bright.
Airflow and Placement
Good airflow helps leds stay cool. You should place leds with enough space around them. This lets air move and carry heat away. If you put leds too close together, heat builds up and raises the temperature. Fans or vents can boost airflow, especially in closed spaces. Active cooling, like fans, can lower the led temperature by up to 35%. Clean vents and fans often to keep air moving well.
You can also use natural airflow. Place air inlets at the bottom and outlets at the top to let warm air rise and escape. Use aluminum panels or heat sinks to help move heat out. For outdoor or big led displays, add fans or vents in the right spots. Always check the temperature with sensors to catch problems early.
Note: Every 10°C rise in temperature can cut led life by half. Good placement and airflow protect your leds and keep the light steady.
How to Temperature Compensate LEDs
Component Selection
When you build led lighting with temperature compensation, you must pick good parts. First, choose leds that give the brightness and color you want. Pick leds that keep their light and color steady. Makers sort leds by color and brightness groups. This helps your led lighting look the same, even if it gets hotter or colder.
You also need to check how often leds might fail and what temperatures they can handle. These ratings show how long leds last and how well they deal with heat. Choose leds that follow IEC rules for being reliable. Use heat sinks and thermal pads to keep the led junction cool. Good thermal management keeps leds bright and helps them last longer.
For the driver, pick ICs that have temperature compensation built in. Some drivers, like the Atmel MSL2021, can save color data and change output when it gets hotter. Other drivers use sensors, like NTC thermistors, to check the temperature near the led. These sensors help the driver lower the current if it gets too warm. This keeps your leds safe from getting too hot.
Tip: Always pick led lighting parts that fit your room and what you need. Warm colors are nice for relaxing. Cool colors help you focus.
Calibration Steps
You must calibrate your led lighting system to make temperature compensation work well. Here are the steps:
-
Decide how accurate you want your system to be. Test your leds in hot and cold places.
-
Calibrate your sensors and circuits. Use an ADC to check battery and led voltages. Fix any difference between them.
-
Make sure your battery voltage stays safe.
-
Measure the led forward voltage at two current levels. This shows how led voltage changes with heat.
-
Change the driver current using a DAC based on temperature readings.
-
Save your calibration settings so your system can use them later.
-
Use both background and foreground calibration. This keeps your led lighting steady, even if temperature or power changes.
A good calibration plan helps leds keep the same brightness and color. Some driver ICs can calibrate themselves. This lets your system adjust to heat changes without turning off the leds.
Note: Check and calibrate your leds often. This helps them work well and last longer, even if the temperature changes.
You can keep your LEDs shining the same by using both electronic controls and good heat management. Pick strong parts and follow rules like IEC 62722 and IEC 62717 for safety and good results.
-
Use NTC thermistors to watch the temperature and stop your LEDs from getting too hot.
-
Calibrate your system and check it often. This keeps the light steady and helps your LEDs last longer.
| Resource | Benefit |
|---|---|
| PID control, feedback circuits | Keep color and brightness steady |
| Thermal design | Stop hot spots and broken fixtures |
Always check and update your system. This helps your LEDs work well in real life.
FAQ
What happens if you do not temperature compensate your LEDs?
If you skip temperature compensation, your LEDs can get too hot. You may see brightness drop, color shift, or even early failure. You will not get the best performance or lifespan from your lighting.
Can you use any temperature sensor for LED compensation?
You should use sensors made for electronics, like NTC thermistors. These sensors give fast and accurate readings. Regular room thermometers do not work well for LED circuits.
How often should you check and calibrate your LED system?
You should check and calibrate your system every few months. If you use LEDs in tough environments, check them more often. Regular checks help you catch problems early.
Do all LED drivers support temperature compensation?
Not all drivers have this feature. You need to pick drivers that list temperature compensation in their datasheet. Look for drivers with built-in sensors or feedback control.
Will better airflow always fix LED overheating?
Better airflow helps, but it may not solve every problem. You still need good heat sinks and the right parts. Airflow works best when you use it with other cooling methods.
