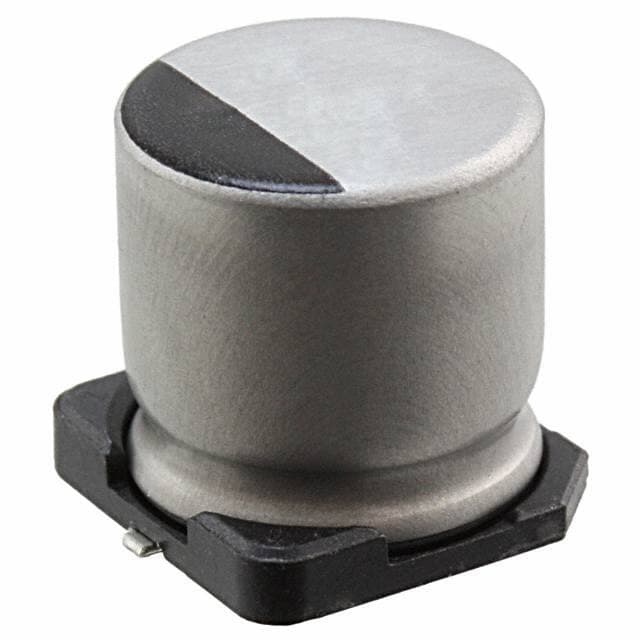

NICHICON ULV2G6R8MNL1GS
NICHICON ULV2G6R8MNL1GS

NICHICON ULV2G6R8MNL1GS

Manufacturer No:

ULV2G6R8MNL1GS

Manufacturer:

NICHICON

Package:

Radial, Can - SMD

Description:

ULV 6.8?F Capacitor ±20% Tape & Reel (TR) Surface Mount 50mA 0.394Dia 10.00mm -40°C~105°C Polar 4.5mm Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ULV2G6R8MNL1GS information

NICHICON ULV2G6R8MNL1GS technical specifications, attributes, parameters and parts with similar specifications to NICHICON ULV2G6R8MNL1GS.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Dielectric Material
  • ALUMINUM (WET)
  • Weight
  • 1.209986g
  • Surface Mount Land Size
  • 0.406Lx0.406W 10.30mmx10.30mm
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • ULV
  • Published
  • 2009
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 6.8?F
  • Voltage - Rated DC
  • 400V
  • Lead Pitch
  • 4.5mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lifetime @ Temp
  • 10000 Hrs @ 105°C
  • Leakage Current
  • 208.8mA
  • Ripple Current
  • 50mA
  • Polarization
  • Polar
  • Life (Hours)
  • 10000 hours
  • Ripple Current @ Low Frequency
  • 50mA @ 120Hz
  • Ripple Current @ High Frequency
  • 80mA @ 10kHz
  • Dissipation Factor
  • 0.25 %
  • Diameter
  • 10mm
  • Height
  • 10mm
  • Height Seated (Max)
  • 0.433 11.00mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for NICHICON ULV2G6R8MNL1GS.

Datasheets:

ULV2G6R8MNL1GS Description


ULV2G6R8MNL1GS is a high voltage aluminum electronic capacitor. Aluminum electrolytic capacitors are polarized electrolytic capacitors whose anode electrode (+) is made of a pure aluminum foil with an etched surface. The aluminum forms a very thin insulating layer of aluminum oxide by anodization that acts as the dielectric of the capacitor.


ULV2G6R8MNL1GS Features


Chip Type, high voltage and long life.
Load life of 10000 hours at +105°C
Applicable to automatic mounting machine using carrier tape.
Compliant to the RoHS directive (2011/65/EU,(EU)2015/863).
AEC-Q200 compliant. Please contact us for details.


ULV2G6R8MNL1GS Applications


Automotive
Advanced driver assistance systems (ADAS)
Industrial
Power delivery
Enterprise systems
Data center & enterprise computing
