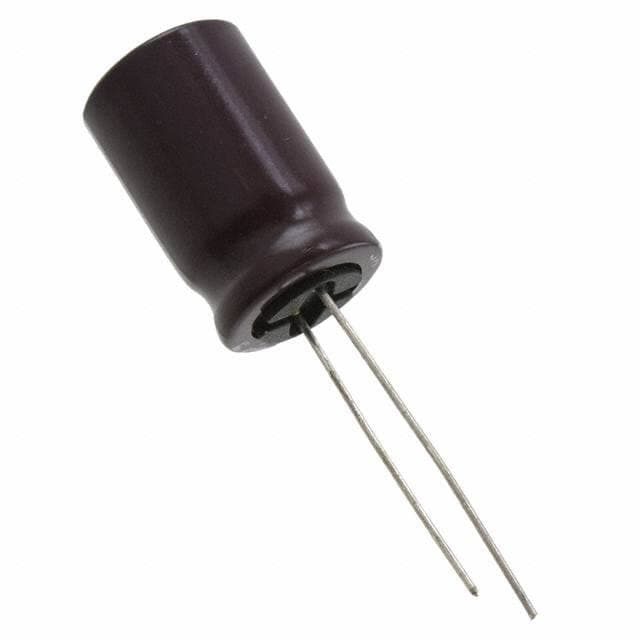

NICHICON UCA2E470MHD
NICHICON UCA2E470MHD

NICHICON UCA2E470MHD

Manufacturer No:

UCA2E470MHD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UCA 47?F Capacitor ±20% Bulk Through Hole 720mA 0.492Dia 12.50mm -25°C~105°C Polar 5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UCA2E470MHD information

NICHICON UCA2E470MHD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UCA2E470MHD.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -25°C~105°C
  • Packaging
  • Bulk
  • Series
  • UCA
  • Published
  • 2009
  • Size / Dimension
  • 0.492Dia 12.50mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 47?F
  • Voltage - Rated DC
  • 250V
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.197 5.00mm
  • Lead Diameter
  • 600 ?m
  • Voltage
  • 250V
  • Lifetime @ Temp
  • 12000 Hrs @ 105°C
  • Leakage Current
  • 570?A
  • Ripple Current
  • 720mA
  • Polarization
  • Polar
  • Life (Hours)
  • 12000 hours
  • Ripple Current @ Low Frequency
  • 360mA @ 120Hz
  • Ripple Current @ High Frequency
  • 720mA @ 100kHz
  • Dissipation Factor
  • 0.15 %
  • Diameter
  • 12.5mm
  • Height
  • 25mm
  • Height Seated (Max)
  • 1.043 26.50mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for NICHICON UCA2E470MHD.

Datasheets:

UCA2E470MHD Overview


Full charge results in a ripple current of 720mA @ 100kHz.The ripple current at the lowest charge is 360mA @ 120Hz.Keeping the maximum height of the seated person (Max) below 1.043 26.50mm is recommended.Despite its 0.15 % dissipation factor, it still operates.Rated DC voltage is 250V for this capacitor.High efficiency requires an operating temperature of -25°C~105°C.

UCA2E470MHD Features


the ripple current is 720mA @ 100kHz.
the ripple current is 360mA @ 120Hz.
a dissipation factor of 0.15 %
voltage - Rated DC of 250V
an operating temperature of -25°C~105°C


UCA2E470MHD Applications


There are a lot of Nichicon
UCA2E470MHD applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
