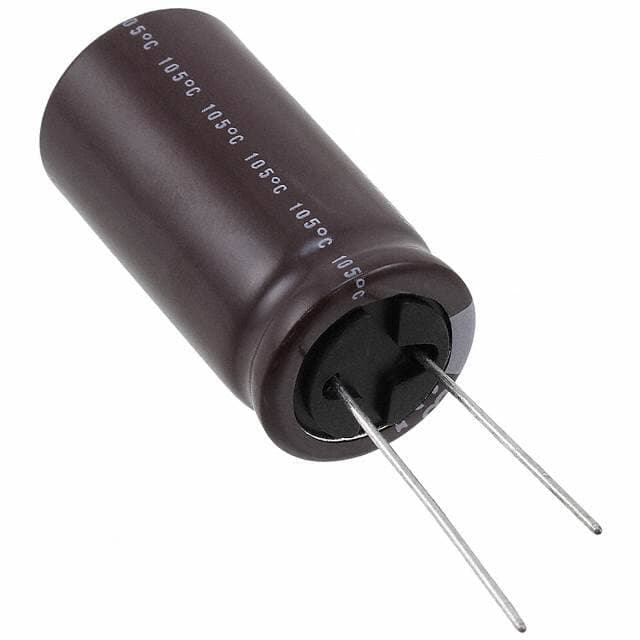

NICHICON UCS2D331MHD
Manufacturer No:
UCS2D331MHD
Manufacturer:
Package:
Radial, Can
Description:
UCS 330?F Capacitor ±20% Bulk Through Hole 3.22A 0.709Dia 18.00mm -40°C~105°C Polar 7.5mm Radial, Can
Quantity:
Delivery:




Payment:






In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
UCS2D331MHD information
NICHICON UCS2D331MHD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UCS2D331MHD.
- Type
- Parameter
- Factory Lead Time
- 19 Weeks
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can
- Terminal Shape
- WIRE
- Dielectric Material
- ALUMINUM (WET)
- Operating Temperature
- -40°C~105°C
- Packaging
- Bulk
- Series
- UCS
- Published
- 2004
- Size / Dimension
- 0.709Dia 18.00mm
- Tolerance
- ±20%
- JESD-609 Code
- e2
- Feature
- General Purpose
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- Not Applicable
- Number of Terminations
- 2
- Termination
- Radial
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin/Copper (Sn/Cu)
- Applications
- General Purpose
- HTS Code
- 8532.22.00
- Capacitance
- 330?F
- Lead Pitch
- 7.5mm
- Capacitor Type
- ALUMINUM ELECTROLYTIC CAPACITOR
- Lead Spacing
- 0.295 7.50mm
- Lead Diameter
- 800 ?m
- Voltage
- 200V
- Lifetime @ Temp
- 10000 Hrs @ 105°C
- Leakage Current
- 2.74mA
- Ripple Current
- 3.22A
- Polarization
- Polar
- Life (Hours)
- 10000 hours
- Tan Delta
- 0.2
- Ripple Current @ Low Frequency
- 1.61A @ 120Hz
- Ripple Current @ High Frequency
- 3.22A @ 100kHz
- Dissipation Factor
- 0.2 %
- Diameter
- 18mm
- Height
- 35.5mm
- Height Seated (Max)
- 1.398 35.50mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for NICHICON UCS2D331MHD.
UCS2D331MHD Overview
Ripple current at full charge is 3.22A @ 100kHz.It is 1.61A @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 1.398 35.50mm.Consequently, it operates with a dissipation factor of 0.2 % (0.2 %).Voltage - Rated DC - is 200V.It is recommended that the operating temperature be kept at -40°C~105°C to achieve high efficiency.
UCS2D331MHD Features
the ripple current is 3.22A @ 100kHz.
the ripple current is 1.61A @ 120Hz.
a dissipation factor of 0.2 %
voltage - Rated DC of 200V
an operating temperature of -40°C~105°C
UCS2D331MHD Applications
There are a lot of Nichicon
UCS2D331MHD applications of aluminum electrolytic capacitors.
- Power supplies
- Computer motherboards
- Uninterruptible power supplies
- Frequency converters
- Computer
- Telecommunication
- Industrial systems
- Smoothing and filtering applications
- Standard and switched mode power supplies
- Energy storage in pulse systems
