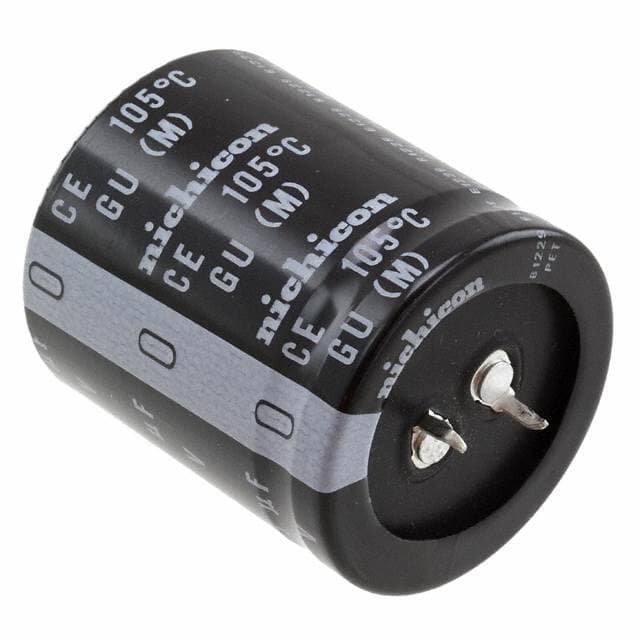

NICHICON LGU1V183MELC
NICHICON LGU1V183MELC

NICHICON LGU1V183MELC

Manufacturer No:

LGU1V183MELC

Manufacturer:

NICHICON

Package:

Radial, Can - Snap-In

Description:

LGU 18000?F Capacitor ±20% Bulk Through Hole 4.37A 1.378Dia 35.00mm -40°C~105°C Polar 10mm Radial, Can - Snap-In

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LGU1V183MELC information

NICHICON LGU1V183MELC technical specifications, attributes, parameters and parts with similar specifications to NICHICON LGU1V183MELC.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can - Snap-In
  • Dielectric Material
  • ALUMINUM (WET)
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Bulk
  • Series
  • LGU
  • Published
  • 2009
  • Size / Dimension
  • 1.378Dia 35.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Feature
  • General Purpose
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Snap in
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 18000?F
  • Voltage - Rated DC
  • 35V
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.394 10.00mm
  • Lead Diameter
  • 800 ?m
  • Lifetime @ Temp
  • 3000 Hrs @ 105°C
  • Leakage Current
  • 2.38mA
  • Ripple Current
  • 4.37A
  • Polarization
  • Polar
  • Life (Hours)
  • 3000 hours
  • Tan Delta
  • 0.35
  • Ripple Current @ Low Frequency
  • 4.37A @ 120Hz
  • Ripple Current @ High Frequency
  • 5.0255A @ 50kHz
  • Diameter
  • 35mm
  • Height
  • 40mm
  • Height Seated (Max)
  • 1.654 42.00mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for NICHICON LGU1V183MELC.

Datasheets:

LGU1V183MELC Overview


Full charge should result in a ripple current of 5.0255A @ 50kHz.If the charge is low, ripple current is 4.37A @ 120Hz.Keep your seated height below 1.654 42.00mm.A voltage of 35V DC is used to operate this capacitor.The maximum efficiency can be achieved by maintaining -40°C~105°C as the operating temperature.

LGU1V183MELC Features


the ripple current is 5.0255A @ 50kHz.
the ripple current is 4.37A @ 120Hz.
voltage - Rated DC of 35V
an operating temperature of -40°C~105°C


LGU1V183MELC Applications


There are a lot of Nichicon
LGU1V183MELC applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
