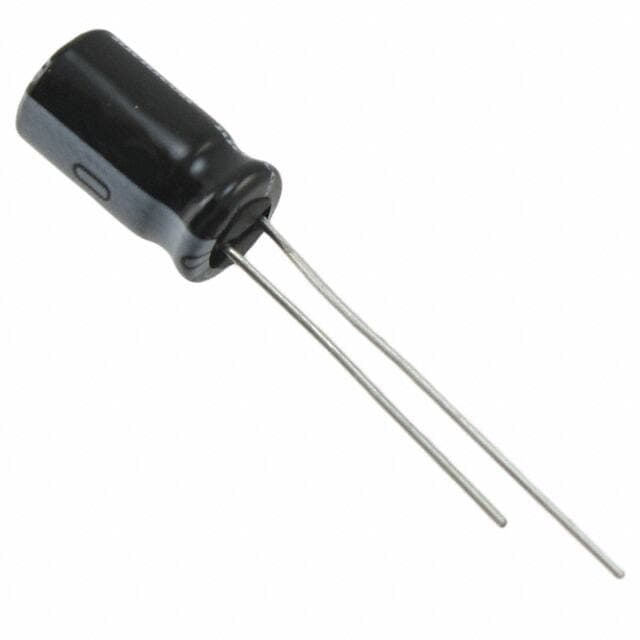

NICHICON UHE1V560MED1TD
NICHICON UHE1V560MED1TD

NICHICON UHE1V560MED1TD

Manufacturer No:

UHE1V560MED1TD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UHE 56?F Capacitor ±20% Tape & Box (TB) Through Hole 238mA 0.248Dia 6.30mm -40°C~105°C Polar 2.5mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UHE1V560MED1TD information

NICHICON UHE1V560MED1TD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UHE1V560MED1TD.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Weight
  • 4.535924g
  • Operating Temperature
  • -40°C~105°C
  • Packaging
  • Tape & Box (TB)
  • Series
  • UHE
  • Published
  • 2008
  • Size / Dimension
  • 0.248Dia 6.30mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • Capacitance
  • 56?F
  • Packing Method
  • AMMO PACK
  • Lead Pitch
  • 2.5mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • ESR (Equivalent Series Resistance)
  • 870mOhm
  • Lead Spacing
  • 0.098 2.50mm
  • Lifetime @ Temp
  • 5000 Hrs @ 105°C
  • Leakage Current
  • 19.6?A
  • Ripple Current
  • 238mA
  • Polarization
  • Polar
  • Life (Hours)
  • 5000 hours
  • Impedance
  • 220mOhm
  • Ripple Current @ Low Frequency
  • 238mA @ 120Hz
  • Ripple Current @ High Frequency
  • 340mA @ 100kHz
  • Dissipation Factor
  • 0.12 %
  • Diameter
  • 6.3mm
  • Height
  • 11mm
  • Height Seated (Max)
  • 0.492 12.50mm
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UHE1V560MED1TD.

Datasheets:

UHE1V560MED1TD Overview


A full charge means 340mA @ 100kHz ripple current.A full performance of 870mOhm requires the ESR (Equivalent Series Resistance).During the lowest charge, ripple current is 238mA @ 120Hz.You should keep the seated height (Max) below 0.492 12.50mm.There is a dissipation factor of 0.12 %.The capacitor operates from 35V DC voltage.When operating at -40°C~105°C, high efficiency can be achieved.

UHE1V560MED1TD Features


the ripple current is 340mA @ 100kHz.
the ripple current is 238mA @ 120Hz.
a dissipation factor of 0.12 %
voltage - Rated DC of 35V
an operating temperature of -40°C~105°C


UHE1V560MED1TD Applications


There are a lot of Nichicon
UHE1V560MED1TD applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems

User Guide
