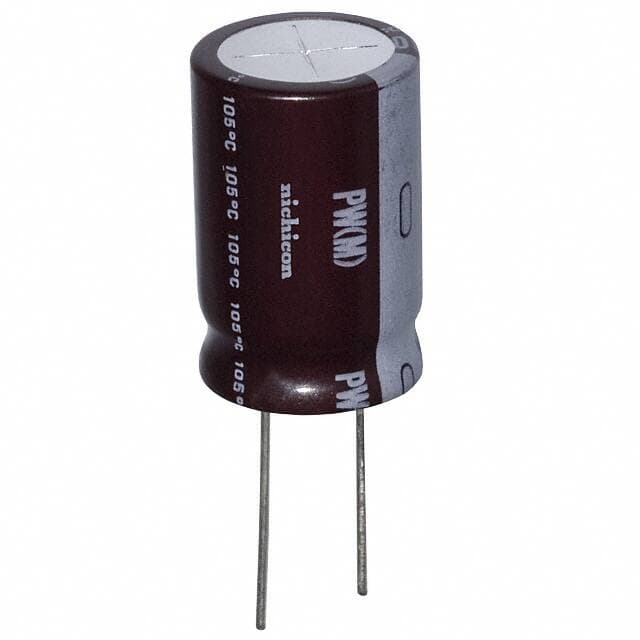

Nichicon UPW2A471MHD

Manufacturer No:

UPW2A471MHD

Manufacturer:

Nichicon

Package:

Radial, Can

Description:

UPW 470?F Capacitor ±20% Bulk Through Hole 1.31A 0.630Dia 16.00mm -55°C~105°C Polar 7.493mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UPW2A471MHD information

Nichicon UPW2A471MHD technical specifications, attributes, parameters and parts with similar specifications to Nichicon UPW2A471MHD.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
PCB, Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Dielectric Material
Aluminium

Operating Temperature
-55°C~105°C

Packaging
Bulk

Series
UPW

Published
2009

Size / Dimension
0.630Dia 16.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

HTS Code
8532.22.00

Capacitance
470?F

Voltage - Rated DC
100V

Terminal Pitch
7.5mm

Lead Pitch
7.493mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

ESR (Equivalent Series Resistance)
152mOhm

Lead Spacing
0.295 7.50mm

Lead Diameter
800 ?m

Voltage
100V

Lifetime @ Temp
8000 Hrs @ 105°C

Leakage Current
1.41mA

Ripple Current
1.31A

Polarization
Polar

Life (Hours)
8000 hours

Impedance
76mOhm

Ripple Current @ Low Frequency
982.5mA @ 120Hz

Ripple Current @ High Frequency
1.31A @ 100kHz

Dissipation Factor
0.08 %

Diameter
16mm

Height
35.5mm

Height Seated (Max)
1.240 31.50mm

Length
31.5mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Nichicon UPW2A471MHD.

UPW2A471MHD Overview

At full charge, the ripple current is 1.31A @ 100kHz.It is necessary to provide the ESR (Equivalent Series Resistance) of 152mOhm so that it can fully perform its functions.The ripple current is 982.5mA @ 120Hz at the lowest charge.It is recommended to keep the height seated (Max) below 1.240 31.50mm.A 0.08 % dissipation factor is used.The capacitor operates at a voltage of 100V - Rated DC.For high efficiency, the operating temperature should be -55°C~105°C.

UPW2A471MHD Features

the ripple current is 1.31A @ 100kHz.
the ripple current is 982.5mA @ 120Hz.
a dissipation factor of 0.08 %
voltage - Rated DC of 100V
an operating temperature of -55°C~105°C

UPW2A471MHD Applications

There are a lot of Nichicon
UPW2A471MHD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
