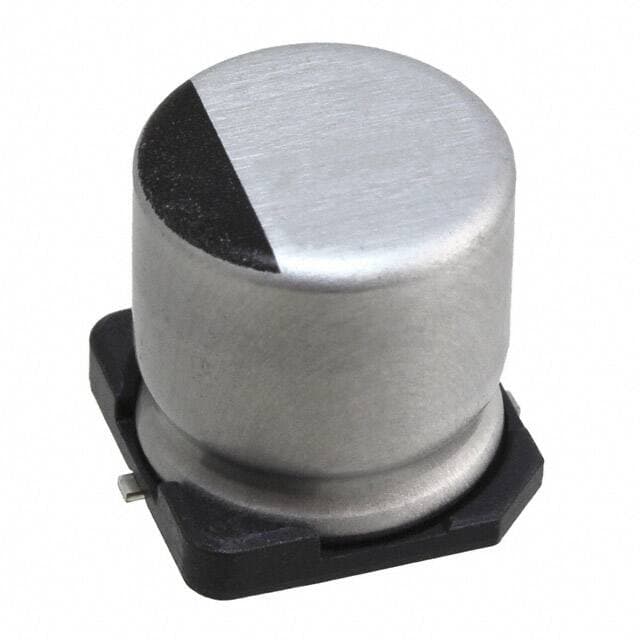

Nichicon UWD1E471MCL1GS
Nichicon UWD1E471MCL1GS

Nichicon UWD1E471MCL1GS

Manufacturer No:

UWD1E471MCL1GS

Manufacturer:

Nichicon

Package:

Radial, Can - SMD

Description:

UWD 470?F Capacitor ±20% Tape & Reel (TR) Surface Mount 670mA 0.394Dia 10.00mm -55°C~105°C 4.5mm Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UWD1E471MCL1GS information

Nichicon UWD1E471MCL1GS technical specifications, attributes, parameters and parts with similar specifications to Nichicon UWD1E471MCL1GS.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Terminal Shape
  • FLAT
  • Material
  • Aluminium
  • Surface Mount Land Size
  • 0.406Lx0.406W 10.30mmx10.30mm
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • UWD
  • Published
  • 2009
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e6
  • Feature
  • General Purpose
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22.00
  • Voltage - Rated DC
  • 25V
  • Lead Pitch
  • 4.5mm
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Polarity
  • POLARIZED
  • Size Code
  • 4141
  • Voltage
  • 25V
  • Lifetime @ Temp
  • 5000 Hrs @ 105°C
  • Leakage Current
  • 52.8?A
  • Ripple Current
  • 670mA
  • Life (Hours)
  • 5000 hours
  • Impedance
  • 90mOhm
  • Ripple Current @ Low Frequency
  • 335mA @ 120Hz
  • Ripple Current @ High Frequency
  • 670mA @ 100kHz
  • Dissipation Factor
  • 0.16 %
  • Diameter
  • 10mm
  • Height
  • 10mm
  • Height Seated (Max)
  • 0.394 10.00mm
  • Length
  • 10.9mm
  • Width
  • 10.3mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Nichicon UWD1E471MCL1GS.

Datasheets:

UWD1E471MCL1GS Overview


A full charge means 670mA @ 100kHz ripple current.During the lowest charge, ripple current is 335mA @ 120Hz.You should keep the seated height (Max) below 0.394 10.00mm.There is a dissipation factor of 0.16 %.The capacitor operates from 25V DC voltage.When operating at -55°C~105°C, high efficiency can be achieved.

UWD1E471MCL1GS Features


the ripple current is 670mA @ 100kHz.
the ripple current is 335mA @ 120Hz.
a dissipation factor of 0.16 %
voltage - Rated DC of 25V
an operating temperature of -55°C~105°C


UWD1E471MCL1GS Applications


There are a lot of Nichicon
UWD1E471MCL1GS applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
