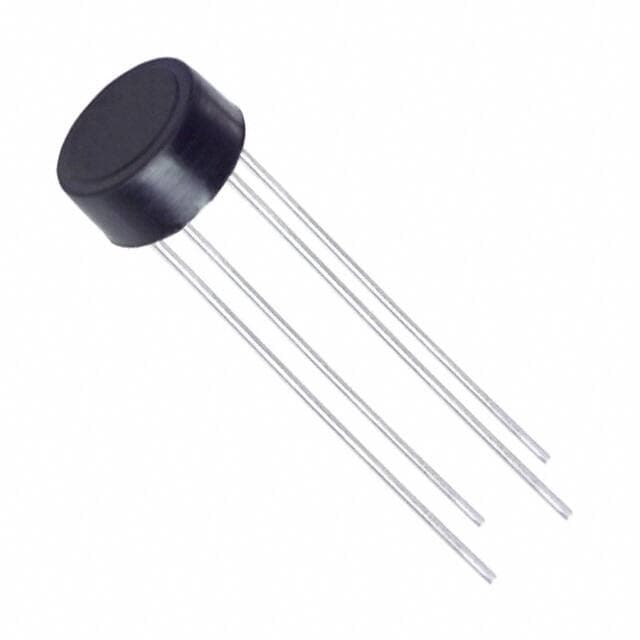

DIODES 2W04G

Manufacturer No:

2W04G

Manufacturer:

DIODES

Package:

ROHS COMPLIANT, PLASTIC, WOG, 4 PIN

Description:

Bridge Rectifier Diode, 1 Phase, 2A, 400V V(RRM), Silicon, ROHS COMPLIANT, PLASTIC, WOG, 4 PIN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

2W04G information

DIODES 2W04G technical specifications, attributes, parameters and parts with similar specifications to DIODES 2W04G.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
DIODES INC

Package Description
ROHS COMPLIANT, PLASTIC, WOG, 4 PIN

Pin Count
4

Reach Compliance Code
not_compliant

ECCN Code
EAR99

HTS Code
8541.10.00.80

Samacsys Manufacturer
Diodes Incorporated

Breakdown Voltage-Min
400 V

Case Connection
ISOLATED

Configuration
BRIDGE, 4 ELEMENTS

Diode Element Material
SILICON

Diode Type
BRIDGE RECTIFIER DIODE

Forward Voltage-Max (VF)
1.1 V

JESD-30 Code
O-PBCY-W4

JESD-609 Code
e4

Non-rep Pk Forward Current-Max
60 A

Number of Elements
4

Number of Phases
1

Number of Terminals
4

Operating Temperature-Max
150 °C

Output Current-Max
2 A

Package Body Material
PLASTIC/EPOXY

Package Style
CYLINDRICAL

Peak Reflow Temperature (Cel)
260

Qualification Status
Not Qualified

Reference Standard
UL RECOGNIZED

Rep Pk Reverse Voltage-Max
400 V

Surface Mount
NO

Terminal Finish
SILVER

Terminal Form
WIRE

Terminal Position
BOTTOM

Download datasheets and manufacturer documentation for DIODES 2W04G.

Datasheets:

DIODS13292-1.pdf

2W04G Overview

The device has 4 pins.Based on 2W04, there are a number of related parts.The component is available as a 4-Circular, WOG package.Reverse leakage current should be monitored, and it shouldn't exceed 5?A.A Through Hole mounting method is used for the device.In order for rectifier to operate normally, rectifier must be kept at a temperature of -65°C~150°C TJ.A maximum voltage of 2A can be supported by it.Ensure that surge current does not exceed 60A.

2W04G Features

4 pin count
4-Circular, WOG package
operating at a temperature of -65°C~150°C TJ
the maximum output voltage of 2A

2W04G Applications

There are a lot of Diodes Incorporated
2W04G applications of bridge rectifiers.

Low thermal resistance
Extremely robust construction
Fuse-in-glass diodes design
Electrically isolated aluminum case
Motor controls ? Low Voltage and Medium Voltage converters
SCR power bridges for solid state starters
SCR and diode based input rectifiers
Crowbar systems for motor drives
Wind power (alternative energy) ? Converters available as diodes, SCRs or IGBTs
Transportation ? Traction rectifiers and auxiliary rectifiers
