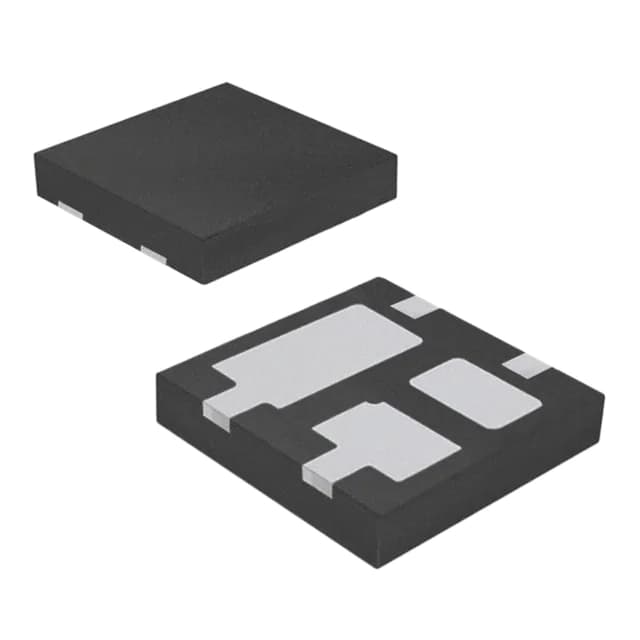

Diodes SBR05M100BLP-7
Diodes SBR05M100BLP-7

Diodes SBR05M100BLP-7

Manufacturer No:

SBR05M100BLP-7

Manufacturer:

Diodes

Package:

4-UDFN

Description:

Single Phase Bridge Rectifier Super Barrier Surface Mount -55°C~150°C TJ 25?A @ 100V 630mV @ 500mA 4-Termination 1-Phase 4-UDFN Tape & Reel (TR)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SBR05M100BLP-7 information

Diodes SBR05M100BLP-7 technical specifications, attributes, parameters and parts with similar specifications to Diodes SBR05M100BLP-7.

  • Type
  • Parameter
  • Factory Lead Time
  • 13 Weeks
  • Contact Plating
  • Gold
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 4-UDFN
  • Number of Pins
  • 4
  • Diode Element Material
  • SILICON
  • Operating Temperature
  • -55°C~150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Series
  • SBR®
  • Published
  • 2010
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 4
  • ECCN Code
  • EAR99
  • Subcategory
  • Bridge Rectifier Diodes
  • Technology
  • Super Barrier
  • Terminal Position
  • DUAL
  • Peak Reflow Temperature (Cel)
  • 260
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Pin Count
  • 4
  • Number of Elements
  • 4
  • Element Configuration
  • Single
  • Diode Type
  • Single Phase
  • Current - Reverse Leakage @ Vr
  • 25?A @ 100V
  • Voltage - Forward (Vf) (Max) @ If
  • 630mV @ 500mA
  • Forward Current
  • 500mA
  • Output Current-Max
  • 0.5A
  • Forward Voltage
  • 730mV
  • Number of Phases
  • 1
  • Peak Reverse Current
  • 25?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 100V
  • Peak Non-Repetitive Surge Current
  • 8A
  • Max Forward Surge Current (Ifsm)
  • 8A
  • Height
  • 580?m
  • Length
  • 3mm
  • Width
  • 3mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Diodes SBR05M100BLP-7.

Datasheets:

Environmental Information:

SBR05M100BLP-7 Overview


There are no pins on rectifier.When the forward voltage is set to 500mA, the device operates.Basically, it's an electronic component that comes in a 4-UDFN package.This device is mounted in the Surface Mount position.Its normal operation is ensured by operating at a temperature of -55°C~150°C TJ.Its maximum output voltage is 0.5A.In order to power this device, there is a reverse voltage peak of 25?A.


SBR05M100BLP-7 Features


  • 4 pin count

  • 500mA forward voltage

  • forward voltage of 500mA

  • 4-UDFN package

  • operating at a temperature of -55°C~150°C TJ

  • the maximum output voltage of 0.5A

  • peak reverse voltage of 25?A

  • a reverse voltage peak of 25?A



SBR05M100BLP-7 Applications


There are a lot of Diodes Incorporated SBR05M100BLP-7 applications of bridge rectifiers.

  • High forward surge current capability

  • Welding systems ? Input rectifiers and fast recovery diodes

  • Welding equipment

  • Transportation ? Traction rectifiers and auxiliary rectifiers

  • Working peak reverse voltages 200 to 1 ,000 volts

  • Military, hybrid vehicles and power supplies

  • SCR and diode based input rectifiers

  • Inductive heating ? Input rectifiers

  • High temperature and rectifiers

  • Electrically isolated aluminum case
