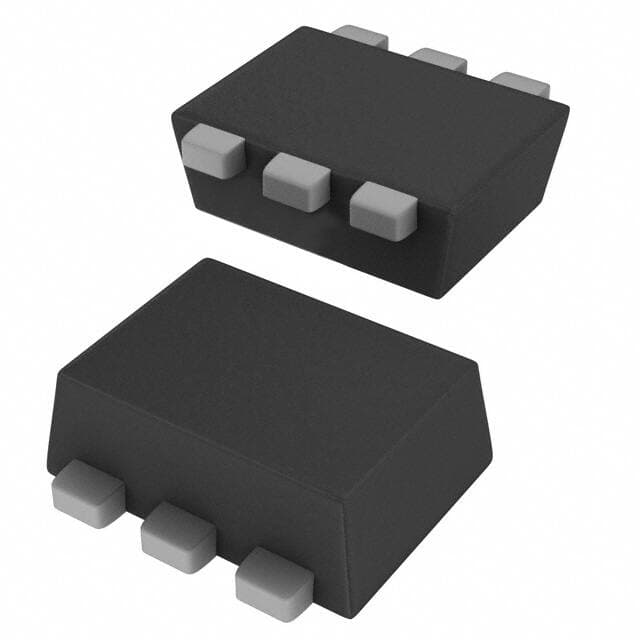

DIODES 1SS361UDJ-7
DIODES 1SS361UDJ-7

DIODES 1SS361UDJ-7

Manufacturer No:

1SS361UDJ-7

Manufacturer:

DIODES

Package:

GREEN, ULTRA SMALL, PLASTIC PACKAGE-6

Description:

Rectifier Diode, 2 Element, 0.25A, 80V V(RRM), Silicon, GREEN, ULTRA SMALL, PLASTIC PACKAGE-6

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

1SS361UDJ-7 information

DIODES 1SS361UDJ-7 technical specifications, attributes, parameters and parts with similar specifications to DIODES 1SS361UDJ-7.

  • Type
  • Parameter
  • Pbfree Code
  • Yes
  • RoHS Status
  • RoHS Compliant
  • Part Life Cycle Code
  • Active
  • Ihs Manufacturer
  • DIODES INC
  • Package Description
  • GREEN, ULTRA SMALL, PLASTIC PACKAGE-6
  • Pin Count
  • 6
  • Reach Compliance Code
  • compliant
  • ECCN Code
  • EAR99
  • HTS Code
  • 8541.10.00.70
  • Factory Lead Time
  • 8 Weeks
  • Samacsys Manufacturer
  • Diodes Incorporated
  • Application
  • GENERAL PURPOSE
  • Configuration
  • SEPARATE, 2 ELEMENTS
  • Diode Element Material
  • SILICON
  • Diode Type
  • RECTIFIER DIODE
  • Forward Voltage-Max (VF)
  • 1.23 V
  • JESD-30 Code
  • R-PDSO-F6
  • JESD-609 Code
  • e3
  • Moisture Sensitivity Level
  • 1
  • Non-rep Pk Forward Current-Max
  • 2 A
  • Number of Elements
  • 2
  • Number of Phases
  • 1
  • Number of Terminals
  • 6
  • Operating Temperature-Max
  • 150 °C
  • Output Current-Max
  • 0.25 A
  • Package Body Material
  • PLASTIC/EPOXY
  • Package Shape
  • RECTANGULAR
  • Package Style
  • SMALL OUTLINE
  • Peak Reflow Temperature (Cel)
  • 260
  • Power Dissipation-Max
  • 0.25 W
  • Rep Pk Reverse Voltage-Max
  • 80 V
  • Reverse Current-Max
  • 1 µA
  • Reverse Recovery Time-Max
  • 0.004 µs
  • Reverse Test Voltage
  • 80 V
  • Surface Mount
  • YES
  • Terminal Finish
  • MATTE TIN
  • Terminal Form
  • FLAT
  • Terminal Position
  • DUAL
  • Time@Peak Reflow Temperature-Max (s)
  • 30

Download datasheets and manufacturer documentation for DIODES 1SS361UDJ-7.

Datasheets:

1SS361UDJ-7 Overview


You should use a forward voltage monitoring system and never allow the forward voltage to exceed 1?A.The maximum output voltage can be set to 0.25A.As long as the forward voltage is set to 250mA, the device will operate.

1SS361UDJ-7 Features


a forward voltage of 1?A
a forward voltage of 1?A
a maximum output voltage of 0.25A


1SS361UDJ-7 Applications


There are a lot of Diodes Incorporated
1SS361UDJ-7 applications of rectifier diode array.


  • Rectifier for drives applications
  • Crowbar applications
  • Rectifiers for UBS
  • Battery chargers
  • Rectifiers in switch mode power supplies (SMPS)
  • Free wheeling diode in low voltage converters
  • General Rectification
