Wire connectors types, applications, and installation best practices

Wire connectors types explained: compare options, applications, and installation tips to ensure safe, code-compliant, and reliable electrical connections.

Components & Parts

Wire connectors types, applications, and installation best practices

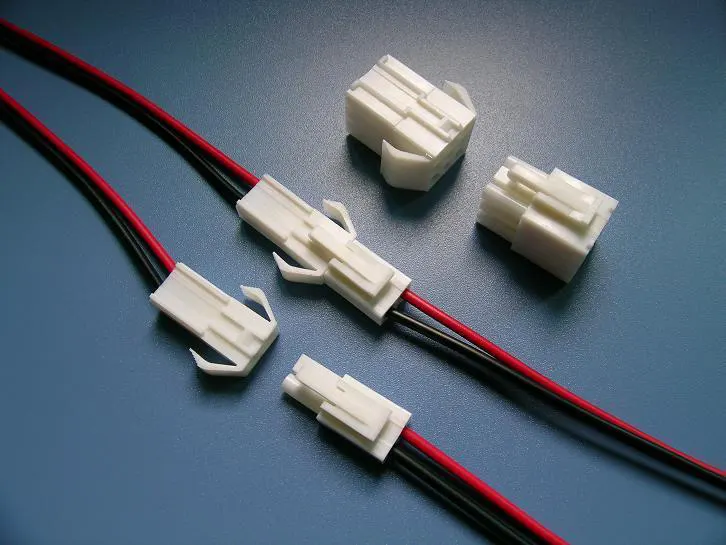

Wire connectors join electrical wires to form secure, reliable circuits in homes, vehicles, and industry. Common wire connectors types include low voltage and high voltage options, each designed for specific environments and safety needs. Proper connector selection prevents hazards like arcing or short circuits, especially as industries demand miniaturization and higher reliability.

CategoryExamples
By TypeLow Voltage, High Voltage
By ApplicationResidential, Commercial, Industrial

Key Takeaways

  • Choose the right wire connector type based on wire size, voltage, environment, and application to ensure safe and reliable electrical connections.

  • Follow proper installation steps for each connector type, such as twisting wire nuts tightly or using the correct crimping tool, to prevent loose or unsafe connections.

  • Regularly inspect wire connectors for signs of damage, corrosion, or overheating to maintain system safety and avoid failures.

  • Use connectors rated for specific environments, like waterproof types for outdoor use, and always comply with electrical codes and standards.

  • Prioritize safety by turning off power before installation, using insulated tools, and wearing protective gear to reduce the risk of electrical accidents.

Wire connectors types

Electrical wire connectors come in several main types, each designed for specific applications and installation methods. Understanding these wire connectors types helps ensure safe, reliable, and code-compliant electrical connections in any setting.

Twist-on connectors (Wire nuts)

Twist-on connectors, often called wire nuts, are among the most widely used electrical wire connectors in residential and commercial wiring. These connectors feature a plastic cap with an internal metal coil. Installers twist the cap onto stripped wires, which the coil grips tightly, creating a secure electrical connection.

Note:
The popularity of twist-on wire connectors continues to rise. The market for these connectors reached $3.5 billion in 2024 and is expected to grow steadily. Their simple installation, cost-effectiveness, and reliability make them a top choice for both new construction and renovations.

Key features:

  • Color codes: Manufacturers use color codes to indicate connector size and capacity. For example, yellow, red, and blue wire nut connectors fit different wire gauges and combinations.

  • Tool requirements: Most installations require only hand tightening, though some electricians use pliers for extra security.

  • Typical use cases:

    • Residential lighting circuits

    • Outlet and switch connections

    • Panel wiring in commercial buildings

Why choose twist-on connectors?

  • Quick and easy to install

  • Reusable for future changes

  • Suitable for solid and stranded copper wires

Usage highlights:

  • Twist-on connectors provide durable, secure, and safe connections in homes, offices, and commercial buildings.

  • Manufacturers continue to innovate, meeting modern electrical system needs and strict safety standards.

Crimp connectors

Crimp connectors create permanent, vibration-resistant electrical connections by compressing a metal sleeve around the wires. Installers use a crimping tool to squeeze the connector, ensuring a tight bond.

Common types:

  • Butt connectors: Join two wires end-to-end, often used in automotive and panel wiring.

  • Spade connectors: Feature a forked end for easy attachment to screw terminals, common in control panels and appliances.

Color codes and tools:

  • Crimp connectors use color-coded insulation (red, blue, yellow) to indicate compatible wire sizes.

  • A dedicated crimping tool is essential for proper installation.

Typical use cases:

  • Automotive wiring harnesses

  • Industrial control panels

  • Field-wireable connectors for machinery and equipment

  • Cable repairs and extensions

Tip:
Always use the correct crimping tool and match the connector color to the wire gauge for a reliable electrical connection.

Push-in connectors (Wago)

Push-in connectors, such as those made by Wago, offer a fast, tool-free way to connect wires. These electrical wire connectors use internal spring clamps to hold wires securely in place.

AspectBenefitsLimitations / Notes
Connection SpeedFast, repeatable, and reliable connections without tools, glue, or solderingRequires proper preparation such as removing burrs and sometimes grooving tube OD
Material CompatibilitySuitable for brass, PEX, CPVC, polyurethane, nylon, PEEK®, Teflon® tubingMetallic tubing may require grooving for fitting teeth
MaintenanceEasily detached for maintenance and replacementSome fittings come in two parts with shutoff valves; improper use can cause leakage
Design FeaturesMetal spurs grip tubing tightly; O-rings provide sealing; poppet-style shutoff valves reduce leakageNot to be confused with quick-connect fittings which have different mechanisms
Application ExamplesAir and fluid lines, tractor trailer air break lines meeting DOT guidelinesNot suitable for all high-pressure quick-connect applications
Installation EaseNo need for glue, soldering, clamps, or compression unionsTubing must be compatible and properly prepared
  • Push-in wire connectors allow tool-free, fast wire insertion. Internal spring clamps secure the wires.

  • Available in multiple sizes and port counts, these connectors fit both solid and stranded wires.

  • Transparent housings and color coding help verify correct connections.

  • Most push-in connectors are UL listed and meet CE, RoHS, ANSI, DIN, and EN standards.

  • Current ratings reach up to 24 A, with voltage ratings from 450 V to 1000 V.

  • Some models include voltage-testing ports for added safety.

  • Widely used in home wiring, lighting, digital signage, and distribution boxes.

Note:
Push-in connectors improve installation speed and reduce the need for experienced installers. However, using ferruled wires or proper tools is important for field maintenance, as inserting bare wires can be difficult.

Insulation displacement connectors (IDCs)

Insulation displacement connectors (IDCs) make electrical connections by slicing through the wire’s insulation and contacting the conductor inside. Installers do not need to strip the wire before use, which speeds up installation.

  • IDCs are common in telecommunications, data cabling, and automotive wiring.

  • These connectors work well for both solid and stranded wires.

  • No special tools are required for basic IDC installation, but some applications use a punch-down tool for larger panels.

Recent technical evaluations show that torsion IDCs offer superior force-deflection characteristics compared to conventional IDCs. Torsion IDCs adapt to multiple wire sizes and maintain strong contact forces, which is critical for reliable, gastight connections. Preload settings allow these connectors to accommodate a wider range of wire sizes, making them versatile for different environments.

Typical use cases:

  • Telephone and data cable terminations

  • Automotive wiring harnesses

  • Control panel wiring

Tip:
IDCs provide fast, reliable connections, especially in high-density panel installations where speed and consistency matter.

Specialty wire connectors

Specialty electrical wire connectors serve unique needs in demanding environments or for specific applications.

Examples include:

  • Waterproof connectors for outdoor or underground cable installations

  • High-temperature connectors for ovens or industrial equipment

  • Corrosion-resistant connectors for marine or chemical environments

  • Field-wireable connectors for custom machinery or robotics

Color codes and standards:

  • Industry standards, such as UL and the National Electrical Code, guide color coding for specialty connectors. For example, green dot connectors indicate hospital-grade devices, while yellow connectors signal corrosion resistance.

  • Some specialty connectors require specific tools, such as torque drivers or heat guns, depending on the design.

Typical use cases:

  • Outdoor lighting and irrigation systems

  • Medical equipment panels

  • Marine and automotive cable assemblies

Note:
Specialty connectors ensure safe, long-lasting electrical connections in harsh or regulated environments. Always select connectors rated for the intended application and follow manufacturer instructions.

Applications of electrical wire connectors

Residential wiring

Electrical wire connectors play a vital role in residential wiring applications. Homeowners and electricians use these connectors to join wires during lighting upgrades, outlet installations, and renovations. Case studies show that replacing outdated fixtures with LED pot lights improves lighting quality and energy efficiency. In kitchen projects, secure connections enable safe and effective task lighting. Home office upgrades benefit from well-placed connectors, which help reduce eye strain and boost productivity. These real-world applications highlight how proper use of electrical wire connectors leads to successful electrical installations and safe and reliable power delivery.

  • Homeowners modernize living spaces with new lighting.

  • Kitchen renovations use connectors for open, well-lit areas.

  • Home offices see increased comfort and efficiency.

Commercial and industrial

Commercial and industrial applications demand robust electrical wire connectors for complex systems. The IndustryARC report shows that adoption rates vary by connector type, termination method, and industry. Sectors like semiconductor, electronics, and automotive require connectors that support automation and factory control. The Asia-Pacific region leads in market share due to rapid industrial automation. Market research also notes that renewable energy projects and infrastructure developments drive demand for durable connectors. These applications ensure safe electrical installations in factories, offices, and large facilities.

Automotive and marine

Automotive and marine environments present unique challenges for electrical connectors. Automotive connectors must handle vibrations, temperature changes, and mechanical stress. They prevent poor contact and fire hazards in wiring harnesses. Marine connectors require corrosion resistance, waterproofing, and durability under oceanic pressures. Offshore energy projects and subsea technology rely on connectors that meet strict environmental regulations. These applications demand high performance and reliability for every electrical connection.

Low-voltage and data

Low-voltage and data applications use specialized connectors for signal integrity and efficient cable management. RJ45 connectors, UTP couplers, and BNC connectors support data communication, telephony, and video transmission. Market research shows strong growth in the low-voltage connector market, driven by smart infrastructure and IoT. Enterprise networks using premium connectors experience fewer downtimes and faster troubleshooting. Proper labeling and documentation improve maintenance and scalability. These applications require connectors that meet standards for safety and performance.

Connector TypeApplicationBenefit
RJ45Data communicationFewer network downtimes
UTP CouplerCable extensionEasy cable management
BNCVideo/audioReliable signal transmission

Outdoor and underground

Outdoor and underground applications require connectors that withstand harsh conditions. Waterproof seals and corrosion-resistant materials protect connections from moisture, soil, and chemicals. UL-listed connectors ensure safety for direct burial and wet locations. Electricians, landscapers, and pool technicians trust direct bury waterproof wire connectors for landscape lighting, garden wiring, and pool systems. Gel-filled connectors prevent moisture ingress and corrosion. Proper installation and regular maintenance help ensure long-term reliability and safety in these demanding applications.

  • Waterproof seals block moisture.

  • Corrosion resistance extends connector life.

  • UL listing confirms safety for underground use.

Choosing wire connector types

Selecting the right wire connector type ensures safe and reliable electrical connections. Several factors influence this choice, including wire gauge, voltage, environment, permanence, and code compliance.

Wire gauge and size

Wire gauge and size directly affect connector selection. Installers must follow standards such as NFPA 79 and the National Electrical Code (NEC) to ensure safety and performance. Key technical specifications include:

  • Motor circuit conductors require sizing at 125% or more of the motor’s full-load current.

  • Resistance heating loads also need 125% of the load current added.

  • Feeder and branch-circuit conductors for disconnects must use a minimum wire size of 14 AWG.

  • Control circuit conductors of 14, 16, and 18 AWG are protected by 20-A or less overcurrent devices and may have higher ampacity in control cabinets.

  • Wire insulation voltage rating must match or exceed the circuit voltage.

  • Ambient temperature, insulation rating, and the number of current-carrying conductors affect ampacity correction.

  • Conductors should be stranded, soft-annealed copper, with strand count based on flexing needs.

  • Color coding follows NFPA 79 standards for safety and identification.

Proper connector selection for each cable ensures the connection meets the required current-carrying capacity and prevents overheating.

Voltage and current

Voltage and current ratings define the maximum load a connector can handle. Using a connector below its rated capacity risks overheating, deterioration, and even fire. International standards like IEC, IEEE, and NEC require connectors to pass strict testing for safety and reliability. High-quality connectors often carry certifications from organizations such as UL, which means they can withstand operational stresses like extreme temperatures and electromagnetic interference. Modern connectors now support higher voltage and current in smaller sizes, meeting the needs of renewable energy and electric vehicles. Smart sensors in connectors allow real-time monitoring, improving safety and reducing downtime.

Environment and rating

Environmental conditions play a major role in connector selection. Factors such as temperature extremes, shock, vibration, corrosion, and exposure to liquids or dust can impact connector performance. The table below shows how different applications face unique environmental challenges:

ApplicationTemperature ExtremesShock/VibrationCorrosionExplosion RiskLiquidsDust
TelematicsYesYesYesNoYesYes
IndustrialYesYesYesYesYesYes
Oil & GasYesYesYesYesYesYes
Marine/UnderseaYesYesYesNoYesNo
AutomotiveYesYesYesNoYesYes

Installers often choose connectors with IP68 or NEMA ratings for harsh environments. Materials like polycarbonate or nylon resist UV and chemicals, while gold-plated contacts improve conductivity in corrosive settings. Waterproof connectors protect cable connections from moisture, extending component life.

Permanent vs. temporary

Some projects require permanent connections, while others need temporary solutions. Crimp connectors and soldered joints provide permanent, vibration-resistant bonds, ideal for control panels and machinery. Push-in or twist-on connectors allow for easy removal and reconfiguration, making them suitable for temporary setups or frequent maintenance. The choice depends on whether the cable connection will remain fixed or need future changes.

Code compliance

Electrical codes ensure safety and consistency in installations. Installers must follow NEC, NFPA 79, and local regulations when selecting connectors. Codes specify requirements for wire size, insulation, color coding, and termination practices. For example, conductors exiting a panel must terminate at approved terminals to prevent hazards. Using connectors that meet recognized standards guarantees safe and code-compliant cable installations.

Installation best practices

Preparing wires

Proper preparation of wires forms the foundation of safe and reliable electrical installations. Electricians begin by turning off power at the source and verifying with a voltage tester. They select the correct wire gauge for the connector type and application. Using a wire stripper, they remove just enough insulation to expose the conductor, usually about 1/2 inch, without nicking or damaging the wire strands. Clean, straight wire ends help achieve secure connections and reduce the risk of poor contact. For stranded wires, twisting the strands together prevents fraying and ensures a tight fit inside the connector. In environments with moisture or corrosion risk, workers may apply an approved antioxidant compound to the exposed copper before installation.

Tip:
Always inspect wires for damage or corrosion before installation. Damaged wires can cause overheating and increase the chance of failure.

Step-by-step installation

Each wire connector type requires a specific installation method. Following the correct steps ensures safe and effective installations.

Twist-on connectors (Wire nuts):

  1. Hold stripped wires together with ends aligned.

  2. Place the wire nut over the wire ends.

  3. Twist the connector clockwise until tight and secure.

  4. Tug gently on each wire to confirm a solid connection.

Crimp connectors:

  1. Insert stripped wire ends into the metal barrel of the connector.

  2. Use a crimping tool matched to the connector size.

  3. Squeeze the tool firmly to compress the barrel onto the wires.

  4. Inspect the crimp for tightness and test by pulling gently.

Push-in connectors:

  1. Strip wires to the recommended length.

  2. Insert each wire fully into the connector port until it clicks.

  3. Check that no copper is exposed outside the connector.

  4. Verify all wires are secure by pulling gently.

Insulation displacement connectors (IDCs):

  1. Insert unstripped wire into the IDC slot.

  2. Use a punch-down tool or press the cap to force the metal blade through the insulation.

  3. Confirm the wire is seated and the connection is tight.

Specialty connectors:

  • Follow manufacturer instructions for waterproof, high-temperature, or other specialty connectors.

  • Use any required tools, such as torque drivers or heat guns, as specified.

Note:
Always match the connector to the wire gauge and type. Using the wrong size can lead to loose or unsafe connections.

Safety tips

Electrical safety remains the top priority during wire connector installation. Safety performance reports and statistical analyses show that electrical hazards cause significant injuries and fatalities each year. In 2022, the U.S. Bureau of Labor Statistics reported 145 worker deaths and nearly 3,000 injuries from electrical exposure. These numbers highlight the need for strict adherence to safety standards like OSHA regulations, NFPA 70E, and the Low Voltage Directive. Workers should always de-energize circuits before starting installations and use insulated tools designed for electrical work. Personal protective equipment, such as gloves and safety glasses, helps prevent injury. Training programs based on incident data improve worker skills and awareness, making installations safer and more reliable.

Alert:
Never work on live circuits. Always verify that power is off before beginning any installation.

Regular retraining and upskilling keep workers informed about the latest safety protocols. Organizations that follow these practices reduce the risk of accidents and maintain compliance with legal requirements.

Common mistakes

Even experienced installers can make mistakes during wire connector installation. Documented case studies identify several common errors and their consequences. The table below summarizes frequent failure modes, causes, and solutions:

Failure ModeDescriptionQuantitative Failure DataIdentified CausesMitigation Strategies
Sudden loss of connectionComplete loss of signal or powerWire breakage at ~13 ± 0.5 N tensile forceExcessive pulling or bending during installationUse proper tools; provide slack; train installers
Gradual loss of connectionDecrease in performance over timeFatigue failure after 50,000 cycles at 3 N forceRepeated flexing; poor separation; bad groundingImprove design; review installation techniques
Weak point at wire-to-connector junctionBreakage at solder or crimp jointHigher failure at stress pointsMechanical stress at junctionReinforce joints; use strain relief; follow best practices

Installers sometimes fail to strip wires to the correct length or use the wrong connector size. Over-tightening or under-tightening twist-on connectors can cause loose or damaged connections. Inadequate inspection after installation may leave exposed copper or incomplete connections, increasing the risk of overheating or failure. Proper installation and regular inspection help prevent these issues.

Tip:
Always double-check each connection before restoring power. Ensuring secure connections reduces the risk of electrical faults and improves long-term reliability.

Troubleshooting and maintenance

Inspection

Regular inspection of wire connectors helps maintain safe and reliable electrical systems. Technicians check for signs of corrosion, discoloration, loose connections, and overheating. They use visual checks and sometimes thermal cameras to spot hot spots. Maintenance logs from fleet programs show that routine inspections can reduce accidents by up to 69% and lower insurance claims by 40%. The table below highlights the benefits of regular troubleshooting and maintenance in connector systems.

MetricResultDetails
Fewer accidents in fleets using maintenance programsUp to 69% fewer accidentsBased on fleet maintenance program case studies
Lower insurance claims40% lowerAssociated with regular inspections and video-based safety programs
Vehicle downtime reductionUp to 50% cutResult of proactive maintenance
Maintenance cost reduction30% lowerResult of proactive maintenance

Signs of failure

Wire connectors can fail in several ways. Common signs include flickering lights, intermittent power, or a burning smell near the connection. Discoloration or melted insulation often points to overheating. Loose wires or visible corrosion signal a need for immediate attention. If a connector feels warm to the touch, it may not be making a solid connection. These warning signs help prevent larger problems and keep systems safe.

Replacement

When inspection reveals damage or failure, technicians must act quickly. Replacing faulty connectors restores safety and prevents further issues. They disconnect power, remove the damaged connector, and prepare the wires as described in installation best practices. After installing the new connector, they test the circuit to confirm proper operation. Using connectors rated for the specific environment and load ensures long-term reliability.

Tip:
Always use connectors that match the wire gauge and application. Never reuse damaged connectors.

Preventive care

Preventive care extends the life of electrical wire connectors. The Hanover Electrical Preventive Maintenance program recommends these steps:

  1. Inspect connectors, insulators, and supports at least once every three years.

  2. Adjust inspection intervals for harsh environments or critical equipment.

  3. Check for corrosion, overheating, and proper torque on bolts and connectors.

  4. Apply antioxidant compounds to aluminum-to-copper connections.

  5. Follow manufacturer guidelines for all maintenance tasks.

Routine preventive care reduces downtime, lowers repair costs, and improves safety for everyone.

Circular electrical connectors

Features

Circular electrical connectors have a round shape that provides strong mechanical strength and easy alignment during connection. Manufacturers design these connectors for quick mating and unmating, which helps in environments where frequent connections are needed. The connectors come in different types, such as panel-mounted connectors, field-wireable, and overmolded cable connectors. Each type supports a range of wire gauges and contact sizes, following American Wire Gauge (AWG) standards.

The table below highlights key features:

Feature CategoryDetails & Examples
Connector TypesPanel-mount, Field-wireable, Overmoulded cable connectors
Number of Contacts2–4 (simple power/signal), 5–12 (automation), 13+ (complex data/power)
Current Ratings1A to 50A
Voltage Ratings50V, 125V, 250V, 600V
Coupling MechanismsBayonet, latch, push-pull, threaded, quick-disconnect
Environmental ProtectionResistance to liquids, EMI/RFI, vibration, chemicals
Materials UsedStainless steel, aluminum, plastic, composite, brass
Mating CyclesHigh durability for repeated connections

Many circular electrical connectors offer environmental sealing, which protects against dust, water, and chemicals. Some models include EMI/RFI shielding for use in sensitive electronic equipment. The connectors can handle a wide range of voltages and currents, making them suitable for both signal and power transmission.

Common uses

Engineers and technicians use circular electrical connectors in many industries. These connectors appear in industrial automation, medical equipment, aerospace, robotics, and communication systems. For example, the NorComp M5 Series connects sensors and control systems in transportation and automated doors. The TT Electronics ABCIRH Series supports mass transportation and industrial applications, offering high current ratings and thousands of mating cycles.

The table below shows common uses and efficiency ratings:

Manufacturer / SeriesCommon Uses / ApplicationsEfficiency Ratings and Features
NorComp M5 SeriesTransportation, control systems, sensorsIP67/68, -40°C to +85°C, shielded/unshielded
BTC Electronics D38999 IIIAerospace, missiles, communicationsShock resistant, high durability, one-turn coupling
Amphenol ICC Rugged MRDIndustrial, medical imaging, instrumentationIP67, up to 10A/500V, 500 mating cycles
LEMO S SeriesBroadcast, medical, power equipmentIP50, -55°C to +250°C, high shielding
Fischer UltiMate SeriesHarsh industrial, chemical, blind matingIP68/IP69, 10,000 mating cycles, up to 26A

Circular electrical connectors also play a role in military, automotive, and energy systems. Their durability and environmental resistance make them a top choice for harsh or demanding settings.

Selection tips

Selecting the right circular electrical connector requires careful attention to several factors:

  • Match the number of contacts to the needs of the application, such as signal, data, or power.

  • Check current and voltage ratings to ensure safe operation.

  • Choose the correct contact size and wire gauge compatibility.

  • Consider the coupling mechanism, such as bayonet or threaded, for secure connections.

  • Evaluate environmental protection, including IP ratings for dust and water resistance.

  • Review the expected number of mating cycles for applications with frequent connections.

  • Select materials that resist corrosion and meet mechanical strength requirements.

  • For types of circular connectors, verify compatibility with existing equipment and accessories.

Tip: Always confirm gender compatibility (male/female) and termination method, such as solder or crimp, before installation.

Engineers often select circular electrical connectors for their reliability, flexibility, and ease of maintenance. Proper selection improves system performance and extends equipment life.

Selecting the correct wire connector type and following best installation practices ensures safe, reliable electrical systems. NEMA-standard connectors and careful design prevent mismatches and hazards. Regular inspection and code compliance protect against electrical fires and malfunctions. Professional electricians provide secure connections and up-to-date knowledge, reducing risks and ensuring long-term performance.

  • Proper connector choice and installation improve safety and durability.

  • Adhering to standards and seeking expert help prevents costly mistakes.

  • Routine inspections keep wiring systems efficient and compliant.

FAQ

What happens if someone uses the wrong size wire connector?

Using the wrong size connector can cause loose or unsafe connections. This may lead to overheating, arcing, or even electrical fires. Always match the connector to the wire gauge for safe and reliable performance.

Can wire connectors be reused after removal?

Some connectors, like twist-on wire nuts, can be reused if undamaged. Crimp connectors and most insulation displacement connectors should not be reused. Reusing damaged connectors increases the risk of failure.

How does someone know if a wire connector is rated for outdoor use?

Manufacturers label outdoor-rated connectors with terms like "waterproof," "direct burial," or specific IP/NEMA ratings. The packaging or datasheet will list these ratings. Outdoor connectors often have seals or gel filling for moisture protection.

Are wire connectors safe for aluminum wiring?

Not all wire connectors work with aluminum wiring. Only connectors marked "AL" or "CU/AL" are approved for aluminum. Using the wrong type can cause corrosion or overheating. Always check the connector’s rating before installation.












Written by Jack from AIChipLink.



AIChipLink, one of the fastest-growing global independent electronic   components distributors in the world, offers millions of products from thousands of manufacturers, and many of our in-stock parts is available to ship same day.



We mainly source and distribute integrated circuit (IC) products of brands such as BroadcomMicrochipTexas Instruments, InfineonNXPAnalog DevicesQualcommIntel, etc., which are widely used in communication & network, telecom, industrial control, new energy and automotive electronics.



Empowered by AI, Linked to the Future. Get started on AIChipLink.com and submit your RFQ online today!





Share:
Wire connectors types, applications, and installation best practices - AIChipLink
