You will notice fiber connector types look different. They have different shapes and sizes. They also work in different ways. Each fiber optic connector has special strengths. LC connectors fit well in crowded spaces. SC connectors are good for simple patch panels. MTP and MPO connectors help with many fibers at once. The market share for each type keeps changing. You can see this in the table below:
| Connector Type | Market Share Statistics (2021 - 2033) |
|---|---|
| LC Connector | Detailed statistics available in report |
| FC Connector | Detailed statistics available in report |
| ST Connector | Detailed statistics available in report |
| MTP/MPO Connector | Detailed statistics available in report |
| Others | Detailed statistics available in report |
Choosing a fiber optic connector affects how well your network works. Insertion loss and return loss show how good a connector is. APC connectors reach return loss of about -60 dB. PC connectors reach about -30 dB. You should pick the connector type that fits your network needs. This helps your network work better and faster.
Key Takeaways
-
Pick LC connectors for places with lots of cables. They help save space and fit in tight spots.
-
SC connectors give strong and steady links. They work well for patch panels and are simple to use.
-
MTP and MPO connectors can join many fibers at one time. They are great for data centers that need fast speeds.
-
FC connectors make safe links where things move around. They are good for sending data far away.
-
Always clean fiber connectors before you use them. This stops signal loss and keeps your network working well.
Fiber Connector Types Overview
Key Differences
There are many fiber connector types you can find. Each one looks different and works in its own way. The main things that set them apart are their size, how they connect, and how many fibers they hold. You can look at the table below to see how they compare:
| Connector Type | Ferrule Diameter | Connection Type | Standard |
|---|---|---|---|
| LC | 1.25 mm | Latch | IEC 61754-20 |
| SC | 2.5 mm | Push-pull | IEC 61754-4 |
| ST | 2.5 mm | Bayonet | IEC 61754-2 |
| FC | 2.5 mm | Screw | IEC 61754-13 |
| MTP/MPO | 2.5 mm | Push-pull | IEC-61754-7 EIA/TIA-604-5 |
LC connectors use a latch. This makes them good for tight spaces. SC connectors use push-pull. They are easy to use in patch panels. FC connectors screw on, so they stay in place well. ST connectors use bayonet style. You might see these in older networks. MTP and MPO connectors let you connect many fibers at once. These connector types help you build networks for different jobs.
How well connectors work is important too. You can see how they do with insertion loss and return loss in this table:
| Connector Type | Insertion Loss (IL dB) | Return Loss (RL dB) |
|---|---|---|
| SC, LC, FC, ST | 0.3 - 0.5 (max 0.75) | ≥50 (PC), ≥60 (APC) |
| MPO, MTP | 0.3 - 0.7 (elite < 0.3) | ≥30 (MM) |
Selection Factors
Picking the right fiber connector matters for your network. It changes how fast your network is, how well it works, and how much space you need. Here are some tips to help you choose:
-
Use LC connectors for new setups with lots of cables.
-
Pick SC connectors if you want strong and steady connections.
-
Choose MPO or MTP connectors for big data centers.
-
Keep ST connectors for old equipment.
-
Use duplex connectors when you need two fibers together.
-
Try sc to lc adapter assemblies to join different connector types.
You should know how many fibers you need and what connector fits. For SFP modules, LC connectors are best. For QSFP28 modules, MPO connectors work well. Match the fiber type, like single-mode or multimode. Learn about polish types such as PC, UPC, and APC. These change how much signal comes back.
The connector you pick helps your network work better. Fiber connectors help you make networks that are fast, strong, and can grow. You will see fiber connectors in every part of today’s networks.
SC Connector
SC Features
The sc fiber optic connector is used in lots of networks. It has a square shape and a 2.5mm ferrule. The sc connector uses a push-pull latch. You can connect or remove it fast. This saves time when you set up or fix things. The sc connector has low insertion loss, less than 0.5 dB. This keeps your signal strong and clear.
Here is a table that shows the main features of the sc fiber optic connector:
| Feature | Description |
|---|---|
| Design | Square shape, 2.5mm ferrule, works with FC and ST using hybrid adapters |
| Latching Mechanism | Push-pull for easy and steady connections |
| Insertion Loss | Low (<0.5 dB) for good signal quality |
| Durability | Rated for 1000 mating cycles |
| Compatibility | Works with many types of equipment, simplex or duplex |
| Material | Injection-molded plastic, cost-effective |
You can use the sc connector many times. It stays steady even if you connect and disconnect it a lot. The plastic body makes it cheap, but it lasts long. The sc connector helped inspire newer connectors like LC and MPO.
Tip: If you want a strong optical fiber connector for single-mode and multimode cables, the sc fiber optic connector is a good pick.
SC Applications
The sc connector is found in many networks. It works in telecommunications, data centers, and local area networks. The sc connector is common in patch panels with lots of cables. You can use it to connect servers, switches, and routers.
Here is a quick look at where you might use the sc connector:
-
Telecommunications: The sc connector gives low loss and steady performance.
-
Data Centers: You can use sc connectors in patch panels for easy server links.
-
Local Area Networks: The sc connector helps you connect switches and routers with strong links.
The sc fiber optic connector is a favorite for network engineers. You can trust it for steady and strong connections in many places.
LC Connector
LC Features
The lc fiber optic connector is easy to spot because it is small. It is about half as big as an SC connector. You can fit more lc connectors in the same space. This helps you make networks with lots of cables. The lc fiber optic connector uses a push-pull latch. This latch keeps the connection safe and gives you a click feeling. You do not need to use much strength to plug it in or take it out. This makes the lc fiber optic connector simple to use, even when things are crowded.
Here is a table that shows the main advantages of the lc connector compared to other types:
| Advantage | Description |
|---|---|
| Compact Size | About half the size of SC connectors, enabling twice the port density |
| Secure Connection | Push-pull latching mechanism prevents accidental disconnection |
| Improved Performance | Lower insertion loss and return loss for strong signals |
| Ease of Use | Simple one-handed operation |
| Compatibility | Supported by many equipment manufacturers |
You can use the lc fiber optic connector with single-mode or multi-mode cables. This connector is good for fast and long-distance links. Many companies make equipment that works with lc connectors. You will see them in most new networks.
Tip: If you want to save space and have a strong network, pick the lc fiber optic connector for your next project.
LC Applications
You will find the lc connector in lots of places. Data centers use lc connectors for patch panels and boxes with many cables. You can connect more things without using more room. Phone and internet companies use the lc fiber optic connector for home internet. You get fast speeds and strong signals.
Big companies use lc connectors for video calls, cloud work, and sharing files. You can trust the lc fiber optic connector to keep your network working well. Hospitals and factories also use lc connectors. You get clear data and steady connections.
Here is a table that shows where you might use the lc connector:
| Application Area | Description |
|---|---|
| Data Centers | Preferred for high-density patch panels and enclosures |
| Telecommunications | Used in fiber-to-the-home installations for high-speed internet |
| Enterprise Networks | Supports video conferencing, cloud computing, and file sharing |
| Medical and Industrial | Used in medical imaging and industrial automation systems |
You can count on the lc fiber optic connector for many jobs. This connector helps you build networks that are fast, strong, and ready for the future.
FC Connector
FC Features
The fc connector looks different because of its special design. It uses threads to lock in place. This makes the connection safe and steady every time. You twist it to connect, so it does not fall out easily. The fc connector has a ceramic ferrule. This part helps keep signal loss low. That is important for single-mode fibers. The fc connector works well for fast data speeds.
Here is a table that shows why the fc connector is special:
| Feature | Description |
|---|---|
| Locking Mechanism | Threaded design provides a secure and stable connection |
| Ferrule Type | Ceramic ferrule for low loss in single-mode fibers |
| Performance | Low loss (below 0.5dB) without active alignment |
| Installation Complexity | Takes more time to install than other connectors |
| Modern Usage | Less common today, replaced by LC and SC connectors |
| Application Suitability | Great for video streaming and measurement equipment |
It takes longer to install the fc connector than others. The threads make it steady, but you need more time. Most people now use LC or SC connectors for new networks. Still, the fc connector is good if you want a connection that will not come loose.
Note: If you want a fiber connector that stays locked, the fc connector is a safe choice.
FC Applications
You find the fc connector where strong connections matter most. It works well in long-distance and metro fiber optic networks. The fc connector keeps your signal strong over long distances. Data centers use the fc connector for moving lots of data. It also works in factories for automation. You can connect sensors and controllers with it.
-
Telecommunications: The fc connector works for long-distance and metro networks.
-
Data Centers: Use the fc connector for big data transfers and many connections.
-
Industrial Automation: The fc connector links sensors and controllers in tough places.
You can trust the fc connector for steady and strong connections. Even though new connectors are used more, the fc connector is still important in many networks.
ST Connector
ST Features
The ST connector is easy to spot because of its bayonet lock. You twist it to connect, and it stays in place. This makes the connection quick and safe. You do not have to worry about it coming loose by accident. The ST connector is made from strong materials like ceramic or hard plastic. It lasts a long time and does not break easily.
Here are some main things about the ST connector:
-
The bayonet lock lets you connect it fast and keeps it secure.
-
It is tough because it uses strong materials that do not wear out quickly.
-
It works well and keeps signal loss low.
-
You can use it with both single-mode and multi-mode fibers.
-
It is simple to install and easy to take care of.
You do not need special tools to put in the ST connector. Just twist and lock it to use it. You can use it in many places. It works for both short and long fiber cables. Every time you use it, your signal stays steady.
Tip: If you want a connector that is fast to install and very strong, the ST connector is a good pick.
ST Applications
The ST connector is often found in old local networks and factory systems. Many old networks used ST connectors because they are strong and steady. Some factories still use them today. The ST connector is bigger and takes more time to connect than new types. Most new networks do not use ST connectors now. You will see LC and SC connectors in new setups.
Here is a table that shows where ST connectors are used:
| Use Case | Description | Characteristics |
|---|---|---|
| Legacy LAN Networks | Used in older local area networks | Bayonet-style locking for stability |
| Industrial Control Systems | Used in industrial applications | Bulky and slower to connect/disconnect |
| Current Status | Largely obsolete in modern systems | Mechanical stability but not favored today |
You might still need ST connectors if you fix or upgrade old equipment. They work well in tough places. If you work with old systems, you may see ST connectors. For new jobs, you should use newer connectors for better speed and more connections.
MTP Connector
MTP Features
You see mtp connectors where lots of fiber cables work together. The mtp connector is special because it connects many fiber strands at once. This helps you set up your network fast and saves space. You do not need to use many single-fiber connectors anymore. The mtp connector fits well in places with lots of cables.
Here are some things that make mtp connectors different:
-
You can connect many fiber strands at the same time. This makes your setup quick and simple.
-
The small shape lets you use mtp connectors in tight spots. You can fit more connections in one place.
-
Mtp connectors help your network move data very fast. Your network can handle lots of data without slowing down.
The mtp connector uses a push-pull way to connect. You can plug it in or take it out with one hand. The connector keeps your fibers safe and lined up right. You get strong performance and less signal loss. Many data centers and telecom networks use mtp connectors for these reasons.
Tip: If you want a network that can grow, mtp connectors help you add more cables without changing everything.
MTP Applications
You find mtp connectors where space and speed are very important. Data centers use mtp connectors for lots of cables in small spaces. You can connect many servers and switches with fewer cables. This saves space and makes your network easier to use.
Mtp connectors work well in telecom networks too. You get strong connections and fast speeds. The design of mtp connectors lets you add more cables when your network grows. Mtp connectors also give you better connections than other multi-fiber connectors.
Here is a table that shows where mtp connectors are used most:
| Application Area | Why Choose MTP Connectors? |
|---|---|
| Data Centers | High-density, reliable, and scalable connections |
| Telecom Networks | Enhanced performance and future-proofing |
| Enterprise Networks | Space-saving and easy management |
You should pick mtp connectors if your network needs to grow or move lots of data. The mtp connector helps you get ready for the future. You get strong, fast, and flexible connections every time.
MPO Connector
MPO Features
You can see mpo connectors in many new networks. These connectors work with ribbon cables that have many fibers. All the fibers sit in a row inside one ferrule. Mpo connectors can hold 8, 12, 16, or 24 fibers. Some special jobs need more, like 32, 48, or even 72 fibers. There are male and female mpo connectors. This helps you connect them the right way and keeps fibers safe.

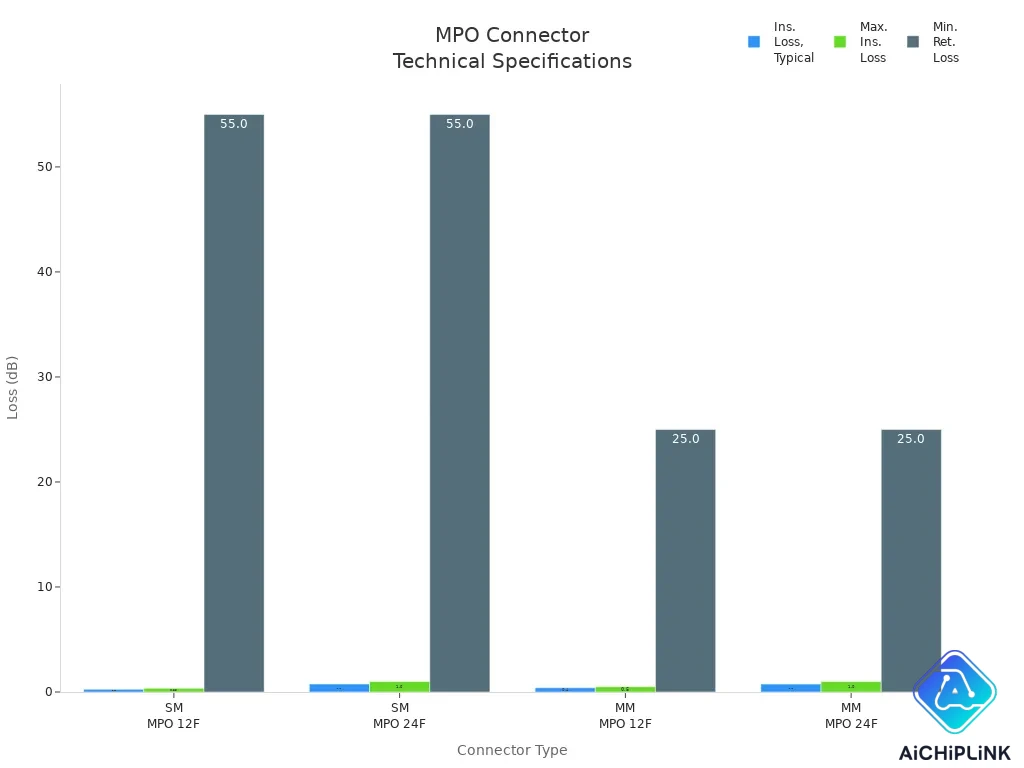

Here is a table that lists the main technical details for mpo connectors:
| Specification | Description |
|---|---|
| Core Size and Type | Singlemode and multimode |
| Fiber Count | 4, 6, 8, 12, and 24 fiber mpo terminations |
| Jacket O.D. | Bare ribbon, flat, round jacketed ribbon, or loose tube |
| Cable Types | Indoor (Riser/Plenum), Outdoor (Riser/Non-Rated) |
| Connector Types | SC/UPC, SC/APC, LC/UPC, LC/APC, mpo (male and female) |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| Breakout Length | Half meter, one meter, pulling eye, custom |
You can use mpo connectors with singlemode or multimode fibers. They keep your signal strong with low insertion loss and high return loss. The chart below shows how different mpo connectors compare for signal loss:
Note: Mpo connectors help you build networks that are fast, reliable, and ready for future growth.
MPO Applications
You will find mpo connectors where you need to move lots of data fast. Data centers use mpo connectors because they fit many fibers in a small space. This makes it easier to keep cables neat and manage your network. Mpo connectors also help air flow better, so your equipment stays cool.
Here are some ways you can use mpo connectors:
-
Support fast data speeds and make cable management easy.
-
Cut down on cable mess and help keep racks cool.
-
Let you add more connections as your network gets bigger.
Mpo connectors work well in networks that need high speeds. You can put them in quickly, which saves time when you set up or upgrade. Many companies use mpo connectors for cloud computing, video streaming, and big storage systems. You can count on mpo connectors to keep your network working well and ready for new technology.
Comparison Of Fiber Connector Types
Appearance

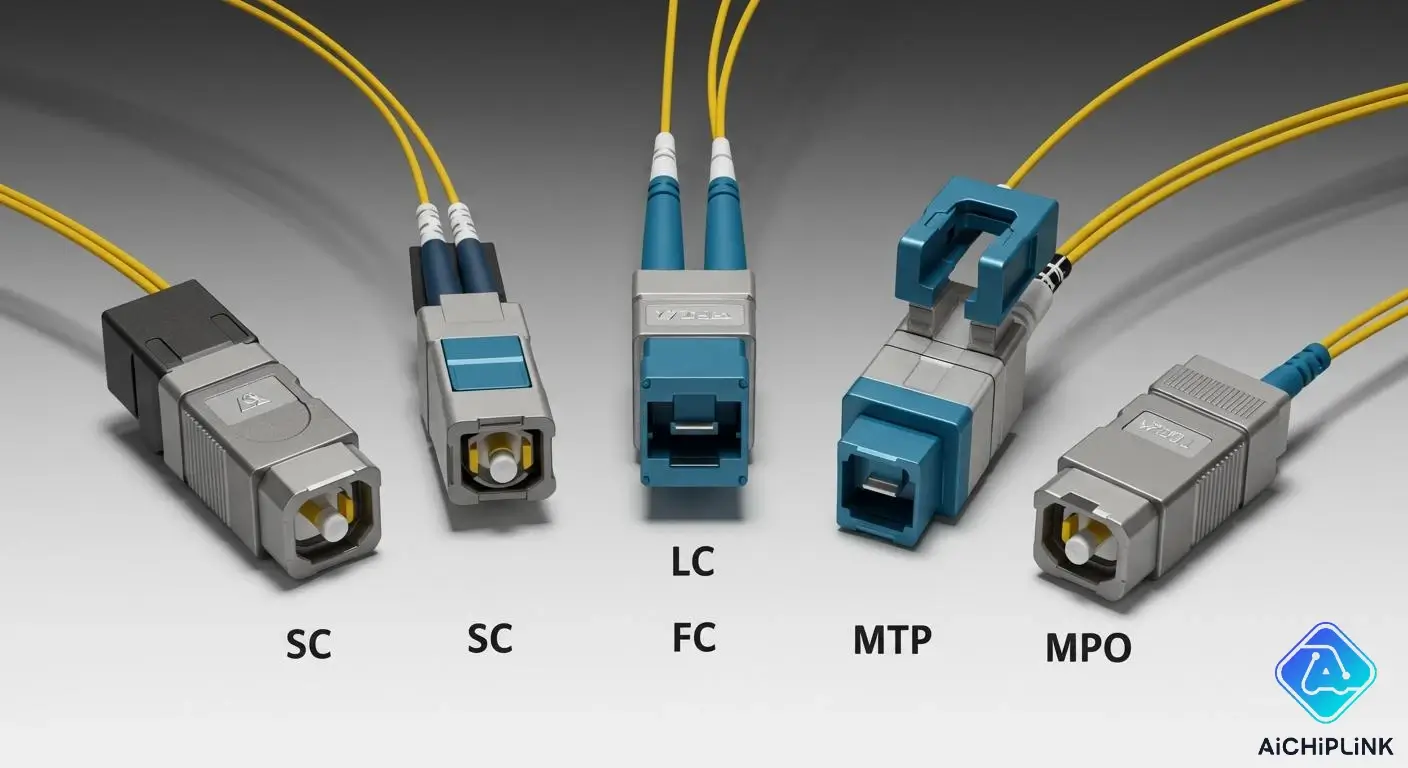

When you look at fiber connectors, you see they look different. They have their own shapes, sizes, and what they are made of. Each connector looks special. This makes it easier to choose the right one for your network.
| Connector Type | Size | Material | Advantages | Disadvantages |
|---|---|---|---|---|
| LC | 1.25mm | Engineering Plastics | High density, easy to use | Difficult access in high-density fields |
| SC | Standard | Engineering Plastics | Cheap, reliable, high compressive strength | Easy to fall out |
| ST | Standard | Plastic | Easy to use, high compressive strength | Easy to break |
| FC | Standard | Metal | Reliable, dust-proof | Longer installation time, more expensive |
| MPO/MTP | Varies | Complex | Large core count, high transmission rate | Sensitive surface, difficult to clean |
-
LC connectors are small and thin. You can fit lots of them in a tight spot.
-
SC connectors are square. They are simple to plug in and take out.
-
ST connectors are round and twist to lock. You often see them in old networks.
-
FC connectors are metal and screw on. They feel heavy and strong.
-
MTP and MPO connectors are wide. They hold many fibers in one piece.
Tip: Pick LC or MTP/MPO connectors if you need to save space. Choose FC connectors if you want a strong and safe fit.
Performance

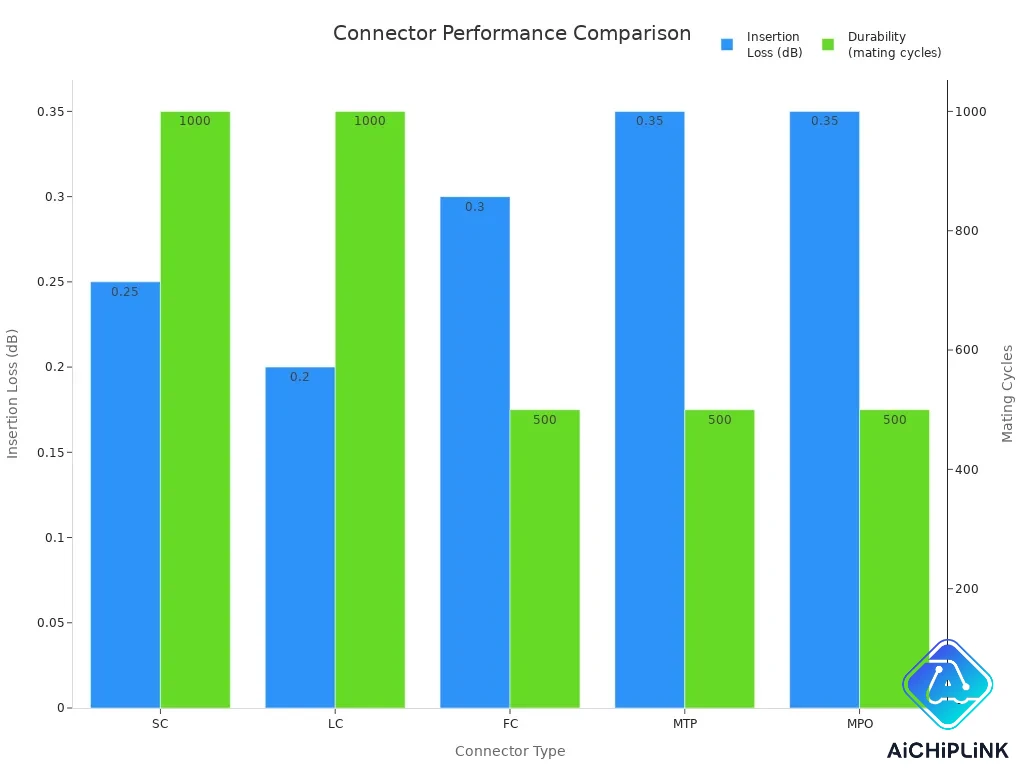

You want your fiber connector to give strong signals and last long. Each type has its own amount of signal loss and how many times you can use it. Insertion loss means how much signal you lose when you connect. Durability means how many times you can plug and unplug before it wears out.
| Connector Type | Typical Insertion Loss | Durability (Mating Cycles) |
|---|---|---|
| SC | ~0.25 dB | 500–1,000 |
| LC | ~0.20 dB | 500–1,000 |
| FC | ~0.30 dB | 500 |
| MTP | ~0.35 dB | 500 |
| MPO | ~0.35 dB | 500 |
-
LC connectors have the least signal loss. You get a strong signal and less data loss.
-
SC connectors also keep signal loss low and last for many uses.
-
FC connectors are steady but take longer to put in. They are good when you need a tight fit.
-
MTP and MPO connectors can connect many fibers at once. They lose a bit more signal, but you can connect lots of cables fast.
Note: LC and SC connectors are best for strong signals. For jobs with lots of fibers, MTP/MPO connectors are better, even if they lose a little more signal.
Use Cases
You see each fiber connector in different places. Some are best for data centers, while others are used in old networks or special machines. Here is a table to help you match each connector to its best use:
| Connector Type | Common Use Cases |
|---|---|
| LC | Data centers, Enterprise networks, Fiber-to-desk, Medical and industrial equipment, High-speed internet |
| SC | Telecommunication networks, Internet service providers, Cable TV, Military, Industrial equipment |
| ST | Legacy networks, Industrial equipment, Military, Cable TV, Local area networks (LANs) |
| FC | Storage area networks (SANs), High-performance computing, Data centers, Industrial, Military |
| MPO | Data centers, High-performance computing, Telecom networks, Parallel optics, High-speed internet |
-
LC connectors are used in new data centers and business networks. They help save space and make things faster.
-
SC connectors are found in phone and cable TV networks. They give steady connections.
-
ST connectors are in old networks and some factories. They are easy to use but not as popular now.
-
FC connectors are good for labs and storage networks. They give a tight and dust-proof fit.
-
MPO and MTP connectors are great for data centers. You can connect many fibers at once, which is good for cloud and fast internet.
If you build a new network, use LC, SC, or MTP/MPO connectors. For old systems, you might still need ST or FC connectors.
Each connector has a special job. When you know where you will use it, you can pick the best fiber connector for your needs. This helps your network work faster, last longer, and stay easy to use.
Choosing The Right Connector
Decision Guide
You face many choices when you pick fiber connector types for your network. Each fiber optic connector has its own strengths. You need to think about space, performance, and how well the connector fits with your equipment.
Start by looking at the space you have. If you work in a tight area, lc connectors help you fit more cables in less room. These connectors are small and easy to use. In large patch panels, sc connectors give you a strong and steady connection. They are simple to plug in and out, which saves time.
Performance matters too. If you want the lowest signal loss, lc and sc connectors work well. They keep your network fast and reliable. For jobs that need a secure fit, fc connectors use a threaded design. You twist them to lock, so they do not come loose. This makes fc connectors a good choice for labs and places with lots of movement.
Compatibility affects how your network grows. When you use connectors like mtp or mpo, you can connect many fibers at once. This helps your network scale up as you add more devices. You do not need to replace cables often, which saves money and time. High-quality cables and connectors also help your network last longer.
Tip: Always check if your fiber optic connector matches your equipment. Using the right connector helps your network run better and makes upgrades easier.
Here are some points to help you decide:
-
Use lc connectors for high-density setups, like modern data centers.
-
Pick sc connectors for simple, steady connections in patch panels.
-
Choose fc connectors for secure links in labs or places with vibration.
-
Select mtp or mpo connectors when you need to connect many fibers at once, such as in large data centers.
-
Match the connector to your fiber type—single-mode or multi-mode.
Connector compatibility helps your network grow. You can support higher data rates and more bandwidth as technology changes. If you pick the right fiber connector types now, you will not need to replace them as often in the future.
You can pick from many fiber connector types. Each one is good for something special.
-
sc is strong and works outside or in tough places.
-
lc is small and fits well in busy offices and 5G networks.
-
fc stays locked in spots that shake or move a lot.
-
st is still used in old systems.
-
mtp and mpo help move data fast in new data centers.
Choosing the right connector helps your network go faster. It also helps stop mistakes and saves you money. Always clean connectors before you use them. This stops signal loss.

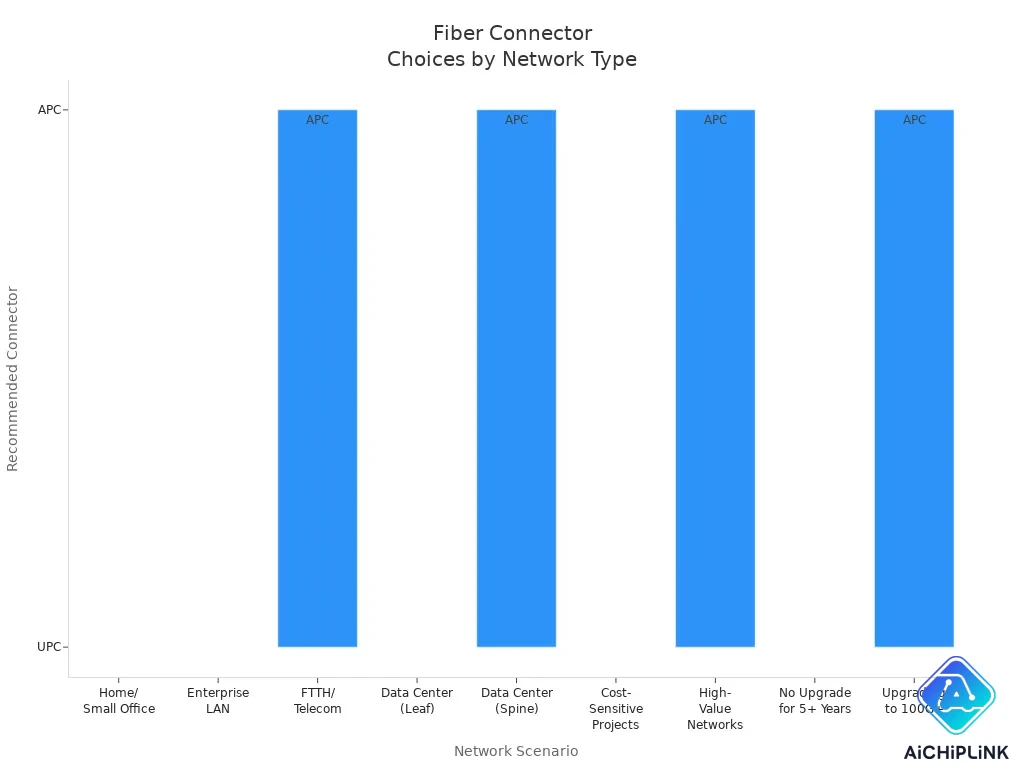

Here is a simple chart to help you pick:
| Network Type | Best Connector | Why Use It? |
|---|---|---|
| Home/Small Office | UPC | Saves money, works for short links |
| Enterprise LAN | UPC | Good for most office networks |
| FTTH/Telecom | APC | Less signal comes back, good for long links |
| Data Center (Leaf) | UPC | Fast and easy to connect servers |
| Data Center (Spine) | APC | Very fast, keeps signals strong |
Pick the connector that fits your space. This helps your network stay strong, quick, and ready for new things.
Written by Jack Elliott from AIChipLink.
AIChipLink, one of the fastest-growing global independent electronic components distributors in the world, offers millions of products from thousands of manufacturers, and many of our in-stock parts is available to ship same day.
We mainly source and distribute integrated circuit (IC) products of brands such as Broadcom, Microchip, Texas Instruments, Infineon, NXP, Analog Devices, Qualcomm, Intel, etc., which are widely used in communication & network, telecom, industrial control, new energy and automotive electronics.
Empowered by AI, Linked to the Future. Get started on AIChipLink.com and submit your RFQ online today!
