What is a Zener Diode? Working Principle, Uses & Functions

A Zener Diode lets current go both ways. It is special because it keeps voltage at a set level. This makes it different from a regular diode. A regular diode stops current from going backward. Many industries use Zener Diodes to protect devices. They help keep electronics safe and steady. The market for Zener Diodes is getting bigger. They are used a lot in phones and cars. In 2024, the SMD Zener diode market was worth USD 1.5 billion. It may grow to USD 1.65 billion by 2033.

Key Takeaways

• A Zener Diode keeps voltage steady. It lets current go backward at a set voltage called the Zener voltage.

• Zener Diodes help protect electronics from high voltage jumps. They make sure devices work safely and do not get damaged.

• Pick the right Zener Diode by looking at its voltage and power numbers. Make sure these match what your circuit needs.

• You can make a simple voltage regulator with a Zener Diode and a resistor. This helps keep the output voltage steady in your projects.

• Zener Diodes can also cut off extra signals. This is helpful in audio and communication systems to stop unwanted voltage jumps.

Zener Diode Basics

Definition & Features

You use a Zener Diode when you want to keep voltage steady in a circuit. This small device lets current flow in both directions, but it works best when you connect it in reverse. The Zener Diode has a special feature. It holds the voltage at a set value, even if the current changes. This makes it very useful for protecting sensitive electronics.

You can find Zener Diodes with many voltage and power ratings. The most common types are easy to spot in electronics stores. Here is a table that shows some popular options:

Power Rating	Voltage Ratings
0.5W	2.7V, 3.0V, 3.3V, 3.6V, 3.9V, 4.3V, 4.7V, 5.1V, 5.6V, 6.2V, 6.8V, 7.5V, 8.2V, 9.1V, 10V, 11V, 12V, 13V, 15V, 16V, 18V, 20V, 24V, 27V, 30V
1.3W	4.7V, 5.1V, 5.6V, 6.2V, 6.8V, 7.5V, 8.2V, 9.1V, 10V, 11V, 12V, 13V, 15V, 16V, 18V, 20V, 22V, 24V, 27V, 30V, 33V, 36V, 39V, 43V, 47V, 51V, 56V, 62V, 68V, 75V, 100V, 200V

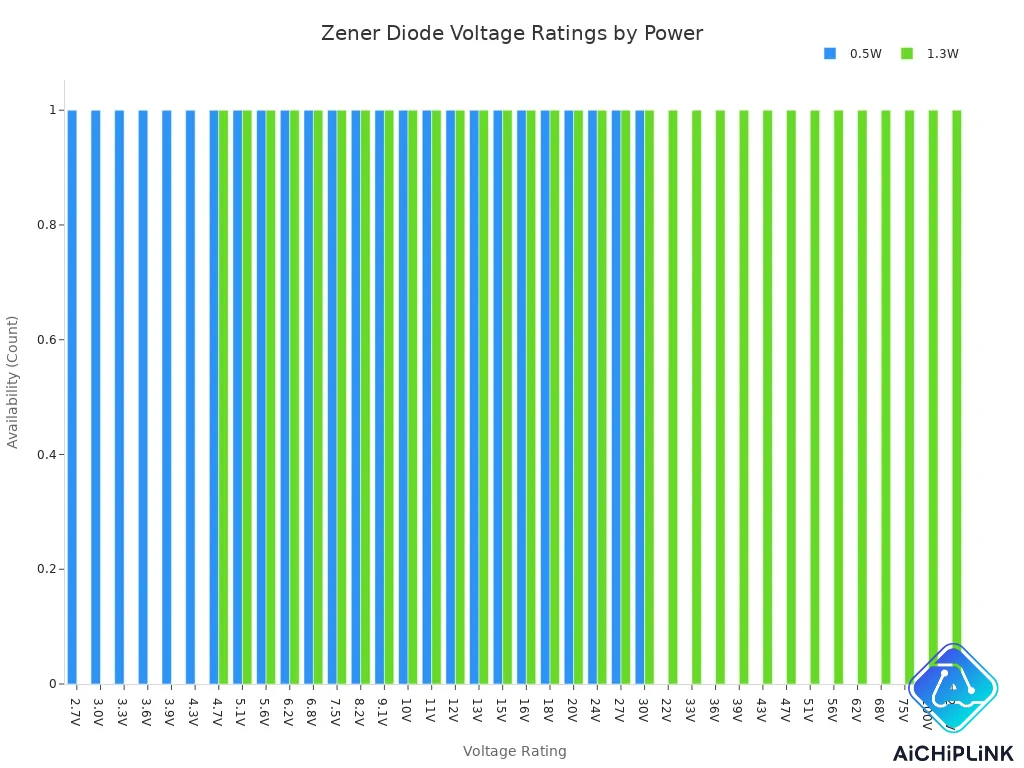

You can also see the range of voltage ratings in this chart:

Tip: When you pick a Zener Diode, always check the voltage and power rating. This helps you match the diode to your circuit needs.

Zener Diode vs. Regular Diode

You might wonder how a Zener Diode is different from a regular diode. A regular diode lets current flow in only one direction. It blocks current if you try to push it the other way. You use regular diodes to control the direction of current.

A Zener Diode works in a special way. When you connect it in reverse, it does not break. Instead, it starts to conduct at a certain voltage. This voltage is called the Zener voltage. The Zener Diode keeps the voltage steady at this value. You use it when you need voltage regulation or protection in your circuit.

Working Principle

Reverse Bias

A Zener Diode controls voltage when used in reverse bias. You connect the positive power to the cathode. The negative power goes to the anode. Regular diodes stop current this way. The Zener Diode is different. It does not let current flow until a set voltage. This set voltage is called the Zener voltage.

If the voltage is less than the Zener voltage, almost no current moves. The diode acts like a switch that is open. Many circuits use this for voltage control. The Zener Diode only lets current flow when the voltage is high enough.

Note: Make sure you put the Zener Diode in the right direction. Reverse bias is needed for it to work right.

Breakdown & Regulation

When the voltage reaches the Zener voltage, something special happens. The diode goes into breakdown. Now, current can flow backward through the diode. The voltage across the diode stays almost the same, even if the current changes.

This helps keep the voltage steady. The Zener Diode holds the voltage at its breakdown voltage. This protects important parts of your circuit. If the supply voltage goes up, extra current goes through the diode. Your other parts stay safe.

Here is a simple table that shows what happens:

Applied Voltage	Zener Diode State	Current Flow
Below Zener Voltage	Off (blocks current)	Very little
At Zener Voltage	Breakdown (regulates voltage)	Increases
Above Zener Voltage	Breakdown (regulates voltage)	Increases more

The Zener Diode works like a safety valve. It lets extra current pass but keeps the voltage from getting too high. This makes it great for keeping voltage steady and safe.

Tip: Use a Zener Diode to keep voltage steady in DC circuits. It is good for protecting devices from voltage spikes.

Uses & Functions

Voltage Regulation

A Zener Diode helps keep voltage steady in a circuit. This job is called voltage regulation. When you put a Zener Diode in your design, it stops voltage from going too high. This keeps your devices safe and working well.

Many machines need circuits with the same voltage all the time. Even if the input or load changes, the Zener Diode keeps the output voltage stable. Here are some ways it helps:

• Zener diodes keep voltage steady in circuits. They make sure the output stays the same, even if the input or load changes.

• They protect sensitive parts from voltage spikes. The diode sends extra voltage away from weak parts of the circuit.

• Zener diodes give a stable reference voltage. This is important for tools that measure things and for converters.

You can use a Zener Diode as a shunt regulator. In this setup, the diode goes across the load. It stops the voltage from getting too high. This works well for DC circuits. You see this in power supplies for radios, sensors, and other electronics.

Tip: Pick a Zener Diode with the right voltage rating for your circuit.

Over-Voltage Protection

A Zener Diode can protect your circuit from too much voltage. If the voltage gets too high, the Zener Diode starts working. It sends extra current away from sensitive parts. This keeps your devices safe from harm.

Power supplies and chargers use Zener diodes for this reason. When a voltage spike happens, the Zener Diode acts quickly. It stops the spike from hurting important parts. You can trust this to protect microcontrollers, sensors, and other delicate pieces.

Note: Over-voltage protection matters in places with power surges, like factories or homes with lots of electronics.

Signal Clipping

A Zener Diode can also shape signals. This is called signal clipping. If a signal goes above the Zener voltage, the diode cuts off the extra part. This keeps the signal from getting too high.

Zener diodes are good at clipping the tops of signals when they go past a set voltage. This helps remove unwanted spikes and keeps signals clean. You need this in audio circuits, communication systems, and test equipment. The Zener Diode gives you control over voltage, which helps protect devices and shape signals.

Tip: Use two Zener diodes in opposite directions to clip both the positive and negative peaks of a signal.

Circuit Applications

Selecting a Zener Diode

When you pick a Zener Diode, you must look at some things. These things help you choose the right one for your circuit. Here is a table to help you compare:

Criteria	Description
Zener Voltage	The voltage where the diode starts to conduct in reverse. This sets your voltage regulation point.
Power Dissipation Ratings	Shows how much power the diode can handle before it overheats. This keeps your circuit safe.
Temperature Coefficients	Tells you how the Zener voltage changes when the temperature goes up or down.
Packaging Types	Affects how you install the diode and how much space it takes on your board.

Tip: Always check the Zener voltage and power rating first. These two things help keep your circuit safe.

Simple Regulator Example

You can make a simple voltage regulator with a Zener Diode and a resistor. This setup keeps the output voltage steady, even if the load changes. Here is how it works:

• The Zener Diode keeps the output voltage at a set value because of its breakdown effect.

• A resistor in series limits the current so the diode stays safe.

• The output voltage stays steady if the input voltage and load current are within safe limits.

You often see this kind of circuit in battery chargers and small power supplies. It helps protect sensitive electronics from voltage swings.

Key Considerations

When you use Zener diodes, you should think about a few important things:

• Temperature changes can change the voltage. If the diode is above 5V, the voltage may go up when it gets hotter. If it is below 5V, the voltage may go down.

• Watch out for common ways the diode can fail:

  • Closed circuit failure happens if the diode gets too much voltage. It might short out.

  • Open circuit failure can happen if the diode gets too hot. It might stop working.

  • Over time, the diode might leak more current or lose its breakdown voltage if it is stressed too much.

Note: Always use the right resistor and check the temperature range for your project. This helps your circuit last longer and work better.

You have learned how a Zener Diode works. It is important in electronics. When you know how it works, you can control voltage better. This helps you make good circuit designs. You also learn more about semiconductors.

• Zener diodes help keep voltage steady and stop too much voltage.

• You just need a resistor to make a simple voltage regulator.
  Zener diodes are used in new things like IoT and clean energy. You should try them in your next project. They help keep circuits safe and working well.
