How many Transistors in a CPU?

You may ask how many transistors in a CPU are present today. Apple’s M2 Ultra chip has the most with 134 billion transistors in a CPU. Here is a quick chart:

Chip type	Number of transistors	Chip name	Company	Record year
Commercial microprocessor	134 Billion	M2 Ultra	Apple	2023

Most new CPU chips have billions of transistors in a CPU. The number of transistors in a CPU is important because:

• It tells you how much computing power you get.

• More transistors in a CPU allow better circuits and faster processing.

• You get bigger caches and smarter power use.

• Many features fit in one chip, so it works better.

Key Takeaways

• The Apple M2 Ultra chip has 134 billion transistors. This shows how strong modern CPUs are. More transistors in a CPU make it work better and faster. It can also do more things at once. When chip makers make transistors smaller, they can fit more in a small space. High-end CPUs have a lot more transistors than regular CPUs. This gives them better features and abilities. Knowing the number of transistors helps you compare CPUs. It also helps you pick the best one for what you need.

Transistors in a CPU Today

Current Numbers

You see huge changes in the number of transistors inside a cpu over the past few years. The Apple M2 Ultra chip leads with 134 billion transistors. Most high-end chips now reach close to 100 billion. This number of transistors gives you more power and better performance.

The number of transistors in a cpu depends on many parts inside the chip. Caches and registers play a big role. Caches use SRAM, which needs many transistors for each bit of data. Registers are smaller but still add to the total. Both help your cpu work faster and smarter.

Component	Description	Transistor Requirement
CPU Cache	Built using SRAM, needs many transistors for each bit of storage.	Major contributor to transistor count due to size and design.
Registers	Small, fast memory for temporary data storage.	Adds to transistor count, essential for cpu operations.

You get better speed because registers store data for quick use. Their size stays limited by the chip area, so they affect the number of transistors you find in a cpu. Caches take up more space and push the transistor count even higher. The design of these parts helps boost transistor density, which means more transistors fit in a small area.

High-End vs. Mainstream CPUs

You notice a big gap between high-end and mainstream CPUs when you look at the number of transistors. High-end desktop CPUs, like Intel Core i9 or AMD Ryzen 9, often have more than 10 billion transistors. Some reach up to 30 billion. Mainstream CPUs, such as those in most home computers, usually stay in the 20 to 30 billion range.

• High-end CPUs pack more cores and bigger caches, so their transistor count goes up.

• Mainstream CPUs use fewer cores and smaller caches, which keeps their number of transistors lower.

• The difference in transistor density shows how much technology fits into each chip.

You get more features and better performance with higher transistor counts. The number of transistors in a cpu tells you how advanced the chip is. When you compare CPUs, look at the transistor count to see which one offers more speed and smarter features.

Transistor density keeps rising as chip makers shrink the size of each transistor. You see more transistors packed into every square millimeter. This trend pushes the number of transistors higher every year and helps CPUs run faster and use less power.

Number of Transistors Over Time

Historical Progression

You can see how the number of transistors in a cpu has grown over the decades. In the 1970s, cpu chips had only a few thousand transistors. Today, you find billions inside a single cpu. This change shows how technology keeps moving forward.

Here is a timeline of notable cpu chips and their transistor counts:

Year	CPU	Transistor Count
1975	MOS Technology 6502	4,528
1978	Intel 8086	29,000
1979	Motorola 68000	68,000
1982	Intel 80286	134,000
1984	Motorola 68020	190,000
1985	Intel 80386	275,000
1987	Motorola 68030	273,000
1989	Intel 80486	1,180,235
1990	Motorola 68040	1,200,000
1993	Intel Pentium	3,100,000
1994	PowerPC 601	2,800,000
1997	Pentium II	7,500,000
1999	Pentium III	9,500,000
2000	Pentium 4	42,000,000
2005	Cell	250,000,000
2006	Core 2 Duo Conroe	291,000,000
2008	Intel i7	731,000,000
2011	Six-core Core i7/8-core Xeon E5	2,270,000,000
2014	Xeon Ivy Bridge-EX (15-core)	4,310,000,000

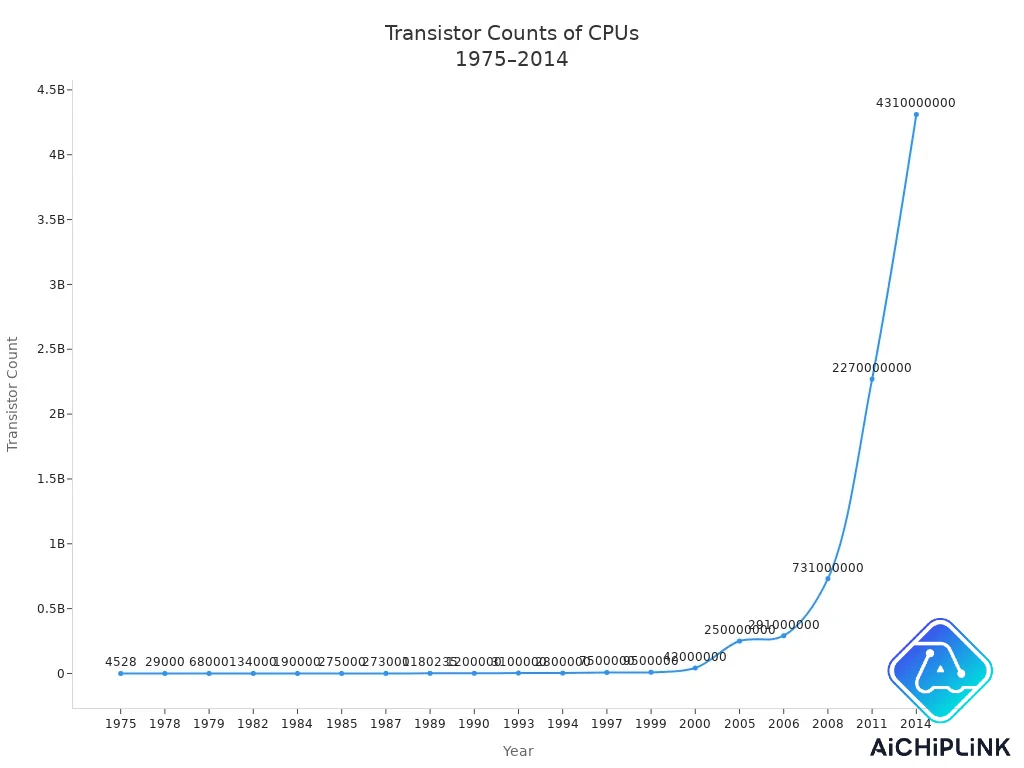

You notice that each new cpu generation brings a big jump in the number of transistors. The chart below shows how quickly the number of transistors in a cpu has increased over time.

If you look at the average number of transistors in a cpu, you see a huge change. In 1971, the average cpu had just over 2,000 transistors. By 2021, the average cpu had more than 58 billion transistors.

Year	Average Transistor Count
1971	2,308
2021	58.2 billion

Key Milestones

You find several key moments that pushed the number of transistors in a cpu much higher. These milestones often came from new manufacturing processes or big changes in cpu design.

Here are some important cpu milestones:

Year	Processor	Transistor Count
1971	Intel 4004	2,300
1979	Motorola 68000	68,000
1991	MIPS R4000	1.35 million
1993	Intel Pentium	3.1 million
2005	AMD Athlon 64 X2	233.2 million
2006	Intel Core 2 Quad	582 million
2010	Intel Core i7-980X	1.17 billion
2011	AMD FX-8150	1.2 billion
2020	AMD Ryzen Threadripper 3990X	39.54 billion

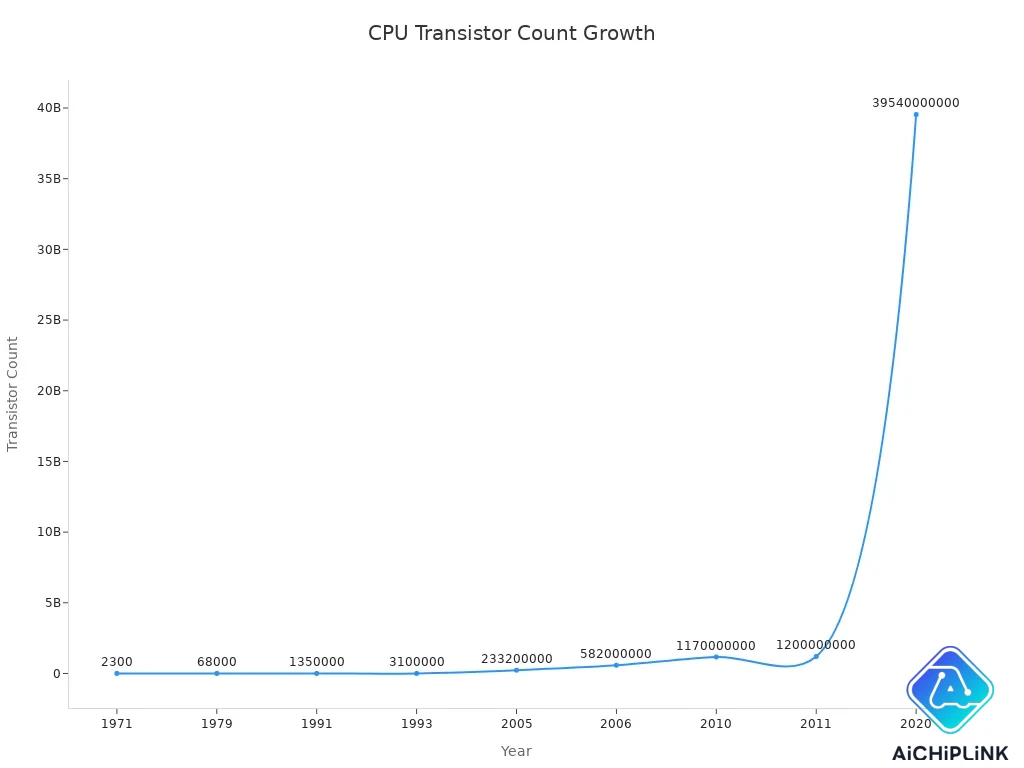

You can see another chart that shows how the number of transistors in a cpu grew even faster in recent years.

Manufacturing process nodes also played a big role in boosting the number of transistors in a cpu. When chip makers moved to smaller process nodes, they fit more transistors into the same space. Here are some important process nodes:

Process Node	Year Introduced	Transistor Density Impact
25 µm	1971	Initial microprocessor density
350 nm	1995	Significant increase in density
90 nm	Early 2000s	Higher clock speeds and greater transistor counts
65 nm	Early 2000s	Major performance improvements due to increased density

You see that every time chip makers shrink the process node, the number of transistors in a cpu jumps up. This lets you use faster and more powerful computers.

You can track the history of the cpu by looking at the number of transistors. Each milestone shows how engineers solved problems and made chips better. The number of transistors in a cpu tells you how far technology has come and how much more you can do with your computer today.

Why Transistor Count Matters

CPU Performance

You may ask why transistor count is important in a cpu. The reason is easy to understand. More transistors give better performance. Inside a cpu, each transistor works like a tiny switch. These switches help the cpu process instructions and move data.

• If a cpu has more transistors, it can do more jobs at once. This means faster speeds and easier multitasking.

• More transistors let the cpu have bigger caches and more cores. This helps the cpu handle more instructions every cycle.

• When transistors are packed closer together, they take up less space. This lowers resistance and heat, so the cpu runs faster without getting too hot.

• Algorithms, like multiplication, finish quicker because the cpu does many steps at the same time.

You also get better parallel processing. The cpu can work on several instructions at once if they do not depend on each other. This helps the cpu finish more instructions every second. As transistor density goes up, chip makers fit more cores in a small area. This gives you more power in the same size chip.

The link between transistor count and energy use is tricky. Adding more transistors raises power density. This can make the cpu use more energy. But smaller transistors need less voltage and current, which helps save energy. Since 2005, engineers have faced new problems like leakage current and extra heat. They now try to make cpus strong and energy-saving.

Technological Advancement

Transistor count helps bring new technology to cpus. More transistors unlock new features and smarter designs. The table below shows how higher transistor density leads to new ideas:

Key Aspect	Explanation
Density of transistors	More transistors let your cpu run harder tasks and do more things at once.
Performance	Extra transistors make your cpu faster and more efficient for games, work, or school.
Innovation	New transistor tech brings features like AI and cloud computing.

You see the benefits of more transistors every day. Your devices work faster, use less energy, and support new apps. As transistor density grows, cpu makers add features that were not possible before. This progress changes technology and how you use computers.

Factors Affecting Transistor Count

Architecture

The way a cpu is built changes how many transistors fit inside. Different architectures organize logic and memory in their own ways. Some chips use more ROM or PLA, which changes the total number. Sometimes, manufacturers count empty spots, so the numbers look bigger than what is really used.

Architectural Factor	Description
ROM Usage	The number of transistors can change based on what is stored in ROM, so counts may not always match.
PLA Implementation	The transistor count in PLAs depends on the logic needed, so it affects the total number.
Reporting Practices	Manufacturers often count possible transistors, even empty ones, which makes the numbers higher.

Cpu architecture also decides how much space is used for logic, cache, and extra features. This choice changes transistor density and how well the cpu works.

Core Count

A cpu with more cores gives you more power. Each core needs its own logic and cache, so the transistor count goes up. If you use a cpu with eight cores, you see a much higher number than a cpu with only two cores. More cores mean your computer can do more things at once.

• More cores make the total number of transistors go up.

• Each core adds logic circuits and cache memory.

• Multi-core cpus help with multitasking and gaming.

Manufacturing Process

The process size, measured in nanometers, changes how many transistors fit in a cpu. Smaller process nodes let you put more transistors in the same space. For example, the 7-nanometer node fits about 100 million transistors in one square millimeter. TSMC’s 3nm technology can fit around 300 million transistors in 1mm². This big jump lets you use faster and more energy-saving cpus.

• The semiconductor industry has doubled transistor counts for over 55 years.

• Smaller transistors use less power and make less heat.

• Making transistors smaller helps new tech like AI and self-driving cars.

Imagine that 1mm² of silicon now holds up to 40 billion transistors in the newest chips. This shows how much cpu technology has grown.

Integrated Features

Modern cpus have more than just core logic and cache. Extra features like AI accelerators and graphics units add millions or even billions of transistors. These features help your cpu do things like gaming, machine learning, and cloud computing.

Component	Transistor Usage Description
Core Logic	Transistors make logic gates and circuits for calculations and storing data.
Cache Memory	L1 and L2 caches use SRAM, with each bit needing six transistors, so quality and efficiency matter.
Additional Features	More transistors allow for complex circuits, more parallel work, bigger caches, better power use, and putting more parts on one chip.

You get benefits from these features because your cpu can run advanced apps. The need for better graphics and smarter AI keeps pushing transistor density higher. Chip makers like Intel, AMD, NVIDIA, and Apple build cpus with billions of transistors to meet your needs.

You see that transistor count shapes how fast and powerful your cpu can be. When you compare processors, knowing the number of transistors in a cpu helps you spot differences in speed and features.

Understanding transistor count gives you clues about performance, but not every transistor boosts speed the same way.

• Moore’s Law still drives growth in transistor counts.

• Chiplets and new packaging let you use more transistors than ever.

• GPUs often have more transistors for parallel tasks.

You should look at transistor count along with core count, clock speed, and cache size to choose the best cpu for your needs.











Written by Jack Elliott from AIChipLink.
