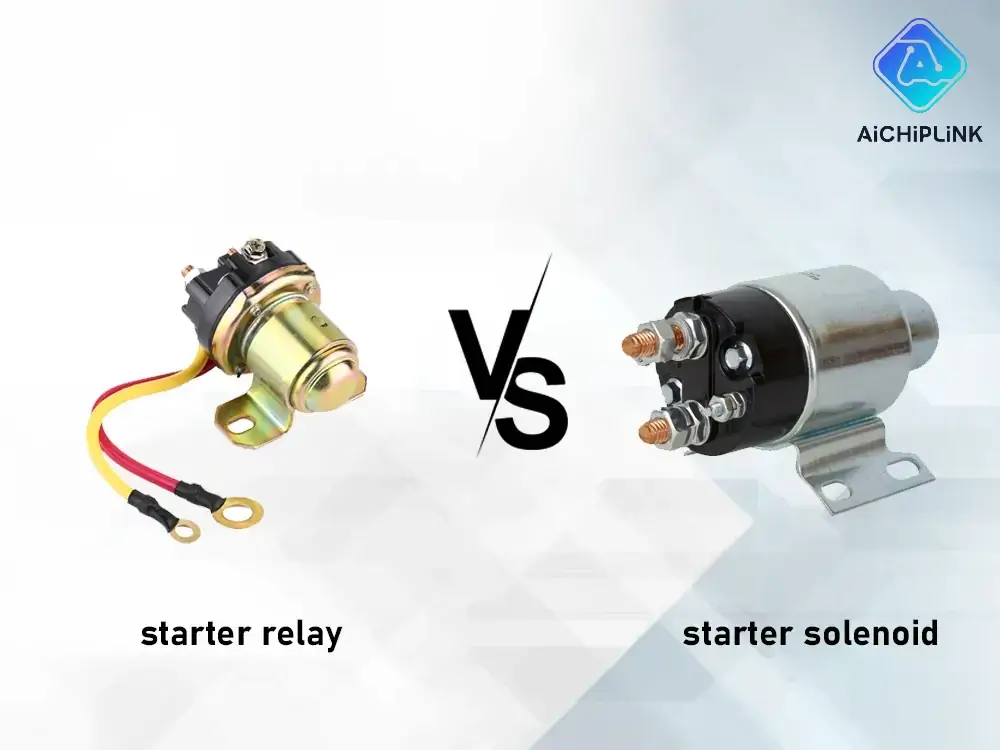

You may wonder about the difference between a starter relay and a starter solenoid. The starter relay acts like a switch that sends power to the starter. The starter solenoid sits on the starter and helps turn the engine. Many people mix up these parts because both help start your vehicle. Knowing which part does what makes it easier for you to fix starter problems.
Tip: If you learn how the starter relay and the starter solenoid work, you can save time and money when your car will not start.
Key Takeaways
-
The starter relay acts as a switch that controls low current to send high current to the starter solenoid, protecting the ignition switch.
-
The starter solenoid sits on the starter motor, moves the starter gear to engage the engine, and handles high current to power the starter.
-
Both parts work together but have different jobs; knowing their roles helps you diagnose starting problems correctly and avoid costly mistakes.
-
Common signs of failure include clicking sounds or no engine crank; testing the relay and solenoid with simple tools can save time and money.
-
Always check battery health and wiring connections before replacing parts to ensure accurate diagnosis and keep your vehicle running smoothly.
Main Difference
Quick Overview
You might think the starter relay and the starter solenoid do the same job, but they have different roles in your vehicle’s starting system. The starter relay acts as a small switch. It uses a low current signal from your ignition key or computer to control a larger current. This larger current then flows to the starter solenoid. The starter solenoid sits on the starter motor and handles the heavy lifting. It connects the battery to the starter, allowing a large amount of electricity to flow and turn the engine.
Here’s a simple breakdown:
-
The starter relay controls the flow of electricity to the starter solenoid.
-
The starter solenoid connects the battery to the starter motor and pushes the gear to engage the engine.
-
The starter relay handles low current, while the starter solenoid handles high current and mechanical movement.
Note: The starter relay and starter solenoid work together, but each has a unique job. If one fails, your starter may not work at all.
You can see the difference in their wiring:
-
The starter solenoid mounts directly on the starter motor. It has three main terminals: B (battery), S (start), and M (motor).
-
When you turn the key, voltage goes to the S terminal. The solenoid then connects the B and M terminals, sending power to the starter.
-
The starter relay sits under the hood. It acts as a control switch, letting power flow to the solenoid only when conditions are right.
Why Confusion Happens
You may find it easy to mix up the starter relay and the starter solenoid. Both parts help start your car, and both can cause problems if they fail. Many people think the starter relay and the starter solenoid are the same because they both use electricity to control the starter. In reality, they have different jobs and locations.
Some common reasons for confusion include:
-
Both the starter relay and starter solenoid make clicking sounds when you try to start the car.
-
The starter relay and starter solenoid both sit in the starting circuit, so a problem with either can stop the starter from working.
-
Many people believe a clicking sound always means the starter motor is bad, but it can also mean the starter relay or solenoid is not working right.
-
Some think hitting the starter motor can fix a jam, but this can cause more damage.
Technicians often misdiagnose starter problems. For example, they may think the starter motor is burned out when the real issue is a weak battery or a bad connection. Sometimes, a faulty key switch or a stuck relay keeps the starter running, not the starter itself. The starter solenoid does more than act as a relay. It also moves the gear that connects the starter to the engine. If the battery is weak, the solenoid may click, but the starter will not spin.
Tip: Always check for loose or corroded connections before replacing the starter relay or starter solenoid. A simple voltage drop test can help you find hidden problems that are not easy to see.
If you understand how the starter relay and starter solenoid work, you can avoid mistakes like replacing the wrong part or missing a simple fix. This knowledge helps you spot starting relay failure and other issues before they become bigger problems.
Starter Relay
What Is a Starter Relay

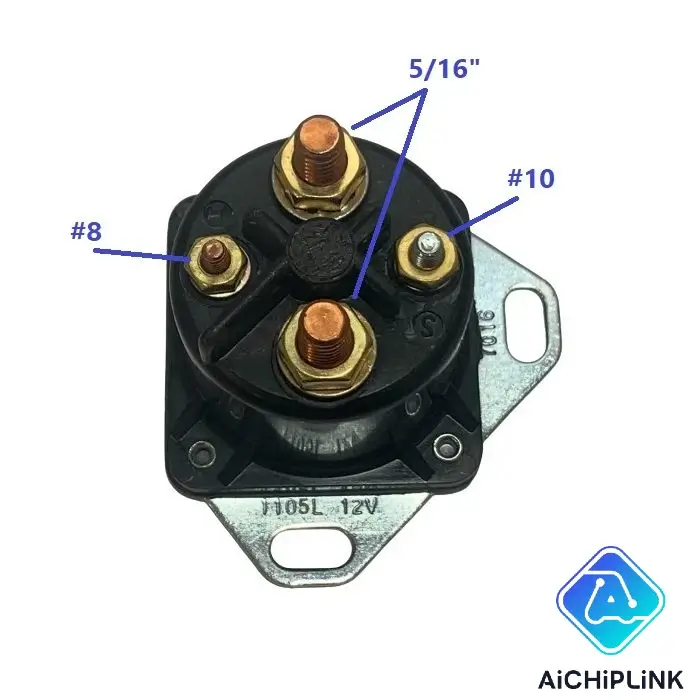

You may wonder what a starter relay is and why it matters in your vehicle. A starter relay is a remote-controlled switch found in automotive electrical systems. When you turn your ignition key, a small current flows to the starter relay. This current energizes an internal electromagnet inside the relay. The electromagnet then closes a set of contacts, allowing a much larger current to flow to the starter. This process keeps the high current needed for the starter away from the ignition switch, making the system safer and more reliable.
Most starter relays follow a standard design. You will often see five terminals on the relay: 85 and 86 for the coil, 30 for battery power, and 87 and 87a for switching the load. This setup lets the starter relay control the starter motor circuit without sending high current through your ignition switch.
Tip: The starter relay acts as a bridge between the low current from your key and the high current needed by the starter.
Function and Role
The main job of the starter relay is to control the flow of electricity to the starter. When you turn the key, the starter relay receives a low current signal. The relay then closes its contacts, sending high current from the battery to the starter. This action allows the starter to crank the engine.
Here is a quick look at what the starter relay does:
-
Acts as an electromechanical switch for the starter circuit.
-
Protects the ignition switch from high current.
-
Ensures the starter gets enough power to turn the engine.
-
Coordinates the starting process by delivering the right voltage at the right time.
If you ask, "how does starter relay work," the answer is simple. The relay uses a small current to control a much larger current. This design keeps your ignition switch safe and helps your starter work every time you turn the key.
Over time, the starter relay can develop problems. You might see issues like coil faults, worn contacts, or overheating. These problems can stop the starter from working and leave you stranded.
Location in the Vehicle
You can find the starter relay in different places depending on your vehicle. Most vehicles place the starter relay inside the engine compartment fuse box. Some vehicles put it under the dashboard or near the driver’s seat. Motorcycles, like some Harley-Davidson models, may have the starter relay near the battery or under the rear fender.
Here is a table showing common locations for the starter relay:
| Vehicle Type/Model | Typical Starter Relay Location(s) |
|---|---|
| General Vehicles | Engine compartment fuse box or interior fuse box |
| Some Vehicles | Under dashboard or beside driver's seat inside the cabin |
| Ford F150 (2015-2018) | Engine compartment fuse box or central junction box inside vehicle |
| Harley-Davidson Motorcycles | Near battery compartment or rear fender, varies by model year |
Note: Always check your owner’s manual to find the exact location of the starter relay in your vehicle.
Starter Solenoid
What Is a Starter Solenoid
You will find the starter solenoid as a key part of your vehicle’s starting system. This component sits on the starter motor and controls the flow of power. When you turn the ignition key, the solenoid uses electromagnetic force to push the pinion gear into the engine’s flywheel. At the same time, it closes a set of heavy contacts that let electricity flow from the battery to the starter. The solenoid acts like a powerful switch and a mechanical mover. Once the engine starts, the solenoid pulls the gear back and stops the starter motor.
A solenoid is a coil of wire that becomes a magnet when electricity passes through it. In your car, the starter solenoid uses this magnetic force to move metal parts and connect the battery to the starter. This action helps your engine turn over and start.
Function and Role
The starter solenoid has two main jobs: mechanical and electrical. You can see these roles in the table below:
| Function Type | Description |
|---|---|
| Mechanical | Moves the starter’s pinion gear to mesh with the engine’s flywheel. This action lets the starter turn the engine. The solenoid also pulls the gear back once the engine runs. |
| Electrical | Acts as a high-current switch. It closes heavy contacts to let battery power flow to the starter motor. This gives the starter enough energy to spin the engine. |
Here is how the starter solenoid works in three steps:
-
When you turn the key, current flows to the solenoid coil. The magnetic field pulls a plunger, pushing the pinion gear into the flywheel and closing the contacts.
-
The solenoid holds the gear in place while the starter motor spins the engine.
-
When the engine starts, you release the key. The current stops, the magnetic field fades, and the plunger returns. The gear pulls back, and the starter stops.
The starter solenoid makes sure the starter only runs when needed. It protects the system from damage and helps your engine start smoothly.
Location in the Vehicle
You will almost always find the starter solenoid attached directly to the starter motor. The starter motor bolts to the engine or transmission. This close placement lets the solenoid move the pinion gear into the flywheel and control the flow of electricity to the starter. In most vehicles, the solenoid and starter form one assembly. This design keeps the wiring short and the system reliable.
Tip: If you need to check or replace the starter solenoid, look for it on the starter motor itself, usually near the bottom or side of the engine.
Comparison
Electrical vs Mechanical Action
You can see a clear difference between the starter relay and the starter solenoid when you look at how they work. The starter relay acts as an electrical switch. It uses a small amount of electricity from your ignition key to control a much larger flow of power. This switch sends power to the starter so your engine can turn on. The starter solenoid does more than just switch electricity. It also moves parts inside the starter. When you turn the key, the solenoid uses electricity to push a rod. This rod moves the starter gear into place so it can spin the engine.
-
The starter relay works as a simple on/off switch for electricity.
-
The starter solenoid uses electricity to move a piston and engage the starter gear.
-
The solenoid always sits on the starter, while the relay sits away from the starter, often on the firewall.
-
The relay’s main job is to send high current to the starter.
-
The solenoid’s main job is to move the starter gear and connect the battery to the starter.
Note: The starter relay and starter solenoid both use electricity, but only the solenoid does mechanical work.
Current Handling
You need to know how much current each part handles. The starter relay deals with low current from your ignition switch. It uses this small current to control a much larger current that goes to the starter. This keeps your ignition switch safe from burning out. The starter solenoid handles the highest current in the starting system. It connects the battery directly to the starter, letting a huge amount of electricity flow. This high current is what makes the starter strong enough to turn your engine.
| Component | Current Handled | Role in Circuit |
|---|---|---|
| Starter Relay | Low (control side), Medium (switch side) | Sends power to the solenoid and starter |
| Starter Solenoid | Very High | Connects battery to starter motor |
If you ever notice your starter not turning, you might have a problem with current flow in either the starter relay or the solenoid.
Physical Placement
You can find the starter relay and starter solenoid in different places in your vehicle. The starter relay usually sits in the engine compartment, often inside a fuse box or mounted on the firewall. Some vehicles put the relay under the dashboard. The starter solenoid always attaches directly to the starter. You will see it as a small cylinder on top or on the side of the starter motor. This close placement lets the solenoid move the starter gear quickly and send power straight to the starter.
-
Starter relay: Engine compartment fuse box, firewall, or under the dash.
-
Starter solenoid: Directly on the starter motor, near the engine or transmission.
Tip: If you need to check the starter relay, look in the fuse box or on the firewall. To check the solenoid, find the starter under the car.
Circuit Complexity
The starter relay and starter solenoid each play a part in the starting circuit, but their roles make the circuit more complex. The starter relay adds a layer of safety. It lets you use a small wire from the ignition switch to control a big flow of power. This design keeps the high current away from the dashboard and makes the system safer. The starter solenoid adds mechanical action. It moves the starter gear and connects the battery to the starter. When you put both parts together, you get a circuit that is safe, strong, and reliable.
Here is a simple way to see the circuit:
-
You turn the key.
-
The starter relay gets a small current and closes its contacts.
-
Power flows to the starter solenoid.
-
The solenoid moves the starter gear and connects the battery to the starter.
-
The starter turns the engine.
Callout: The starter relay and starter solenoid work together to make sure your engine starts every time.
Fault Symptoms
You can spot problems with the starter relay and starter solenoid by watching for certain signs. If the starter relay fails, you might hear a single click when you turn the key, but the starter does not spin. Sometimes, you hear nothing at all. If the starter solenoid fails, you might hear a rapid clicking sound, or the starter might spin but not engage the engine. In some cases, the starter might not work at all.
Common symptoms for each part:
-
Starter relay problems: No sound, single click, starter does not turn.
-
Starter solenoid problems: Rapid clicking, starter spins but does not engage, no engine crank.
If you notice these signs, you should check both the starter relay and the solenoid. Fixing the right part will help you avoid bigger problems with your starter.
Note: Always check your battery and wiring before replacing the starter relay or solenoid. Weak batteries and loose wires can cause similar symptoms.
How to Test a Starter Relay
Signs of a Bad Starter Relay
You may notice your car will not start or only makes a clicking sound. These are common symptoms of starter relay failure. Sometimes, you turn the key and nothing happens. Other times, you hear a single click, but the engine does not turn. If the starter relay is bad, the starter will not get power. You might also see the lights dim when you try to start the car, but the starter does not spin. These are all symptoms of starter relay failure.
Tip: If you hear rapid clicking, the problem may be with the starter solenoid, not the relay.
How to Test the Starting Relay
You can use simple tools to check if the starter relay works. Here is how to test a starter relay step by step:
-
Locate the starter relay in the fuse box or under the hood.
-
Listen for a click when you turn the key to "Start." No sound may mean the relay is bad.
-
Check for voltage at the relay terminals using a multimeter. You should see 12 volts at the control wire when you turn the key.
-
Test continuity across the relay's main terminals. Remove the relay and use a multimeter. No continuity means the relay is faulty.
-
Swap the relay with another one of the same type from the fuse box. If the starter works, the old relay was bad.
If you find 12 volts at the solenoid's small wire but the starter does not engage, the problem is likely with the starter solenoid or motor. If there is no voltage at the solenoid's control wire, the starter relay or wiring may be at fault.
Tips for Accurate Diagnosis
You can avoid mistakes by following these tips:
-
Inspect all wiring connections for looseness or corrosion.
-
Use a multimeter for testing the starter relay and solenoid.
-
Listen for a single loud click, which often points to a solenoid issue.
-
Bench test the starter motor by applying power directly. No movement or strange noises mean the starter or solenoid may be bad.
-
Always check the battery first, as weak batteries can mimic starter relay problems.
Note: Careful testing helps you find the real cause of starting problems and prevents replacing the wrong part.
Why It Matters
Impact on Repairs
You save time and money when you know the difference between a starter relay and a starter solenoid. If you misdiagnose a problem with the starter relay as a solenoid issue, you might replace the wrong part. This mistake can lead to wasted money and more trips to the repair shop. Many shops report that over half of returned starters and alternators have no fault. This happens because people often guess which part is bad instead of testing each one. You might spend $400 to $900 or more on a new starter and labor, only to find out the real problem was the starter relay. Careful testing, like checking for voltage drops and inspecting all parts of the starting system, helps you fix the right part the first time.
Note: Accurate diagnosis of the starter relay and starter saves you from unnecessary repairs and keeps your vehicle running smoothly.
Avoiding Mistakes
You can avoid common mistakes by following a few simple steps. Many DIY mechanics make errors when replacing the starter relay or solenoid. The most frequent mistake is connecting wires to the wrong terminals. This can cause sparks, blown fuses, or even fires. Always take a photo of the wiring before you remove anything. Reattach each wire to the correct terminal. Disconnect the battery’s negative cable before you start work. Wear gloves and eye protection for safety. Work in a clean area to prevent fire hazards.
Here are steps to help you identify the real problem and avoid replacing the wrong part:
-
Listen for clicking sounds when you turn the key. A weak click may point to a faulty starter relay.
-
Use a test light or multimeter to check for power at the relay and solenoid.
-
Inspect all connections for corrosion or looseness.
-
Try swapping the relay with a similar one to see if the starter works.
-
Only replace the starter or solenoid if tests show they are faulty.
Tip: Careful testing and safe work habits help you avoid costly mistakes and keep your starter system reliable.
You now know the main differences between a starter relay and a starter solenoid. Use the table below to quickly compare them:
| Aspect | Starter Relay | Starter Solenoid |
|---|---|---|
| Function | Electrical switch, controls high current with low signal | Electrical and mechanical, engages starter gear and handles high current |
| Current Handling | Lower current (~10 amps) | Higher current (up to 50 amps) |
| Location | Fuse box or near battery | On or near the starter motor |
| Fault Symptoms | Silent faults, no sound | Audible clicks, mechanical issues |
Understanding how each starter part works helps you spot problems early and avoid costly repairs. When you know what the starter relay and solenoid do, you can keep your starter system reliable and your vehicle running smoothly.
FAQ
What happens if you mix up the starter relay and solenoid?
You might replace the wrong part and your car still will not start. Always test both parts before buying new ones. This saves you time and money.
Can you start a car with a bad starter relay?
No, you cannot start your car if the starter relay fails. The relay controls power to the starter. If it does not work, the starter will not get electricity.
How do you know if the starter solenoid is bad?
You may hear rapid clicking or the starter may spin without turning the engine. Sometimes, you hear nothing at all. Check the battery and wiring first.
Is it safe to tap the starter solenoid to get the car started?
You can try tapping the solenoid gently with a tool if you are stuck. This may help a stuck solenoid work once. Do not use this as a long-term fix.
