Piezoelectric Sensor Basics: The Material That Generates Electricity When You Squeeze It — and Deforms When You Apply Electricity

Press a piece of quartz and a voltage appears across it. Apply a voltage across the same piece of quartz and it physically deforms. The physics runs in both directions, and both directions are useful — which is why the same class of material that forms the sensing element in an accelerometer also forms the actuating element in an ultrasonic transducer, a fuel injector, a precision micro-positioner, and a buzzer.

This bidirectional relationship is the central fact about piezoelectricity that most introductory explanations touch on but do not fully develop. The direct piezoelectric effect — mechanical force produces electrical charge — is the sensing direction. The converse piezoelectric effect — applied voltage produces mechanical deformation — is the actuation direction. They are not two different technologies that happen to use similar materials. They are the same physical phenomenon observed from two different measurement directions. A microphone element and a loudspeaker element, made from identical piezoelectric ceramic, differ primarily in their mechanical design and signal conditioning circuitry, not in the underlying physics.

Understanding both directions of the effect — the mechanism, the quantitative relationship, and the practical limitations — gives a complete picture of where piezoelectric sensors are the right choice and where they are not, and why connecting a piezoelectric sensor to a standard voltage amplifier input (rather than a charge amplifier) is one of the most common signal conditioning mistakes in electronic design.

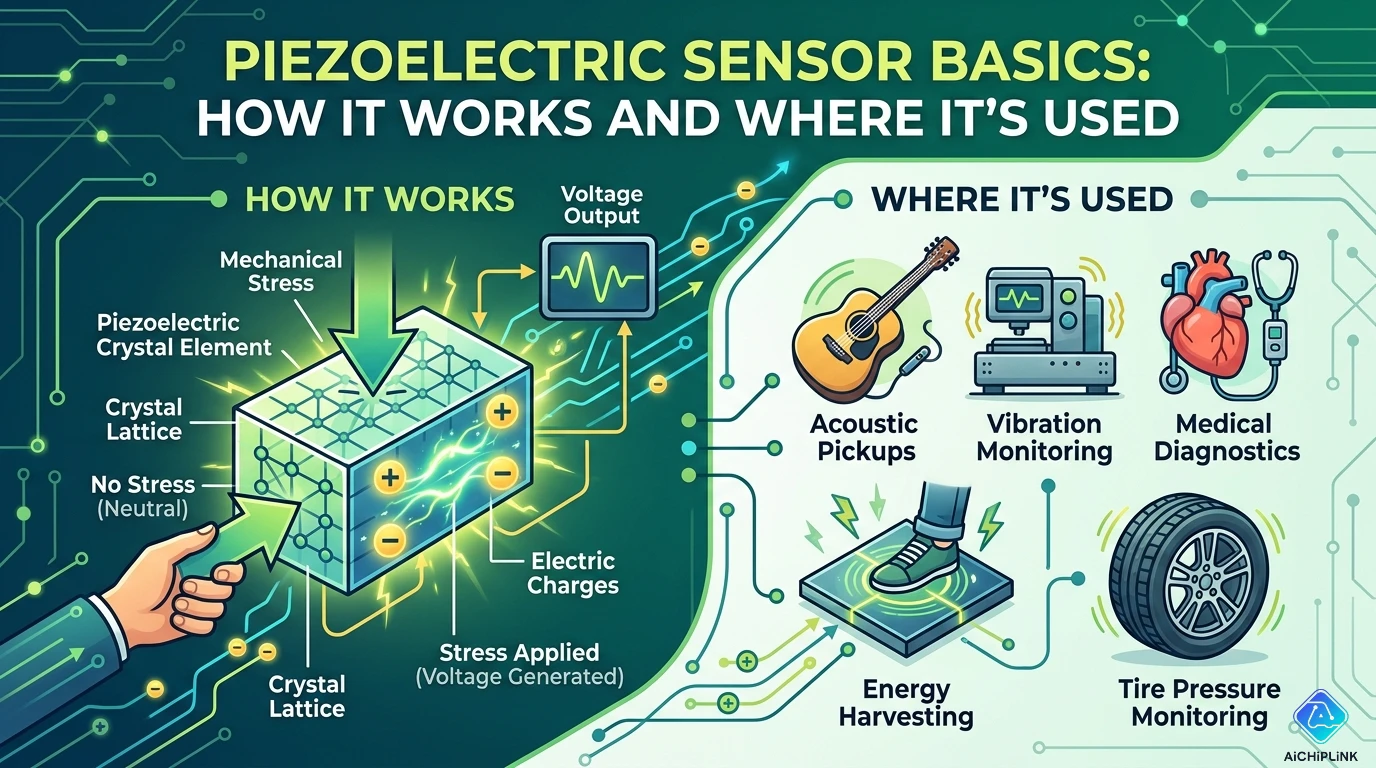

1.0 The Physics: Why Mechanical Force Produces Electrical Charge

Piezoelectricity arises from the crystal structure of certain materials. In a material that exhibits the piezoelectric effect, the unit cell of the crystal lattice has a non-centrosymmetric structure — meaning the arrangement of positive and negative ions within the cell is asymmetric. In quartz, for example, the silicon and oxygen ions are arranged in a structure that has no center of symmetry.

At rest, the electric dipoles cancel:

In the unstressed state, the electric dipole moments of adjacent unit cells are oriented so that they cancel each other — the net electric polarization of the material is zero (or, in poled piezoelectric ceramics, has a stable non-zero net polarization in the poling direction, but no external charge is visible because surface charges are compensated by free charge carriers).

Under mechanical stress, the dipoles shift:

When the material is compressed, stretched, sheared, or bent, the crystal lattice deforms. This deformation shifts the relative positions of the positive and negative ions within each unit cell. In a non-centrosymmetric structure, these shifts are not symmetric — the positive charge center and the negative charge center move apart from each other by different amounts. The result is a net electric dipole moment across the unit cell.

When this happens coherently across billions of unit cells in the material (as it does when the macroscopic crystal is stressed), the net effect is a macroscopic electric polarization — one face of the material acquires a positive surface charge and the opposite face acquires a negative surface charge. If electrodes are placed on these faces and connected through an external circuit, current flows — charge has been generated by the mechanical stress.

This is the direct piezoelectric effect, first demonstrated in quartz by Jacques and Pierre Curie in 1880.

The converse effect:

By the principle of thermodynamic reciprocity (or equivalently, from the linearity of the constitutive equations that describe the material), if stress produces polarization, then applied electric field must produce strain. Applying a voltage between the electrodes creates an electric field in the material, which shifts the ion positions within unit cells, producing a net mechanical strain. This is the converse piezoelectric effect: electricity produces deformation.

Both effects are described by the same set of piezoelectric coefficients (d-matrix), which connect the mechanical and electrical variables in both directions.

---

2.0 The Math: Charge Sensitivity, Voltage Sensitivity, and the Capacitance Relationship

The key design parameters for a piezoelectric sensor are its charge sensitivity and its electrical behavior as a capacitor.

Charge sensitivity (d-coefficient):

The charge generated by a piezoelectric element under a mechanical force is:

Q = d × F

Where:

• Q = generated charge (Coulombs)
• d = piezoelectric charge coefficient (C/N or, equivalently, m/V for the converse effect — note the same coefficient applies in both directions)
• F = applied force (Newtons)

For PZT (lead zirconate titanate, the most common synthetic piezoelectric ceramic):

• d₃₃ (compression along the poling axis) ≈ 150–600 × 10⁻¹² C/N (150–600 pC/N)

For quartz:

• d₁₁ ≈ 2.3 × 10⁻¹² C/N (2.3 pC/N) — much lower than PZT

For PVDF (polyvinylidene fluoride, a piezoelectric polymer):

• d₃₁ ≈ 20–30 × 10⁻¹² C/N — lower than PZT but flexible

Worked example — PZT accelerometer:

A PZT accelerometer with a seismic mass of 10 grams (0.01 kg) and d₃₃ = 200 pC/N. Under 1g (9.81 m/s²) acceleration:

Force on the PZT = mass × acceleration = 0.01 kg × 9.81 m/s² = 0.0981 N

Charge generated = d × F = 200 × 10⁻¹² × 0.0981 = 19.6 pC

Voltage sensitivity and the capacitor model:

A piezoelectric element behaves electrically as a charge source in parallel with a capacitor. The element has an intrinsic capacitance C_piezo determined by its geometry (area A, thickness t) and relative permittivity ε_r:

C_piezo = ε₀ × ε_r × A / t

For PZT with ε_r ≈ 1,000–3,000, a typical 10mm × 10mm × 1mm element: C ≈ 8.85×10⁻¹² × 1500 × (10⁻²)² / 10⁻³ ≈ 1.33 nF

The open-circuit voltage across this capacitor from the 19.6 pC charge: V = Q / C = 19.6 × 10⁻¹² / 1.33 × 10⁻⁹ = 14.7 mV

This 14.7 mV is the maximum open-circuit voltage — but this voltage depends entirely on having no charge leak away. Any input resistance across the sensor (from the amplifier input impedance, cable insulation resistance, or connector leakage) will discharge the capacitor, causing the output to decay over time. This is the core reason piezoelectric sensors require special signal conditioning.

The low-frequency cutoff problem:

The charge Q on the piezoelectric capacitor C, driving through a load resistance R, forms an RC high-pass filter with cutoff frequency:

f_cutoff = 1 / (2π × R × C)

For the example above with R = 1 MΩ (a typical oscilloscope input) and C = 1.33 nF: f_cutoff = 1 / (2π × 10⁶ × 1.33 × 10⁻⁹) = 120 Hz

A 120 Hz cutoff means the sensor cannot measure forces or accelerations with frequency components below 120 Hz. For low-frequency vibration or quasi-static force measurement, this is completely inadequate. This is why high-impedance charge amplifiers (with input impedances > 10⁹ Ω) are required for low-frequency piezoelectric applications — they push the cutoff frequency down to < 1 Hz.

---

3.0 Piezoelectric Materials: Quartz, PZT, and PVDF

Quartz (SiO₂) — natural and synthetic:

Quartz is the original piezoelectric material, historically significant and still important for precision applications. Its primary advantage is extremely low drift — the piezoelectric coefficient is highly stable with temperature and time. This makes quartz the material of choice for precision force sensors, pressure gauges, and reference frequency standards (quartz oscillators). Its disadvantage is low charge sensitivity (d ≈ 2.3 pC/N) compared to PZT, requiring more sensitive signal conditioning.

PZT (Lead Zirconate Titanate, Pb[Zr_xTi_{1-x}]O₃):

PZT is a synthetic piezoelectric ceramic that dominates industrial applications because of its high charge sensitivity (150–600 pC/N, 100× quartz) and its ability to be manufactured in arbitrary shapes. PZT must be "poled" — heated above its Curie temperature and cooled in a strong electric field — to align the ferroelectric domains and establish a net polarization. If a PZT sensor is heated above its Curie temperature (typically 150–350°C depending on composition), it loses its polarization permanently. PZT contains lead, which makes it subject to RoHS environmental regulations, driving research into lead-free alternatives (BaTiO₃, KNN, and others).

PVDF (Polyvinylidene Fluoride):

PVDF is a semi-crystalline polymer that exhibits piezoelectricity through a different mechanism (the β-crystal phase with aligned dipoles). Its advantage is mechanical flexibility — PVDF film can be bent, stretched, and conformed to curved surfaces, enabling applications where rigid ceramics would fracture. PVDF has lower sensitivity than PZT but is suitable for impact detection, vibration sensing on flexible structures, hydrophones, and wearable sensors. Its wide-frequency response (from sub-Hz to hundreds of MHz) makes it useful for shock and ultrasound measurements.

---

4.0 Real Circuit Application: Signal Conditioning for a Piezoelectric Sensor

Why a voltage amplifier does not work:

Connecting a piezoelectric sensor directly to a standard operational amplifier's input (with its typical 10 kΩ to 1 MΩ input resistance) creates the RC high-pass filter described in Section 2 — resulting in a low-frequency cutoff that may be in the hundreds of Hz range, making the sensor useless for anything below that frequency. More critically, the measurement becomes dependent on cable capacitance: the voltage across the sensor is Q / (C_sensor + C_cable). Adding a 1-meter cable with 100 pF capacitance to a 1 nF sensor changes the sensitivity by 10%.

The charge amplifier — the correct solution:

A charge amplifier uses an op-amp with a feedback capacitor C_f rather than a feedback resistor:

             ┌──── C_f ────┐
             │              │
Piezo ──────┤ (−)          │
             │   Op-Amp    ├──── V_out
             ├ (+)          │
             │              │
            GND            GND

In a charge amplifier:

• The op-amp's virtual ground at the inverting input keeps the sensor terminal at zero volts
• All charge generated by the sensor flows into the feedback capacitor C_f
• Output voltage: V_out = −Q / C_f
• The sensitivity (V/N) = d / C_f

Key advantages:

1. Cable capacitance does not affect sensitivity (the virtual ground absorbs it)
2. Low-frequency cutoff is set by the feedback resistance R_f in parallel with C_f: f_low = 1 / (2π × R_f × C_f), selectable independently of the sensor
3. The output is calibrated: measuring V_out and knowing C_f and d gives the absolute force

Typical charge amplifier design values:

For an accelerometer with d = 50 pC/N targeting 1 mV/g sensitivity at 1g = 9.81 m/s² with 10g seismic mass:

• Charge per g = 50 × 10⁻¹² × 0.01 × 9.81 = 4.9 pC/g
• Required C_f = Q/V_out = 4.9 × 10⁻¹² / 1 × 10⁻³ = 4.9 nF ≈ use 4.7 nF standard value
• For 0.1 Hz low-frequency cutoff: R_f = 1 / (2π × 0.1 × 4.7×10⁻⁹) = 339 MΩ — requires a high-quality leakage-low resistor, often implemented with a JFET or MOSFET reset circuit

IEPE (Integrated Electronics Piezo-Electric):

For applications where long cables are needed (industrial vibration monitoring, aircraft testing), the signal conditioning is integrated into the sensor housing. IEPE sensors (also called ICP — Integrated Circuit Piezoelectric — in PCB Piezotronics' terminology) include a miniature charge amplifier and a constant-current power supply line. The signal rides on a DC bias voltage (typically 8–14V) over a 2-wire coaxial cable, eliminating the high-impedance cable sensitivity problem.

---

5.0 Five Misconceptions About Piezoelectric Sensors

Misconception 1: "Piezoelectric sensors can measure static (DC) forces"

A piezoelectric sensor generates charge in response to a change in force. At constant force, the charge leaks away through finite insulation resistance and the sensor output returns to zero — even with the force still applied. Piezoelectric sensors are fundamentally AC-coupled: they respond to force changes, not absolute force levels. For static force measurement, strain gauges (resistive bridge) or capacitive sensors are appropriate. Piezoelectric sensors excel at dynamic measurements: impact, vibration, acoustic pressure, and acceleration.

Misconception 2: "The voltage output of a piezoelectric sensor represents the measured quantity directly"

The open-circuit voltage is Q/C, where C is the total capacitance (sensor + cable + amplifier input). Adding or changing the cable changes C and therefore changes the sensitivity — the same force produces a different voltage. This is why charge amplifiers are used: they remove the cable capacitance dependence. A voltage amplifier reading from a piezoelectric sensor produces a reading that depends on the cable, the amplifier's input capacitance, and any connector leakage — all of which can change with temperature, mechanical disturbance, or connector corrosion.

Misconception 3: "PZT and quartz are interchangeable — they are both 'piezo crystals'"

PZT is a polycrystalline ceramic, not a single crystal. Quartz is a single crystal. Their piezoelectric mechanisms, temperature behavior, and applications are different. Quartz has extremely low drift (essential for force metrology and crystal oscillators) but low sensitivity. PZT has high sensitivity but moderate drift and fails above its Curie temperature. Using PZT where quartz's temperature stability is needed (force calibration, precision timing) produces incorrect results. Using quartz where PZT's sensitivity is needed (consumer microphones, industrial vibration sensors) produces inadequate signal levels.

Misconception 4: "A piezoelectric sensor connected to an Arduino analog input measures vibration directly"

This setup is widely shown in beginner tutorials and produces a signal that correlates with vibration — but the measurement is poorly characterized. The Arduino's analog input has approximately 100 kΩ to 10 MΩ input impedance, creating a high-pass filter with the piezoelectric capacitance that cuts off at potentially hundreds of Hz. The output is in volts-per-charge (V/Q) but Q depends on cable capacitance and input capacitance. The measurement is repeatable in a controlled setup but is not calibrated to any physical unit and changes with cable length and temperature. For educational and hobby applications this is fine; for engineering measurement, a charge amplifier or IEPE signal conditioner is required.

Misconception 5: "Piezoelectric generators can power IoT devices from ambient vibration"

Piezoelectric energy harvesting from vibration is an active research area, but the power levels achievable from typical ambient vibration sources are small — typically 1–100 µW per cm² of piezoelectric material in typical vibration environments. A small IoT sensor transmitting once per hour might consume 10–50 µJ per transmission; if the energy harvester produces 10 µW continuously, that is 36 mJ per hour — sufficient. But the harvester must be resonant at the vibration frequency, the vibration source must be consistent in frequency and amplitude, and the power management circuit consumes some of the harvested energy. Piezoelectric energy harvesting is practical in narrow, well-characterized environments; it is not a general solution for powering arbitrary IoT devices from typical office or outdoor vibration.

---

6.0 Where Piezoelectric Sensors Are Used

Accelerometers and vibration sensors:

The largest application of piezoelectric sensors. A seismic mass sits on a piezoelectric element; acceleration causes the mass to exert force on the element proportional to mass × acceleration. Piezoelectric accelerometers are used in structural health monitoring, machinery condition monitoring (detecting bearing wear, imbalance, misalignment), automotive crash testing, seismology, and aerospace. They respond from sub-Hz (with charge amplifier) to tens of kHz, covering most vibration frequencies of practical interest.

Pressure and force sensors:

Piezoelectric pressure sensors measure dynamic pressure — combustion pressure in engines (cylinder pressure for diesel/gasoline engine analysis), blast pressure in ballistics testing, hydraulic system transients. They cannot measure static pressure (as discussed above). Piezoelectric force sensors measure impact forces, cutting forces in machining, and assembly forces in manufacturing.

Ultrasonic transducers:

The converse effect drives ultrasonic applications: applying a high-frequency AC voltage to a PZT element drives it at ultrasonic frequencies (20 kHz to hundreds of MHz), generating acoustic waves. The same element (or a companion element) detects the returning echo — using the direct effect. Applications: medical ultrasound imaging (B-mode, Doppler), non-destructive testing (flaw detection in metal parts), sonar, parking sensors, flow measurement (clamp-on ultrasonic flowmeters), cleaning baths (ultrasonic cleaners).

Microphones (MEMS piezoelectric):

MEMS piezoelectric microphones use a thin piezoelectric membrane (typically AlN — aluminum nitride — in MEMS processes, or PZT for higher sensitivity) suspended over a cavity. Sound pressure deflects the membrane, generating charge from the piezoelectric layer. MEMS piezoelectric microphones have advantages over MEMS capacitive microphones in robustness and power consumption for always-on wake-word detection in consumer electronics.

Inkjet printing:

Piezoelectric inkjet print heads use the converse effect: voltage pulses deform a PZT actuator, pressurizing an ink chamber and ejecting a droplet with precisely controlled volume. Most industrial inkjet and high-quality consumer inkjet printers use piezoelectric heads (as opposed to thermal inkjet which uses a heating element to vaporize ink).

Precision positioning and actuators:

Piezoelectric stacks (multiple PZT elements bonded in series) achieve nanometer-precision displacement control for scanning tunneling microscopes, atomic force microscopes (AFMs), optical fiber alignment, hard disk drive read-write head positioning, and lithography stages. The converse effect's sub-nanometer resolution and fast response time (microseconds) make PZT actuators irreplaceable in these precision positioning applications.

---

7.0 Real Questions from Engineers and Designers

Q: I am trying to use a piezoelectric disc (from a buzzer) as a knock sensor on a door. I connect it to an Arduino analog pin. The reading fluctuates even without any vibration. Why?

A: Several causes are likely, and most relate to the high-impedance nature of the piezoelectric output. First, the piezoelectric disc is acting as an antenna — any electric field variation near it (power lines, fluorescent lights, other circuit switching) induces charge on its high-impedance output. Add a 1 MΩ resistor from the disc output to ground; this limits the high-frequency noise while keeping sufficient impedance for low-frequency signals. Second, the Arduino's analog input has a sample-and-hold capacitor that briefly connects to the source during sampling; if the piezoelectric's output impedance is high, the sampler partially discharges the signal during sampling (input loading error). Third, thermal noise on the high-impedance node contributes voltage noise proportional to √(4kTRΔf). For low-noise knock detection, add a simple comparator circuit (LM393 or similar) with a threshold voltage; compare the piezoelectric output (through a 1 MΩ bleed resistor) to a reference and detect the threshold crossing for impact detection, rather than trying to digitize the analog level directly.

Q: Why do piezoelectric accelerometers cost hundreds of dollars while MEMS accelerometers cost a dollar? What is the practical difference in a vibration monitoring application?

A: The cost difference reflects very different manufacturing processes and performance targets. A MEMS accelerometer (ADXL345, MPU-6050, etc.) is fabricated in CMOS-compatible silicon processes at wafer scale — the manufacturing cost per device is cents. It measures DC and AC acceleration with moderate noise floor (typically 100–200 µg/√Hz) and operates from approximately 0 Hz to 1–5 kHz. A precision piezoelectric accelerometer (PCB Piezotronics 352C33, Kistler 8762, etc.) uses a precision machined PZT crystal with a precision seismic mass, assembled in a sealed stainless-steel housing, individually calibrated, and supplied with a traceable calibration certificate. Its noise floor is typically 0.0001–0.001 g/√Hz (100–1,000× lower than MEMS), its frequency range extends to 10–50 kHz, and it maintains calibrated accuracy over a temperature range of −50°C to +120°C. For machinery condition monitoring where bearing defect frequencies are in the 5–20 kHz range and fault signatures are 0.01 g amplitude above a 2 g vibration background, the MEMS sensor's noise floor is too high to detect the fault. For a general-purpose vibration logging application detecting large structural resonances at 10–100 Hz with amplitudes above 0.1 g, a MEMS accelerometer is entirely adequate and the cost difference is not justified.

Q: Can a piezoelectric sensor measure temperature?

A: Not directly — but piezoelectric properties change with temperature, and this is a source of calibration drift rather than a useful measurement. PZT's piezoelectric coefficient (d) decreases monotonically with temperature and falls to near zero at the Curie temperature, above which the material permanently depoles. For temperature measurement, thermocouple, RTD, or NTC thermistor sensors are appropriate. However, quartz oscillators are used as temperature sensors in precision instruments — the resonant frequency of a cut quartz crystal is a highly reproducible function of temperature, and "temperature-compensated" oscillators use a second crystal with different cut orientation to cancel the frequency-temperature dependence. This is fundamentally different from using the piezoelectric charge output for temperature measurement; it uses the elastic/piezoelectric frequency characteristics of the crystal, not the charge generation.

---

8.0 Quick Reference Card

The Two Directions of Piezoelectricity:

Effect	Input	Output	Application
Direct	Mechanical force/strain	Electric charge/voltage	Sensor: accelerometer, microphone, force gauge
Converse	Applied voltage	Mechanical displacement	Actuator: ultrasonic transducer, inkjet head, positioner

Key Formulas:

Formula	Description
Q = d × F	Charge generated (C) from force F (N) with d-coefficient d (pC/N)
V = Q / C_total	Open-circuit voltage — depends on total capacitance (sensor + cable)
V_out = −Q / C_f	Charge amplifier output — independent of cable capacitance
f_low = 1/(2πRC)	Low-frequency cutoff of RC formed by source resistance and capacitance

Material Comparison:

Material	d coefficient	Temp limit	Form	Best for
Quartz	2.3 pC/N	573°C Curie	Rigid crystal	Precision, low drift, oscillators
PZT	150–600 pC/N	150–350°C	Rigid ceramic	High sensitivity, industrial
PVDF	20–30 pC/N	~100°C	Flexible film	Impact, wearable, hydrophone

Why Charge Amplifier, Not Voltage Amplifier:

Voltage amplifier: output = Q / (C_sensor + C_cable) — cable-dependent, high-pass limited

Charge amplifier: output = Q / C_f — cable-independent, low-frequency adjustable

Cannot Measure (Fundamental Limitation):

• Static (DC) force or pressure — charge leaks away at constant stress
• Absolute temperature (though frequency characteristics change with temp)
• Very slow changes (below the RC high-pass cutoff of the signal chain)

Key Applications: Accelerometers and vibration monitoring → machinery health, structural testing Ultrasonic transducers → medical imaging, NDT, sonar, cleaning, flow measurement Pressure sensors → engine combustion, blast testing, hydraulic transients Precision actuators → AFM/STM, inkjet heads, nanopositioning MEMS microphones → consumer electronics, hearing aids, industrial audio
