A photoresistor is also called a light dependent resistor. It changes its resistance when light hits it. You can use this part to control electricity in a circuit. The amount of light affects how much electricity flows. Photoresistors use special semiconductor materials. These materials lower their resistance when there is more light. Many electronics projects use photoresistors. They help you sense and react to light easily.
Photoresistors do not have a P-N junction like photodiodes. You find them as passive parts in simple circuits.

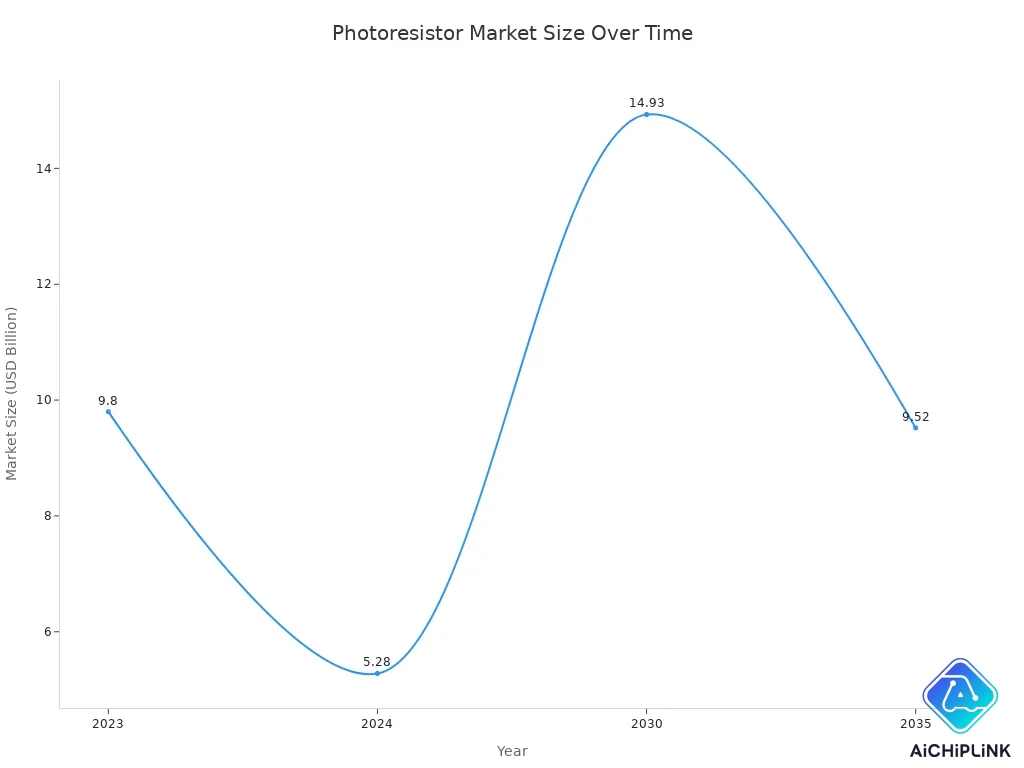

| Year | Market Size (USD) | CAGR (%) |
|---|---|---|
| 2023 | 9.80 Billion | N/A |
| 2030 | 14.93 Billion | 6.2 |
| 2024 | 5.28 Billion | N/A |
| 2035 | 9.52 Billion | 5.50 |
Learning Photoresistor Basics will help you. You can build your own light-sensitive devices.
Key Takeaways
-
Photoresistors are also called light dependent resistors. They change how much they resist electricity when light shines on them. You can use them in easy circuits. They help control electricity with light.
-
There are two main types of photoresistors. These are intrinsic and extrinsic. Use extrinsic types when you need to sense low light. Use intrinsic types in places where you can control the environment.
-
Sensitivity and response time are important features of photoresistors. Pick a sensor by thinking about how fast it needs to react to light changes.
-
Photoresistors do not cost much and are simple to use. This makes them great for DIY projects like automatic lights and alarms.
-
Think about the environment when picking photoresistors. Some materials, like cadmium, can hurt nature. Try to choose safer options if you can.
Photoresistor Basics
Light Dependent Resistor Definition
When you learn about photoresistors, you hear "light dependent resistor" a lot. An LDR is a resistor that changes how much it resists electricity when light hits it. LDRs are used in many easy electronic circuits. If you shine light on an LDR, its resistance goes down. If it is dark, the resistance goes up a lot.
Here is a table that shows the main things about a light dependent resistor:
| Property | Description |
|---|---|
| Composition | Made from photoconductive materials that change conductivity with light. |
| Working Principle | Operates on photoconductivity; resistance decreases with light exposure. |
| Behavior in Darkness | High resistance (megaohms range). |
| Behavior in Light | Low resistance (a few hundred ohms or less). |
| Key Characteristics | Passive component, highly sensitive to visible light. |
LDRs are simple, work well, and do not cost much. You can add them to your projects if you want to sense light. You see LDRs in things like night lights that turn on by themselves and in alarm systems.
Tip: If you want to make a circuit that senses light, try using an LDR. It is easy to use and easy to learn about.
How Photoresistors Work
When you look at photoresistors, you see how they react to light. A photoresistor has a material that changes its resistance when light shines on it. In the dark, the resistance is very high. When there is light, the resistance drops fast.
A photoresistor acts like a gate for electricity. In darkness, the gate is closed, so not much electricity moves. When there is light, the gate opens, and more electricity flows. This makes photoresistors good for jobs where you need to sense light.
Here are some important things about how photoresistors work:
-
You do not need to add voltage to change the resistance. Only light changes it.
-
You can use photoresistors in circuits that turn on or off when light changes.
-
Photoresistors are used in street lights to help them turn on at night.
Let’s look at how photoresistors compare to other light sensors:
| Features | Photoresistor | Phototransistor |
|---|---|---|
| Responsive to light | Less | More |
| Maximum Resistance in darkness | Lower | Higher |
| Minimum resistance in bright light | Higher | Lower |
| Current carrying capacity | Higher (Twice) | Lower |
| Directional | No | Yes |
| Temperature dependent | More variation | Less variation |
| Resistance change with applied voltage | No change | Varies with voltage |
| Cost | More | Less |
Photoresistors are not as sensitive as phototransistors, but they can carry more current and cost less. You use photoresistors when you do not need a fast response, like in street lights or alarms. Photodiodes are better for things that need to react quickly, like solar panels or sending signals with light.
Note: Learning about photoresistors helps you pick the right sensor for your project. If you want something strong and cheap, use a photoresistor. If you need something fast, use a photodiode.
Now you know what a photoresistor is and how it works. You can use this to make simple devices that sense light and learn even more about photoresistors later.
Working Principle
Internal Photoelectric Effect
To understand how a photoresistor works, look inside it. When you shine light on an ldr, the light gives energy to the semiconductor inside. This is called the internal photoelectric effect. Photoresistors are made with materials like cadmium sulfide or cadmium selenide. These materials react to light in a special way.
When light hits the ldr, it makes electron-hole pairs in the semiconductor. These pairs help carry extra charge. This makes the ldr conduct electricity better. The resistance drops because more electrons can move. If you take away the light, the electron-hole pairs go away. The resistance goes back up again. This is the main idea of how an ldr works.
Tip: The way an ldr is built makes it sensitive to different colors of light. You can pick the right material for your project by the type of light you want to sense.
Resistance and Light Intensity
A photoresistor’s resistance changes with the amount of light it gets. When the light gets brighter, the resistance goes down. This happens because the light energy moves electrons to the conduction band. More electrons in the conduction band means better conductivity and lower resistance.
Here is what you should know about resistance and light:
-
The resistance of an ldr goes down when light gets stronger.
-
This is an inverse relationship. Less light means higher resistance.
-
The ldr reacts quickly to changes in light.
Photodiodes and ldrs react to light in different ways. A photodiode is faster and more sensitive. An ldr can handle more current and is easier to use in simple circuits. An ldr is also simpler to build than a photodiode. If you compare them, ldrs are better for projects where speed is not important.
Note: If you want to make a light-sensitive switch, you can use a photoresistor. Its simple design makes it easy to add to your circuit.
How a photoresistor works depends on its material and how it is built. You can use this to choose the best sensor for your project. Remember, the main difference between a photodiode and an ldr is speed, sensitivity, and how they are made.
Types of Photoresistors
When you learn about photoresistors, you find many types. Each type reacts to light in its own way. Knowing how they work helps you pick the right one for your project.
Types of LDR
There are two main types of ldr you will see. These are intrinsic and extrinsic. The type depends on how the ldr is made and how it reacts to light.
-
Intrinsic Type LDR: This type uses pure semiconductors like silicon or germanium. When light shines on it, electrons move and let electricity flow. You need strong light to get a big reaction from this type.
-
Extrinsic Type LDR: This type has extra materials added to the semiconductor. These extras make the ldr more sensitive to light. It can sense lower light, like infrared. You use extrinsic ldrs when you need to detect small amounts of light.
You can find ldrs in many devices. Intrinsic types are good for places where light is controlled. Extrinsic types work well in dark places, like night lights or lamps that turn on with movement.
Tip: If you want a sensor for a dark room, use an extrinsic ldr. It can notice even tiny changes in light.
Material-Based Types
The material inside a photoresistor changes how it works. Different materials are used for different jobs.
| Type | Material Composition | Sensitivity Level | Applications |
|---|---|---|---|
| Intrinsic | Pure semiconductors (silicon, germanium) | Needs brighter light | Controlled sensing environments |
| Extrinsic | Doped with materials (CdS, CdSe) | More sensitive, detects lower light | Night lights, motion-activated lamps, low-light detection systems |
There are also other types of photoresistors based on what they are made of:
| Type | Characteristics | Applications |
|---|---|---|
| Cadmium Sulfide (CdS) | Made from cadmium sulfide crystals; big resistance change with light. | Automatic lighting systems, camera light meters, outdoor lighting controls. |
| Organic LDR | Made from organic materials; flexible and lightweight. | Wearable technology, flexible electronics. |
You see cadmium sulfide ldrs in street lights and cameras. Organic ldrs are new and let you make flexible things, like smart clothes or bendy sensors.
Science keeps making better materials for photoresistors. New ones are more sensitive and last longer. Now, you can use photoresistors in smart networks and wearable gadgets.
Spectral Response
Photoresistors react to different kinds of light. You can pick a type that matches the light you want to sense.
-
Visible Light Photoresistors: These types sense visible light. They are made from CdS, CdSe, silicon, or germanium. Use them in things that need to sense daylight or indoor lights.
-
Ultraviolet Photoresistors: These types sense ultraviolet light. They are often made from cadmium sulfide. They work in UV detectors, like sun monitors.
-
Infrared Photoresistors: These types sense infrared light, which is heat. They are made from lead sulfide, lead selenide, or indium antimonide. Use them in heat sensors or remote controls.
You see photoresistors in many new electronics. Smart cities use them to control lights. About 65% of new lighting systems use photoresistor controls. You also find them in smart devices that use AI to change light levels.
Note: If you want to sense a certain kind of light, check the spectral response. Pick the right material and type for your project.
Now you know the main types of photoresistors. You can choose the best one by looking at the material, how sensitive it is, and what kind of light you want to sense. This helps you make better and smarter devices.
Key Characteristics
Sensitivity
You will notice that an ldr reacts strongly to changes in light. Sensitivity describes how much the resistance changes when the light level changes. If you use an ldr in bright sunlight, the resistance drops quickly. In darkness, the resistance rises sharply. This big change helps you build circuits that turn on or off based on light. For example, an automatic night light uses an ldr to sense when it gets dark. The photoresistor then triggers the light to turn on. You can also use an ldr to measure how much light is in a room. The more sensitive the ldr, the better it can detect small changes in light.
Response Time
Response time tells you how fast an ldr reacts to changes in light. Some ldrs respond in less than a second, while others take a few seconds. If you wave your hand over an ldr, you might see a small delay before the circuit reacts. This delay happens because the photoresistor needs time to adjust its resistance. Fast response is important in alarms or light meters. If you need a quick reaction, choose an ldr with a short response time. For most simple projects, a small delay does not cause problems.
Temperature Effects
Temperature can change how an ldr works. When the temperature goes up, the resistance of the ldr may drop even if the light stays the same. This means your photoresistor might act differently on a hot day than on a cold day. You should test your ldr in the place where you want to use it. If you use an ldr outside, sunlight and heat can both affect its performance. Some ldrs work better in stable indoor temperatures. Always check the datasheet for your photoresistor to see how temperature might change its behavior.
Tip: If you want your circuit to work well in all seasons, pick an ldr that handles temperature changes.
| Characteristic | What It Means | Why It Matters |
|---|---|---|
| Sensitivity | How much resistance changes with light | Helps detect small light changes |
| Response Time | How fast it reacts to light changes | Needed for quick circuits |
| Temperature Effect | How heat or cold changes resistance | Important for outdoor use |
You can use these key characteristics to choose the best ldr for your project. A photoresistor gives you a simple way to sense light, but you should always think about how it will react to light, speed, and temperature.
Applications
Uses in Electronics
Photoresistors are found in lots of electronic devices. These sensors help measure how bright the light is. They also help control circuits using light levels. When you use light sensors, your devices can work smarter. They can also save more energy. Here are some common ways ldrs are used in electronics:
-
Security systems use photoresistors to turn lights on and off. The lights come on when it gets dark or someone moves close.
-
Infrared sensors can spot people or animals. They help keep places safe by turning on alarms or lights.
-
Environmental monitors use photoresistors to watch sunlight. This helps solar panels find the best angle for more energy.
-
In electronics you use every day, ambient light sensors change screen brightness. Your phone or tablet makes the screen brighter or dimmer to match the room. This saves battery and makes it easier to see.
-
Cars use photoresistors for headlights that turn on by themselves. The lights switch between high and low beams depending on how bright it is outside.
If you want to test an ldr, shine a flashlight on it and see what happens. You can also use a multimeter to check resistance in different lights.
Real-World Examples
Photoresistors work in many places you go every day. You find these sensors in street lights, museums, and homes. Here are some real-life examples:
In a museum with low light, a photoresistor sits near a painting. If the light changes because someone moves the painting, an alarm goes off. This keeps the art safe.
LDR sensors help street lights turn on at night and off in the morning. This saves energy and keeps your city safer.
In homes and offices, light sensors change indoor lights based on sunlight. This helps save electricity and keeps rooms comfortable.
If you want to test ldrs in your own project, check the wiring first. Make sure the sensor works. If the readings are strange, try adding a small capacitor to stop noise.
| Issue | Cause | Solution |
|---|---|---|
| No Change in Output Voltage | Wrong wiring or broken LDR | Check the wires and make sure the LDR is good. |
| Inconsistent Readings | Electrical noise or changing light | Add a 0.1 µF capacitor across the LDR ends. |
| Output Always High or Low | Wrong resistor in the divider | Change the resistor to fit the light in the room. |
| Slow Response | LDR’s normal response time | Use a photodiode or phototransistor for faster action. |
Photoresistors make it simple to build light detectors and switches. You can use them in many ldr projects, from night lights to solar trackers.
Advantages and Disadvantages
When you use photoresistors, you should know their good and bad sides. Knowing these helps you see if a photoresistor is right for your project.
Benefits
Photoresistors have many good points for electronics and DIY work:
-
They do not cost much, so they are good for learning.
-
You can use them easily. Just connect them to a simple circuit.
-
They help you notice changes in light. You can use them in night lights, alarms, or light meters.
-
They do not need extra power to sense light. Only light changes their resistance.
-
You can use them in many places, like schools or smart homes.
Tip: If you want to make something that reacts to light, a photoresistor is an easy choice.
Limitations
Photoresistors also have some problems you should remember:
-
They do not react fast to light changes. Sometimes there is a small delay.
-
Hot or cold weather can change how they work. The readings might be different on some days.
-
They are not as sensitive as photodiodes or phototransistors. If you need quick or exact sensing, you may need another sensor.
-
Some photoresistors use materials like cadmium. These can be bad for the environment.
| Limitation | Impact on Use |
|---|---|
| Slow response | Not good for fast switching |
| Temperature drift | Readings may change outdoors |
| Lower sensitivity | Misses small light changes |
| Material concerns | May need safe disposal |
Knowing both the good and bad sides helps you pick the best part for your project.
Choosing a Photoresistor
Think about what your project needs before you choose a photoresistor. Ask yourself these questions:
-
Do you need to sense light fast, or is slow okay?
-
Will you use it inside or outside?
-
How much light does your project need to notice?
-
Do you care about the environment and safe disposal?
If you want a cheap and simple sensor for basic light sensing, a photoresistor is a good pick. If you need something faster or more exact, try a different sensor. Always check the datasheet for things like sensitivity, speed, and temperature range.
Note: Try your photoresistor in real life to see if it works for you.
You learned what a photoresistor is and how it works. You saw the main types, key features, and common uses. You discovered the benefits and limits of using photoresistors in your projects.
-
Try building a simple light sensor to see how an LDR reacts.
-
Explore more by reading guides or watching hands-on videos.
Tip: Testing different photoresistors helps you find the best one for your needs.
