Many electronics enthusiasts face a common challenge: identifying the value of a resistor using its colored bands. A resistor color code chart or calculator helps solve this problem quickly. Correct orientation is vital; starting at the end closest to the tolerance band ensures accurate reading. Using the resistor color code lets users choose the right resistor for each circuit, improving design and repair. Reliable resistor identification prevents circuit failure, keeps filter frequencies stable, and saves time during maintenance or purchase.
-
Accurate color code reading:
-
Ensures correct resistor values in voltage dividers.
-
Maintains circuit stability and performance.
-
Reduces downtime during repairs.
-
Supports quality control and durability.
-
Key Takeaways
-
Resistor color codes use colored bands to show resistance value and tolerance, making it easy to identify resistors quickly and accurately.
-
Always start reading the resistor from the end closest to the tolerance band (usually gold or silver) to avoid mistakes.
-
Use the color code chart to match each band’s color with its number, multiplier, and tolerance for correct resistor value calculation.
-
Online resistor color code calculators simplify decoding and help prevent errors, especially for 4-band and 5-band resistors.
-
Practice reading colors carefully, use reference charts or tools, and verify values with a multimeter to ensure reliable circuit performance.
Resistor Color Code Basics
What Is a Resistor Color Code
The resistor color code is a standardized system that uses colored bands to indicate the value and tolerance of a resistor. This system was first standardized in 1952 by the International Electrotechnical Commission and later adopted by other organizations. The resistor color code scheme allows engineers and technicians to identify resistor values quickly, even on very small components where printing numbers is not practical. Each color represents a specific digit, multiplier, or tolerance value.
-
The first bands on a resistor show the significant digits of its resistance value.
-
The next band acts as a multiplier, indicating how many zeros to add.
-
The final band shows the tolerance, or how much the actual resistance may vary from the stated value.
For example, a resistor with red, violet, green, and gold bands means 27 followed by five zeros (2,700,000 ohms) with a ±5% tolerance. The resistor color code scheme makes it possible to identify resistor values at a glance, which speeds up assembly and repair work. Color bands are easy to print and read, even on the smallest resistors.
Why Use Color Codes
Resistor color coding offers several important benefits in electronics:
-
Resistor color codes provide a quick and accurate way to identify resistor values, which is essential for circuit stability and performance.
-
The system solves the problem of marking values on tiny resistors, making manufacturing and usage more efficient.
-
Standardization by groups like IEC and ISO ensures that resistors from different manufacturers remain compatible and interchangeable.
-
In signal processing, engineers use resistor color codes to select precise values for impedance matching and signal attenuation.
-
The color code chart helps decode resistance, tolerance, and temperature coefficients, which are vital for precise circuit design.
-
The use of resistor colour coding supports technological progress and miniaturization in electronics by balancing innovation with regulatory standards.
Tip: Remembering the order of colors can help prevent mistakes when reading resistor color codes. Many people use mnemonic devices to recall the sequence.
Resistor Colour Code Chart and Table
Reading the Bands
Reading resistor color code markings starts with proper orientation. The tolerance band, often gold or silver, sits at one end of the resistor and should be on the right. This band is usually spaced farther from the others. Always begin reading from the end closest to the tolerance band.
Follow these steps to decode resistor color codes:
-
Identify the tolerance band (usually gold or silver) and hold the resistor so this band is on the right.
-
Read the bands from left to right, starting at the end nearest the tolerance band.
-
For a 4-band resistor, the first two bands represent significant digits, the third band is the multiplier, and the fourth is the tolerance.
-
For 5- or 6-band resistors, the first three bands are significant digits, followed by the multiplier, tolerance, and sometimes a temperature coefficient.
Tip: The spacing between bands and their position relative to the leads helps determine the correct reading direction.
Mnemonic devices help remember the color order for decoding resistor color codes. A popular phrase is:
"Bad Boys Ring Our Young Girls But Violet Goes Willingly"
This stands for: Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Gray, White.

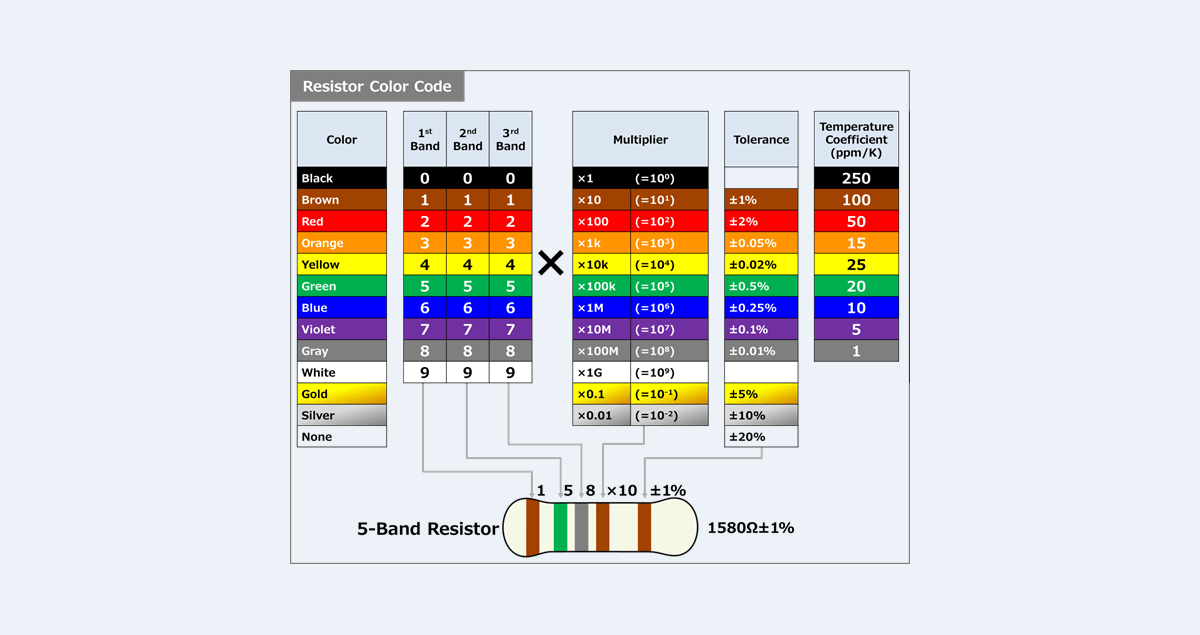

Using the Chart or Table
A resistor colour code chart or resistor color code table lists each color with its corresponding digit, multiplier, and tolerance. Use the chart to match each band’s color to its value. For example, yellow (4), violet (7), and red (×100) on a resistor give 4700 Ω. The gold band indicates a ±5% tolerance.
| Color | Digit | Multiplier | Tolerance |
|---|---|---|---|
| Black | 0 | ×1 | |
| Brown | 1 | ×10 | ±1% |
| Red | 2 | ×100 | ±2% |
| Orange | 3 | ×1,000 | |
| Yellow | 4 | ×10,000 | |
| Green | 5 | ×100,000 | ±0.5% |
| Blue | 6 | ×1,000,000 | ±0.25% |
| Violet | 7 | ×10,000,000 | ±0.1% |
| Gray | 8 | ×100,000,000 | ±0.05% |
| White | 9 | ×1,000,000,000 | |
| Gold | ×0.1 | ±5% | |
| Silver | ×0.01 | ±10% |
When using a resistor colour code table, always double-check the orientation and color sequence. This process ensures accurate identification of resistor values and supports reliable circuit design. Resistor colour code markings provide a universal method for identifying resistor values, making the resistor color code essential for electronics work.
Resistor Color Code Calculation Steps
Understanding how to perform a resistor color code calculation helps students and hobbyists decode resistor values quickly and accurately. This process involves three main steps: identifying significant digits, applying the multiplier, and determining tolerance. Each step builds on the previous one, leading to the final resistance value and its allowable variation.
Identifying Significant Digits
The first step in calculating resistance based on color codes is to identify the significant digits. On a 4-band resistor, the first two bands represent these digits. Each color corresponds to a number from 0 to 9. For example, brown stands for 1, red for 2, and so on. The table below shows how to extract significant digits from common resistor codes:
| Resistor Code | Calculation | Resistance Value |
|---|---|---|
| 450 | 45 × 10^0 | 45 Ω |
| 273 | 27 × 10^3 | 27,000 Ω (27 kΩ) |
| 7992 | 799 × 10^2 | 79,900 Ω (79.9 kΩ) |
| 1733 | 173 × 10^3 | 173,000 Ω (173 kΩ) |
In each case, the first two or three digits come directly from the color bands. For example, a resistor with yellow and violet as the first two bands gives the digits 4 and 7.
Tip: Always read the bands from the end closest to the tolerance band to avoid mistakes in identifying the significant digits.
Applying the Multiplier
After finding the significant digits, the next band represents the multiplier. This band tells how many zeros to add or what factor to multiply the digits by. The multiplier can increase or decrease the resistance value, depending on the color. The following table links common letter codes and colors to their multipliers:
| Color/Letter | Multiplier |
|---|---|
| Black/Z | 1/0.001 |
| Brown/Y or R | 10/0.01 |
| Red/X or S | 100/0.1 |
| Orange/A | 1,000/1 |
| Yellow/B or H | 10,000/10 |
| Green/C | 100,000/100 |
| Blue/D | 1,000,000/1,000 |
| Violet/E | 10,000,000/10,000 |
| Grey/F | 100,000,000/100,000 |
| White | 1,000,000,000 |
| Gold | 0.1 |
| Silver | 0.01 |
For example, if the third band is orange, multiply the significant digits by 1,000. If the band is gold, multiply by 0.1. This step is essential for accurate resistor color code calculation.
Determining Tolerance
The last band on the resistor indicates the resistor tolerance. This value shows how much the actual resistance can vary from the stated value. Tolerance is important for circuits that require precise resistor values. The table below lists common tolerance colors and their meanings:
| Color | Tolerance (%) |
|---|---|
| Brown | 1 |
| Red | 2 |
| Green | 0.5 |
| Blue | 0.25 |
| Violet | 0.1 |
| Grey | 0.05 |
| Gold | 5 |
| Silver | 10 |
| None | 20 |
Some calculation examples help clarify how to determine resistor tolerance:
-
Yellow-Violet-Orange-Gold: 47,000 Ω with ±5% tolerance.
-
Green-Red-Gold-Silver: 5.2 Ω with ±10% tolerance.
-
White-Violet-Black: 97 Ω with ±20% tolerance (no tolerance band).
Note: The absence of a tolerance band means the resistor has a 20% tolerance.
Sample Calculation for a 4-Band Resistor
Consider a resistor with the following color bands: Red, Violet, Yellow, Gold.
-
Identify significant digits: Red (2), Violet (7) → 27
-
Apply the multiplier: Yellow (10,000) → 27 × 10,000 = 270,000 Ω (270 kΩ)
-
Determine tolerance: Gold → ±5%
The final resistor value is 270 kΩ with a ±5% tolerance.
The resistor color code calculation process ensures accurate identification of resistor values for any electronics project. This method supports both series and parallel resistor combinations. In series, add the resistor values directly. In parallel, use the reciprocal sum formula to find the total resistance, which will always be less than the smallest resistor in the group. These principles help students and engineers design reliable circuits.
The E-series resistor values, such as E6, E12, and E24, use a logarithmic scale to provide a constant ratio between consecutive values. This system ensures that standard resistor colour code values match manufacturing and design needs.
Resistor Color Code Calculator Guide
Finding a Calculator
Many electronics learners and professionals use online tools to decode resistor values quickly. Experts recognize the importance of accurate color band reading, so they recommend several reliable calculators. Some trusted options include:
-
Other reputable calculators are available on electronics hobbyist websites and educational platforms.
These tools help users avoid manual errors and save time during resistor identification.
Entering Band Colors
A resistor color code calculator allows users to select the color of each band from a dropdown menu or color palette. The calculator then converts these colors into numerical values and applies the correct multiplier and tolerance. For a 4-band resistor, the process usually follows these steps:
-
Select the first band color (for example, Brown for digit 1).
-
Choose the second band color (Black for digit 0).
-
Pick the third band color as the multiplier (Red for ×100).
-
Set the fourth band color for tolerance (Gold for ±5%).
The calculator instantly displays the resistance value and tolerance. This method works for both 4-band and 5-band resistors.
Interpreting Results
After entering the band colors, the calculator provides the resistance value and tolerance. For example, entering Brown, Black, Red, and Gold gives a result of 1,000 Ω (1 kΩ) with ±5% tolerance. This means the resistor can vary between 950 Ω and 1,050 Ω.
A 5-band resistor example can be shown in the table below:
| Band Position | Color | Meaning | Value |
|---|---|---|---|
| 1st Band | Brown | 1st significant digit | 1 |
| 2nd Band | Black | 2nd significant digit | 0 |
| 3rd Band | Orange | 3rd significant digit | 3 |
| 4th Band | Red | Multiplier | ×100 |
| 5th Band | Yellow | Tolerance | ±5% |
Calculation: (1 . 0 . 3) × 100 = 10,300 Ω (10.3 kΩ) with ±5% tolerance.
A resistor color code calculator simplifies the process of finding resistor values, making it easier for students and engineers to select the correct resistor for any circuit.
Tips and Common Mistakes
Distinguishing Similar Colors
Many students find it difficult to tell apart certain colors on a resistor, especially under poor lighting or with faded bands. Regular practice helps improve color recognition. Some people use optical aids, such as notch filter glasses, to reduce confusion between similar hues. Reference charts that link color codes to their values can help users double-check their readings. These charts often include the E12 or E24 series, which show standard resistor values. Colorblind individuals may benefit from using grayscale charts or digital tools that do not rely on color. Digital multimeters or electronic testers provide another way to verify resistor values without depending on color bands.
-
Practice color identification to build confidence.
-
Use optical aids to filter out overlapping colors.
-
Keep a reference chart nearby for quick cross-checking.
-
For colorblind users, rely on grayscale or digital testers.
-
Use a digital multimeter to confirm the resistor value.
Note: Color perception can change with lighting and background. Training and the right tools help reduce errors.
Avoiding Reading Errors
Reading errors often occur when users misidentify the orientation of the resistor or confuse similar colors. Always start reading from the end closest to the tolerance band, which is usually gold or silver. Double-check the band order before making a calculation. Many people make common mistakes in resistor color code calculation by reading the bands in reverse or skipping a band. Using a digital multimeter to verify the resistance value can prevent costly errors in circuit design.
| Mistake Type | How to Avoid |
|---|---|
| Reading from wrong end | Start at the tolerance band |
| Confusing similar colors | Use reference charts or optical aids |
| Skipping a band | Count bands carefully |
| Relying only on eyesight | Confirm with a digital multimeter |
Electronic gadgets, such as network cable testers, can also help identify components without relying on color. Understanding that color perception has psychological factors can encourage users to train their eyes and use available aids. Careful attention to these tips helps ensure accurate resistor identification and reliable circuit performance.
Accurate use of resistor color code charts and calculators helps users select the correct resistor for each project. This skill prevents damage to components by controlling current flow and supports reliable circuit operation. Students can build confidence by practicing with real resistors and checking their answers with calculators.
Mastering resistor color codes gives every electronics enthusiast the power to design and repair circuits with greater precision and safety. Keep learning, and each project will become easier and more rewarding.
FAQ
How can someone tell which end of a resistor to start reading?
The tolerance band, usually gold or silver, sits farther from the other bands. Always start reading from the end closest to this band. This method ensures accurate identification of the resistor value.
What should a person do if the resistor colors look faded or unclear?
Use a magnifying glass or bright light to improve visibility. If the bands remain unclear, measure the resistor with a digital multimeter for confirmation.
Can a resistor color code calculator handle 5-band resistors?
Yes. Most online calculators allow users to select the number of bands. For 5-band resistors, the calculator includes three significant digits, a multiplier, and a tolerance value.
What happens if someone installs a resistor with the wrong value?
Incorrect resistor values can cause circuits to malfunction. For example, too little resistance may damage components. Too much resistance may prevent the circuit from working. Always double-check resistor values before installation.
