You can help the earth by picking eco-friendly pcbs for your next 3d project. Old pcb waste is a big part of the 62 million tonnes of e-waste made each year. If you use 3d printing and DissolvPCB, you make boards that can be recycled. These boards do not have the toxic metals and plastics in old ones. Eco-friendly pcbs use safe stuff and let you get back important parts. This new way to make electronics lowers carbon emissions by up to 60%. It also keeps bad chemicals out of soil and water.
Key Takeaways
-
Pick eco-friendly PCBs made with 3D printing and DissolvPCB. This helps lower toxic waste and keeps the environment safe.
-
Use biodegradable PVA and liquid metal to make circuit boards. These boards can be recycled and help save water, energy, and money.
-
Follow easy design and printing steps to build strong PCBs. These boards are safe and simple to recycle with your 3D printer.
-
You can recycle your boards by putting them in water. This lets you get metals and parts back for new projects.
-
Using 3D-printed recyclable PCBs helps lower pollution and waste. It also helps make the future cleaner and greener.
DissolvPCB Overview
Eco-friendly PCBs Concept
You can help the planet by picking eco-friendly pcbs. These boards use new ways that skip harmful steps. Here is why eco-friendly pcbs are special:
-
Old PCB factories use chemicals like formaldehyde and EDTA. These can hurt people and pollute nature.
-
The old way uses lots of water and energy. It also makes waste and lets out bad gases.
-
Eco-friendly pcbs use direct metallization. This skips the dangerous chemicals.
-
You use less water and energy with this method. This helps the earth.
-
The process is faster and gives better boards.
-
There are fewer mistakes, so you check less.
-
You save money on chemicals, work, and cleaning up waste.
-
Your workplace is safer and your company meets green goals.
Using eco-friendly pcbs helps make the world cleaner and safer. You also get better boards and less waste.
Recyclable Materials
Dissolvpcb uses polyvinyl alcohol (PVA) for the board. PVA is biodegradable and safe for nature. Liquid metal is used to make the circuits. These materials let you recycle the whole board when done. You can put the PVA in water to dissolve it. You can get the metal back and use it again. This makes dissolvpcb a smart pick for people who want to recycle. You help cut down e-waste and support earth-friendly technology.
Materials and Equipment
3D-Printed Circuit Boards Essentials
You need certain tools and materials to make these boards. First, you need a 3d printer that can do additive manufacturing. This printer builds the board one layer at a time. You also need software to design your circuit. Many people use free programs for this.
With 3d-printed circuit boards, you can try new ideas. Makerspaces and labs use them to test logic circuits. They also use them for high-current projects. You can make boards with special shapes. Some boards can even bend by themselves. These boards can handle up to 5 amps of current. They also work at frequencies up to 10 MHz. This means you can use them for many projects.
Note: The smallest trace width is 0.7 mm. This is bigger than in regular printed circuit boards. If you need smaller traces, change your design.
Here are some ways people use 3d-printed recyclable PCBs:
-
Testing logic circuits
-
High-current projects
-
Devices that change shape
-
Projects in makerspaces and labs
-
Making electronics in a closed loop
Liquid Metal and PVA Substrates
You need special materials for these eco-friendly boards. The main part uses PVA, which is a safe plastic. PVA breaks down in water, so you can recycle the board. For the circuit paths, you use liquid metal. This metal goes into the printed channels and makes the connections.
You pour the liquid metal into the board after printing. The metal cools and gets hard. This makes strong paths for electricity. You can get back both the metal and the PVA when you recycle. Using these materials helps keep the earth clean and cuts down on waste.

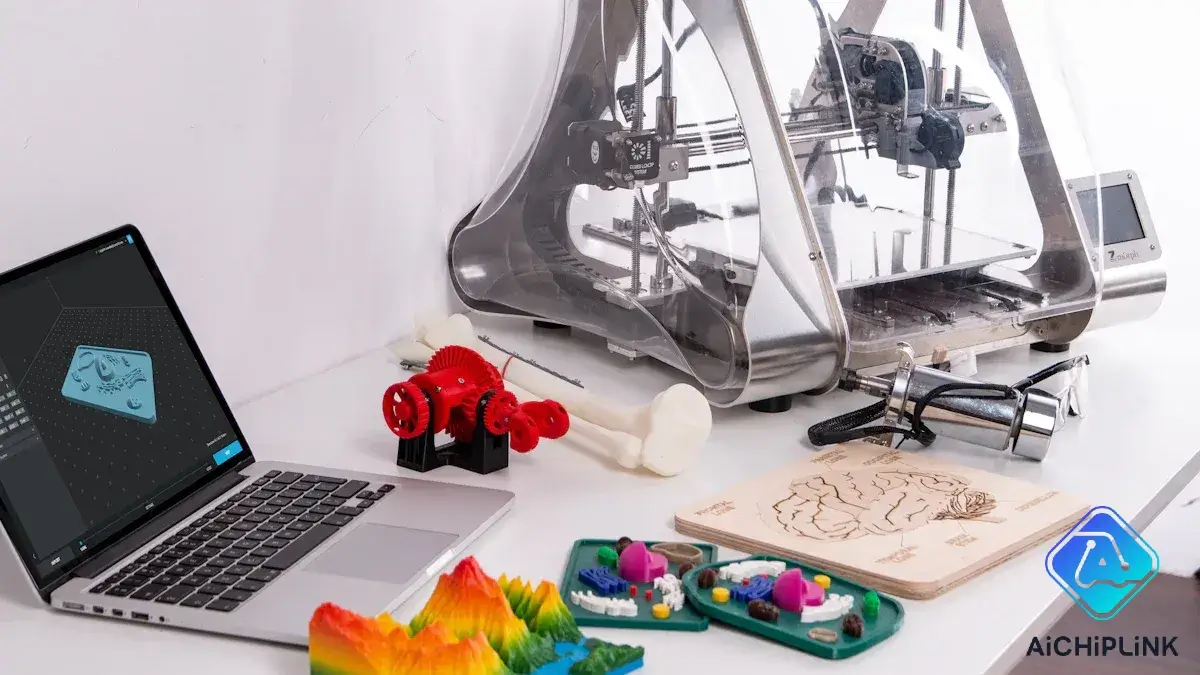

3D Printing Process
Preparation Steps
You start by getting your design ready for printing. Follow these steps to make sure your fully recyclable 3d-printed electronics work well:
-
Draw the tracks for your pcb. Make tracks 3 mm wide. Make holes 2.5 mm across. Make pads 5 mm across.
-
Save your circuit as an SVG file. Keep only the layers you need: TopLayer, BoardOutline, Multi-Layer, and Holes.
-
Open the SVG file in Inkscape. Separate the layers into substrate, pads and holes, and tracks. Close the paths for the substrate. Change tracks to strokes and join them.
-
Import the SVG into a CAD program like FreeCAD. Turn the substrate into a 3D model by extruding it. Change tracks, pads, and holes into sketches for more work.
-
Use slicer software such as Cura. Set the temperature to 210°C for better sticking. Set infill to 100% so tracks carry electricity well.
-
Edit the G-code file. Add filament change commands (M600) at the layer where tracks begin. This lets you use more than one material if your printer can do it.
-
Make holes 2.5 mm wide for parts. You can also use raw filament to hold parts in place during printing.
Tip: Careful setup helps you avoid mistakes and makes your board easier to recycle.
PCB Design for DissolvPCB
You design your pcb to work with DissolvPCB technology. You use additive manufacturing to build the board layer by layer. You pick shapes and sizes that fit your project. You make sure tracks are wide enough for liquid metal. You plan where to put pads and holes for your parts.
You use software to draw your circuit. You check that the design matches the rules for DissolvPCB. You keep the board simple so it prints well. You use the right settings for your printer and materials. You make sure your electronics will work after printing.
Note: Good design makes your board strong and easy to recycle.
Printing and Assembly
You print your board using a 3d printer. The printer uses additive manufacturing to build the substrate from PVA. You change the filament when it is time to print the tracks. You pour liquid metal into the channels for the tracks. The metal cools and makes the connections.
You add your components into the holes you made. You use raw filament to hold them in place if needed. You check that everything fits and works. You finish your fully recyclable 3d-printed electronics by testing the board.
| Step | What You Do | Why It Matters |
|---|---|---|
| Print substrate | Build base with PVA | Makes board recyclable |
| Print tracks | Switch filament, add liquid metal | Makes strong connections |
| Add components | Insert parts into holes | Completes electronics |
| Test board | Check for working circuits | Ensures quality |
You use new technology to make eco-friendly electronics. You help the planet by choosing recyclable materials and smart designs.
Recycling and Reuse
Dissolving Process
You can recycle your PCB made with DissolvPCB easily. When you are done, put the board in water. The PVA part starts to melt away. This breaks up the board and separates the pieces. You do not need strong chemicals or special tools. Water alone can start the recycling. This makes recycling electronics safer for you and better for the earth.
Tip: Warm water helps the board dissolve faster. Remember to collect all the parts after the board falls apart.
Material Recovery
After the board melts, you can get back useful materials. You will see metal lines, electronic parts, and fibers split from the PVA. You can use different ways to collect these materials. Here is a table that shows how much metal you can get from a DissolvPCB board:

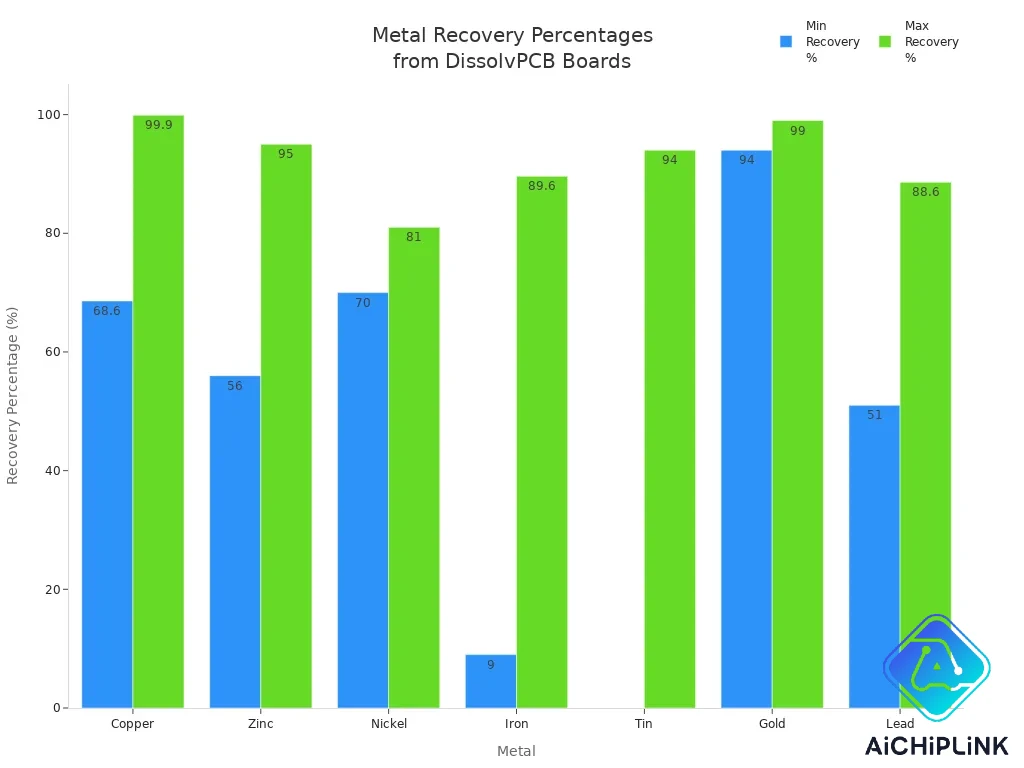

| Metal | Recovery Percentage Range (%) | Notes on Process or Conditions |
|---|---|---|
| Copper | 68.6 - 99.9 | Recovery by using nitric acid, sulfuric acid, and other chemical ways |
| Zinc | 56 - 95 | Get zinc after heating and using acid |
| Nickel | 70 - 81 | Get nickel by using acid |
| Iron | 9 - 89.6 | Amount changes based on method |
| Tin | Up to 94 | Get tin after heating and using acid |
| Gold | 94 - 99 | Get gold by using electric and chemical ways |
| Lead | 51 - 88.6 | Get lead by using special dissolving and separating steps |
You can follow some steps to separate and clean the materials you get:
-
First, take off big parts and break the board into small bits.
-
Next, use magnets or sort by weight to separate metals from other stuff.
-
Pick a way to recover metals:
-
Pyrometallurgy: Melt metals at very high heat.
-
Hydrometallurgy: Use acids to melt metals and then get them back.
-
Biometallurgy: Use special bacteria to pull out metals in a green way.
-
-
Use electric methods to put metals onto electrodes for pure results.
You can use the metals and parts again in new projects. This makes recycling electronics simple and helps keep the earth clean.
Environmental Impact
Benefits Over Traditional PCBs
When you pick 3d-printed recyclable PCBs, you help the earth. The old way of making PCBs wastes lots of materials. It uses strong chemicals that can harm nature. Making old PCBs needs a lot of water and energy. You must clean and etch the boards with these resources. 3d printing with DissolvPCB is different. It uses an additive process. You only use what you need. This means less electronic waste.
Here is a table that shows how the two ways are different:
| Environmental Aspect | Traditional PCB Manufacturing | 3D PCB Printing (including DissolvPCB) |
|---|---|---|
| Material Waste | High due to subtractive process | Low due to additive manufacturing, reducing waste |
| Chemical Usage | Extensive use of etching chemicals | Minimal, uses specialized conductive and dielectric inks |
| Water Consumption | High (approx. 1.5 m³ per m² of PCB) | Significantly reduced water usage |
| Energy Efficiency | Lower, due to batch production and chemical processes | Higher, enabled by on-demand production reducing overproduction |
Using 3d PCB printing helps fix e-waste problems. It also supports making boards close to home. This lowers pollution from moving products far away. Recycling is easier and safer for you and the planet.
Sustainable Electronics
You help make electronics better for the earth with 3d-printed recyclable PCBs. This technology lets you make boards quickly. You can print boards when you need them. This means less waste and fewer unused parts. The materials are light and flexible. They need less energy to make.
-
You help reuse, fix, and recycle boards.
-
You lower the amount of toxic stuff and energy used.
-
You support using clean energy in PCB factories.
-
You help create new designs that are easy to recycle.
Rules like RoHS and WEEE make sure your boards are safe and lead-free. Certifications such as R2v3 and Zero Waste Certification show you care about recycling. You know your boards follow strict safety rules.
When you choose 3d-printed recyclable PCBs, you help make a cleaner future. You build electronics that are good for people and the planet.
You can help the earth by picking DissolvPCB and 3D printing. These ways let you make less waste and save energy. You can also get back important materials. More people now use open-source, green electronics. Some new ideas are becoming popular, like:
-
Making designs that are easy to fix, use again, and recycle
-
Using smart machines and AI to recycle better
-
Using safer stuff and making supply chains stronger
Soon, you will use more earth-friendly materials and cool new tools. 3D printing will help you make special PCBs faster and with less trash.
FAQ
What happens if you spill water on a DissolvPCB board?
Water can start to dissolve the PVA substrate. You should keep your board dry during use. Only dissolve it in water when you want to recycle it.
Can you reuse the liquid metal after recycling?
Yes, you can collect and reuse the liquid metal from your old board. This helps you save resources and reduce waste in your projects.
Do 3D-printed PCBs work for high-power electronics?
You can use these boards for many projects, but they work best for low to medium power. If you need very high power, check the limits of your materials first.
Is special equipment needed to recycle DissolvPCB boards?
You do not need special tools. Warm water will dissolve the board. You can use simple tools like tweezers or magnets to collect parts and metals.
Are DissolvPCB boards safe for the environment?
-
Yes, these boards use biodegradable PVA and recyclable metals.
-
You avoid toxic chemicals.
-
You help keep e-waste out of landfills.
