Delta Connection (Δ): 3 Phase Power, Voltage & Current Values

In the world of electrical engineering and power systems, understanding the various configurations of three-phase systems is critical. One such important configuration is the Delta connection (Δ), which plays a vital role in the distribution and transmission of electrical power across industries. Whether you are an electrical engineer, a student, or just someone interested in how electrical systems work, understanding the principles behind Delta connections is essential.

What is a Delta Connection (Δ)?

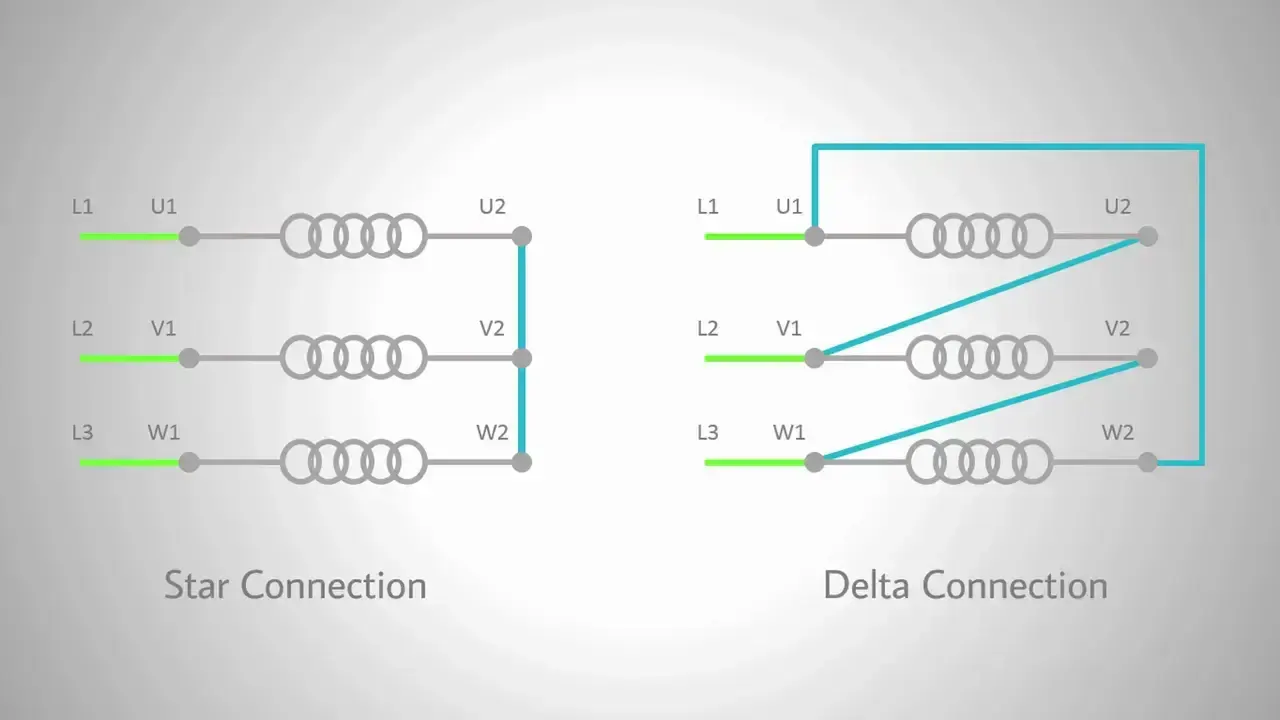

In a three-phase system, there are two main types of connections used to wire the system: Star (Y) connection and Delta (Δ) connection. The Delta connection is a method used to connect the windings of a transformer or motor in a closed loop, resembling the shape of the Greek letter delta (Δ). It consists of three coils (or phases) connected end-to-end in a triangular formation, with each phase providing a 120° phase shift relative to the others.

The Delta connection is commonly used in high-power transmission systems because it allows for better performance at high loads, delivering both higher voltage and current to the load. Delta-wound transformers are commonly used for heavy industrial applications, where power needs to be transferred efficiently.

Delta Connection Voltage

One of the most important characteristics of the Delta connection is the relationship between line voltage and phase voltage. In a Delta system, the line voltage (V_L) is equal to the phase voltage (V_Ph). This can be explained using the following formula:

$V_L = V_Ph$

Where:

$V_L$ is the line voltage, which is the voltage between any two of the three lines in the system.
$V_Ph$ is the phase voltage, which is the voltage across each individual winding in the Delta configuration.

Since the line voltage and phase voltage are equal in a Delta connection, the voltage provided across each phase is higher than in a Star connection, where the line voltage is √3 times the phase voltage.

For example, if a Delta connection has a phase voltage of 400V, the line voltage will also be 400V. This higher voltage makes the Delta connection ideal for applications that require higher power levels, such as large industrial motors and equipment.

Delta Connection Current

In terms of current, the Delta connection exhibits a key difference from the Star connection. In the Delta configuration, the line current (I_L) is related to the phase current (I_Ph) as follows:

$IL=3⋅IPhI_L = \sqrt{3} \cdot I_Ph$

Where:

$I_L$ is the line current, the current flowing through each line of the system.
$I_Ph$ is the phase current, which is the current flowing through each individual winding.

This equation shows that the line current in a Delta system is greater than the phase current by a factor of √3. This characteristic makes the Delta connection ideal for situations where the current must be distributed efficiently across multiple phases.

For example, if the phase current in a Delta connection is 10A, the line current will be approximately 17.3A (√3 × 10A). This difference is an important factor when selecting the right configuration for your power system.

Power in a Delta Connection

Another crucial aspect of the Delta connection is the power it can deliver. Power in a three-phase system is calculated using the following formula:

$\sqrt{3} \cdot V_L \cdot I_L \cdot \cos(\phi)$

Where:

$P$ is the total power delivered (in watts).

$V_L$ is the line voltage.

$I_L$ is the line current.

$cos⁡(ϕ)\cos(\phi)$ is the power factor, which represents the phase difference between the voltage and current waveforms.

In a Delta connection, since both the line voltage and phase voltage are higher, the system can deliver more power than a Star connection, making it well-suited for industrial applications where large amounts of electrical power are needed.

Advantages of Delta Connection

1. Higher Voltage: As mentioned, the Delta connection allows for higher voltage levels compared to the Star connection. This is beneficial for systems requiring more power transmission over long distances or for large motors and heavy machinery.

2. Balanced Load Distribution: Delta connections help distribute the load evenly across all three phases, which reduces the chances of overloading a single phase. This can result in more stable operation and reduced wear on equipment.

3. No Neutral Wire Required: A Delta configuration does not require a neutral wire, making the setup simpler and reducing the need for additional wiring. This can be an advantage in systems where a neutral wire is either impractical or unnecessary.

4. Improved Efficiency for High-Power Loads: Delta connections are often used for high-power industrial machinery and systems, as they allow for greater power handling capacity and more efficient energy distribution.

Disadvantages of Delta Connection

1. Unbalanced Load Risks: Although Delta connections are good at distributing loads evenly, they can still become unbalanced if the system is not properly maintained or if there is a fault in one of the phases. This can lead to equipment damage or inefficiency.

2. Complex Maintenance: Delta connections can be more complex to maintain compared to Star configurations, especially in larger systems. Ensuring that the system is properly balanced and that all connections are secure is essential for optimal performance.

3. No Neutral Point: While the absence of a neutral wire can be an advantage in some systems, it can also be a disadvantage in others, particularly when grounding or providing a return path for certain types of equipment is necessary.

Applications of Delta Connection

Delta connections are widely used in various applications, particularly in industrial and commercial settings. Some common uses include:

Industrial motors: Large motors that require high starting torque, such as those used in pumps, compressors, and fans, often use Delta connections.

Power transmission: Delta connections are used in high-voltage transmission lines for efficient power delivery over long distances.

Transformers: Delta-wound transformers are commonly used in situations where the load requires high power levels or where the system needs to be isolated from unbalanced loads.

Conclusion

The Delta connection (Δ) is an essential part of three-phase power systems, providing a reliable and efficient way to deliver electrical power, especially in high-power applications. By understanding the relationship between voltage, current, and power in a Delta system, engineers can make more informed decisions when designing and operating electrical networks. While the Delta connection offers numerous advantages, it also has its challenges, particularly when it comes to maintenance and load balancing. Nevertheless, its role in powering large industrial systems, motors, and power transmission lines makes it indispensable in today’s electrical infrastructure.

If you’re involved in the design or operation of three-phase electrical systems, mastering the Delta connection is crucial for optimizing efficiency and ensuring system stability.
