When it comes to electronic circuits, the terms potentiometer and rheostat are frequently mentioned, often in the context of adjusting resistance or controlling electrical flow. While they both serve as variable resistors, there are notable differences between them that can affect which one you should choose for a given application. Understanding the distinctions can help you make the right decision based on your project’s specific needs.
What is a Potentiometer?

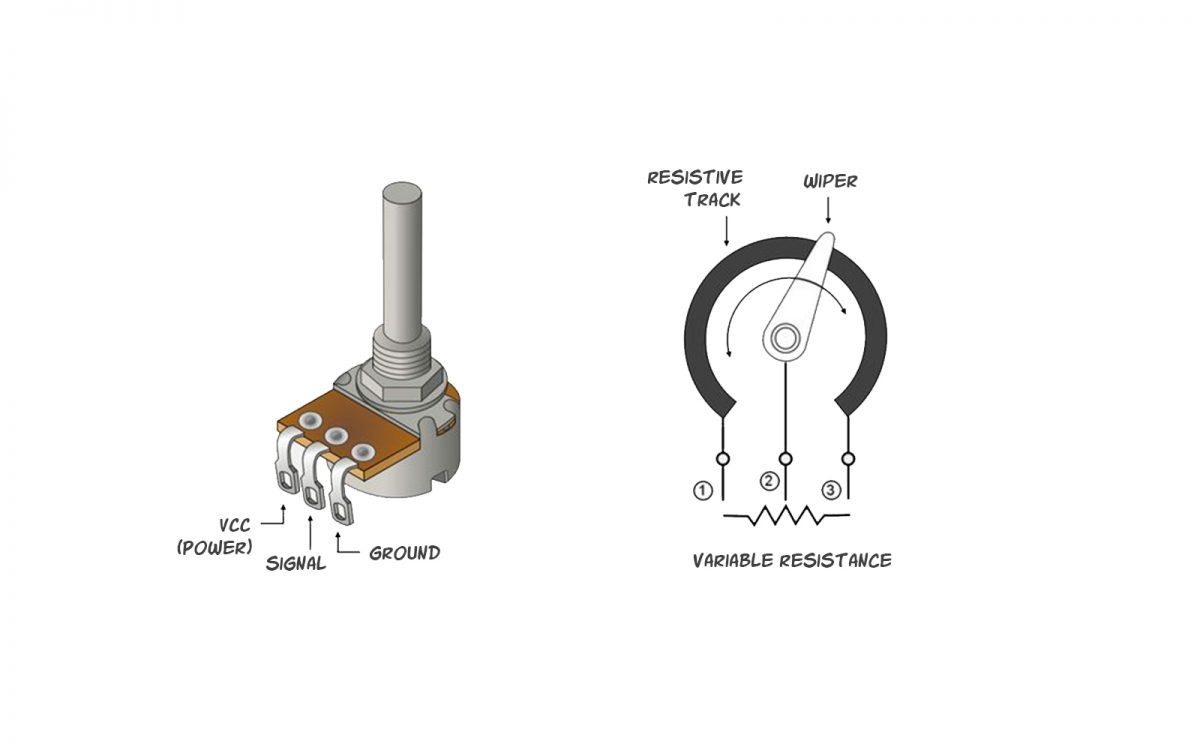

A potentiometer is a three-terminal component used to adjust voltage levels within a circuit. It has a resistive element and a wiper that slides along this element to vary the resistance. The three terminals are typically:
• One terminal is connected to a voltage supply.
• Another is connected to ground.
• The third terminal (the wiper) provides the variable output.
Potentiometers are commonly used for controlling voltage, such as in volume knobs on audio equipment or in tuning circuits. By turning the knob or sliding the control, the wiper moves along the resistive material, changing the resistance and, thus, the output voltage.
What is a Rheostat?
A rheostat, like a potentiometer, is also a variable resistor, but it is used in applications where only the current is adjusted, not the voltage. Rheostats generally have two terminals instead of three. One terminal is connected to the circuit, and the other is connected to the load or power supply. The wiper is then used to adjust the amount of current flowing through the circuit by changing the resistance between the two terminals.
Rheostats are primarily used for controlling high current in applications such as adjusting the brightness of lights or the speed of electric motors. They are more suited for situations where you need to regulate the power or current without altering the voltage.
Key Differences Between Potentiometer and Rheostat
While both devices perform similar functions as variable resistors, the main difference lies in their design and application.
1. Number of Terminals
The most straightforward difference is the number of terminals:
• A potentiometer has three terminals—two fixed and one movable (the wiper).
• A rheostat typically has two terminals—one fixed and one movable.
2. Voltage vs. Current Control
Potentiometers are designed to control voltage, while rheostats control current. Potentiometers are ideal when you need to adjust or fine-tune the voltage in a circuit, like adjusting signal levels in audio equipment. Rheostats, on the other hand, are more suited for regulating the current in applications that require higher power, like in heating elements or lighting control.
3. Power Rating
Because rheostats are often used to handle higher currents and power levels, they typically have higher power ratings compared to potentiometers. Potentiometers are generally used in lower-power applications, such as adjusting signal voltages in a low-power circuit.
4. Adjustment Range
Potentiometers allow a continuous range of adjustment between the two extreme voltage points (usually 0V and the supply voltage). Rheostats offer a more limited range since they are typically used for adjusting the resistance across a specific current range in a circuit.
5. Physical Configuration
Potentiometers are often small and compact, designed to be adjusted with a knob or a slider, such as those found on audio systems. Rheostats tend to be larger, with higher power handling and a design more suited for industrial applications, like controlling large loads or motors.
When to Use a Potentiometer?
Potentiometers are best used when you need to adjust voltage levels or divide voltage in a circuit. Some common applications include:
• Audio Controls: Potentiometers are often used as volume controls in audio equipment, as they adjust the voltage sent to the speaker, controlling the sound level.
• Voltage Regulation: In power supplies, potentiometers can be used to set or adjust the output voltage to the desired level.
• Tuning Circuits: In devices like radios or signal generators, potentiometers adjust the signal’s frequency or amplitude.
In general, if your application involves fine-tuning or regulating voltage for signals or low-power circuits, a potentiometer is the way to go.
When to Use a Rheostat?
Rheostats are most useful when you need to control current in circuits that require higher power, or when you need to limit the current flow in an adjustable way. Some examples of rheostat applications include:
• Motor Speed Control: Rheostats can adjust the current going to motors, thereby controlling the speed of electric motors in various appliances and machinery.
• Lighting Control: By adjusting the current through a filament or LED array, rheostats can control the brightness of lights.
• Heat Control: In heating elements, such as in ovens or toasters, rheostats adjust the power supplied to the element, effectively controlling the amount of heat generated.
If your circuit involves high-power applications and you need to control the flow of current (rather than voltage), a rheostat is the more appropriate choice.
Choosing Between Potentiometer and Rheostat
To decide which component you should use in your circuit, consider the following questions:
1. Are you adjusting voltage or current?
• Use a potentiometer for voltage adjustment.
• Use a rheostat for current adjustment.
2. What is the power requirement?
• For low-power applications (like adjusting signals), a potentiometer is more suitable.
• For higher power applications (like controlling motors or heating elements), go with a rheostat.
3. How many terminals do you need?
• If you need three terminals for voltage regulation, choose a potentiometer.
• If you only need two terminals for current regulation, opt for a rheostat.
4. Is size and space a factor?
• Potentiometers are typically more compact and versatile, while rheostats are bulkier due to their higher power handling.
Conclusion
Both potentiometers and rheostats are indispensable components in electronics, serving distinct purposes in voltage and current control. The choice between the two depends largely on your specific application—whether you need to adjust the voltage or regulate the current, and whether your circuit requires high or low power.
By understanding these differences, you can confidently choose the right component for your design, ensuring better performance, reliability, and efficiency. So, next time you’re deciding between a potentiometer and a rheostat, consider your power requirements, the type of control you need, and the physical setup of your circuit to make the best decision.
