47k Ohm Resistor Color Code and Practical Applications

You can spot a 47k ohm resistor by its color code. A 4-band resistor has yellow, violet, orange, and gold bands. A 5-band resistor shows yellow, violet, black, red, and a tolerance band. The table below lists the usual color order:

Band Position	Color	Value/Multiplier	Tolerance
1st	Yellow	4
2nd	Violet	7
3rd	Orange	x1,000
4th	Gold	±5%

Knowing resistor color codes helps you pick the right resistor. It keeps your circuits safe. You stop problems and protect important parts. This skill helps your projects work well and last longer.

Key Takeaways

• The color code for a 47k ohm resistor is yellow, violet, orange, and gold. These colors help you find the resistor’s value fast.

• Use a resistor color code chart to stop mistakes. This chart helps you pick the right resistor for your project.

• Look at the tolerance band. A 47k ohm resistor with a gold band can change by plus or minus 5 percent.

• Practice reading color codes in bright light. Good light helps you see resistors well and stops errors.

• Always check resistor values with a multimeter if you are not sure. This makes sure your circuit works the right way.

47k Ohm Resistor Color Code

Understanding the resistor color code system helps you identify the value of any resistor quickly. You use color bands printed on the body of the resistor to read its value. Each color stands for a number or a multiplier. This system makes it easy for you to select the right resistor for your circuit.

4-Band Resistor Color Code

You often see the 4-band resistor color code on standard resistors. For a 47k ohm resistor, the bands are yellow, violet, orange, and gold. Each band has a special meaning:

1. The first band (yellow) shows the first digit, which is 4.

2. The second band (violet) shows the second digit, which is 7.

3. The third band (orange) is the multiplier, which means you multiply by 1,000.

4. The fourth band (gold) tells you the tolerance. Gold means the resistor can vary by ±5%.

Tip: The tolerance band helps you know how much the actual resistance can differ from the labeled value. For a 47k ohm resistor with a gold band, the value can range from 44.65k ohms to 49.35k ohms.

• The fourth band on a 4-band resistor indicates tolerance.

• For a 47k ohm resistor, the tolerance can vary based on the color of the fourth band.

• A gold band indicates a tolerance of ±5%, meaning the resistor value can range from 44.65k ohms to 49.35k ohms.

5-Band Resistor Color Code

You find the 5-band resistor color code on precision resistors. The 47k ohm resistor uses five bands: yellow, violet, black, red, and gold. Here is what each band means:

Band	Color	Value
Digit 1	Yellow	4
Digit 2	Violet	7
Digit 3	Black	0
Multiplier	Red	x100
Tolerance	Gold	±5%

You read the first three bands as digits. The fourth band is the multiplier. The fifth band shows the tolerance. This 5-band resistor color code helps you get more accurate values for your circuits.

Resistor Color Codes Chart

You can use a resistor color code chart to check the meaning of each color. This chart helps you avoid mistakes and makes your work faster. Here is a quick reference table for resistor color codes:

Color	1st Digit	2nd Digit	Multiplier	Tolerance
Black	0	0	1	1%
Brown	1	1	10	2%
Red	2	2	100	3%
Orange	3	3	1,000	4%
Yellow	4	4	10,000
Green	5	5	100,000	0.5%
Blue	6	6	1,000,000	0.25%
Violet	7	7	10,000,000	0.10%
Gray	8	8	100,000,000	0.05%
White	9	9	1,000,000,000
Gold			0.1	5%
Silver			0.01	10%
No Color				20%

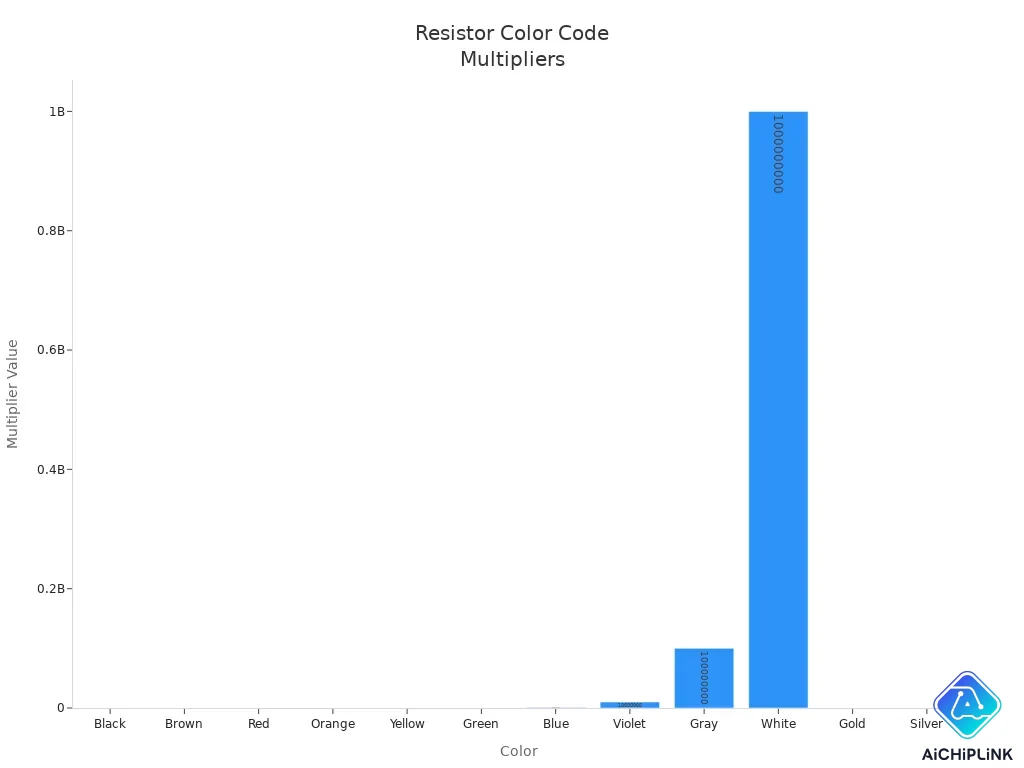

You can also use visual charts to help you remember the resistor color code system. These charts show the number values and multipliers for each color. Here is a helpful chart:

A resistor color code chart makes it easy for you to check values and tolerances. You can use it when you build circuits or repair electronics. This tool helps both hobbyists and professionals avoid errors.

You should always check the resistor color codes before you use a resistor. This step keeps your circuits safe and working well. The resistor color code system is a simple way to make sure you pick the right resistor every time.

Identifying 47k Ohm Resistor

Reading Color Bands

You can quickly spot a 47k ohm resistor by learning how to read resistor color codes. Each resistor has color bands that tell you its value. These bands use a special system called the resistor color code. You will see four or five color bands on most resistors. Each band stands for a number or a multiplier.

Here is a helpful table to guide you when you read resistor color codes for a 47k ohm resistor:

Color Band	Represents	Description
Yellow	4	First significant digit
Purple	7	Second significant digit
Orange	x1,000	Multiplier for the value
Gold	5%	Tolerance of the resistor

You should always check the order of the color bands. Start from the end closest to the color bands. The gold band usually sits at the far end. If you see yellow, purple, orange, and gold, you have found a 47k ohm resistor.

Tip: Good lighting helps you see the color bands clearly. Try to avoid shadows or glare when you read resistor color codes.

Step-by-Step Guide

Follow these steps to read resistor color codes and identify a 47k ohm resistor:

1. Hold the resistor so the color bands are on the left side.

2. Find the gold band. This band shows the tolerance and should be on the right.

3. Read the first color band. Yellow means 4.

4. Look at the second color band. Purple means 7.

5. Check the third color band. Orange means you multiply by 1,000.

6. The gold band tells you the resistor has a 5% tolerance.

Common mistakes can happen if you mix up the order of the color bands or confuse similar colors. Purple and brown may look alike in dim light. Always double-check before you use the resistor in your circuit.

Note: Practice helps you get faster and more accurate when you read resistor color codes. You will soon spot a 47k ohm resistor with just a quick glance.

47k Ohm Resistor Applications

Resistors are used in almost every electronic project. The 47k ohm resistor is special because it works in many places. You can find it in voltage dividers, pull-up and pull-down circuits, and signal processing. It is also used for other important jobs. If you know how to read resistor color codes, you can pick the right resistor for each job. This helps your circuits work well and keeps them safe.

Voltage Divider

Voltage dividers split voltage into smaller parts. You use two or more resistors in a row. The 47k ohm resistor often works with another resistor to set a certain output voltage. Voltage dividers are found in sensor circuits, audio devices, and microcontroller inputs.

• You connect resistors in a row between a voltage source and ground.

• You measure the voltage across one resistor to get a lower voltage.

• You check the resistor color code before building the divider.

Tip: Always check resistor color codes before you put resistors in a voltage divider. This helps you avoid mistakes and keeps your circuit working right.

Pull-Up and Pull-Down

Pull-up and pull-down resistors set default voltage levels in digital circuits. The 47k ohm resistor works well for these uses. You connect a pull-up resistor between a signal line and the positive voltage. You connect a pull-down resistor between the signal line and ground.

• Pull-up resistors keep inputs high when there is no signal.

• Pull-down resistors keep inputs low when there is no signal.

• You use resistor color codes to make sure you pick the right resistor.

You see pull-up and pull-down resistors in microcontroller inputs, switches, and logic gates. Picking the right resistor stops floating signals and unwanted actions.

Signal Processing

The 47k ohm resistor is used in many signal processing jobs. It helps shape, filter, and change signals in audio and sensor circuits.

• The resistor shapes or filters signals in RC circuits. It blocks some frequencies or lets others pass.

• It is used as a pull-up or pull-down resistor in digital circuits. This keeps voltage levels steady when there is no signal.

• It sets resistance in amplifier and oscillator networks. It changes input signals for better results.

• It helps bias transistors in amplifiers. This keeps them working in the right range.

• It is used as a feedback resistor in op-amp circuits. It controls gain and stability in audio jobs.

You use resistor color codes to pick the right resistor for each signal processing job. Careful choices help sound quality, sensor accuracy, and circuit stability.

Other Uses

The 47k ohm resistor is used in many other ways. It is found in timing circuits, LED current limiting, and analog filters. You also see it in battery chargers, remote controls, and test equipment.

• Resistors create exact resistance in a circuit.

• Some resistors are made from metal wire or carbon.

• Resistors keep resistance steady, even if temperature or humidity changes.

You must pick the right resistor value for each job. If you use the wrong value, your circuit may not work right. The resistance controls how much current flows through the resistor. Ohm's Law says current goes down when resistance goes up, if voltage stays the same.

Resistor Value	Current Flow (mA)
4.7k Ohm	1.06
47k Ohm	0.106

A 47k ohm resistor lets much less current flow than a 4.7k ohm resistor. You need to use resistor color codes to avoid mistakes. This protects your parts and keeps your projects working well.

Note: Picking the right resistor is important for your circuit. You stop damage, save energy, and help your electronics last longer by using the correct resistor.

Resistor Color Code Mistakes

Misreading Bands

It can be hard to read resistor color codes. Some colors look almost the same. Red and orange often confuse people. Brown and red can also look alike. Good lighting helps you see the bands better. You can use a magnifying glass if the bands are hard to see. Always check the order of the color bands. The first band shows the main digit. The second band gives the next digit. The third band is the multiplier. The fourth band tells you the tolerance. If you skip the tolerance or temperature coefficient bands, your circuit may not work right. You should always include these bands when you read resistor color codes.

• Colors like red, orange, and brown look similar.

• Bad lighting makes mistakes happen more often.

• Always start reading from the end with the bands.

• Do not skip the tolerance band.

Tip: Double-check the resistor color code before you use it in your circuit. This step helps you avoid expensive mistakes.

Wrong Value Selection

You might pick the wrong resistor if you misread the color bands. Color blindness makes this problem worse for some people. Manufacturers sometimes use different shades, which can confuse you. If you choose the wrong value, your circuit may not work or may fail. Many professionals use a multimeter to check resistor values before using them. This extra step saves time and stops problems.

• Color blindness makes reading resistor color codes harder.

• Different manufacturers may use colors that look a bit different.

• Using a multimeter helps you check the resistor value.

• Picking the wrong value can make your circuit fail.

Note: Always check resistor color codes with a multimeter if you are not sure about the colors.

Handling Tips

You need to be gentle when you handle resistors. Bending the leads can break the resistor or change how it works. Store resistors in a dry place to stop rust and corrosion. Dust can cover the color bands and make them hard to read. Organize your resistors by value to make picking them easier. You can use small boxes or bags with labels.

• Do not bend or twist the leads.

• Keep resistors in a dry and clean place.

• Use labeled boxes or bags for easy picking.

• Clean resistors gently if dust covers the bands.

?️ Careful handling and storage help you keep resistor color codes easy to see and correct.

You help make circuits work well when you pick the right resistor. The 47k ohm resistor keeps voltage and current steady. It protects important parts in your circuit. It also helps control feedback loops with care. Always check the resistor color code before you use it:

1. Look for the first band.

2. Figure out the digits and multiplier.

3. Check the tolerance.

4. Use a calculator or multimeter to be sure.

Picking the right resistor makes your circuit work better. It also stops problems from happening later. Keep practicing these steps to get even better at building circuits.
