2.2k Resistor Color Code
The 2.2k resistor color code helps users quickly identify the resistance value of a 2.2k ohm resistor. This system uses colored bands to represent numbers, multipliers, and tolerances. The color code for 2.2k ohm resistor remains consistent across carbon film and metal film resistors, making it a universal method for identifying 2200 ohm resistor values in electronics.
4-Band Color Code

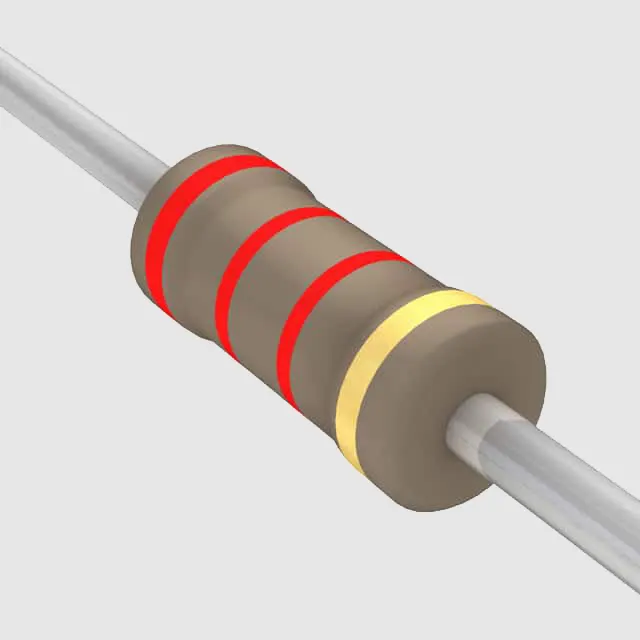

The most common 2.2k ohm resistors use the 4-band color code. The bands appear as red-red-red-gold. Each color represents a specific value:
-
The first red band stands for the digit 2.
-
The second red band also stands for the digit 2.
-
The third red band acts as the multiplier, which is 100.
-
The gold band indicates a tolerance of ±5%.
When combined, these bands show that the resistor has a value of 2200 ohms, or 2.2k ohms, with a 5% tolerance. The 2.2k resistor color code provides a fast and reliable way to identify the correct component. The 4-band color code system has gained international acceptance and has been in use since the early 1900s. It allows users to read resistor values accurately, regardless of the resistor's size or condition. The system uses preferred value series, such as E12 and E24, to standardize resistor values and improve reliability. Mnemonics and color code charts help reduce reading errors, supporting accurate interpretation. Verification with a multimeter further confirms the value of 2.2k ohm resistors.
The 4-band color code system remains dependable and universally recognized, as confirmed by standards like IEC 60062 and British Standard BS 1852.
5-Band and 6-Band Codes
Some 2.2k ohm resistors, especially those used in precision circuits, use 5-band or 6-band color codes. These codes provide more accuracy and additional information:
-
5-band resistors use three significant digits, a multiplier, and a tolerance band. For a 2.2k ohm resistor, the bands would be red-red-black-brown-brown (2-2-0 × 10, ±1%).
-
6-band resistors add a sixth band to indicate the temperature coefficient, which shows how much the resistance changes with temperature. For a 2.2k ohm resistor, the bands might be red-red-black-brown-brown-brown (2-2-0 × 10, ±1%, 100 ppm/°C).
These codes allow for tighter tolerances, such as ±1% or ±2%, which are essential in precision measurement circuits, medical devices, and professional audio equipment. The temperature coefficient band in 6-band resistors provides stability in environments with temperature changes. Lower ppm/K values mean better temperature stability, which is critical for circuits exposed to varying temperatures.
-
5-band resistors enable more precise resistance values compared to 4-band resistors.
-
6-band resistors are necessary for applications where temperature-induced resistance changes impact performance, such as aerospace and laboratory equipment.
Color Code Table
A clear and standardized color code table helps users decode the value of any 2.2k ohm resistor. The table below shows the color bands for 4-band, 5-band, and 6-band 2200 ohm resistor types:
| Band Position | 4-Band (General Use) | 5-Band (Precision) | 6-Band (Precision + Temp) |
|---|---|---|---|
| 1st Digit | Red (2) | Red (2) | Red (2) |
| 2nd Digit | Red (2) | Red (2) | Red (2) |
| 3rd Digit | - | Black (0) | Black (0) |
| Multiplier | Red (×100) | Brown (×10) | Brown (×10) |
| Tolerance | Gold (±5%) | Brown (±1%) | Brown (±1%) |
| Temp. Coefficient | - | - | Brown (100 ppm/°C) |
The color code for 2.2k ohm resistor remains the same for both carbon film and metal film types, ensuring consistency in identification. Standardized tables and clear labeling of resistor values avoid guesswork and enhance clarity in circuit schematics. Logical organization and adherence to standards like IEC 60062 and IEEE 315 ensure that the color code system is easy to follow and universally recognized.
| Resistor Type | Tolerance | Example Resistance | Tolerance Range |
|---|---|---|---|
| 4-band | ±5% | 2200 Ω | 2090 Ω to 2310 Ω |
| 5-band | ±1% | 2200 Ω | 2178 Ω to 2222 Ω |
| 6-band | ±1% | 2200 Ω | 2178 Ω to 2222 Ω |
Standardized symbols, clear labeling, and logical organization in color code tables support universal understanding and reduce misinterpretation in electronics.
The 2.2k resistor color code, whether in the form of red-red-red-gold for 4-band or the more detailed 5-band and 6-band versions, provides a reliable and standardized way to identify 2.2k ohm resistors. This system ensures that anyone working with a 2200 ohm resistor can quickly and accurately determine its value, tolerance, and stability, supporting both general and precision applications.
Identifying 2.2k Ohm Resistors
Visual Identification
Visual identification of 2.2k ohm resistors starts with understanding the color code system. Each band on the resistor body represents a digit, multiplier, or tolerance. To identify a 2.2k ohm resistor, follow these steps:
-
Locate the colored bands on the resistor.
-
Use a color code chart to match each color to its corresponding number.
-
Identify the first two bands, which represent the digits "2" and "2".
-
Find the third band, which acts as the multiplier. For 2.2k ohm resistors, this is usually red, indicating a multiplier of 100.
-
Check the fourth band for tolerance, often gold for ±5%.
Using a color code chart provides a systematic approach, making it easier to decode the value of 2.2k ohm resistors. This method increases efficiency and accuracy in electronics work.
Manufacturers use strict controls and high-precision coating technology to ensure the color bands remain clear and durable. This prevents fading and misinterpretation, even in harsh environments. International standards like IEC 60062 help maintain consistency in the identification of 2.2k ohm resistors.
Using a Multimeter
A multimeter offers a reliable way to verify the value of a 2.2k ohm resistor. Set the multimeter to the resistance mode, then connect the probes to each lead of the resistor. The display should show a value close to 2200 ohms. This method confirms the accuracy of the color code reading and helps detect any damage or drift in the resistor value.
However, users must watch for common errors. Lead resistance can add to the measurement, especially in two-wire methods. Thermoelectric voltages may cause small offsets. Device heating from test currents can change the resistance during measurement. Using a four-wire (Kelvin) method or pulsed current mode can reduce these errors.
Common Mistakes
Mistakes often occur during the identification of 2.2k ohm resistors. Some common issues include:
-
Misreading faded or dirty color bands.
-
Confusing similar colors, such as red and brown, under poor lighting.
-
Ignoring the tolerance band, which affects the precision of the 2.2k ohm resistor.
-
Failing to account for lead resistance or thermoelectric effects when using a multimeter.
-
Using the wrong measurement method for inductive or low-resistance components.
Careful observation, proper lighting, and the use of a color code chart help prevent these mistakes. Standardized identification techniques and strict manufacturing controls further improve accuracy and reliability in electronics.
Uses of 2.2k Ohm Resistor
Typical Applications
2.2k ohm resistors appear in a wide range of electronic circuits. Designers often select a 2.2k ohm resistor for voltage divider circuits, where it helps generate specific output voltages. This function is essential in sensor circuits that require accurate voltage adjustments. Engineers use 2.2k ohm resistors to bias transistors, setting the correct operating points in amplifiers and oscillators. In LED circuits, a 2.2k ohm resistor limits current, protecting LEDs from excessive current and extending their lifespan. Technicians frequently verify these current limits with a multimeter. Digital circuits rely on 2.2k ohm resistors as pull-up or pull-down resistors, which maintain stable logic levels and prevent unpredictable input behavior. Op-amp circuits also use 2.2k ohm resistors to set gain through feedback loops. The color coding of 2.2k ohm resistors allows for quick identification during assembly and repair.
2.2k ohm resistors support both general and precision applications, making them a staple in modern electronics.
Benefits in Circuits
A 2.2k ohm resistor offers several advantages in electronic designs. Its medium resistance value provides a balance between current flow and voltage control. Ohm’s Law (V = IR) governs its operation, enabling precise current limiting and voltage division. This precision helps protect sensitive components and ensures reliable circuit performance. The 2.2k ohm resistor’s 5% tolerance and temperature stability make it suitable for environments where accuracy matters. Material properties and power ratings further enhance its reliability. Proper heat dissipation and adherence to ratings help maintain performance and extend circuit life. The 2.2k ohm resistor also reduces electrical noise, making it ideal for high-frequency applications.
Comparison with Other Values
The 2.2k ohm resistor sits between low-resistance and high-resistance options, such as 2.2 ohm and 22k ohm resistors. This position makes it a practical choice for many general-purpose circuits. Lower resistance values allow more current, which can risk damaging components. Higher resistance values limit current too much, which may prevent proper circuit operation. The 2.2k ohm resistor provides a compromise, offering enough resistance to protect devices while allowing sufficient current flow. Its versatility and cost-effectiveness make it a preferred option for designers who need a reliable and easy-to-identify component.
| Resistance Value | Typical Use Case | Current Flow |
|---|---|---|
| 2.2 ohm | Power supply, current sensing | High |
| 2.2k ohm | Signal conditioning, biasing | Medium |
| 22k ohm | Pull-up, high-impedance inputs | Low |
Choosing a 2.2k ohm resistor often results in better circuit stability and protection compared to extreme values.
Choosing the Right 2.2k Ohm Resistor
Tolerance and Power Rating
Selecting the correct 2.2k ohm resistor starts with understanding tolerance and power rating. Tolerance shows how much the actual resistance can vary from the labeled value. Most 2.2k ohm resistors offer 1% or 5% tolerance. Circuits that need high accuracy benefit from a 1% tolerance. Power rating tells how much energy the resistor can safely handle. Common ratings include 1/8W, 1/4W, 1/2W, and 1W. Choosing a 2.2k ohm resistor with a higher power rating than the circuit requires helps prevent overheating. Technical literature recommends derating, which means picking a resistor with extra capacity to ensure long-term reliability. Ambient temperature also affects performance, so users should consider the environment where the resistor will operate.
Resistor Types
Different types of 2.2k ohm resistors serve various needs in electronics. Fixed resistors come in several forms:
-
Carbon film resistors work well for general use.
-
Metal film resistors provide better precision and stability.
-
Wirewound and cement resistors handle higher power.
-
Special resistors, such as thermistors and varistors, react to temperature or voltage changes.
Variable resistors, like potentiometers, allow users to adjust resistance for fine-tuning. High voltage resistors use materials such as thick film, thin film, or metal oxide to manage specific circuit demands. The choice of resistor type affects precision, durability, and safety. For example, metal film 2.2k ohm resistors suit measurement circuits, while wirewound types fit power applications.
| Resistor Type | Key Features | Common Uses |
|---|---|---|
| Carbon Film | Inexpensive, general purpose | Consumer electronics |
| Metal Film | High precision, low noise | Measurement, audio circuits |
| Wirewound | High power, robust | Power supplies, motors |
| Thermistor | Temperature sensitive | Sensing, protection |
Sourcing Tips
Finding quality 2.2k ohm resistors requires careful sourcing. Buyers should:
-
Check supplier reliability by reviewing export records and market presence.
-
Use market analysis tools to compare prices and negotiate better deals.
-
Build direct relationships with supplier decision-makers for trust and support.
-
Monitor the supply chain to avoid unauthorized imports and ensure product quality.
-
Stay updated on market trends and competitor actions to adapt sourcing strategies.
Careful sourcing ensures that 2.2k ohm resistors meet industry standards and perform reliably in all applications.
A 2.2k ohm resistor plays a vital role in electronic circuits. Mastering the color code allows users to identify the 2.2k ohm resistor quickly and accurately. Proper identification supports correct application in voltage dividers, current limiting, and signal conditioning. Careful selection of the 2.2k ohm resistor, based on resistance value and power rating, helps prevent overheating and ensures reliability. These steps optimize resistor performance and maintain circuit stability. Students and hobbyists can confidently use the 2.2k ohm resistor in their projects to achieve consistent results.
