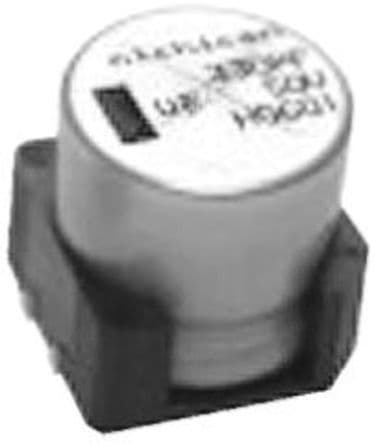

NICHICON UUE1C221MNS1GS
NICHICON UUE1C221MNS1GS

NICHICON UUE1C221MNS1GS

Manufacturer No:

UUE1C221MNS1GS

Manufacturer:

NICHICON

Package:

Radial, Can - SMD

Description:

UUE 220?F Capacitor ±20% Tape & Reel (TR) Surface Mount 190mA 0.394Dia 10.00mm -40°C~125°C Polar Radial, Can - SMD

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UUE1C221MNS1GS information

NICHICON UUE1C221MNS1GS technical specifications, attributes, parameters and parts with similar specifications to NICHICON UUE1C221MNS1GS.

  • Type
  • Parameter
  • Factory Lead Time
  • 20 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • Radial, Can - SMD
  • Terminal Shape
  • ONE SURFACE
  • Dielectric Material
  • ALUMINUM (WET)
  • Surface Mount Land Size
  • 0.406Lx0.406W 10.30mmx10.30mm
  • Operating Temperature
  • -40°C~125°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • UUE
  • Published
  • 2009
  • Size / Dimension
  • 0.394Dia 10.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e6
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin/Bismuth (Sn/Bi)
  • Applications
  • Automotive
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 220?F
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Size Code
  • 4141
  • Voltage
  • 16V
  • Lifetime @ Temp
  • 2000 Hrs @ 125°C
  • Leakage Current
  • 105.6?A
  • Ripple Current
  • 190mA
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Tan Delta
  • 0.2
  • Ripple Current @ Low Frequency
  • 127.3mA @ 120Hz
  • Ripple Current @ High Frequency
  • 190mA @ 100kHz
  • Diameter
  • 10mm
  • Height
  • 10mm
  • Height Seated (Max)
  • 0.433 11.00mm
  • Length
  • 10.9mm
  • Width
  • 10.3mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UUE1C221MNS1GS.

Datasheets:

UUE1C221MNS1GS Overview


During full charge, the ripple current is 190mA @ 100kHz.When the battery is charged to its lowest level, the ripple current is 127.3mA @ 120Hz.You should keep the height of the seat (Max) below 0.433 11.00mm.Rated DC voltage of 16V is used to operate this capacitor.If you want high efficiency, you should keep the operating temperature at -40°C~125°C.

UUE1C221MNS1GS Features


the ripple current is 190mA @ 100kHz.
the ripple current is 127.3mA @ 120Hz.
voltage - Rated DC of 16V
an operating temperature of -40°C~125°C


UUE1C221MNS1GS Applications


There are a lot of Nichicon
UUE1C221MNS1GS applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
