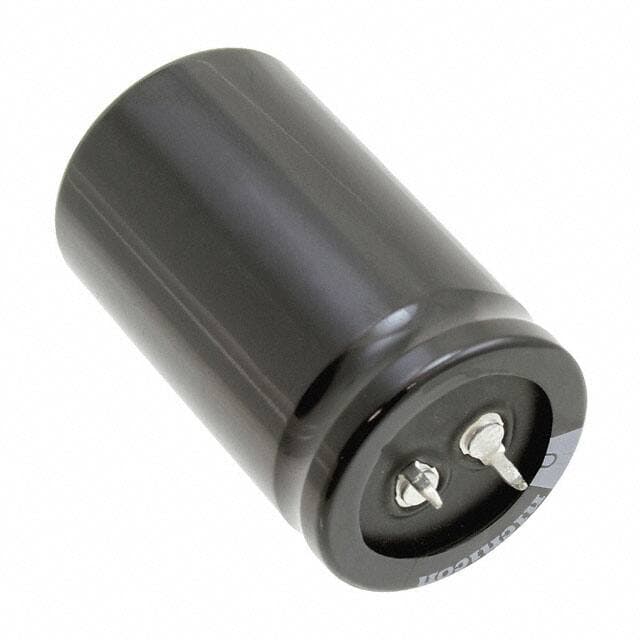

Nichicon LGU2G471MELB
Nichicon LGU2G471MELB

Nichicon LGU2G471MELB

Manufacturer No:

LGU2G471MELB

Manufacturer:

Nichicon

Package:

Radial, Can - Snap-In

Description:

LGU 470?F Capacitor ±20% Bulk Through Hole 1.9A 1.181Dia 30.00mm -25°C~105°C Polar 10mm Radial, Can - Snap-In

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LGU2G471MELB information

Nichicon LGU2G471MELB technical specifications, attributes, parameters and parts with similar specifications to Nichicon LGU2G471MELB.

  • Type
  • Parameter
  • Factory Lead Time
  • 19 Weeks
  • Mount
  • PCB, Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can - Snap-In
  • Number of Pins
  • 2
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -25°C~105°C
  • Packaging
  • Bulk
  • Series
  • LGU
  • Published
  • 2005
  • Size / Dimension
  • 1.181Dia 30.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Feature
  • General Purpose
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Snap in
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • Capacitance
  • 470?F
  • Voltage - Rated DC
  • 400V
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.394 10.00mm
  • Lead Diameter
  • 800 ?m
  • Voltage
  • 400V
  • Lifetime @ Temp
  • 3000 Hrs @ 105°C
  • Leakage Current
  • 1.3mA
  • Ripple Current
  • 1.9A
  • Polarization
  • Polar
  • Life (Hours)
  • 3000 hours
  • Tan Delta
  • 0.15
  • Ripple Current @ Low Frequency
  • 1.9A @ 120Hz
  • Ripple Current @ High Frequency
  • 2.717A @ 50kHz
  • Diameter
  • 30mm
  • Height
  • 50mm
  • Height Seated (Max)
  • 1.969 50.00mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Nichicon LGU2G471MELB.

Datasheets:

LGU2G471MELB Overview


During full charge, the ripple current is 2.717A @ 50kHz.When the battery is charged to its lowest level, the ripple current is 1.9A @ 120Hz.You should keep the height of the seat (Max) below 1.969 50.00mm.Rated DC voltage of 400V is used to operate this capacitor.If you want high efficiency, you should keep the operating temperature at -25°C~105°C.

LGU2G471MELB Features


the ripple current is 2.717A @ 50kHz.
the ripple current is 1.9A @ 120Hz.
voltage - Rated DC of 400V
an operating temperature of -25°C~105°C


LGU2G471MELB Applications


There are a lot of Nichicon
LGU2G471MELB applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems
