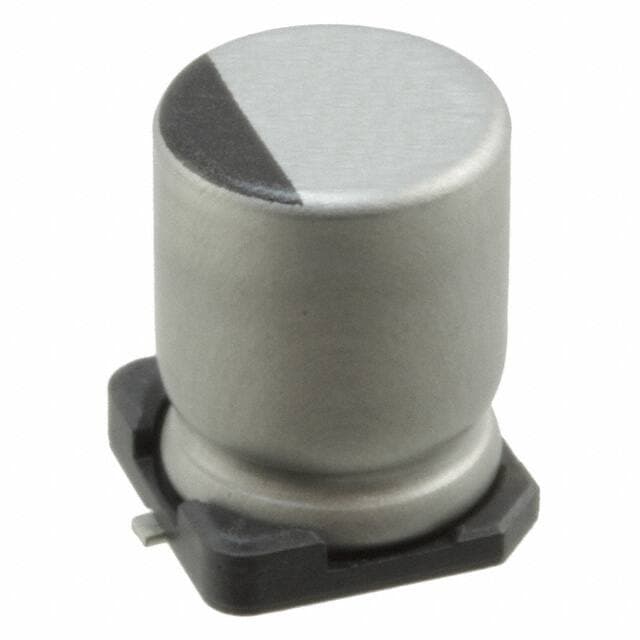

NICHICON UUR0J471MNL1GS

Manufacturer No:

UUR0J471MNL1GS

Manufacturer:

NICHICON

Package:

Radial, Can - SMD

Description:

UUR 470?F Capacitor ±20% Tape & Reel (TR) Surface Mount 265mA 0.315Dia 8.00mm -40°C~85°C Radial, Can - SMD

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UUR0J471MNL1GS information

NICHICON UUR0J471MNL1GS technical specifications, attributes, parameters and parts with similar specifications to NICHICON UUR0J471MNL1GS.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
Radial, Can - SMD

Number of Pins
2

Dielectric Material
Aluminium

Surface Mount Land Size
0.327Lx0.327W 8.30mmx8.30mm

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
UUR

Published
2009

Size / Dimension
0.315Dia 8.00mm

Tolerance
±20%

Feature
General Purpose

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
SMD/SMT

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Applications
General Purpose

Voltage - Rated
6.3V

Capacitance
470?F

Voltage - Rated DC
6.3V

Lifetime @ Temp
2000 Hrs @ 85°C

Life (Hours)
2000 hours

Ripple Current @ Low Frequency
265mA @ 120Hz

Ripple Current @ High Frequency
344.5mA @ 10kHz

Dissipation Factor
0.28 %

Ripple Current (AC)
265mA

Diameter
8mm

Height
10mm

Height Seated (Max)
0.413 10.50mm

Length
10mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for NICHICON UUR0J471MNL1GS.

Datasheets:

nichicon-pcj1a391mcl1gs-datasheets-5842.pdf

nichicon-pcf1a151mcl6gs-datasheets-6222.pdf

UUR0J471MNL1GS Overview

Full charge should result in a ripple current of 344.5mA @ 10kHz.If the charge is low, ripple current is 265mA @ 120Hz.Keep your seated height below 0.413 10.50mm.Based on the dissipation factor of 0.28 %, it operates.A voltage of 6.3V DC is used to operate this capacitor.The maximum efficiency can be achieved by maintaining -40°C~85°C as the operating temperature.

UUR0J471MNL1GS Features

the ripple current is 344.5mA @ 10kHz.
the ripple current is 265mA @ 120Hz.
a dissipation factor of 0.28 %
voltage - Rated DC of 6.3V
an operating temperature of -40°C~85°C

UUR0J471MNL1GS Applications

There are a lot of Nichicon
UUR0J471MNL1GS applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
