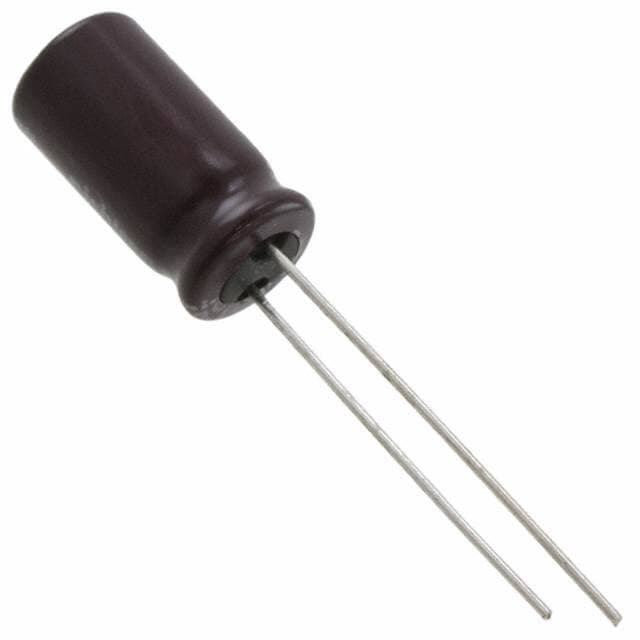

NICHICON UPJ1V151MPD
Manufacturer No:
UPJ1V151MPD
Manufacturer:
Package:
Radial, Can
Description:
UPJ 150?F Capacitor ±20% Bulk Through Hole 415mA 0.315Dia 8.00mm -55°C~105°C Polar 3.5mm Radial, Can
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
UPJ1V151MPD information
NICHICON UPJ1V151MPD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UPJ1V151MPD.
- Type
- Parameter
- Factory Lead Time
- 19 Weeks
- Mount
- Through Hole
- Mounting Type
- Through Hole
- Package / Case
- Radial, Can
- Terminal Shape
- WIRE
- Dielectric Material
- ALUMINUM (WET)
- Operating Temperature
- -55°C~105°C
- Packaging
- Bulk
- Series
- UPJ
- Published
- 2008
- Size / Dimension
- 0.315Dia 8.00mm
- Tolerance
- ±20%
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- Termination
- Radial
- ECCN Code
- EAR99
- Terminal Finish
- Matte Tin (Sn)
- Applications
- General Purpose
- HTS Code
- 8532.22.00
- Capacitance
- 150?F
- Voltage - Rated DC
- 35V
- Capacitor Type
- ALUMINUM ELECTROLYTIC CAPACITOR
- Lead Spacing
- 0.138 3.50mm
- Lifetime @ Temp
- 3000 Hrs @ 105°C
- Leakage Current
- 157.5?A
- Ripple Current
- 415mA
- Polarization
- Polar
- Life (Hours)
- 3000 hours
- Impedance
- 180mOhm
- Ripple Current @ Low Frequency
- 415mA @ 120Hz
- Dissipation Factor
- 0.12 %
- Lead/Base Style
- Straight
- Diameter
- 8mm
- Height
- 15mm
- Height Seated (Max)
- 0.630 16.00mm
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for NICHICON UPJ1V151MPD.
Datasheets:
UPJ1V151MPD Overview
In the lowest charge, the ripple current is 415mA @ 120Hz.Sitting height should not exceed 0.630 16.00mm (Max).With 0.12 % dissipation factor, it operates normally.A voltage of 35V DC operates this capacitor.Maintaining -55°C~105°C as the operating temperature will maximize efficiency.
UPJ1V151MPD Features
the ripple current is 415mA @ 120Hz.
a dissipation factor of 0.12 %
voltage - Rated DC of 35V
an operating temperature of -55°C~105°C
UPJ1V151MPD Applications
There are a lot of Nichicon
UPJ1V151MPD applications of aluminum electrolytic capacitors.
- Power supplies
- Computer motherboards
- Uninterruptible power supplies
- Frequency converters
- Computer
- Telecommunication
- Industrial systems
- Smoothing and filtering applications
- Standard and switched mode power supplies
- Energy storage in pulse systems
