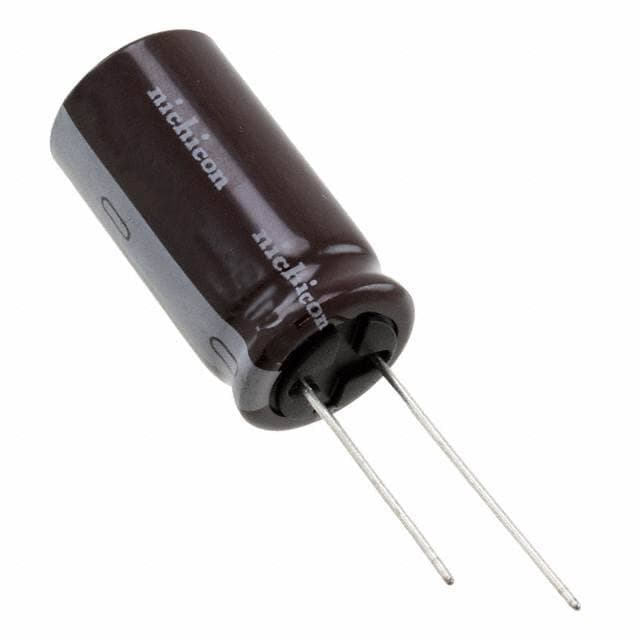

NICHICON UCY2E181MHD

Manufacturer No:

UCY2E181MHD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UCY 180?F Capacitor ±20% Bulk Through Hole 1.11A 0.630Dia 16.00mm -40°C~105°C Polar 7.493mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UCY2E181MHD information

NICHICON UCY2E181MHD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UCY2E181MHD.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
UCY

Published
2009

Size / Dimension
0.630Dia 16.00mm

Tolerance
±20%

JESD-609 Code
e3

Feature
General Purpose

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

HTS Code
8532.22.00

Capacitance
180?F

Voltage - Rated DC
250V

Lead Pitch
7.493mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.295 7.50mm

Lifetime @ Temp
12000 Hrs @ 105°C

Ripple Current
1.11A

Polarization
Polar

Life (Hours)
12000 hours

Ripple Current @ Low Frequency
1.11A @ 120Hz

Ripple Current @ High Frequency
2.22A @ 100kHz

Dissipation Factor
0.2 %

Diameter
16mm

Height Seated (Max)
1.299 33.00mm

Length
31.5mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for NICHICON UCY2E181MHD.

UCY2E181MHD Overview

Ripple current at full charge is 2.22A @ 100kHz.It is 1.11A @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 1.299 33.00mm.Consequently, it operates with a dissipation factor of 0.2 % (0.2 %).Voltage - Rated DC - is 250V.It is recommended that the operating temperature be kept at -40°C~105°C to achieve high efficiency.

UCY2E181MHD Features

the ripple current is 2.22A @ 100kHz.
the ripple current is 1.11A @ 120Hz.
a dissipation factor of 0.2 %
voltage - Rated DC of 250V
an operating temperature of -40°C~105°C

UCY2E181MHD Applications

There are a lot of Nichicon
UCY2E181MHD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
