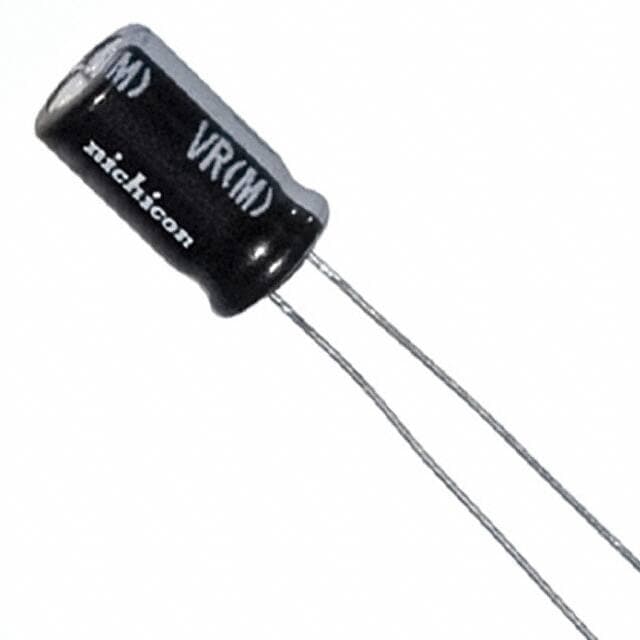

NICHICON UVR0J470MDD

Manufacturer No:

UVR0J470MDD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UVR 47?F Capacitor ±20% Bulk Through Hole 95mA 0.197Dia 5.00mm -40°C~85°C Polar 2mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UVR0J470MDD information

NICHICON UVR0J470MDD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UVR0J470MDD.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Terminal Shape
WIRE

Number of Pins
2

Dielectric Material
Aluminium

Operating Temperature
-40°C~85°C

Packaging
Bulk

Series
UVR

Published
2004

Size / Dimension
0.197Dia 5.00mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

Capacitance
47?F

Voltage - Rated DC
6.3V

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.079 2.00mm

Lifetime @ Temp
2000 Hrs @ 85°C

Leakage Current
8.883?A

Ripple Current
95mA

Polarization
Polar

Life (Hours)
2000 hours

Ripple Current @ Low Frequency
95mA @ 120Hz

Ripple Current @ High Frequency
190mA @ 10kHz

Dissipation Factor
0.28 %

Lead/Base Style
Straight

Diameter
5mm

Height
11mm

Height Seated (Max)
0.492 12.50mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for NICHICON UVR0J470MDD.

UVR0J470MDD Overview

During full charge, the ripple current is 190mA @ 10kHz.When the battery is charged to its lowest level, the ripple current is 95mA @ 120Hz.You should keep the height of the seat (Max) below 0.492 12.50mm.Basically, it has a dissipation factor of 0.28 %.Rated DC voltage of 6.3V is used to operate this capacitor.If you want high efficiency, you should keep the operating temperature at -40°C~85°C.

UVR0J470MDD Features

the ripple current is 190mA @ 10kHz.
the ripple current is 95mA @ 120Hz.
a dissipation factor of 0.28 %
voltage - Rated DC of 6.3V
an operating temperature of -40°C~85°C

UVR0J470MDD Applications

There are a lot of Nichicon
UVR0J470MDD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
