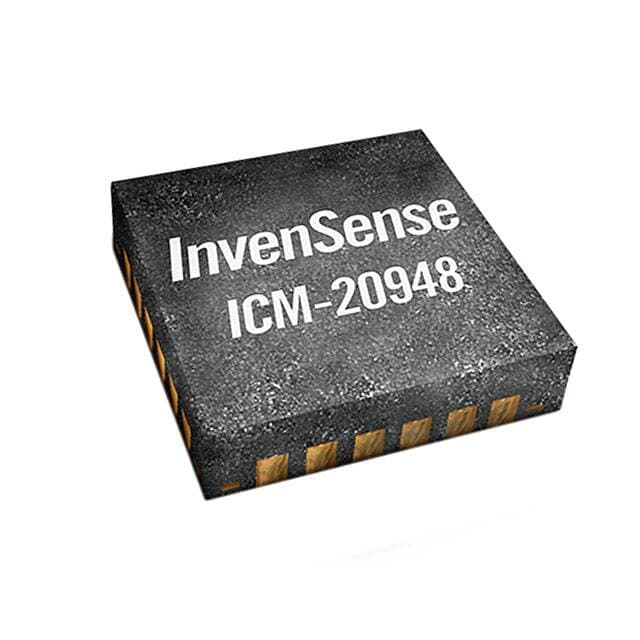

Manufacturer No:

ICM-20948

Manufacturer:

TDK

Package:

24-TFQFN Module Exposed Pad

Description:

IMU ACCEL/GYRO/COMPI2C/SPI 24QFN

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ICM-20948 information

TDK ICM-20948 technical specifications, attributes, parameters and parts with similar specifications to TDK ICM-20948.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 24-TFQFN Module Exposed Pad
  • Usage Level
  • Industrial grade
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Output Type
  • I2C, SPI
  • Sensor Type
  • Accelerometer, Gyroscope, Magnetometer, 9 Axis
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for TDK ICM-20948.

Product Description:

The ICM-20948 is a 9-axis motion sensor module from TDK InvenSense, designed to provide accurate and reliable measurements for a wide range of applications. This surface-mount module features a compact 24-TFQFN package with an exposed pad, making it ideal for use in space-constrained designs.

Features:

  • 9-axis sensing capabilities, including accelerometer, gyroscope, and magnetometer
  • I2C and SPI output interfaces for easy integration with microcontrollers
  • Operating temperature range of -40°C to 85°C, making it suitable for use in various environments
  • Moisture sensitivity level of 1 (unlimited), ensuring reliable performance in humid conditions
  • ROHS3 compliant, meeting the latest environmental and health standards

Applications:

  • Primary applications:
    • Wearable devices, such as smartwatches and fitness trackers
    • Gaming controllers and virtual reality headsets
    • Robotics and autonomous vehicles
  • Secondary applications:
    • Industrial automation and control systems
    • Medical devices and equipment
    • Aerospace and defense systems

Alternative Parts:

  • ICM-20948 is a part of the InvenSense 9-axis IMU family, which includes other models such as the ICM-20948A and ICM-20948B. These alternative parts offer similar features and performance, but with minor variations in packaging or output interfaces.

Embedded Modules:

  • The ICM-20948 is used in various embedded systems, including:
    • Wearable devices from leading manufacturers
    • Gaming consoles and virtual reality headsets
    • Industrial automation and control systems

FAQs:

Q: What is the operating temperature range of the ICM-20948? A: The ICM-20948 operates within a temperature range of -40°C to 85°C.

Q: What are the output interfaces of the ICM-20948? A: The ICM-20948 features I2C and SPI output interfaces for easy integration with microcontrollers.

Q: Is the ICM-20948 ROHS3 compliant? A: Yes, the ICM-20948 meets the latest ROHS3 environmental and health standards.

Q: What is the moisture sensitivity level of the ICM-20948? A: The ICM-20948 has a moisture sensitivity level of 1 (unlimited), ensuring reliable performance in humid conditions.

Q: What is the packaging type of the ICM-20948? A: The ICM-20948 is available in a tape and reel (TR) packaging format.

Q: What is the factory lead time for the ICM-20948? A: The factory lead time for the ICM-20948 is 16 weeks.

By providing accurate and reliable motion sensing capabilities, the ICM-20948 is an ideal choice for a wide range of applications, from wearable devices to industrial automation systems.
