Microchip MIC49500WR-TR

Manufacturer No:

MIC49500WR-TR

Manufacturer:

Microchip

Package:

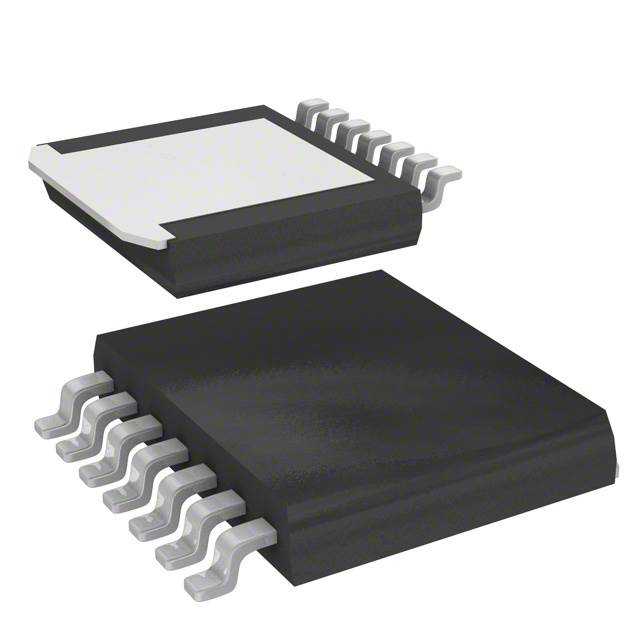

SPak-7 (7 leads + Tab)

Description:

5A LDO, Low Vin, Low Vout, Fast transient response, uCap stable

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MIC49500WR-TR information

Microchip MIC49500WR-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip MIC49500WR-TR.

Type
Parameter

VIN Min (V) V (volt)
1.4

VIN Max V (volt)
6

VOUT V (volt)
0.9, 1.2

IOUT #1 Max mA (milliampere)
5000

Rated IOUT Max mA (milliampere)
5000

Voltage Drop Typ (mV)
290

Accuracy (+/-) %
2

Adjustable VOUT
Yes

Reverse Battery
No

Bypass Pin
No

Current Limit
Yes

Shutdown EN
Yes

Power Good Signal
No

Thermal Shutdown
Yes

Download datasheets and manufacturer documentation for Microchip MIC49500WR-TR.

Data Sheets:

ad54c1bc7a6d60ef248cfbee5b853aa6.pdf

The MIC49500 is an ultra-high-bandwidth, low-dropout, 5.0A voltage regulator ideal for powering core voltages of low-voltage microprocessors. The MIC49500 implements a dual supply configuration allowing for very low output impedance and very fast transient response.

The MIC49500 requires a bias input supply and a main input supply, allowing for ultra-low input voltages on the main supply rail. The input supply operates from 1.4V to 6V and the bias supply requires between 3V and 6V for proper operation. The MIC49500 can regulate to an output voltage as low as 0.7V, making it an ideal product for low-voltage to low-voltage conversion.

The MIC49500 requires a minimum of output capacitance for stability, working optimally with any type of capacitor, including small ceramic capacitors. Available in fixed output voltages from 0.9V to 1.8V and adjustable output voltages down to 0.7V, the MIC49500 comes in both 7-pin S-Pak and TO-263 packages. The MIC49500 is rated to the full operating temperature range of -40°C to 125°C junction temperature.

VIN: 1.4V to 6V
VBIAS: 3V to 6V
Stable with 10µF ceramic output capacitor
±1.0% initial output tolerance
Maximum dropout (VIN - VOUT) is 500mV over temperature
Adjustable output voltage down to 0.7V
Ultra-fast transient response (Up to 10MHz bandwidth)
Excellent line and load regulation specifications
Logic controlled shutdown option
Thermal shutdown and current limit protection
Thin 7-pin S-Pak package
TO-263 7-pin package
-40°C to +125°C operating junction temperature range
