MT29F1G08ABAFAH4-ITE:F Guide: The 1Gb SLC NAND for Industrial Reliability

In the consumer world, NAND Flash is all about "Gigabytes per Dollar" (leading to QLC and 3D NAND). But in the Industrial and Automotive sectors, one metric rules them all: Reliability.

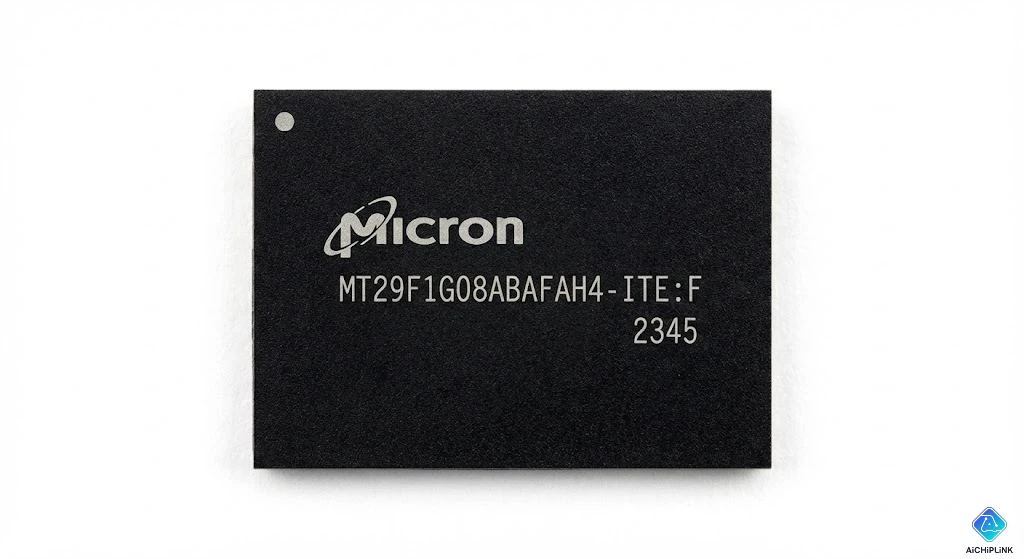

The Micron MT29F1G08ABAFAH4-ITE:F is a testament to that philosophy.

It is a 1 Gigabit (128MB) SLC (Single Level Cell) NAND Flash. While 1Gb seems small, the use of SLC technology guarantees data integrity for 10+ years and endurance levels (100,000 cycles) that standard consumer chips can only dream of. It is the "black box" storage of choice for medical devices, automotive ECUs, and robust industrial controllers.

This guide decodes the part number and explains why engineers continue to choose this SLC workhorse.

---

Table of Contents

• 1. Decoding the Part Number
• 2. Technical Specs: The SLC Advantage
• 3. Hardware Considerations: VFBGA-63
• 4. Managing Revisions (:F vs :G)
• 5. Sourcing & Replacements
• 6. Conclusion

---

1. Decoding the Part Number

Micron part numbers are a roadmap of the chip's features. Here is the breakdown for MT29F1G08ABAFAH4-ITE:F:

Code Segment	Meaning	Detail
MT	Manufacturer	Micron Technology.
29F	Technology	NAND Flash Memory.
1G	Density	1 Gigabit (128 Megabytes).
08	Width	x8 bits (8-bit Data Bus).
ABA	Config	SLC, 3.3V Vcc, 1st Gen Die.
FA	Feature	Specific Block/Page config code.
H4	Package	VFBGA-63 (9mm x 11mm).
-ITE	Grade	Industrial Temp (-40°C to +85°C), RoHS Compliant.
:F	Revision	Fab Revision F. (Critical for BOM management).

---

2. Technical Specs: The SLC Advantage

Why choose this expensive SLC chip over a cheaper MLC chip?

1. Endurance: SLC stores 1 bit of data per physical cell (Voltage Low or High). This simplicity allows for 100,000 Program/Erase (P/E) cycles.
   • Comparison: Modern MLC is ~3,000 cycles; TLC is ~1,000.
2. Speed: Without the need for complex multi-level voltage checks, SLC offers the fastest raw Read/Write speeds.
3. Temperature Robustness: The simplistic cell structure is far less susceptible to "electron leakage" at high temperatures (+85°C), ensuring data retention for decades.

Ideal Use Cases:

• Storing the Bootloader (U-Boot) and Linux Kernel.
• Frequent logging of sensor data (Write Intensive).
• Mission-critical configuration files.

---

3. Hardware Considerations: VFBGA-63

The H4 suffix denotes the 63-ball VFBGA package.

• Dimensions: 9mm x 11mm x 1.0mm.
• Why BGA?
  • Space: It is significantly smaller than the older TSOP-48 package, saving valuable PCB real estate.
  • Integrity: The shorter ball connections provide better signal integrity for high-speed I/O compared to leaded packages.
• PCB Layout: Requires a multi-layer board with fine pitch routing capabilities.

---

4. Managing Revisions (:F vs :G)

The suffix :F indicates this chip is from Revision F of Micron's manufacturing process.

• The Challenge: Micron periodically shrinks their die to save cost (moving from :F to :G, for example).
• Impact:
  1. Device ID: The electronic signature (Read ID command) may change. Your driver might not recognize the new revision.
  2. Timing: Read/Write timings might change slightly.
• Solution: When designing a long-life product, verify if your firmware supports multiple Micron Device IDs. If buying on the spot market, ensure you match the revision letter to avoid software incompatibility.

---

5. Sourcing & Replacements

Micron 1Gb SLC is a standard footprint item, but specific revisions can go EOL (End of Life).

Compatible Alternatives (Check Datasheets!):

• Kioxia (Toshiba): TC58NVG0S3HBAI4 (Check VFBGA-63 compatibility).
• Macronix: MX30LF1G18AC-XKI.
• Winbond: W29N01GV series.

Warning: Always verify the ECC Requirements. Most 1Gb SLC chips require 4-bit ECC, which modern MCUs handle easily. Ensure your substitute doesn't require higher ECC than your processor supports.

---

6. Conclusion

The Micron MT29F1G08ABAFAH4-ITE:F is the definition of "Industrial Strength." It sacrifices density for durability, providing a rock-solid storage medium for devices that cannot afford to fail. Whether you are building a smart meter or a railway controller, this SLC NAND is the professional choice.
