You use the tip41c transistor when you want a strong and dependable part for making power bigger or turning things on and off in your projects. This power transistor can handle big currents and voltages easily. Many people who build things, and also experts, choose the tip41c transistor because it works well and can do many jobs. In today’s circuits, you will see this transistor used in:
-
Audio amplifier circuits, where it makes weak signals stronger for better sound.
-
Power supply systems, where it keeps the current steady and holds the voltage.
-
Motor controllers, where it turns motors on and off or changes how fast they go.
-
LED drivers and switching regulators, where it controls power in a smart way.
The tip41c transistor is good for these uses because it deals with heat well and gives steady results.
Key Takeaways
- The TIP41C transistor helps control and increase electrical power in many projects. You can find it in things like audio amplifiers, power supplies, and motor drivers. It can handle a lot of current, up to 6A, and voltage, up to 100V. This makes it strong and good for circuits that need medium or high power. You should use a heat sink to keep the TIP41C cool. This stops it from getting too hot and breaking when it works hard or for a long time. The transistor is good at making weak signals stronger as an amplifier. It also works as a switch to turn things on and off. Always look at the datasheet before you use it. Pick the right resistor and setup to keep your circuit safe and working well.

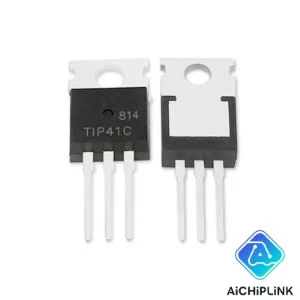

TIP41C Transistor Basics
What is a Power Transistor?
A power transistor helps control or boost big currents and voltages. It is different from small-signal transistors because it can handle more load. The TIP41C transistor is a well-known power transistor. It is an NPN BJT, so it uses electrons and holes to move current. You find power transistors in things that need to switch or boost power. Some examples are audio amplifiers, power supplies, and motor drivers.
Tip: Power transistors like the TIP41C have bigger cases and special parts to get rid of heat. This helps them work better in tough circuits.
Here is a simple comparison:
| Feature | Power Transistors | Signal Transistors |
|---|---|---|
| Maximum Collector Current | Over 500mA | 500mA or less |
| Power Dissipation | 1W or more | Less than 1W |
| Size | Larger, with heat fins | Smaller, epoxy molded |
| Heat Dissipation | Excellent | Limited |

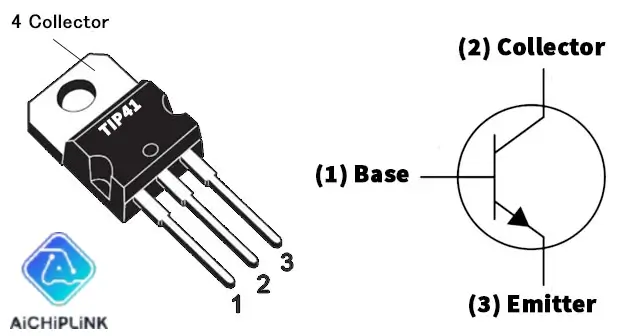

Key Features
The TIP41C transistor is special because it can handle high current and voltage. It can let up to 6A flow and can take 100V between collector and emitter. The TO-220 package helps it stay cool, so it works in hard places. As an NPN BJT, it fits many power circuits. Its DC current gain is from 15 to 75. This is not as high as Darlington types, but it is enough for most jobs. You can use the TIP41C transistor in power supplies, LED drivers, and battery chargers.
| Feature | Description |
|---|---|
| Collector Current (IC) | Up to 6A continuous |
| Power Dissipation (Ptot) | 65W |
| Voltage Ratings | 100V (collector-emitter and collector-base) |
| Package Type | TO-220 |
| Versatility | Works in many power applications |
| Robustness | Handles high currents and voltages |
| Thermal Management | Needs heat sinking for best performance |

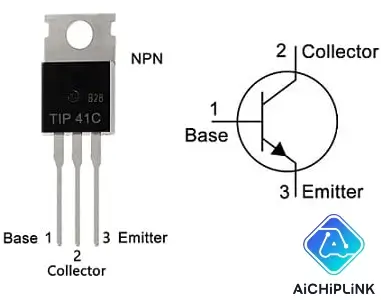

TIP41C Datasheet Overview
You should always look at the datasheet before using the TIP41C transistor. The datasheet shows the main electrical features and safe limits. For example, the collector current can go up to 6A, and the collector-emitter voltage is 100V. The datasheet also says the power dissipation is 65W, and the DC current gain is between 15 and 75. The transition frequency is about 3 MHz, which is good for switching and boosting signals. The datasheet also tells you to use heat sinks and keep the temperature between -65°C and 150°C. If you follow these tips, you will avoid damage and get the best results from your NPN BJT.
| Parameter | Value/Range |
|---|---|
| Maximum Collector Current | 6A continuous |
| Collector-Emitter Voltage | 100V |
| Collector-Base Voltage | 100V |
| Emitter-Base Voltage | 5V |
| Power Dissipation | 65W |
| Operating Temperature | -65°C to 150°C |
| DC Current Gain (hFE) | 15 to 75 |
| Transition Frequency (ft) | Around 3 MHz |
How TIP41C Works
Amplification Role
You can use the tip41c transistor to make weak signals much stronger. In audio circuits, this transistor takes a small current at the base and uses it to control a much larger current between the collector and emitter. This process lets you boost a tiny input, like a microphone signal, so it can drive a speaker and fill a room with sound. The tip41c transistor works best in a common emitter setup, which helps keep the sound clear and stable.
When you build an amplifier, you want the output to match the input as closely as possible, just louder. The tip41c transistor does this by keeping the signal clean and reducing noise. It can handle up to 6A of current and 65W of power, so it works well for medium to high-power audio systems. If you use a supply voltage between 8 and 15 volts and connect a 3-ohm speaker, you can get up to 5.4 watts of output power. For bigger systems, you can use two transistors together to reach about 25 watts per channel.
Note: The tip41c transistor is not as efficient as modern class-D amplifiers, but it still gives good results in simple audio projects.
Switching Role
You can also use the tip41c transistor as a switch in many circuits. This is important for high-power switching tasks, like turning motors, relays, or LED strips on and off. When you apply a small current to the base, the transistor lets a much larger current flow from collector to emitter. This action works like a gate, letting you control big loads with a tiny signal.
Here’s how you set up the tip41c transistor for switching:
-
Connect the collector to your load, such as a motor or lamp.
-
Connect the emitter to ground.
-
Use a resistor between the base and your control signal to limit the base current.
-
When you send a signal to the base, the transistor turns on and powers the load.
-
For motors or relays, add a diode across the load to protect the transistor from voltage spikes.
The tip41c transistor can switch loads up to 6A, making it perfect for high-power switching in power supplies and motor controllers. Its low saturation voltage means it wastes little energy as heat during switching. However, it works best at frequencies below 3 MHz, so it is not suitable for very fast digital circuits.
Biasing and Heat Management
To get the best performance from the tip41c transistor, you need to set the right bias. Biasing means giving the base just enough current to turn the transistor on without wasting power or causing distortion. You can do this by choosing the right resistor values in your circuit. A common emitter setup helps keep the transistor stable and improves sound quality in amplifiers.
Heat management is also very important. The tip41c transistor can get hot when handling high currents or working in high-power switching circuits. You should always use a heat sink to pull heat away from the transistor. Make sure the load current stays below 6A and the voltage does not go over 100V. Keep the transistor’s temperature between -65°C and 150°C for safe operation. If you ignore heat, the transistor can fail quickly.
Tip: Always check your circuit after building it. Look for hot spots and make sure the transistor stays cool during use. Good heat management helps your projects last longer and work better.
TIP41C Applications
The tip41c transistor is useful in many projects. It works in lots of different ways. This transistor can handle high current and voltage. That is why both hobbyists and factories like to use it. Here are some main uses for the tip41c transistor:
Audio Amplifiers
The tip41c transistor is common in audio amplifiers. It takes weak sound signals and makes them stronger. This helps speakers play louder sounds. The transistor can handle up to 6 amps and 65 watts. These features help you build good home or small public address amplifiers.
| Feature/Specification | Advantage for Audio Amplifiers |
|---|---|
| Collector Current (IC): 6 Amps | Drives speakers with higher current loads |
| Peak Power Dissipation: 65 W | Handles medium-power audio without damage |
| Collector-Emitter Voltage: 100 V | Works in demanding, high-voltage circuits |
| DC Current Gain (hFE): 15 – 75 | Amplifies weak audio signals effectively |
| Transition Frequency: 3 MHz | Supports clear audio signal response |
| Storage Temp Range: -65 to 150°C | Reliable in different thermal conditions |
You get clear sound and steady performance with this transistor. It keeps working even when the temperature changes. Always use a heat sink to keep it cool and safe.
Tip: The tip41c transistor is better than many other NPN transistors for audio. It can handle more current and voltage. This keeps your sound strong and clear, even when it is loud.
Power Supply Circuits
The tip41c transistor is good for power supply circuits. It acts like a switch to control current flow. In a power supply, it works with transformers and capacitors. This helps lower the voltage and smooth the output. The tip41c is not a voltage regulator by itself. But you can use it with other parts to make adjustable voltage regulators.
-
The transistor supports up to 6A and 100V, so it fits high-power supplies.
-
You can use it to turn motors, LEDs, or relays on and off.
-
It works well with microcontrollers like Arduino for power control.
-
You can use several tip41c transistors together to get more current.
A simple voltage regulator can use a tip41c, a resistor, and a potentiometer. This lets you change the output voltage for your project. Always keep the current below 6A and use a heat sink.
Motor and Relay Drivers
The tip41c transistor is strong for motor and relay control. You can use it to turn motors on or off. It can also change how fast or which way motors spin. This is important in robots and machines that need careful motor control.
| Parameter | Typical Rating |
|---|---|
| Collector Current (IC) | 6 Amps |
| Collector-Emitter Voltage | 40 Volts (max 100V) |
| Base Current (IB) | 2-3 Amps |
| Peak Power Dissipation | 65 Watts |
-
The transistor can drive motors and relays up to 6A.
-
It gives smooth and quick control over motor speed and direction.
-
You can use it to switch relays with a small signal.
-
The TO-220 package helps remove heat for long life.
-
For more current gain, use two tip41c transistors as a Darlington pair.
Note: Always put a diode across the motor or relay. This protects the transistor from voltage spikes.
LED and Inverter Circuits
The tip41c transistor is good for LED driver circuits. It controls the current through high-power LEDs. This keeps LEDs bright and safe. The transistor saves energy and helps your lights last longer.
-
The transistor keeps the LED brightness steady.
-
You can use it in inverter circuits to change DC to AC power for small devices.
-
Its high current and low voltage drop make it reliable for switching.
Tip: The tip41c transistor is great for LED drivers and inverters. It handles high power and works well in many conditions.
Other Uses and Pairing
You can use the tip41c transistor in voltage regulators, step-up converters, and battery chargers. If you need both NPN and PNP transistors, pair the tip41c with the TIP42C. This pair lets you make push-pull amplifiers and other circuits that need both types.
| Feature | TIP41C (NPN) | TIP31C (NPN) | TIP42C (PNP) |
|---|---|---|---|
| Voltage Rating | Higher (100V) | Lower (60V) | Lower (60V) |
| Current Gain Range | 25-100 | 10-150 | 40-160 |
| Typical Applications | High voltage, positive voltage switching and amplification | Faster switching, lower saturation voltage | Negative voltage applications, complementary to TIP41C |
| Complementary Pair | Complements TIP42C | N/A | Complements TIP41C |
| Thermal Stability | Better thermal stability | Less robust | N/A |
You get more options and power in your designs with the tip41c transistor. Its high voltage rating and strong build make it a top pick for many electronics.
Advantages and Drawbacks
Strengths
The TIP41C transistor gives you many good things in your projects. It can handle a lot of power and stays reliable even when stressed. Here are some reasons to pick this transistor:
-
It lets up to 6A flow, so it works in strong circuits.
-
It can handle up to 100V, which is safe for tough jobs.
-
It lasts a long time, even with heavy use.
-
It stays cool if you use heat sinks and let air move around it.
-
You can use it in many ways, like in amplifiers or for power control.
-
It is easy to find and does not cost much, so you can use it often.
You can check these features in the table below:
| Feature | Description |
|---|---|
| Collector Current (IC) | Up to 6A continuous current, suitable for high power applications |
| Power Dissipation (Ptot) | Can dissipate up to 65W, enabling effective power amplification and switching |
| Voltage Ratings | Collector-Emitter Voltage (VCEO) and Collector-Base Voltage (VCBO) up to 100V |
| Robustness | Built to tolerate high currents and voltages, enhancing lifetime and reliability |
| Thermal Management | Requires heat sinks and proper ventilation to maintain reliability and prevent overheating |
| Versatility | Suitable for various applications including power amplification, switching, and audio amps |
| Availability & Cost | Widely available and cost-effective, supporting practical use in many electronic circuits |
💡 Tip: This transistor is a good pick for projects that need to be strong and dependable.
Limitations
You should know what the TIP41C transistor cannot do before using it. Some new parts, like MOSFETs or IGBTs, can be better for some jobs. Here are some things to remember:
-
It has a high saturation voltage, so it can waste more power as heat.
-
It can get very hot, so you must use a good heat sink.
-
It only works up to about 3 MHz, so it is not good for fast circuits.
-
The TO-220 package is bigger than many new parts, so it takes up more space.
-
It is not the best for low-power or very fast switching jobs, where new devices work better.
⚠️ Note: Always check if your project needs a smaller, faster, or more efficient part before choosing this transistor.
Purchase TIP41C and Alternatives
Where to Buy
If you want to buy tip41c transistors, pick a trusted seller. Real and good parts help your projects work better and last longer. One of the best places to get real TIP41C transistors is Ai Chiplink Limited. This company sells to people all over the world. You can buy from them online or in person. Go to their website for your country or talk to their local office. Many engineers and hobbyists trust Allelco. They care about selling real products and giving good service.
-
-
At AIChipLink, as a one-stop global electronics components online sourcing platform, what we do is making purchasing easier, faster and save more.
-
Low prices, fast delivery, excellent after sales service with no minimum order requirements.
-
We help OEMs, ODMs, and CMs with cost-down strategy to meet savings targets while sourcing vital electronic components.
-
Sells real and trusted TIP41C transistors
-
🛒 Tip: Based on our large amounts of ready inventory and massive supplier database, we can quickly allocate resources to help to find shortages & hard-to-find parts you need.
Compatible Substitutes
Sometimes, you cannot find the TIP41C transistor in stores. In these times, you can use a substitute that works the same way. These other parts have close features and can fit most circuits where you use a TIP41C. Here is a table to help you see some common choices:
| Substitute Model | Type | Max Collector Current | Max Voltage | Package | Notes |
|---|---|---|---|---|---|
| TIP41A | NPN | 6A | 60V | TO-220 | Lower voltage rating |
| TIP41B | NPN | 6A | 80V | TO-220 | Slightly lower voltage |
| TIP31C | NPN | 3A | 100V | TO-220 | Lower current, same voltage |
| 2N3055 | NPN | 15A | 60V | TO-3 | Higher current, different case |
| TIP42C | PNP | 6A | 100V | TO-220 | PNP, use for complementary circuits |
Pick a substitute that fits what your circuit needs. Always read the datasheet before you change parts. This helps you stop problems and keeps your project safe.
⚡ Note: If you want to buy tip41c or any other part, make sure the ratings are right for your project.
You can rely on the TIP41C transistor for many electronics projects. It works well for power amplification and switching tasks. You see it in audio amplifiers, power supplies, and motor drivers. This transistor handles high current and voltage, so it fits both DIY and professional needs. Always check the datasheet before you build your circuit. Use the right bias and a heat sink to keep your project safe and strong.
💡 Tip: Choose the TIP41C when you want a dependable and versatile power transistor.
FAQ
What is the main function of the TIP41C transistor?
You use the TIP41C transistor to control or amplify electrical power in your circuits. It works well for switching and boosting current in devices like amplifiers, power supplies, and motor drivers.
Can you use the TIP41C transistor for both AC and DC circuits?
Yes, you can use the TIP41C transistor in both AC and DC circuits. It handles signals in audio amplifiers and controls current in DC power supplies or motor controllers.
How do you protect the TIP41C transistor from overheating?
You should attach a heat sink to the TIP41C transistor. This helps pull heat away and keeps the transistor cool. Always check the temperature during use to prevent damage.
What is the difference between TIP41C and TIP42C?
| TIP41C (NPN) | TIP42C (PNP) |
|---|---|
| Handles positive voltage | Handles negative voltage |
| Used for sourcing current | Used for sinking current |
You often use them together in push-pull circuits.
Can you replace TIP41C with another transistor?
Yes, you can use substitutes like TIP41A, TIP41B, or 2N3055 if they match your circuit’s needs. Always check the datasheet to make sure the ratings fit your project.
