What is a Full Bridge Rectifier? Working Principle and Applications

A full bridge rectifier changes AC into DC. It uses four diodes in a bridge shape. This way, it converts power better than other rectifiers. The bridge rectifier uses all parts of the AC wave. You get more voltage and less ripple. This helps things like power supplies work well. Battery chargers also run better with it. The full wave bridge rectifier works with both halves of the AC cycle. You do not need a center-tapped transformer for it. You see full wave bridge rectifiers in many electronics. They are used where steady DC power is important.

Key Takeaways

• A full bridge rectifier changes AC power into steady DC power. It uses four diodes to do this job. This design makes the circuit work better. It also lowers the ripple in the output.

• You do not need a center-tapped transformer for this rectifier. This makes the circuit easier to build. It also saves money.

• Adding a smoothing capacitor helps make the DC voltage smoother. It cuts down on changes in the output.

• Full bridge rectifiers are used in many devices. They are found in power supplies, battery chargers, and welding machines. They give steady power to many electronic devices.

• When picking diodes for your rectifier, check their ratings. Make sure they can handle the voltage and current you need.

Full Bridge Rectifier Circuit

Circuit Diagram

If you look at a full bridge rectifier circuit, you will see four diodes. They are put together in a special way called a diode bridge rectifier. The AC input connects to two corners of the bridge. The other two corners connect to the load. This setup lets the circuit use both halves of the AC signal. You do not need a center-tapped transformer. This makes the design easy and saves money.

You can draw the full wave bridge rectifier circuit like a diamond. Each side of the diamond has one diode. The AC input goes to two points. The output goes to the other two points. This design helps the bridge rectifier send current through the load in the same direction for both halves of the AC cycle.

Key Components

To make a full wave bridge rectifier circuit, you need a few main parts. Here is what you need:

1. Four diodes (D₁, D₂, D₃, D₄) in a bridge pattern. These diodes control which way the current flows.

2. An AC power source. This gives the input signal for the circuit.

3. A load resistor. This is where you get the DC output from the circuit.

The four diodes in the bridge are the most important part of the circuit. When the AC is positive, two diodes let current flow. The other two stop the current. When the AC is negative, the diodes switch jobs. This way, the bridge rectifier always sends current through the load in the same direction. You get a steady DC output from the circuit.

You do not need a center-tapped transformer for this circuit. This makes the transformer smaller and cheaper. You save money because you use fewer wires. The design also means you get better efficiency.

When you pick diodes for your bridge rectifier, you should check their ratings. Look at this table for important things to know:

Parameter	Description
Maximum repetitive reverse voltage	The highest voltage the diode can handle in reverse many times.
Maximum DC reverse voltage	The highest voltage the diode can handle in reverse all the time.
Maximum forward voltage	The voltage drop across the diode when it lets current through.
Maximum (average) forward current	The most current the diode can carry on average without getting too hot.

A normal bridge rectifier can handle up to 100V. The current rating depends on how much heat it can take. If the temperature gets too high, the diodes may not work well. High heat can cause more leakage current and lower the voltage the diodes can block. Always choose diodes that fit your circuit’s needs. Keep them cool for better performance.

Working Principle

It is important to know how a full wave bridge rectifier works. It changes AC into DC. The bridge rectifier has four diodes in a special shape. This setup lets it use both halves of the AC signal. The current always goes one way through the load. That gives you steady DC power. The rectifier switches which diodes work in each half of the AC cycle. This switching makes the bridge rectifier work well.

Positive Cycle Operation

When the AC input is positive, the bridge rectifier moves current in a certain way. Here is what happens:

• Diodes D1 and D2 let current pass. They are forward-biased.

• Diodes D3 and D4 block current. They are reverse-biased.

• Current goes from the AC source, through D1, across the load resistor, and then through D2 back to the AC source.

• The load always gets current in the same direction.

The diodes turn on and off to keep the output positive during the whole positive half-cycle. You get current that only goes one way. That is what a rectifier is supposed to do.

Negative Cycle Operation

When the AC input is negative, the bridge rectifier changes which diodes let current flow. The way it works stays the same, but the path is different:

• Diodes D1 and D4 let current pass. They are forward-biased.

• Diodes D2 and D3 block current. They are reverse-biased.

• Current goes from the AC source, through D4, across the load resistor (in the same direction as before), and then through D1 back to the AC source.

• The output voltage stays positive. The load always gets current in the same direction.

The bridge rectifier switches the diodes so both halves of the AC input become DC output. The full-wave rectifier design gives you steady and strong DC power.

The full bridge rectifier uses all four diodes to change AC into DC. This setup lets you use both the positive and negative halves of the AC input. You get DC output that is smoother than what one diode can make. The way the full wave bridge rectifier works helps it be efficient and keeps the DC voltage steady.

The output voltage from a full wave bridge rectifier looks like a bunch of positive bumps. The waveform stays the same throughout the AC cycle. Both halves of the AC signal turn into positive bumps, so you get a bumpy DC voltage. You can use a filter, like a capacitor, to smooth out the bumps and get steadier DC power.

When you use a full-wave rectifier, you use all of your AC input. The bridge rectifier design lets you use both halves of the AC cycle. This means you get more power and waste less. The way the full wave bridge rectifier works makes it great for many electronic devices.

Output and Filtering

Output Characteristics

A bridge rectifier changes AC into DC power. The DC output is not a straight line. It looks like a row of bumps above zero. This happens because both halves of the AC wave turn into positive bumps. The bridge rectifier uses the whole AC wave, so it gives more power than using just one diode.

If you start with 220V AC, here is what you get:

• The highest voltage is about 311 volts.

• After the diodes, the top voltage is around 309 volts.

• The average DC voltage is about 196.8 volts. You get this by multiplying the highest voltage by 0.637.

The bridge rectifier always sends current one way through the load. This makes the output more steady. You do not need a center-tapped transformer. This keeps the circuit simple and saves money. The rectifier is good for things that need steady DC power.

Smoothing Capacitor

You can make the output smoother by adding a smoothing capacitor. The capacitor stores energy when the voltage is high. It gives out energy when the voltage drops. This fills in the dips between the bumps. You get a steadier DC voltage for your devices.

Here is what happens when you use a smoothing capacitor:

• The capacitor lowers the ripple, so the voltage stays steady.

• It charges up at the high points and gives out energy at the low points.

• A bigger capacitor smooths the output more, but it costs more and takes up more space.

• In a full-wave rectifier, the ripple happens twice as often. This helps the capacitor keep the voltage steady.

Tip: Pick the right size capacitor for your bridge rectifier. If it is too small, you get more bumps. If it is too big, it may cost more or need more space.

With a smoothing capacitor, your bridge rectifier can power electronics that need steady voltage. You get less noise and better results from your circuit.

Advantages and Disadvantages

Efficiency

A bridge rectifier works better than a half-wave rectifier. It uses both halves of the AC signal. This means you get more power and less waste. You do not need a center-tapped transformer. This makes your circuit easier and costs less. The bridge rectifier gives you higher average output voltage. It also makes DC power smoother.

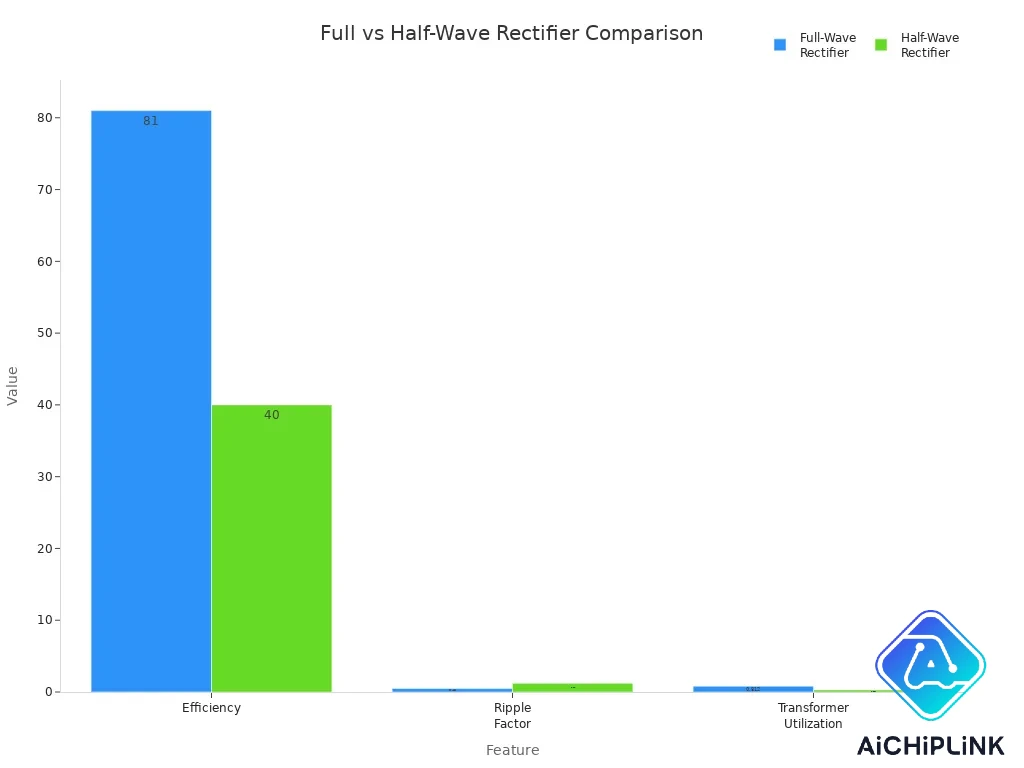

Here is a table that shows how a full-wave bridge rectifier compares to a half-wave rectifier:

Feature	Full-Wave Rectifier	Half-Wave Rectifier
Efficiency	~81%	~40%
Output Power	~4 times higher	Lower
Ripple Factor	~0.48	~1.21
Filtering Ease	Easier	More complex
Transformer Utilization Factor	~0.812	~0.287

The bridge rectifier is almost twice as efficient. It gives about four times more output power. The ripple factor is much lower. This makes it easier to filter the output. You can use smaller and cheaper capacitors to smooth the DC voltage.

Tip: If you want steady and strong DC power, use a bridge rectifier. It is the best choice for most power supply circuits.

Ripple and Limitations

A bridge rectifier has many good points, but it also has some limits. The output still has some ripple. This means the DC voltage is not perfectly smooth. You can use a filter capacitor to lower the ripple. Some small bumps may still be there.

Here are some common disadvantages and limits of the bridge rectifier:

• The design is harder than a half-wave rectifier because you need four diodes.

• The output voltage drops more since current goes through two diodes at once.

• You need four diodes, so your circuit costs more and is bigger.

• If one diode breaks, the whole rectifier may stop working.

• The bridge rectifier is not good for very small voltage signals because the double voltage drop is too high.

You may have problems in tough places. Too much load or a short circuit can make the diodes too hot. Starting and stopping a lot can break the diodes. Old parts, high heat, and bad design can also cause failure.

Failure Mode	Description
Overload and Short Circuits	Too much current can make the rectifier burn out.
Frequent Start-Stop Cycles	Inductive loads can break the diodes in reverse.
Aging Components	Parts can wear out from heat and stress over time.
Environmental Conditions	High heat, wetness, or rust can hurt the rectifier.
Design Flaws	Bad design can make the rectifier fail during normal use.

Note: Always pick diodes with the right ratings for your bridge rectifier. Keep your circuit cool and well-designed to avoid most problems.

Applications of Full Wave Bridge Rectifier

The full wave bridge rectifier is used in many electronics. It helps change AC power into steady DC power. You see it in lots of devices that need DC power.

Power Supplies

Bridge rectifiers are found in almost every power supply. They take AC from the wall and turn it into DC. This DC power runs things like TVs, radios, computers, and battery chargers. The full bridge rectifier gives a steady voltage. This helps your devices work safely and last longer. You also find it in power adapters and special power circuits. These circuits need steady DC for sensitive electronics.

A full wave bridge rectifier is needed in battery chargers for phones, laptops, and tablets. It makes sure your device gets safe power for charging.

Some places you find bridge rectifiers in power supplies are:

• Battery chargers for portable devices

• LED driver circuits for lights

• UPS systems for backup power

• Lab power supplies for experiments

Electric Welding

Full bridge rectifiers are used in welding machines. They change AC to DC for steady current. This steady DC helps make strong and clean welds. The rectifier keeps the current smooth, so the welding arc is steady. This is important for welding metals like aluminum and stainless steel.

• The rectifier gives DC voltage with one direction, which helps stop oxidation.

• You get fewer problems when welding and better control.

• The full wave bridge rectifier helps your welding machine work well and accurately.

Radio Signal Detection

Bridge rectifiers help in radio signal detection too. They find the strength of radio signals after they are made bigger. The full wave bridge rectifier is used in RF receivers and transmitters. It lets you check signal strength right away, so your signal stays clear and strong.

• In audio devices, the rectifier helps find audio signal levels.

• This lets the volume change as needed, making listening better.

• The bridge rectifier makes sure your radio and audio devices get steady DC power.

The full bridge rectifier is not just for power supplies. It is important in welding and radio circuits too. You get steady DC power in many different uses.

You now know a full bridge rectifier turns AC into steady DC power. This type uses four diodes to make the output smooth with less ripple. You get stable voltage for devices that need it. The transformer works better and can be smaller. The bridge rectifier design helps your circuit be smaller and more dependable.

• Some main benefits are:

  • DC output is smoother with less ripple

  • Transformer works better and can be smaller

  • No center-tap transformer is needed

  • DC output stays steady for many things

"Full diode bridge rectifiers do a better job than other types. They keep the output steady, even if the load changes."

When you choose a bridge rectifier, look at voltage and current ratings. Think about what is good and what is not. If you want to know more, there are guides about other rectifier types and how they work.
