How to Test and Troubleshoot a Transmission Speed Sensor

You want to know how to test a transmission speed sensor because your car feels off. Maybe your speedometer jumps around. Sometimes you see strange warning lights. You might even notice rough shifting. When you test a transmission speed sensor, you check if it sends the right signals to your car’s computer. You need to test a transmission speed sensor for safety and smooth driving. If you test a transmission speed sensor, you can catch problems early. Always test a transmission speed sensor with care. Use simple steps, stay safe, and feel confident doing it yourself.

Key Takeaways

• Look for warning signs like a speedometer that jumps or shifting that feels rough. These signs can mean there is a problem with your transmission speed sensor.

• Test the sensor’s resistance with a multimeter. The normal range is between 200 and 1,000 ohms. If the number is too high or too low, the sensor might be bad.

• Safety is very important when you work on your car. Wear safety gear, park on flat ground, and disconnect the battery before you start any tests.

• Check your transmission speed sensor often to find problems early. This helps you avoid expensive repairs and keeps your car working well.

• If fixing the problem does not work, ask a professional for help. A mechanic can find hidden problems and make sure your car stays safe.

Transmission Speed Sensor Symptoms

Warning Signs

You might notice some strange things when your transmission speed sensor starts to fail. These warning signs often show up before bigger problems happen. Here are some common symptoms of a bad speed sensor:

• Your speedometer jumps around or stops working.

• The car shifts gears at the wrong time, which feels like erratic shifting.

• You see the Check Engine Light on your dashboard.

• Cruise control stops working.

• The car hesitates when you try to speed up.

• You feel rough or harsh shifting when you drive.

If you spot these symptoms of a bad speed sensor, you should check your vehicle speed sensor soon. Sometimes, the output shaft speed sensor can also cause similar issues.

Dashboard Codes

Modern cars use computers to watch for problems. When the system finds symptoms of a bad speed sensor, it stores error codes related to the transmission speed sensor. You can use a scan tool to read these codes. If you see codes about the transmission speed sensor, you know something is wrong. Locating the transmission speed sensor and checking it can help you fix the problem before it gets worse.

Tip: If you get a code for the transmission speed sensor, write it down. This helps you or your mechanic find the exact issue faster.

Performance Issues

A faulty transmission speed sensor can cause many performance problems. You might feel erratic shifting or notice the car uses more gas than usual. Sometimes, the car shifts too early or too late. This makes your ride rough and can hurt fuel efficiency. You may also lose cruise control or see the speedometer act strange. These are all symptoms of a bad speed sensor. If you ignore these functions of bad speed sensor, you risk bigger repairs later. New transmission speed sensors can fix these problems and help your car run smoothly again. Locating the transmission speed sensor and checking it can save you time and money.

Tools and Safety for Testing a Transmission Speed Sensor

Required Tools

Before you start testing your transmission speed sensor, you need the right tools. You don’t want to get halfway through and realize you’re missing something important. Here’s a quick checklist to help you get ready:

• Multimeter (for checking voltage and resistance)

• Scan tool (to read error codes from your car’s computer)

• Service manual for your vehicle (so you know where everything is)

• Pen and notepad (to jot down codes or readings)

• Jack and jack stands (to safely lift and support your car)

• Safety goggles and gloves (to protect your eyes and hands)

If your car uses a Hall Effect sensor, you might need a scope. Most DIY garages don’t have one, so check your service manual to see what type of sensor you have. Always make sure your car is properly supported before you crawl underneath. Never work on a vehicle that isn’t safe.

Tip: Keep your tools organized. Lay them out before you start. This saves time and helps you avoid mistakes.

Safety Precautions

Safety comes first every time you work on your car. You want to avoid accidents and keep yourself protected. Here are some simple steps to follow:

• Park your car on a level surface.

• Engage the parking brake.

• Wear safety goggles and gloves.

• Use jack stands to support your car, not just the jack.

• Disconnect the battery before you touch any electrical parts.

Don’t rush. Take your time and double-check each step. If you feel unsure, ask for help or look up your vehicle’s service manual. You can prevent electrical hazards and injuries by following these safety tips.

Note: If you don’t know how to use a multimeter or scan tool, practice first. Watch a video or read your manual. You’ll feel more confident and avoid mistakes.

Testing your transmission speed sensor is a smart DIY project. With the right tools and safety steps, you can do it safely and correctly.

How to Test a Speed Sensor

Disconnecting and Locating

You want to start with safety. Always wear gloves and goggles. Park your car on a flat surface and set the parking brake. Disconnect the negative battery cable to avoid shocks. Now, grab your service manual. It will help you find the transmission speed sensor. Most sensors sit on the transmission or transaxle. Here’s a step-by-step guide to get you started:

1. Put on your safety gear.

2. Disconnect the negative battery cable.

3. Use your manual to locate the transmission speed sensor.

4. Carefully unplug the wiring from the sensor.

5. If you need to remove the sensor, use a wrench or pry bar.

6. Clean the area before installing a new sensor.

7. Secure the new sensor with bolts if you are replacing it.

8. Reconnect the wiring and make sure the speed sensor connection is tight.

Tip: Always check sensor connection for dirt or corrosion. A dirty plug can cause false readings.

Testing with a Multimeter

Now you are ready for testing a transmission speed sensor. Grab your multimeter and set it to measure resistance (ohms). Touch the probes to the sensor terminals. Compare your reading to the specs in your manual. Most transmission speed sensors show resistance between 200 and 1,000 ohms. Some Ford and GM models may show much higher values.

Here’s a table to help you see what’s normal:

Car Brand	Sensor Type	Resistance (Ohms)
Various	Speed Sensor	200 - 1,000
Ford & GM	Input Speed	346,700
Ford & GM	Other Sensors	4,880,000

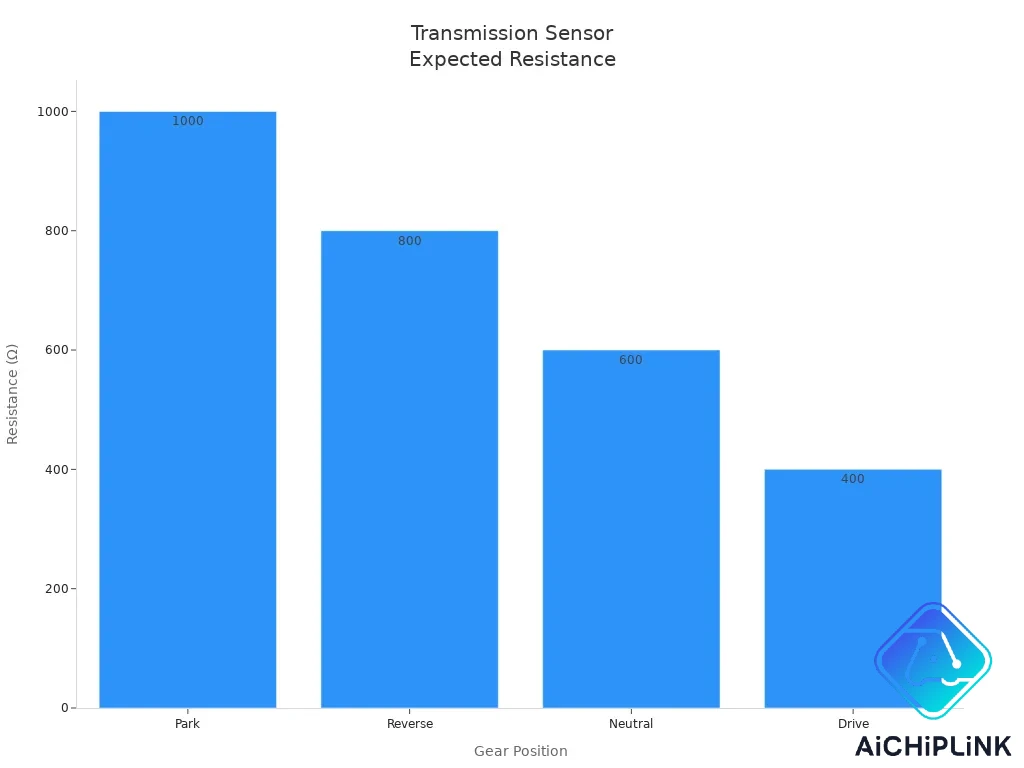

You can also check resistance by gear position. Here’s what you might see:

Gear Position	Expected Resistance
Park	1,000 Ω
Reverse	800 Ω
Neutral	600 Ω
Drive	400 Ω

If your readings match the specs, your sensor works fine. If you see a very high number, a very low number, or “OL” (open loop), your sensor may be faulty. Testing a transmission speed sensor this way helps you spot problems fast.

• Good result: Resistance matches specs.

• Fault found: Resistance too high, too low, or OL.

• Voltage steady and correct means the sensor works. No change or zero means a problem.

Note: Always compare your results to your car’s manual. Different cars use different sensors.

Inspecting Wiring

Sometimes the problem is not the sensor but the wires. Look at the speed sensor wiring closely. Check for:

• Damage

• Fraying

• Wear

• Exposed conductors

If you see any of these, fix or replace the wires. Bad wiring can cause the same symptoms as a bad sensor. Make sure all wires connect tightly and have no rust or dirt. Testing a transmission speed sensor includes checking the wiring every time.

Clearing Error Codes

After you test speed sensor and make repairs, you need to clear any error codes. Use a scan tool for this job. Plug the tool into your car’s OBD port. Look for codes like P0700, P0715, P0730, P0750, P0776, or P0796. These codes point to transmission speed sensor problems. Select the option to clear or reset the codes.

Tip: Write down any codes before you clear them. This helps if the problem comes back.

Test Drive

You finished testing a transmission speed sensor and made repairs. Now it’s time for a test drive. Here’s what to do:

1. Drive your car around the block.

2. Watch the dashboard for warning lights.

3. Check the speedometer to see if it works right.

4. Pay attention to how the transmission shifts.

5. Make sure the car feels smooth and there are no strange noises.

If everything works, you fixed the problem. If you see warning lights or feel rough shifting, you may need to repeat the steps or get help from a pro.

? Remember: Always test your car after repairs. This is the best way to know if your transmission speed sensor works.

Troubleshoot Speed Sensors and Next Steps

Interpreting Results

You finished testing your transmission speed sensor. Now you need to figure out what your results mean. If you see normal resistance and steady voltage, your sensor works fine. If the readings jump around or show “OL,” you probably have a faulty speed sensor. Sometimes, the problem comes from a loose connector or damaged wiring. You might notice the sensor signal looks erratic. This can point to issues with the sensor itself or the connections.

Here’s what you should look for when you troubleshoot speed sensors:

• The sensor signal jumps or drops. This means you could have a faulty speed sensor or a wiring problem.

• The connector feels loose or looks dirty. A poor connection can cause transmission problems.

• After you fix the wiring or replace the sensor, your transmission should work normally.

Tip: Always double-check the connector and wiring before you decide to replace the sensor. Sometimes a simple fix solves the problem.

If you still see symptoms like a faulty speed sensor after repairs, you may need to dig deeper. Keep an eye on your dashboard and listen for strange noises. These clues help you spot a faulty transmission speed sensor before it gets worse.

Repair or Replace

You found the problem. Now you need to decide if you should repair or replace the sensor. Many transmission problems come from a faulty speed sensor. You can often fix these issues by replacing the sensor instead of doing expensive repairs. Diagnostic tools help you find the exact problem fast. You don’t have to guess or replace the whole transmission.

Here are some common repair methods:

• Replace the faulty speed sensor with a new one.

• Clean and tighten the connector.

• Fix or replace damaged wiring.

Transmission sensors watch for changes and send signals to your car’s computer. If the sensor fails, your transmission may not shift right or your speedometer may act strange. Troubleshooting a faulty transmission sensor helps you avoid bigger problems.

You might wonder if you should repair or replace the sensor. Use this table to help you decide:

Criteria for Decision	Details
Lifespan	30,000 to 50,000 miles
Factors Affecting Longevity	Driving conditions, installation, electrical faults, contamination, maintenance
Symptoms of Failure	Erratic speedometer readings, malfunctioning cruise control

If your vehicle speed sensor has reached its lifespan or shows signs of failure, replacement is usually the best choice. If you catch the problem early, you can save money and keep your car running smoothly.

Professional Help

Sometimes you do everything right, but the problem won’t go away. You might see warning lights, rough shifting, or strange noises even after repairs. This is when you should think about getting professional help. A mechanic has special tools and training to find hidden problems.

Here’s what you can expect if you go to a shop:

• Diagnostics usually take about 1 hour.

• Replacing the part can take up to 3.8 hours.

• The average total cost is around $1300, but some shops charge closer to $1000.

• If you only need a vehicle speed sensor replacement, you’ll pay between $343 and $447.

• Labor costs range from $182 to $267.

• Parts cost between $161 and $181.

?️ Note: If you feel unsure or the problem keeps coming back, don’t wait. A professional can save you time and money.

You don’t have to fix everything yourself. If you need help, reach out to a trusted mechanic. They can diagnose and repair a faulty transmission speed sensor quickly. This keeps your car safe and reliable.

You can check your transmission speed sensor by using easy steps. Make sure you stay safe and wear protective gear. Always double-check what you do to avoid mistakes. Checking your sensor often helps you find problems early. This keeps your car working well.

• Look at your sensor once a year to find problems early.

• Follow your mechanic’s advice for when to get service.

• If your car shifts strangely, test your sensor right away.

Benefit	Description
Problem Prevention	Regular care helps you avoid big repairs and breakdowns.
Vehicle Health	Your transmission and powertrain stay in good shape with regular checks.
Better Performance	Smooth shifting and better gas mileage make driving easier and more fun.

You can do this! With some work, you can fix small problems yourself and keep your car running well.
